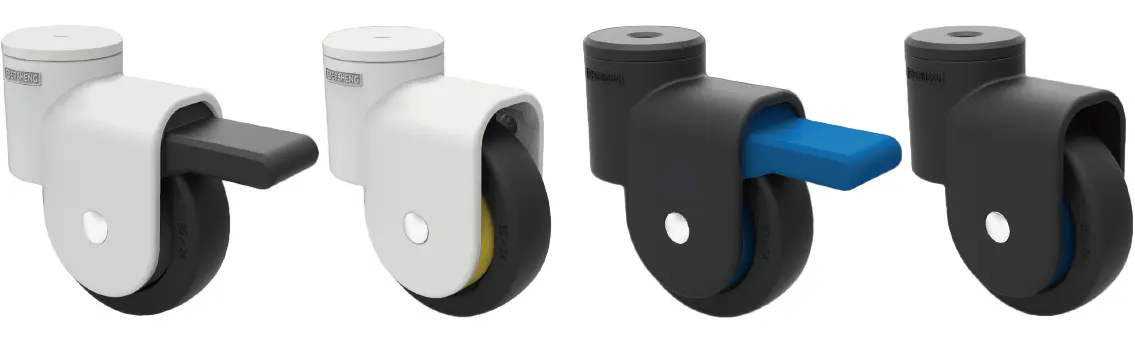

1160系列 — UNI系列
转动灵活、外型美观，行走稳定顺畅，另有不锈钢材质的五金件可供选择
特色区

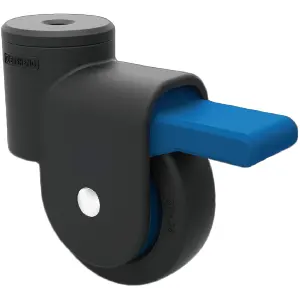

中剎

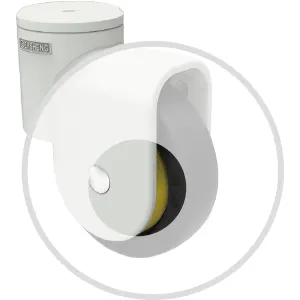

导电轮
特色区
中剎
定向剎
轮子选择
超级人造胶
底板规格
| 底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 42 x 42 mm |
32 x 32 mm |
M4/M5 |
| 60 x 60 mm |
42.5 x 42.5 mm |
M6 |
插杆规格
| 插杆直径 x 长度 Diameter x Length |
孔位高度 Hole Height |
孔尺寸 Bore Size |
| 11 x 38 mm | ─ | C型铜釦环 (Grip Ring) |
| 11 x 22 mm | ─ | C型环 (Grip Ring) |
丝扣规格
| 丝扣牙径 x 长度 Threaded Size |
丝扣牙径 x 长度 Threaded Size |
丝扣牙径 x 长度 Threaded Size |
丝扣牙径 x 长度 Threaded Size |
| M8X15mm | M8X25mm | 3/8-16UNCX15mm | 3/8-16UNCX25mm |
| M10X25mm | M12 x 25 mm | 1/2-12UNCX25mm | ─ |
盲孔规格
| 孔径 Center Hole |
| 10mm |
底板规格
| 底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 42 x 42 mm |
32 x 32 mm |
M4/M5 |
| 底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 42 x 42 mm |
32 x 32 mm |
M4/M5 |
| 60 x 60 mm |
42.5 x 42.5 mm |
M6 |
插杆规格
| 插杆直径 x 长度 Diameter x Length |
孔位高度 Hole Height |
孔尺寸 Bore Size |
| 11 x 38 mm | ─ | C型铜釦环 (Grip Ring) |
| 11 x 22 mm | ─ | C型环 (Grip Ring) |
丝扣规格
| 丝扣牙径 x 长度 Threaded Size |
丝扣牙径 x 长度 Threaded Size |
丝扣牙径 x 长度 Threaded Size |
丝扣牙径 x 长度 Threaded Size |
| M8X15mm | M8X25mm | 3/8-16UNCX15mm | 3/8-16UNCX25mm |
| M10X25mm | M12 x 25 mm | 1/2-12UNCX25mm | ─ |
盲孔规格
| 孔径 Center Hole |
| 10mm |
轮子详细资讯
| 轮径 × 轮宽 | 规格 | 载重 | 材质 | 型号 | 轴承 | 总高 | 偏心距 | 迴旋半径 | |
| 活动 | 中剎 | ||||||||
| 51mmx20mm (2"x13/16") |
四角底板 Plate |
30kgs(66lbs) | 超级人造胶 TPR on PP Core |
11600200262013 | 11600200264013 | 中管 Plain Bearing |
86.5mm |
24mm | 活动 50mm
|
| 11600200262023 | 11600200264023 | ||||||||
| 丝扣 Threaded Stem |
30kgs(66lbs) | 超级人造胶 TPR on PP Core |
11600200265043 | 11600200266043 | 79.5mm | ||||
| 11600200265033 | 11600200266033 | ||||||||
| 11600200265023 | 11600200266023 | ||||||||
| 11600200265223 | 11600200266223 | ||||||||
| 11600200265013 | 11600200266013 | ||||||||
| 11600200265293 | 11600200266293 | ||||||||
| 11600200265213 | 11600200266213 | ||||||||
| 盲孔 Blind Hole |
30kgs(66lbs) | 超级人造胶 TPR on PP Core |
11600200269213 | 11600200269413 | 74mm | ||||
| 插杆 Cylindrical Stem |
30kgs(66lbs) | 超级人造胶 TPR on PP Core |
11600200267023 | 11600200268023 | 79.5mm | ||||
| 11600200267043 | 11600200268043 | ||||||||
| 80mmx24mm (3.2"x1") |
四角底板 Plate |
40kgs(88lbs) | 超级人造胶 TPR on PP Core |
11602300262013 | 11602300264013 | 中管 Plain Bearing |
116.5mm |
34mmm | 活动 74.5mm
|
| 11602300262023 | 11602300264023 | ||||||||
| 丝扣 Threaded Stem |
40kgs(88lbs) | 超级人造胶 TPR on PP Core |
11602300265043 | 11602300266043 | 109.5mm | ||||
| 11602300265033 | 11602300266033 | ||||||||
| 11602300265023 | 11602300266023 | ||||||||
| 11602300265223 | 11602300266223 | ||||||||
| 11602300265013 | 11602300266013 | ||||||||
| 11602300265293 | 11602300266293 | ||||||||
| 11602300265213 | 11602300266213 | ||||||||
| 盲孔 Blind Hole |
40kgs(88lbs) | 超级人造胶 TPR on PP Core |
11602300269213 | 11602300269413 | 104mm | ||||
| 插杆 Cylindrical Stem |
40kgs(88lbs) | 超级人造胶 TPR on PP Core |
11602300267023 | 11602300268023 | 109.5mm | ||||
| 11602300267043 | 11602300268043 | ||||||||
