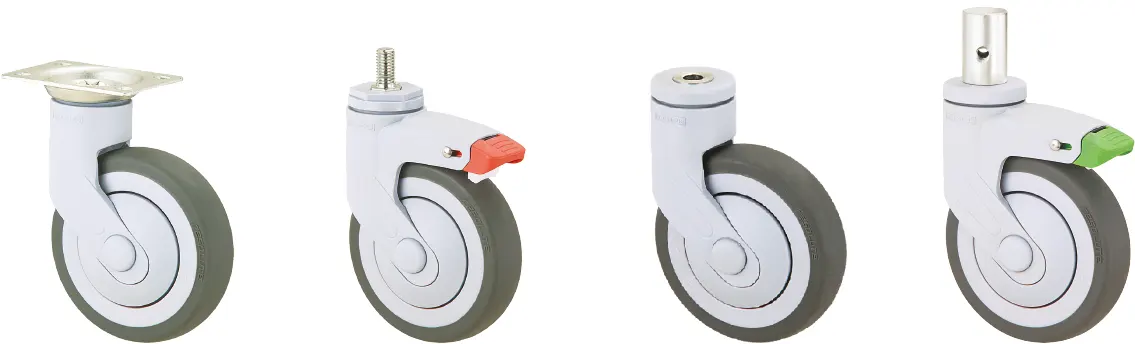

1155系列 — 全塑-1系列
*无汙染 *超静音 *防生鏽 *弹性佳 *低阻力 *转动灵活
*耐冲材质 *专利产品 *产品轻量化且坚固耐用
*可另选购有抗菌效果之全效轮TPR轮
*适用于医疗器材设备、傢俱置物架、食品工厂、学校、办公室等场所。
*另有不鏽钢材质的五金件可供选择 *可提供无磁脚轮
特色区
双剎
定向剎
长踏板
超长踏板
无磁脚轮
导电轮
特色区
双剎
定向剎
长踏板
超长踏板
无磁脚轮
导电轮
轮子选择
铝芯AQPU
全效轮
超级人造胶
导电轮
超级人造胶(大圆弧)
全效轮(大圆弧)
底板规格
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 3" | 42 x 42 mm | 32 x 32 mm * | M4/M5 |
| 3" | 60 x 60 mm | 42.5 x 42.5 mm * | M6 |
| 3" | 62 x 94 mm | 45 x 75 mm (高级底板) * | M8 |
| 3" | 69 x 96 mm | 49 x 74.5 mm (斜孔底板) * | M8 |
| 4" 5" | 69 x 96 mm | 45 x 75 mm (高级底板) * | M8 |
| 3" 4" 5" | 69 x 96 mm | 49 x 74.5 mm (斜孔底板) * | M8 |
*有固定架和定向活动架可供选择 (Fixed Caster and Directional Swivel Caster is available. Please consult the factory.)
插杆规格
| 规格 Size |
插杆直径 x 长度 Diameter x Length |
规格 Size |
插杆直径 x 长度 Diameter x Length |
| 3" | 11 x 22 mm | ─ | C型环 (Grip Ring) |
| 3" | 11 x 38 mm | ─ | C型铜扣环 (Grip Ring) |
| 4" 5" | 21.6 x 56 mm | ─ | C型环 (Grip Ring) |
| 4" 5" | 21.5 x 44.5 mm | 25.4 mm * | #10 X 24UNC+C型环(Grip Ring) |
| 4" 5" | 28 x 30 mm | 19 mm * | M8 |
| 4" 5" | 28 x 40 mm | 19 mm * | M8 |
*有固定架和定向活动架可供选择 (Fixed Caster and Directional Swivel Caster is available. Please consult the factory.)
丝扣规格
| 规格 Size |
丝扣牙径 x 长度 Threaded Size |
规格 Size |
丝扣牙径 x 长度 Threaded Size |
| 3" | 3/8-16UNC x 25 mm | 3" | M10 x 15 mm |
| 3" | M12 x 25 mm | 4" 5" | 3/8-16UNC x 32 mm |
| 4" 5" | M12 x 25 mm | 4" 5" | M12X25mm (不鏽钢SS) |
| 4" 5" | 1/2-12UNC x 25 mm | 4" 5" | 1/2-20UNC x 25mm (不鏽钢SS) |
| 4" 5" | M16 x 30 mm |
空铆规格
| 规格 Size |
孔径 Centre Hole |
规格 Size |
孔径 Centre Hole |
| 3" 4" 5" | 10.5 mm | 4" 5" | 12.5 mm |
底板规格
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 3" | 42 x 42 mm | 32 x 32 mm * | M4/M5 |
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 3" | 42 x 42 mm | 32 x 32 mm * | M4/M5 |
| 3" | 60 x 60 mm | 42.5 x 42.5 mm * | M6 |
| 3" | 62 x 94 mm | 45 x 75 mm (高级底板) * | M8 |
| 3" | 69 x 96 mm | 49 x 74.5 mm (斜孔底板) * | M8 |
| 4" 5" | 69 x 96 mm | 45 x 75 mm (高级底板) * | M8 |
| 3" 4" 5" | 69 x 96 mm | 49 x 74.5 mm (斜孔底板) * | M8 |
*有固定架和定向活动架可供选择 (Fixed Caster and Directional Swivel Caster is available. Please consult the factory.)
插杆规格
| 规格 Size |
插杆直径 x 长度 Diameter x Length |
规格 Size |
插杆直径 x 长度 Diameter x Length |
| 3" | 11 x 22 mm | ─ | C型环 (Grip Ring) |
| 3" | 11 x 38 mm | ─ | C型铜扣环 (Grip Ring) |
| 4" 5" | 21.6 x 56 mm | ─ | C型环 (Grip Ring) |
| 4" 5" | 21.5 x 44.5 mm | 25.4 mm * | #10 X 24UNC+C型环(Grip Ring) |
| 4" 5" | 28 x 30 mm | 19 mm * | M8 |
| 4" 5" | 28 x 40 mm | 19 mm * | M8 |
*有固定架和定向活动架可供选择 (Fixed Caster and Directional Swivel Caster is available. Please consult the factory.)
丝扣规格
| 规格 Size |
丝扣牙径 x 长度 Threaded Size |
规格 Size |
丝扣牙径 x 长度 Threaded Size |
| 3" | 3/8-16UNC x 25 mm | 3" | M10 x 15 mm |
| 3" | M12 x 25 mm | 4" 5" | 3/8-16UNC x 32 mm |
| 4" 5" | M12 x 25 mm | 4" 5" | M12X25mm (不鏽钢SS) |
| 4" 5" | 1/2-12UNC x 25 mm | 4" 5" | 1/2-20UNC x 25mm (不鏽钢SS) |
| 4" 5" | M16 x 30 mm |
空铆规格
| 规格 Size |
孔径 Centre Hole |
规格 Size |
孔径 Centre Hole |
| 3" 4" 5" | 10.5 mm | 4" 5" | 12.5 mm |
轮子详细资讯
| 轮径 × 轮宽 | 规格 | 载重 | 材质 | 型号 | 轴承 | 总高 | 偏心距 | 迴旋半径 | |||
| 固定 | 活动 | 双煞 | 定向煞 | ||||||||
| 75mm x 25mm (3" x 1") |

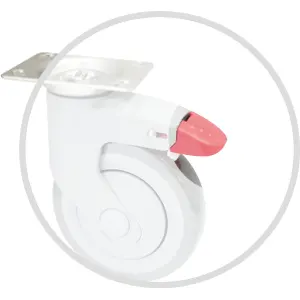

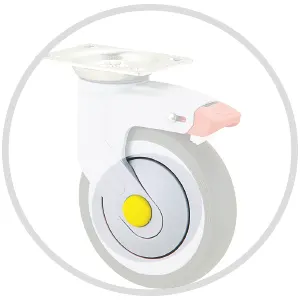

四角底板 Plate |
75kgs (165lbs) | 全效轮 Resolute |
1155-03-68-1 | 1155-03-68-2 | 1155-03-68-4 | ─ | 滚珠轴承 Ball Bearing |
113mm | 27mm | 活动 64.5mm |
| 65kgs (143lbs) | 导电轮 E-conductive |
1155-03-17-1 | 1155-03-17-2 | 1155-03-17-4 | ─ | 滚珠轴承 Ball Bearing |
|||||
| 75kgs (165lbs) | 超级人造胶 TPR on PP Core |
1155-03-75-1 | 1155-03-75-2 | 1155-03-75-4 | ─ | 滚珠轴承 Ball Bearing |
|||||

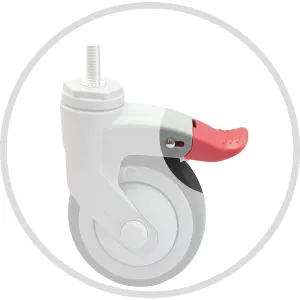

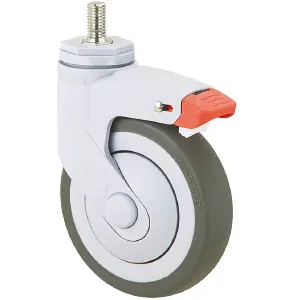

| 丝扣 Threaded Stem |
75kgs (165lbs) | 全效轮 Resolute |
─ | 1155-03-68-2 | 1155-03-68-4 | ─ | 滚珠轴承 Ball Bearing |
107mm | |||
| 65kgs (143lbs) | 导电轮 E-conductive |
─ | 1155-03-17-2 | 1155-03-17-4 | ─ | 滚珠轴承 Ball Bearing |
|||||
| 75kgs (165lbs) | 超级人造胶 TPR on PP Core |
─ | 1155-03-75-2 | 1155-03-75-4 | ─ | 滚珠轴承 Ball Bearing |
|||||
| 空铆 SingleBolt Hole |
75kgs (165lbs) | 全效轮 Resolute |
─ | 1155-03-68-2 | 1155-03-68-4 | ─ | 滚珠轴承 Ball Bearing |
104mm | |||
| 65kgs (143lbs) | 导电轮 E-conductive |
─ | 1155-03-17-2 | 1155-03-17-4 | ─ | 滚珠轴承 Ball Bearing |
|||||
| 75kgs (165lbs) | 超级人造胶 TPR on PP Core |
─ | 1155-03-75-2 | 1155-03-75-4 | ─ | 滚珠轴承 Ball Bearing |
|||||

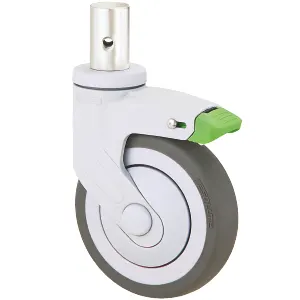

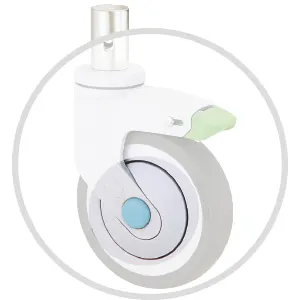

| 插杆 Cylindrical Stem |
75kgs (165lbs) | 全效轮 Resolute |
1155-03-68-1 | 1155-03-68-2 | 1155-03-68-4 | ─ | 滚珠轴承 Ball Bearing |
104mm | |||
| 65kgs (143lbs) | 导电轮 E-conductive |
1155-03-17-1 | 1155-03-17-2 | 1155-03-17-4 | ─ | 滚珠轴承 Ball Bearing |
|||||
| 75kgs (165lbs) | 超级人造胶 TPR on PP Core |
1155-03-75-1 | 1155-03-75-2 | 1155-03-75-4 | ─ | 滚珠轴承 Ball Bearing |
|||||
| 100mm x 24mm (4" x 15/16") |
四角底板 Plate |
60kgs (132lbs) | 经典全效轮 Resolute |
1155-04-68-1 | 1155-04-68-2 | 1155-04-68-4 | 1155-04-68-9 | 滚珠轴承 Ball Bearing |
141mm | 36mm | 活动 86mm 煞车(超长踏板) |
| 60kgs (132lbs) | 经典超级人造胶 TPR on PP Core |
1155-04-75-1 | 1155-04-75-2 | 1155-04-75-4 | 1155-04-75-9 | 滚珠轴承 Ball Bearing |
|||||
| 50kgs (110lbs) | 经典超级人造胶 TPR on PP Core |
1155-04-75-1 | 1155-04-75-2 | 1155-04-75-4 | 1155-04-75-9 | 中管 Plain Bearing |
|||||
| 50kgs (110lbs) | 经典超级人造胶 TPR on PP Core |
1155-04-75-1 | 1155-04-75-2 | 1155-04-75-4 | 1155-04-75-9 | 中管 (无防尘盖) Plain Bearing |
|||||
| 100mm x 31mm (4" x 1-1/4") |
90kgs (198lbs) | 全效轮 Resolute |
1155-04-68-1 | 1155-04-68-2 | 1155-04-68-4 | 1155-04-68-9 | 滚珠轴承 Ball Bearing |
||||
| 60kgs (132lbs) | 经典全效轮 Resolute |
1155-04-68-1 | 1155-04-68-2 | 1155-04-68-4 | 1155-04-68-9 | 滚珠轴承 Ball Bearing |
|||||
| 90kgs (198lbs) | 导电轮 E-conductive |
1155-04-17-1 | 1155-04-17-2 | 1155-04-17-4 | 1155-04-17-9 | 滚珠轴承 Ball Bearing |
|||||
| 90kgs (198lbs) | 超级人造胶 TPR on PP Core |
1155-04-75-1 | 1155-04-75-2 | 1155-04-75-4 | 1155-04-75-9 | 滚珠轴承 Ball Bearing 中管 Plain Bearing |
|||||
| 80kgs (176lbs) | 经典超级人造胶 TPR on PP Core |
1155-04-75-1 | 1155-04-75-2 | 1155-04-75-4 | 1155-04-75-9 | 滚珠轴承 Ball Bearing 中管 Plain Bearing |
|||||
| 80kgs (176lbs) | 经典超级人造胶 TPR on PP Core |
1155-04-75-1 | 1155-04-75-2 | 1155-04-75-4 | 1155-04-75-9 | 中管 (无防尘盖) Plain Bearing |
|||||
| 90kgs (198lbs) | 铝芯AQPU QPU on AL Core |
1155-04-87-1 | 1155-04-87-2 | 1155-04-87-4 | 1155-04-87-9 | 滚珠轴承 Ball Bearing |
|||||
| 80kgs (176lbs) | 超级人造胶 (大圆弧) TPR on PP Core(Dount) |
1155-04-110-1 | 1155-04-110-2 | 1155-04-110-4 | 1155-04-110-9 | 滚珠轴承 Ball Bearing |
|||||
| 90kgs (198lbs) | 全效轮(大圆弧) Resolute(Dount) |
1155-04-111-1 | 1155-04-111-2 | 1155-04-111-4 | 1155-04-111-9 | 滚珠轴承 Ball Bearing |
|||||
| 100mm x 24mm (4" x 15/16") |
丝扣 Threaded Stem |
60kgs (132lbs) | 经典全效轮 Resolute |
─ | 1155-04-68-2 | 1155-04-68-4 | ─ | 滚珠轴承 Ball Bearing |
139mm | ||
| 60kgs (132lbs) | 经典超级人造胶 TPR on PP Core |
─ | 1155-04-75-2 | 1155-04-75-4 | ─ | 滚珠轴承 Ball Bearing |
|||||
| 50kgs (110lbs) | 经典超级人造胶 TPR on PP Core |
─ | 1155-04-75-2 | 1155-04-75-4 | ─ | 中管 Plain Bearing |
|||||
| 50kgs (110lbs) | 经典超级人造胶 TPR on PP Core |
─ | 1155-04-75-2 | 1155-04-75-4 | ─ | 中管 (无防尘盖) Plain Bearing |
|||||
| 100mm x 31mm (4" x 1-1/4") |
90kgs (198lbs) | 全效轮 Resolute |
─ | 1155-04-68-2 | 1155-04-68-4 | ─ | 滚珠轴承 Ball Bearing |
||||
| 60kgs (132lbs) | 经典全效轮 Resolute |
─ | 1155-04-68-2 | 1155-04-68-4 | ─ | 滚珠轴承 Ball Bearing |
|||||
| 90kgs (198lbs) | 导电轮 E-conductive |
─ | 1155-04-17-2 | 1155-04-17-4 | ─ | 滚珠轴承 Ball Bearing |
|||||
| 90kgs (198lbs) | 超级人造胶 TPR on PP Core |
─ | 1155-04-75-2 | 1155-04-75-4 | ─ | 滚珠轴承 Ball Bearing 中管 Plain Bearing |
|||||
| 80kgs (176lbs) | 经典超级人造胶 TPR on PP Core |
─ | 1155-04-75-2 | 1155-04-75-4 | ─ | 滚珠轴承 Ball Bearing 中管 Plain Bearing |
|||||
| 80kgs (176lbs) | 经典超级人造胶 TPR on PP Core |
─ | 1155-04-75-2 | 1155-04-75-4 | ─ | 中管 (无防尘盖) Plain Bearing |
|||||
| 90kgs (198lbs) | 铝芯AQPU QPU on AL Core |
─ | 1155-04-87-2 | 1155-04-87-4 | ─ | 滚珠轴承 Ball Bearing |
|||||
| 80kgs (176lbs) |
超级人造胶 (大圆弧) TPR on PP Core(Dount) |
─ | 1155-04-110-2 | 1155-04-110-4 | ─ | 滚珠轴承 Ball Bearing |
|||||
| 90kgs (198lbs) | 全效轮(大圆弧) Resolute(Dount) |
─ | 1155-04-111-2 | 1155-04-111-4 | ─ | 滚珠轴承 Ball Bearing |
|||||
| 100mm x 24mm (4" x 15/16") |
空铆 SingleBolt Hole |
60kgs (132lbs) | 经典全效轮 Resolute |
─ | 1155-04-68-2 | 1155-04-68-4 | 1155-04-68-9 | 滚珠轴承 Ball Bearing |
138mm | ||
| 60kgs (132lbs) | 经典超级人造胶 TPR on PP Core |
─ | 1155-04-75-2 | 1155-04-75-4 | 1155-04-75-9 | 滚珠轴承 Ball Bearing |
|||||
| 50kgs (110lbs) | 经典超级人造胶 TPR on PP Core |
─ | 1155-04-75-2 | 1155-04-75-4 | 1155-04-75-9 | 中管 Plain Bearing |
|||||
| 50kgs (110lbs) | 经典超级人造胶 TPR on PP Core |
─ | 1155-04-75-2 | 1155-04-75-4 | 1155-04-75-9 | 中管 (无防尘盖) Plain Bearing |
|||||
| 100mm x 31mm (4" x 1-1/4") |
90kgs (198lbs) | 全效轮 Resolute |
─ | 1155-04-68-2 | 1155-04-68-4 | 1155-04-68-9 | 滚珠轴承 Ball Bearing |
||||
| 60kgs (132lbs) | 经典全效轮 Resolute |
─ | 1155-04-68-2 | 1155-04-68-4 | 1155-04-68-9 | 滚珠轴承 Ball Bearing |
|||||
| 90kgs (198lbs) | 导电轮 E-conductive |
─ | 1155-04-17-2 | 1155-04-17-4 | 1155-04-17-9 | 滚珠轴承 Ball Bearing |
|||||
| 90kgs (198lbs) | 超级人造胶 TPR on PP Core |
─ | 1155-04-75-2 | 1155-04-75-4 | 1155-04-75-9 | 滚珠轴承 Ball Bearing 中管 Plain Bearing |
|||||
| 80kgs (176lbs) | 经典超级人造胶 TPR on PP Core |
─ | 1155-04-75-2 | 1155-04-75-4 | 1155-04-75-9 | 滚珠轴承 Ball Bearing 中管 Plain Bearing |
80kgs (176lbs) | 经典超级人造胶 TPR on PP Core |
─ | 1155-04-75-2 | 1155-04-75-4 | 1155-04-75-9 | 中管 (无防尘盖) Plain Bearing |
| 90kgs (198lbs) | 铝芯AQPU QPU on AL Core |
─ | 1155-04-87-2 | 1155-04-87-4 | 1155-04-87-9 | 滚珠轴承 Ball Bearing |
|||||
| 80kgs (176lbs) |
超级人造胶 (大圆弧) TPR on PP Core(Dount) |
─ | 1155-04-110-2 | 1155-04-110-4 | 1155-04-110-9 | 滚珠轴承 Ball Bearing |
|||||
| 90kgs (198lbs) | 全效轮(大圆弧) Resolute(Dount) |
─ | 1155-04-111-2 | 1155-04-111-4 | 1155-04-111-9 | 滚珠轴承 Ball Bearing |
|||||
| 100mm x 24mm (4" x 15/16") |
插杆 Cylindrical Stem |
60kgs (132lbs) | 经典全效轮 Resolute |
1155-04-68-1 | 1155-04-68-2 | 1155-04-68-4 | 1155-04-68-9 | 滚珠轴承 Ball Bearing |
138mm | ||
| 60kgs (132lbs) | 经典超级人造胶 TPR on PP Core |
1155-04-75-1 | 1155-04-75-2 | 1155-04-75-4 | 1155-04-75-9 | 滚珠轴承 Ball Bearing |
|||||
| 50kgs (110lbs) | 经典超级人造胶 TPR on PP Core |
1155-04-75-1 | 1155-04-75-2 | 1155-04-75-4 | 1155-04-75-9 | 中管 Plain Bearing |
|||||
| 50kgs (110lbs) | 经典超级人造胶 TPR on PP Core |
1155-04-75-1 | 1155-04-75-2 | 1155-04-75-4 | 1155-04-75-9 | 中管 (无防尘盖) Plain Bearing |
|||||
| 100mm x 31mm (4" x 1-1/4") |
90kgs (198lbs) | 全效轮 Resolute |
1155-04-68-1 | 1155-04-68-2 | 1155-04-68-4 | 1155-04-68-9 | 滚珠轴承 Ball Bearing |
||||
| 60kgs (132lbs) | 经典全效轮 Resolute |
1155-04-68-1 | 1155-04-68-2 | 1155-04-68-4 | 1155-04-68-9 | 滚珠轴承 Ball Bearing |
|||||
| 90kgs (198lbs) | 导电轮 E-conductive |
1155-04-17-1 | 1155-04-17-2 | 1155-04-17-4 | 1155-04-17-9 | 滚珠轴承 Ball Bearing |
|||||
| 90kgs (198lbs) | 超级人造胶 TPR on PP Core |
1155-04-75-1 | 1155-04-75-2 | 1155-04-75-4 | 1155-04-75-9 | 滚珠轴承 Ball Bearing 中管 Plain Bearing |
|||||
| 80kgs (176lbs) | 经典超级人造胶 TPR on PP Core |
1155-04-75-1 | 1155-04-75-2 | 1155-04-75-4 | 1155-04-75-9 | 滚珠轴承 Ball Bearing 中管 Plain Bearing |
|||||
| 80kgs (176lbs) | 经典超级人造胶 TPR on PP Core |
1155-04-75-1 | 1155-04-75-2 | 1155-04-75-4 | 1155-04-75-9 | 中管 (无防尘盖) Plain Bearing |
|||||
| 90kgs (198lbs) | 铝芯AQPU QPU on AL Core |
1155-04-87-1 | 1155-04-87-2 | 1155-04-87-4 | 1155-04-87-9 | 滚珠轴承 Ball Bearing |
|||||
| 80kgs (176lbs) |
超级人造胶 (大圆弧) TPR on PP Core(Dount) |
1155-04-110-1 | 1155-04-110-2 | 1155-04-110-4 | 1155-04-110-9 | 滚珠轴承 Ball Bearing |
|||||
| 90kgs (198lbs) | 全效轮(大圆弧) Resolute(Dount) |
1155-04-111-1 | 1155-04-111-2 | 1155-04-111-4 | 1155-04-111-9 | 滚珠轴承 Ball Bearing |
|||||
| 轮径 × 轮宽 | 规格 | 载重 | 材质 | 型号 | 轴承 | 总高 | 偏心距 | 迴旋半径 | |||
| 固定 | 活动 | 双煞 | 定向煞 | ||||||||
| 125mm x 24.5mm (5" x 15/16") |
四角底板 Plate |
80kgs (176lbs) | 经典全效轮 Resolute |
1155-05-68-1 | 1155-05-68-2 | 1155-05-68-4 | 1155-05-68-9 | 滚珠轴承 Ball Bearing |
166mm | 38mm |
活动 100.5mm 煞车(短踏板) 102mm 煞车(长踏板) 113mm煞车(超长踏板) 126mm Swivel 100.5mm Swivel W/Brake (Short pedal) 102mm Swivel W/Brake (Long pedal) 113mm Swivel W/Brake (Extra long pedal) 126mm |
| 80kgs (176lbs) |
经典超级人造胶 TPR on PP Core |
1155-05-75-1 | 1155-05-75-2 | 1155-05-75-4 | 1155-05-75-9 | 滚珠轴承 Ball Bearing |
|||||
| 70kgs (154lbs) |
经典超级人造胶 TPR on PP Core |
1155-05-75-1 | 1155-05-75-2 | 1155-05-75-4 | 1155-05-75-9 | 中管 Plain Bearing |
|||||
| 70kgs (154lbs) |
经典超级人造胶 TPR on PP Core |
1155-05-75-1 | 1155-05-75-2 | 1155-05-75-4 | 1155-05-75-9 | 中管 (无防尘盖) Plain Bearing |
|||||
| 125mm x 31mm (5" x 1-1/4") |
100kgs (220lbs) | 全效轮 Resolute |
1155-05-68-1 | 1155-05-68-2 | 1155-05-68-4 | 1155-05-68-9 | 滚珠轴承 Ball Bearing |
||||
| 90kgs (198lbs) | 经典全效轮 Resolute |
1155-05-68-1 | 1155-05-68-2 | 1155-05-68-4 | 1155-05-68-9 | 滚珠轴承 Ball Bearing |
|||||
| 100kgs (220lbs) | 导电轮 E-conductive |
1155-05-17-1 | 1155-05-17-2 | 1155-05-17-4 | 1155-05-17-9 | 滚珠轴承 Ball Bearing |
|||||
| 100kgs (220lbs) | 超级人造胶 TPR on PP Core |
1155-05-75-1 | 1155-05-75-2 | 1155-05-75-4 | 1155-05-75-9 | 滚珠轴承 Ball Bearing 中管 Plain Bearing |
|||||
| 90kgs (198lbs) | 经典超级人造胶 TPR on PP Core |
1155-05-75-1 | 1155-05-75-2 | 1155-05-75-4 | 1155-05-75-9 | 滚珠轴承 Ball Bearing 中管 Plain Bearing |
|||||
| 90kgs (198lbs) | 经典超级人造胶 TPR on PP Core |
1155-05-75-1 | 1155-05-75-2 | 1155-05-75-4 | 1155-05-75-9 | 中管 (无防尘盖) Plain Bearing |
|||||
| 100kgs (220lbs) | 铝芯AQPU QPU on AL Core |
1155-05-87-1 | 1155-05-87-2 | 1155-05-87-4 | 1155-05-87-9 | 滚珠轴承 Ball Bearing |
|||||
| 90kgs (198lbs) |
超级人造胶 (大圆弧) TPR on PP Core(Dount) |
1155-05-110-1 | 1155-05-110-2 | 1155-05-110-4 | 1155-05-110-9 | 滚珠轴承 Ball Bearing |
|||||
| 100kgs (220lbs) | 全效轮(大圆弧) Resolute(Dount) |
1155-05-111-1 | 1155-05-111-2 | 1155-05-111-4 | 1155-05-111-9 | 滚珠轴承 Ball Bearing |
|||||
| 125mm x 24.5mm (5" x 15/16") |
丝扣 Threaded Stem |
80kgs (176lbs) | 经典全效轮 Resolute |
─ | 1155-05-68-2 | 1155-05-68-4 | ─ | 滚珠轴承 Ball Bearing |
164mm | ||
| 80kgs (176lbs) |
经典超级人造胶 TPR on PP Core |
─ | 1155-05-75-2 | 1155-05-75-4 | ─ | 滚珠轴承 Ball Bearing |
|||||
| 70kgs (154lbs) |
经典超级人造胶 TPR on PP Core |
─ | 1155-05-75-2 | 1155-05-75-4 | ─ | 中管 Plain Bearing |
|||||
| 70kgs (154lbs) |
经典超级人造胶 TPR on PP Core |
─ | 1155-05-75-2 | 1155-05-75-4 | ─ | 中管 (无防尘盖) Plain Bearing |
|||||
| 125mm x 31mm (5" x 1-1/4") |
100kgs (220lbs) | 全效轮 Resolute |
─ | 1155-05-68-2 | 1155-05-68-4 | ─ | 滚珠轴承 Ball Bearing |
||||
| 90kgs (198lbs) | 经典全效轮 Resolute |
─ | 1155-05-68-2 | 1155-05-68-4 | ─ | 滚珠轴承 Ball Bearing |
|||||
| 100kgs (220lbs) | 导电轮 E-conductive |
─ | 1155-05-17-2 | 1155-05-17-4 | ─ | 滚珠轴承 Ball Bearing |
|||||
| 100kgs (220lbs) | 超级人造胶 TPR on PP Core |
─ | 1155-05-75-2 | 1155-05-75-4 | ─ | 滚珠轴承 Ball Bearing 中管 Plain Bearing |
|||||
| 90kgs (198lbs) | 经典超级人造胶 TPR on PP Core |
─ | 1155-05-75-2 | 1155-05-75-4 | ─ | 滚珠轴承 Ball Bearing 中管 Plain Bearing |
|||||
| 90kgs (198lbs) | 经典超级人造胶 TPR on PP Core |
─ | 1155-05-75-2 | 1155-05-75-4 | ─ | 中管 (无防尘盖) Plain Bearing |
|||||
| 100kgs (220lbs) | 铝芯AQPU QPU on AL Core |
─ | 1155-05-87-2 | 1155-05-87-4 | ─ | 滚珠轴承 Ball Bearing |
|||||
| 90kgs (198lbs) |
超级人造胶 (大圆弧) TPR on PP Core(Dount) |
─ | 1155-05-110-2 | 1155-05-110-4 | ─ | 滚珠轴承 Ball Bearing |
|||||
| 100kgs (220lbs) | 全效轮(大圆弧) Resolute(Dount) |
─ | 1155-05-111-2 | 1155-05-111-4 | ─ | 滚珠轴承 Ball Bearing |
|||||
| 125mm x 24.5mm (5" x 15/16") |
空铆 SingleBolt Hole |
80kgs (176lbs) | 经典全效轮 Resolute |
─ | 1155-05-68-2 | 1155-05-68-4 | 1155-05-68-9 | 滚珠轴承 Ball Bearing |
163mm | ||
| 80kgs (176lbs) |
经典超级人造胶 TPR on PP Core |
─ | 1155-05-75-2 | 1155-05-75-4 | 1155-05-75-9 | 滚珠轴承 Ball Bearing |
|||||
| 70kgs (154lbs) |
经典超级人造胶 TPR on PP Core |
─ | 1155-05-75-2 | 1155-05-75-4 | 1155-05-75-9 | 中管 Plain Bearing |
|||||
| 70kgs (154lbs) |
经典超级人造胶 TPR on PP Core |
─ | 1155-05-75-2 | 1155-05-75-4 | 1155-05-75-9 | 中管 (无防尘盖) Plain Bearing |
|||||
| 125mm x 31mm (5" x 1-1/4") |
100kgs (220lbs) | 全效轮 Resolute |
─ | 1155-05-68-2 | 1155-05-68-4 | 1155-05-68-9 | 滚珠轴承 Ball Bearing |
||||
| 90kgs (198lbs) | 经典全效轮 Resolute |
─ | 1155-05-68-2 | 1155-05-68-4 | 1155-05-68-9 | 滚珠轴承 Ball Bearing |
|||||
| 100kgs (220lbs) | 导电轮 E-conductive |
─ | 1155-05-17-2 | 1155-05-17-4 | 1155-05-17-9 | 滚珠轴承 Ball Bearing |
|||||
| 100kgs (220lbs) | 超级人造胶 TPR on PP Core |
─ | 1155-05-75-2 | 1155-05-75-4 | 1155-05-75-9 | 滚珠轴承 Ball Bearing 中管 Plain Bearing |
|||||
| 90kgs (198lbs) | 经典超级人造胶 TPR on PP Core |
─ | 1155-05-75-2 | 1155-05-75-4 | 1155-05-75-9 | 滚珠轴承 Ball Bearing 中管 Plain Bearing |
|||||
| 90kgs (198lbs) | 经典超级人造胶 TPR on PP Core |
─ | 1155-05-75-2 | 1155-05-75-4 | 1155-05-75-9 | 中管 (无防尘盖) Plain Bearing |
|||||
| 100kgs (220lbs) | 铝芯AQPU QPU on AL Core |
─ | 1155-05-87-2 | 1155-05-87-4 | 1155-05-87-9 | 滚珠轴承 Ball Bearing |
|||||
| 90kgs (198lbs) |
超级人造胶 (大圆弧) TPR on PP Core(Dount) |
─ | 1155-05-110-2 | 1155-05-110-4 | 1155-05-110-9 | 滚珠轴承 Ball Bearing |
|||||
| 100kgs (220lbs) | 全效轮(大圆弧) Resolute(Dount) |
─ | 1155-05-111-2 | 1155-05-111-4 | 1155-05-111-9 | 滚珠轴承 Ball Bearing |
|||||
| 125mm x 24.5mm (5" x 15/16") |
插杆 Cylindrical Stem |
80kgs (176lbs) | 经典全效轮 Resolute |
1155-05-68-1 | 1155-05-68-2 | 1155-05-68-4 | 1155-05-68-9 | 滚珠轴承 Ball Bearing |
163mm | ||
| 80kgs (176lbs) |
经典超级人造胶 TPR on PP Core |
1155-05-75-1 | 1155-05-75-2 | 1155-05-75-4 | 1155-05-75-9 | 滚珠轴承 Ball Bearing |
|||||
| 70kgs (154lbs) |
经典超级人造胶 TPR on PP Core |
1155-05-75-1 | 1155-05-75-2 | 1155-05-75-4 | 1155-05-75-9 | 中管 Plain Bearing |
|||||
| 70kgs (154lbs) |
经典超级人造胶 TPR on PP Core |
1155-05-75-1 | 1155-05-75-2 | 1155-05-75-4 | 1155-05-75-9 | 中管 (无防尘盖) Plain Bearing |
|||||
| 125mm x 31mm (5" x 1-1/4") |
100kgs (220lbs) | 全效轮 Resolute |
1155-05-68-1 | 1155-05-68-2 | 1155-05-68-4 | 1155-05-68-9 | 滚珠轴承 Ball Bearing |
||||
| 90kgs (198lbs) | 经典全效轮 Resolute |
1155-05-68-1 | 1155-05-68-2 | 1155-05-68-4 | 1155-05-68-9 | 滚珠轴承 Ball Bearing |
|||||
| 100kgs (220lbs) | 导电轮 E-conductive |
1155-05-17-1 | 1155-05-17-2 | 1155-05-17-4 | 1155-05-17-1 | 滚珠轴承 Ball Bearing |
|||||
| 100kgs (220lbs) | 超级人造胶 TPR on PP Core |
1155-05-75-1 | 1155-05-75-2 | 1155-05-75-4 | 1155-05-75-9 | 滚珠轴承 Ball Bearing 中管 Plain Bearing |
|||||
| 90kgs (198lbs) | 经典超级人造胶 TPR on PP Core |
1155-05-75-1 | 1155-05-75-2 | 1155-05-75-4 | 1155-05-75-9 | 滚珠轴承 Ball Bearing 中管 Plain Bearing |
|||||
| 90kgs (198lbs) | 经典超级人造胶 TPR on PP Core |
1155-05-75-1 | 1155-05-75-2 | 1155-05-75-4 | 1155-05-75-9 | 中管 (无防尘盖) Plain Bearing |
|||||
| 100kgs (220lbs) | 铝芯AQPU QPU on AL Core |
1155-05-87-1 | 1155-05-87-2 | 1155-05-87-4 | 1155-05-87-9 | 滚珠轴承 Ball Bearing |
|||||
| 90kgs (198lbs) |
超级人造胶 (大圆弧) TPR on PP Core(Dount) |
1155-05-110-1 | 1155-05-110-2 | 1155-05-110-4 | 1155-05-110-9 | 滚珠轴承 Ball Bearing |
|||||
| 100kgs (220lbs) | 全效轮(大圆弧) Resolute(Dount) |
1155-05-111-1 | 1155-05-111-2 | 1155-05-111-4 | 1155-05-111-9 | 滚珠轴承 Ball Bearing |
|||||
