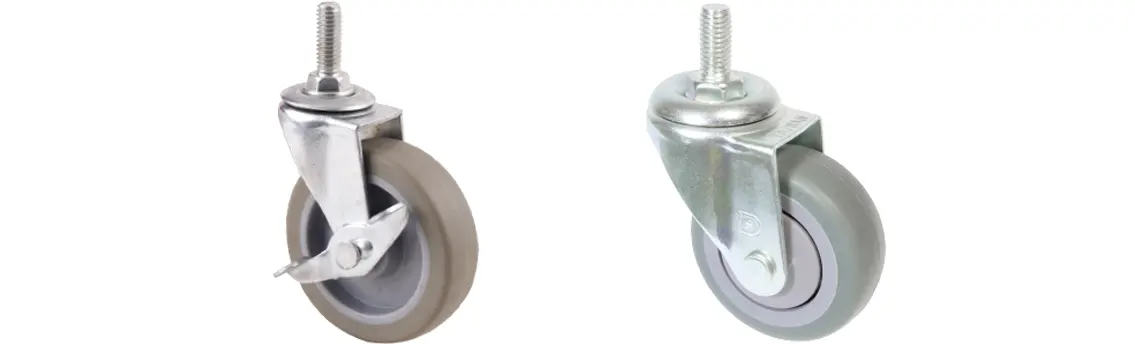

1154-CN-R系列 — 圆波盘系列(大陆)
轻型脚架，製成经济，适用于轻型置物架等。
特色区
轴剎
防撞盖
特色区
轴剎
防撞盖
轮子选择
-
高科技耐磨聚氨酯
-
超级人造胶
-
橡胶轮
-
聚乙烯轮
-
全效轮
-
塑料轮
-
滑板轮
底板规格
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 3" 4" 5" | 58 x 70mm (2-1/4" x 2-3/4") | 40 x 50mm (1-9/16" x 2-3/16") | 8mm (5/16") |
| 3" 4" 5" | 62 x 92mm (2-3/8" x 3-5/8") | 45 x 75mm (1-3/4" x 3")(高级架底板) | 6.35mm (1/4") |
插杆规格
| 规格 Size |
插杆直径 × 长度 Diameter × Length |
孔位高度 Hole Height |
孔尺寸 Bore Size |
| 3" 4" 5" | 11 x 38mm | — | C型铜釦环 (Grip Ring) |
丝扣规格
| 规格 Size |
丝扣牙径 x 长度 Threaded Size |
规格 Size |
丝扣牙径 x 长度 Threaded Size |
规格 Size |
丝扣牙径 x 长度 Threaded Size |
| 3" 4" 5" | 3/8-16UNC x 32mm | 3" 4" 5" | M10 x 25mm | 3" 4" 5" | M12 x 25mm |
| 3" 4" 5" | 1/2-12UNC x 38mm |
底板规格
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 3" 4" 5" | 58 x 70mm (2-1/4" x 2-3/4") | 40 x 50mm (1-9/16" x 2-3/16") | 8mm (5/16") |
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 3" 4" 5" | 58 x 70mm (2-1/4" x 2-3/4") | 40 x 50mm (1-9/16" x 2-3/16") | 8mm (5/16") |
| 3" 4" 5" | 62 x 92mm (2-3/8" x 3-5/8") | 45 x 75mm (1-3/4" x 3")(高级架底板) | 6.35mm (1/4") |
插杆规格
| 规格 Size |
插杆直径 × 长度 Diameter × Length |
孔位高度 Hole Height |
孔尺寸 Bore Size |
| 3" 4" 5" | 11 x 38mm | — | C型铜釦环 (Grip Ring) |
丝扣规格
| 规格 Size |
丝扣牙径 x 长度 Threaded Size |
规格 Size |
丝扣牙径 x 长度 Threaded Size |
规格 Size |
丝扣牙径 x 长度 Threaded Size |
| 3" 4" 5" | 3/8-16UNC x 32mm | 3" 4" 5" | M10 x 25mm | 3" 4" 5" | M12 x 25mm |
| 3" 4" 5" | 1/2-12UNC x 38mm |
轮子详细资讯
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 迴旋半径 | ||
| 固定 | 活动 | 剎车 | ||||||
| 75mmx21mm (3"x7/8") |
50 kgs (110 lbs) | 高科技耐磨聚氨酯 PU on PP Core |
— | 1154-R-03-31-2 | 1154-R-03-31-4 | 中管 Plain Bearing |
97 mm (3-13/16") |
活动 68mm 侧刹 68mm Swivel 68mm Swivel W/Side Brake 68mm |
| 50 kgs (110 lbs) | 橡胶轮 Rubber |
— | 1154-R-03-06-2 | 1154-R-03-06-4 | ||||
| 75mmx24mm (3"x15/16") |
60 kgs (130 lbs) | 滑板轮 PU |
— | 1154-R-03-88-2 | — | 滚珠 Ball Bearing |
97 mm (3-13/16") |
活动 68mm Swivel 68mm |
| 75mmx25mm (3"x1") |
70 kgs (155 lbs) | 聚乙烯轮 PVC on PP Core |
— | 1154-R-03-27-2 | 1154-R-03-27-4 | 中管 Plain Bearing |
97 mm (3-13/16") |
活动 68mm 侧刹 68mm Swivel 68mm Swivel W/Side Brake 68mm |
| 60 kgs (130 lbs) | 橡胶轮 Rubber |
— | 1154-R-03-06-2 | 1154-R-03-06-4 | ||||
| 70 kgs (155 lbs) | 超级人造胶 TPR on PP Core |
— | 1154-R-03-75-2 | 1154-R-03-75-4 | ||||
| 70 kgs (155 lbs) | 塑料轮 PP |
— | 1154-R-03-29-2 | 1154-R-03-29-4 | ||||
| 100mmx24mm (4"x15/16") |
70 kgs (155 lbs) | 滑板轮 PU |
— | 1154-R-04-88-2 | — | 滚珠 Ball Bearing |
120 mm (4-11/16") |
活动 81mm Swivel 81mm |
| 100mmx25mm (4"x1") |
70 kgs (155 lbs) | 高科技耐磨聚氨酯 PU on PP Core |
— | 1154-R-04-31-2 | 1154-R-04-31-4 | 中管 Plain Bearing |
120 mm (4-11/16") |
活动 81mm 侧刹 81mm Swivel 81mm Swivel W/Side Brake 81mm |
| 70 kgs (155 lbs) | 超级人造胶 TPR on PP Core |
— | 1154-R-04-75-2 | 1154-R-04-75-4 | ||||
| 70 kgs (155 lbs) | 橡胶轮 Rubber |
— | 1154-R-04-06-2 | 1154-R-04-06-4 | ||||
| 90 kgs (198 lbs) | 塑料轮 PP |
— | 1154-R-04-29-2 | 1154-R-04-29-4 | ||||
| 125mmx25mm (5"x1") |
90 kgs (198 lbs) | 高科技耐磨聚氨酯 PU on PP Core |
— | 1154-R-05-31-2 | 1154-R-05-31-4 | 中管 Plain Bearing |
146 mm (5-3/4") |
活动 93mm 侧刹 93mm Swivel 93mm Swivel W/Side Brake 93mm |
| 80 kgs (176 lbs) | 超级人造胶 TPR on PP Core |
— | 1154-R-05-75-2 | 1154-R-05-75-4 | ||||
| 90 kgs (198 lbs) | 橡胶轮 Rubber |
— | 1154-R-05-06-2 | 1154-R-05-06-4 | ||||
