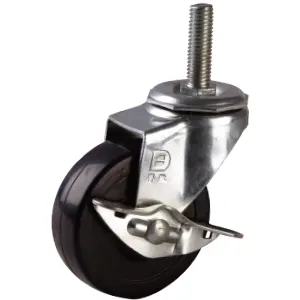

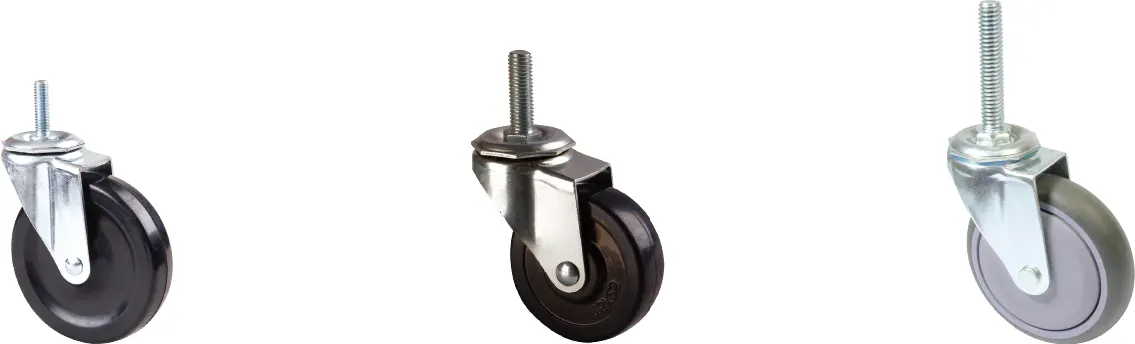

1154-CN-O系列 — 八角波盘系列(大陆)
轻型脚架，製成经济，适用于轻型置物架等。
特色区
轴剎

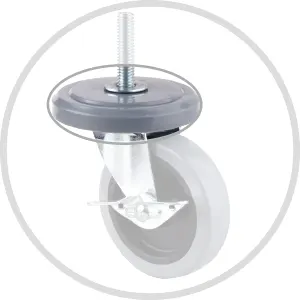

防撞盖

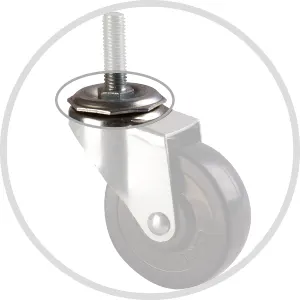

八角波盘
特色区
轴剎
防撞盖
八角波盘
轮子选择
-
高科技耐磨聚氨酯
-
超级人造胶
-
橡胶轮
-
聚乙烯轮
-
全效轮
-
塑料轮
-
滑板轮
丝扣规格
| 规格 Size |
丝扣牙径 × 长度 Diameter × Length |
| 3" 4" 5" | 5/16 x 19mm |
轮子详细资讯
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 迴旋半径 | ||
| 固定 | 活动 | 剎车 | ||||||
| 75mmx21mm (3"x7/8") |
50 kgs (110 lbs) | 高科技耐磨聚氨酯 PU on PP Core |
— | 1154-O-03-31-2 | 1154-O-03-31-4 | 中管 Plain Bearing |
93 mm (3-11/16") |
活动 68mm 侧刹 68mm Swivel 68mm Swivel W/Side Brake 68mm |
| 50 kgs (110 lbs) | 橡胶轮 Rubber |
— | 1154-O-03-06-2 | 1154-O-03-06-4 | ||||
| 75mmx24mm (3"x15/16") |
60 kgs (130 lbs) | 滑板轮 PU |
— | 1154-O-03-88-2 | — | 滚珠 Ball Bearing |
93 mm (3-11/16") |
活动 68mm Swivel 68mm |
| 75mmx25mm (3"x1") |
70 kgs (155 lbs) | 聚乙烯轮 PVC on PP Core |
— | 1154-O-03-27-2 | 1154-O-03-27-4 | 中管 Plain Bearing |
93 mm (3-11/16") |
活动 68mm 侧刹 68mm Swivel 68mm Swivel W/Side Brake 68mm |
| 60 kgs (130 lbs) | 橡胶轮 Rubber |
— | 1154-O-03-06-2 | 1154-O-03-06-4 | ||||
| 70 kgs (155 lbs) | 超级人造胶 TPR on PP Core |
— | 1154-O-03-75-2 | 1154-O-03-75-4 | ||||
| 70 kgs (155 lbs) | 塑料轮 PP |
— | 1154-O-03-29-2 | 1154-O-03-29-4 | ||||
| 100mmx24mm (4"x15/16") |
70 kgs (155 lbs) | 滑板轮 PU |
— | 1154-O-04-88-2 | — | 滚珠 Ball Bearing |
116 mm (4-3/5") |
活动 81mm Swivel 81mm |
| 100mmx25mm (4"x1") |
70 kgs (155 lbs) | 高科技耐磨聚氨酯 PU on PP Core |
— | 1154-O-04-31-2 | 1154-O-04-31-4 | 中管 Plain Bearing |
116 mm (4-3/5") |
活动 81mm 侧刹 81mm Swivel 81mm Swivel W/Side Brake 81mm |
| 70 kgs (155 lbs) | 超级人造胶 TPR on PP Core |
— | 1154-O-04-75-2 | 1154-O-04-75-4 | ||||
| 70 kgs (155 lbs) | 橡胶轮 Rubber |
— | 1154-O-04-06-2 | 1154-O-04-06-4 | ||||
| 90 kgs (198 lbs) | 塑料轮 PP |
— | 1154-O-04-29-2 | 1154-O-04-29-4 | ||||
| 125mmx25mm (5"x1") |
90 kgs (198 lbs) | 高科技耐磨聚氨酯 PU on PP Core |
— | 1154-O-05-31-2 | 1154-O-05-31-4 | 中管 Plain Bearing |
142 mm (5-3/5") |
活动 93mm 侧刹 93mm Swivel 93mm Swivel W/Side Brake 93mm |
| 80 kgs (176 lbs) | 超级人造胶 TPR on PP Core |
— | 1154-O-05-75-2 | 1154-O-05-75-4 | ||||
| 90 kgs (198 lbs) | 橡胶轮 Rubber |
— | 1154-O-05-06-2 | 1154-O-05-06-4 | ||||
