1153系列 — 53欧款系列

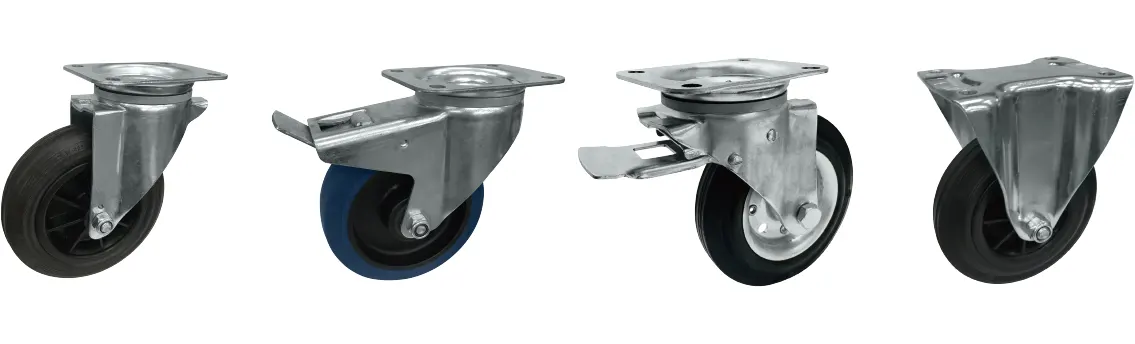

欧规底板，脚架採特别结构设计，特高荷重、3.5mm板，转动灵活，适用于中、重型台车
特色区

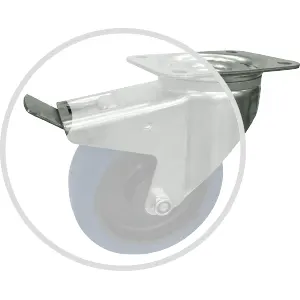

后剎
前剎

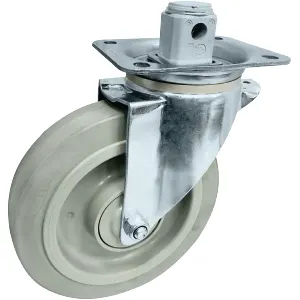

中控
定向剎
特色区
后剎
前剎
中控
定向剎
轮子选择
铝芯AQPU
EQPU轮
VQPU轮
铝芯橡胶轮
MRC轮
弹力全效轮
(黑蓝)
弹力全效轮
(灰灰)
实心橡胶弹力轮
(铁框+黑胶条)
实心橡胶弹力轮
(铁框+灰胶条)
实心橡胶弹力轮
(塑框+黑胶条)
实心橡胶弹力轮
(塑框+灰胶条)
底板规格
| 编号 Suffix |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1 | 137 x 105mm(5-3/8" x 4-1/8") | 105 x 80/75mm(4-1/8" x 3-1/8") | 10mm (3/8") |
| 2 | 137 x 105mm(5-3/8" x 4-1/8") | 92.5 x 84.5mm(3-5/8" x 3-5/16")（越南大底板） | M10 (3/8") |
| 3 | 137 x 105mm(5-3/8" x 4-1/8") | 118 x 75mm(4-11/16" x 3")(蓝架底板） | M10 (3/8") |
空铆规格
| 编号 Suffix |
孔径 Center Hole |
| 1 | 13mm |
底板规格
| 编号 Suffix |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1 | 137 x 105mm(5-3/8" x 4-1/8") | 105 x 80/75mm(4-1/8" x 3-1/8") | 10mm (3/8") |
| 编号 Suffix |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1 | 137 x 105mm(5-3/8" x 4-1/8") | 105 x 80/75mm(4-1/8" x 3-1/8") | 10mm (3/8") |
| 2 | 137 x 105mm(5-3/8" x 4-1/8") | 92.5 x 84.5mm(3-5/8" x 3-5/16")（越南大底板） | M10 (3/8") |
| 3 | 137 x 105mm(5-3/8" x 4-1/8") | 118 x 75mm(4-11/16" x 3")(蓝架底板） | M10 (3/8") |
空铆规格
| 编号 Suffix |
孔径 Center Hole |
| 1 | 13mm |
轮子详细资讯
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 偏心距 | 迴旋半径 | ||
| 固定 | 活动 | 剎车 | |||||||
| 150 x 40mm (6" x 1-9/16") |
280kgs (615 lbs) | 铝芯橡胶轮 Rubber on Aluminum Core |
1153-06-22-1 | 1153-06-22-2 | 1153-06-22-4 | 滚珠 Ball Bearing |
190mm (7-1/2") |
55mm | 活动131mm 后刹131mm Swivel 131mm Swivel W/Rear total lock 131mm |
| 350kgs (770 lbs) | MRC轮 Nylon Wheel |
1153-06-45-1 | 1153-06-45-2 | 1153-06-45-4 | 滚珠 Ball Bearing |
||||
| 125kgs (275 lbs) | 实心橡胶弹力轮 (铁框+黑胶条) Black Rubber Wheel (Steel Core) |
1153-06-103-1 | 1153-06-103-2 | 1153-06-103-4 | 滚针 Roller Bearing |
||||
| 125kgs (275 lbs) | 实心橡胶弹力轮 (塑框+黑胶条) Black Rubber Wheel (Plastic Core) |
1153-06-104-1 | 1153-06-104-2 | 1153-06-104-4 | 滚针 Roller Bearing 中管 Plain Bearing |
||||
| 125kgs (275 lbs) | 实心橡胶弹力轮 (铁框+灰胶条) Gray Rubber Wheel (Steel Core) |
1153-06-106-1 | 1153-06-106-2 | 1153-06-106-4 | 滚针 Roller Bearing |
||||
| 125kgs (275 lbs) | 实心橡胶弹力轮 (塑框+灰胶条) Gray Rubber Wheel (Plastic Core) |
1153-06-107-1 | 1153-06-107-2 | 1153-06-107-4 | 滚针 Roller Bearing 中管 Plain Bearing |
||||
| 150 x 42mm (6" x 1-5/8") |
350kgs (770 lbs) | 铝芯AQPU(圆弧) QPU on AL Core (Round) |
1153-06-87-1 | 1153-06-87-2 | 1153-06-87-4 | 滚珠 Ball Bearing |
190mm (7-1/2") |
55mm | 活动131mm 后刹131mm Swivel 131mm Swivel W/Rear total lock 131mm |
| 350kgs (770 lbs) | EQPU轮(圆弧) EQPU (Round) |
1153-06-81-1 | 1153-06-81-2 | 1153-06-81-4 | |||||
| 350kgs (770 lbs) | EQPU轮(平面) EQPU (Flat) |
1153-06-81-1 | 1153-06-81-2 | 1153-06-81-4 | |||||
| 350kgs (770 lbs) | VQPU轮(圆弧) VQPU (Round) |
1153-06-83-1 | 1153-06-83-2 | 1153-06-83-4 | |||||
| 150 x 50mm (6" x 2") |
350kgs (770 lbs) | 铝芯AQPU(平面) QPU on AL Core (Flat) |
1153-06-87-1 | 1153-06-87-2 | 1153-06-87-4 | 滚珠 Ball Bearing |
190mm (7-1/2") |
55mm | 活动131mm 后刹131mm Swivel 131mm Swivel W/Rear total lock 131mm |
| 160 x 40mm (6-5/16" x 1-9/16") |
350kgs (770 lbs) | MRC轮 Nylon Wheel |
1153-65-45-1 | 1153-65-45-2 | 1153-65-45-4 | 滚珠 Ball Bearing 中管 Plain Bearing 滚针 Roller Bearing 精密长珠轴承 Annular ball bearing |
200mm (7-7/8") |
55mm | 活动136mm 后刹136mm Swivel 136mm Swivel W/Rear total lock 136mm |
| 135kgs (295 lbs) | 实心橡胶弹力轮 (铁框+黑胶条) Black Rubber Wheel (Steel Core) |
1153-65-103-1 | 1153-65-103-2 | 1153-65-103-4 | 滚针 Roller Bearing |
||||
| 135kgs (295 lbs) | 实心橡胶弹力轮 (塑框+黑胶条) Black Rubber Wheel (Plastic Core) |
1153-65-104-1 | 1153-65-104-2 | 1153-65-104-4 | 滚针 Roller Bearing 中管 Plain Bearing |
||||
| 135kgs (295 lbs) | 实心橡胶弹力轮 (铁框+灰胶条) Gray Rubber Wheel (Steel Core) |
1153-65-106-1 | 1153-65-106-2 | 1153-65-106-4 | 滚针 Roller Bearing |
||||
| 135kgs (295 lbs) | 实心橡胶弹力轮 (塑框+灰胶条) Gray Rubber Wheel (Plastic Core) |
1153-65-107-1 | 1153-65-107-2 | 1153-65-107-4 | 滚针 Roller Bearing 中管 Plain Bearing |
||||
| 160 x 42mm (6-5/16" 1-5/8") |
350kgs (770 lbs) | 铝芯AQPU(圆弧) QPU on AL Core (Round) |
1153-65-87-1 | 1153-65-87-2 | 1153-65-87-4 | 滚珠 Ball Bearing |
200mm (7-7/8") |
55mm | 活动136mm 后刹136mm Swivel 136mm Swivel W/Rear total lock 136mm |
| 300kgs (660 lbs) | 铝芯橡胶轮 Rubber on Aluminum Core |
1153-65-22-1 | 1153-65-22-2 | 1153-65-22-4 | 滚珠 Ball Bearing |
||||
| 160 x 48mm (6-5/16" x 1-7/8") |
300kgs (660 lbs) | 弹力全效轮(灰灰) Resilient Resolute Wheel(Gray tread) |
1153-65-105-1 | 1153-65-105-2 | 1153-65-105-4 | 滚珠 Ball Bearing 滚针 Roller Bearing 精密长珠轴承 Annular ball bearing |
200mm (7-7/8") |
55mm | 活动136mm 后刹136mm Swivel 136mm Swivel W/Rear total lock 136mm |
| 300kgs (660 lbs) | 弹力全效轮(黑蓝) Resilient Resolute Wheel(Blue tread) |
1153-65-50-1 | 1153-65-50-2 | 1153-65-50-4 | 滚珠 Ball Bearing 滚针 Roller Bearing 精密长珠轴承 Annular ball bearing |
||||
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 偏心距 | 迴旋半径 | ||
| 固定 | 活动 | 剎车 | |||||||
| 160 x 50mm (6-5/16" x 2") |
350kgs (770 lbs) | 铝芯AQPU(平面) QPU on AL Core (Flat) |
1153-65-87-1 | 1153-65-87-2 | 1153-65-87-4 | 滚珠 Ball Bearing |
200mm (7-7/8") |
55mm | 活动136mm 后刹136mm Swivel 136mm Swivel W/Rear total lock 136mm |
| 180 x 44mm (7" x 1-3/4") |
350kgs (770 lbs) | 铝芯AQPU(圆弧) QPU on AL Core (Round) |
1153-07-87-1 | 1153-07-87-2 | 1153-07-87-4 | 滚珠 Ball Bearing |
220mm (8-11/16") |
55mm | 活动145mm 后刹145mm Swivel 145mm Swivel W/Rear total lock 145mm |
| 180 x 50mm (7" x 2") |
175kgs (385 lbs) | 实心橡胶弹力轮 (铁框+黑胶条) Black Rubber Wheel (Steel Core) |
1153-07-103-1 | 1153-07-103-2 | 1153-07-103-4 | 滚针 Roller Bearing |
220mm (8-11/16") |
55mm | 活动145mm 后刹145mm Swivel 145mm Swivel W/Rear total lock 145mm |
| 175kgs (385 lbs) | 实心橡胶弹力轮 (塑框+黑胶条) Black Rubber Wheel (Plastic Core) |
1153-07-104-1 | 1153-07-104-2 | 1153-07-104-4 | 滚针 Roller Bearing 中管 Plain Bearing |
||||
| 175kgs (385 lbs) | 实心橡胶弹力轮 (铁框+灰胶条) Gray Rubber Wheel (Steel Core) |
1153-07-106-1 | 1153-07-106-2 | 1153-07-106-4 | 滚针 Roller Bearing |
||||
| 175kgs (385 lbs) | 实心橡胶弹力轮 (塑框+灰胶条) Gray Rubber Wheel (Plastic Core) |
1153-07-107-1 | 1153-07-107-2 | 1153-07-107-4 | 滚针 Roller Bearing 中管 Plain Bearing |
||||
| 200 x 44mm (8" x 1-3/4") |
350kgs (770 lbs) | 铝芯橡胶轮 Rubber on Aluminum Core |
1153-08-22-1 | 1153-08-22-2 | 1153-08-22-4 | 滚珠 Ball Bearing |
240mm (9-1/2") |
55mm | 活动155mm 后刹155mm Swivel 155mm Swivel W/Rear total lock 155mm |
| 200 x 48mm (8" x 1-7/8") |
325kgs (715 lbs) | 弹力全效轮(灰灰) Resilient Resolute Wheel(Gray tread) |
1153-08-105-1 | 1153-08-105-2 | 1153-08-105-4 | 滚珠 Ball Bearing 滚针 Roller Bearing 精密长珠轴承 Annular ball bearing |
240mm (9-1/2") |
55mm | 活动155mm 后刹155mm Swivel 155mm Swivel W/Rear total lock 155mm |
| 325kgs (715 lbs) | 弹力全效轮(黑蓝) Resilient Resolute Wheel(Blue tread) |
1153-08-50-1 | 1153-08-50-2 | 1153-08-50-4 | 滚珠 Ball Bearing 滚针 Roller Bearing 精密长珠轴承 Annular ball bearing |
||||
| 200 x 50mm (8" x 2") |
350kgs (770 lbs) | 铝芯AQPU(平面) QPU on AL Core (Flat) |
1153-08-87-1 | 1153-08-87-2 | 1153-08-87-4 | 滚珠 Ball Bearing |
240mm (9-1/2") |
55mm | 活动155mm 后刹155mm Swivel 155mm Swivel W/Rear total lock 155mm |
| 350kgs (770 lbs) | 铝芯AQPU(圆弧) QPU on AL Core (Round) |
1153-08-87-1 | 1153-08-87-2 | 1153-08-87-4 | |||||
| 350kgs (770 lbs) | EQPU轮(圆弧) EQPU (Round) |
1153-08-81-1 | 1153-08-81-2 | 1153-08-81-4 | |||||
| 350kgs (770 lbs) | EQPU轮(平面) EQPU (Flat) |
1153-08-81-1 | 1153-08-81-2 | 1153-08-81-4 | |||||
| 350kgs (770 lbs) | VQPU轮(圆弧) VQPU (Round) |
1153-08-83-1 | 1153-08-83-2 | 1153-08-83-4 | |||||
| 350kgs (770 lbs) | MRC轮 Nylon Wheel |
1153-08-45-1 | 1153-08-45-2 | 1153-08-45-4 | 滚珠 Ball Bearing 中管 Plain Bearing 滚针 Roller Bearing 精密长珠轴承 Annular ball bearing |
||||
| 205kgs (450 lbs) | 实心橡胶弹力轮 (铁框+黑胶条) Black Rubber Wheel (Steel Core) |
1153-08-103-1 | 1153-08-103-2 | 1153-08-103-4 | 滚针 Roller Bearing |
||||
| 205kgs (450 lbs) | 实心橡胶弹力轮 (塑框+黑胶条) Black Rubber Wheel (Plastic Core) |
1153-08-104-1 | 1153-08-104-2 | 1153-08-104-4 | 滚针 Roller Bearing 中管 Plain Bearing |
||||
| 205kgs (450 lbs) | 实心橡胶弹力轮 (铁框+灰胶条) Gray Rubber Wheel (Steel Core) |
1153-08-106-1 | 1153-08-106-2 | 1153-08-106-4 | 滚针 Roller Bearing |
||||
| 205kgs (450 lbs) | 实心橡胶弹力轮 (塑框+灰胶条) Gray Rubber Wheel (Plastic Core) |
1153-08-107-1 | 1153-08-107-2 | 1153-08-107-4 | 滚针 Roller Bearing 中管 Plain Bearing |
||||
