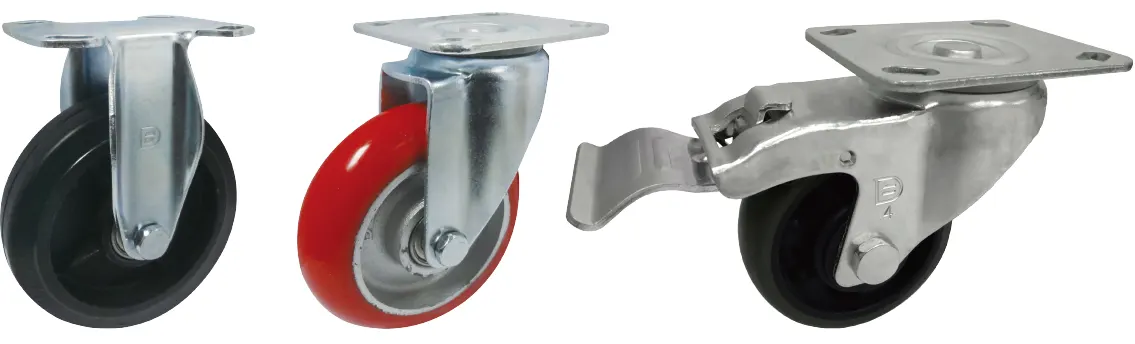

1151-D系列 — 51 D型底板系列
脚架採特别结构设计，特高荷重、3.5mm板，转动灵活，适用于中、重型台车。
特色区

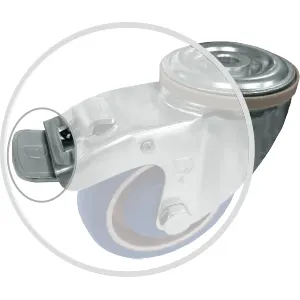

双剎(超大踏板)(常规)

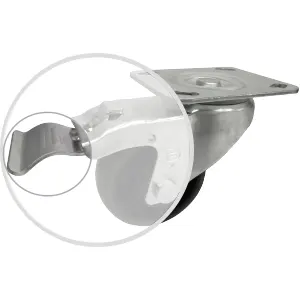

双剎(短踏板)
PU轮面可以变化硬度
特色区
双剎(超大踏板)(常规)
双剎(短踏板)
PU轮面可以变化硬度
轮子选择
-

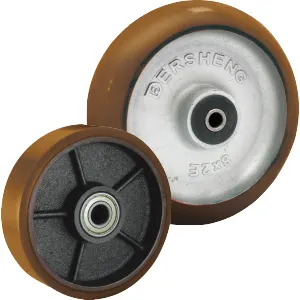

铁芯聚氨酯
-
三星轮
-
铁芯NBR橡胶轮
-
尼龙轮
-
WMRC轮
-
WCPD轮
-
QPU轮
-
CPD轮
-
铣轮
-
环保NBR橡胶轮
-
EQPU轮
-
EPU轮
-
铝芯AQPU
-
W全校轮
底板规格
| 编号 Suffix |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1 | 85 x 105 mm (3-5/16" x 4-1/8") |
60 x 80 mm(欧规底板) 2-3/8"x3-1/4"(European Plate) |
8 mm (5/16") |
| 2 | 95 x65 mm (3-3/4" x 2-1/2") |
75 x 45 mm (3" x 1-3/4") |
8 mm (5/16") |
| 3 | 100 x 115 mm (3-7/8" x 4-1/2") |
75 x 80 mm (3" x 3-1/4") |
10 mm (3/8") |
底板规格
| 编号 Suffix |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1 | 85 x 105 mm (3-5/16" x 4-1/8") |
60 x 80 mm(欧规底板) 2-3/8"x3-1/4"(European Plate) |
8 mm (5/16") |
| 编号 Suffix |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1 | 85 x 105 mm (3-5/16" x 4-1/8") |
60 x 80 mm(欧规底板) 2-3/8"x3-1/4"(European Plate) |
8 mm (5/16") |
| 2 | 95 x65 mm (3-3/4" x 2-1/2") |
75 x 45 mm (3" x 1-3/4") |
8 mm (5/16") |
| 3 | 100 x 115 mm (3-7/8" x 4-1/2") |
75 x 80 mm (3" x 3-1/4") |
10 mm (3/8") |
轮子详细资讯
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 迴旋半径 | ||
| 固定 | 活动 | 剎车 | ||||||
| 93mm x 28mm (3-21/32" x 1-3/32") |
250 kgs (550 lbs) | 铣轮 Cast Iron |
1151(D)-03-14-1 | 1151(D)-03-14-2 | — | 滚珠 Ball Bearing |
126.5mm (5") |
活动 86.5mm Swivel 86.5mm |
| 100mm x 32mm (4" x 1-1/4") |
200 kgs (440 lbs) | 尼龙轮 Nylon |
1151(D)-04-07-1 | 1151(D)-04-07-2 | 1151(D)-04-07-4 | 滚珠 Ball Bearing |
130mm (5-1/16") |
活动 90mm 刹车 137mm (短踏板) 刹车 160mm (超大踏板) Swivel 90mm Swivel W/Brake 137mm (Short Pedal) Swivel W/Brake 160mm (Extra Big Pedal) |
| 150 kgs (330 lbs) | CPD轮 CPD |
1151(D)-04-49-1 | 1151(D)-04-49-2 | 1151(D)-04-49-4 | ||||
| 100mm x 34mm (4" x 1-1/3") |
200 kgs (440 lbs) | 铁芯聚氨酯 PU on Cast |
1151(D)-04-33-1 | 1151(D)-04-33-2 | 1151(D)-04-33-4 | |||
| 300 kgs (660 lbs) | QPU轮 QPU |
1151(D)-04-80-1 | 1151(D)-04-80-2 | 1151(D)-04-80-4 | ||||
| 150 kgs (330 lbs) | 铁芯NBR橡胶轮 NBR Rubber on Cast |
1151(D)-04-04-1 | 1151(D)-04-04-2 | 1151(D)-04-04-4 | ||||
| 150 kgs (330 lbs) | 环保NBR橡胶轮 Non-marking Rubber on Cast |
1151(D)-04-11-1 | 1151(D)-04-11-2 | 1151(D)-04-11-4 | ||||
| 100mm x 35mm (4" x 1-1/8") |
150 kgs (330 lbs) | 三星轮 Rubber on Cast |
1151(D)-04-03-1 | 1151(D)-04-03-2 | 1151(D)-04-03-4 | |||
| 100mm x 36mm (4" x 1-7/16") |
325 kgs (715 lbs) | 铝芯AQPU轮(圆弧) QPU on AL Core (Round) |
1151(D)-04-87-1 | 1151(D)-04-87-2 | 1151(D)-04-87-4 | 滚珠 Ball Bearing |
130mm (5-1/16") |
活动 90mm 刹车 137mm (短踏板) 刹车 160mm (超大踏板) Swivel 90mm Swivel W/Brake 137mm (Short Pedal) Swivel W/Brake 160mm (Extra Big Pedal) |
| 100mm x 37.5mm (4" x 1-1/2") |
140 kgs (308 lbs) | W 全效轮 W Resolute |
1151(D)-04-64-1 | 1151(D)-04-64-2 | 1151(D)-04-64-4 | |||
| 100mm x 40mm (4" x 1-9/16") |
350 kgs (770 lbs) | 铝芯AQPU轮(圆弧) QPU on AL Core (Round) |
1151(D)-04(40)-87-1 | 1151(D)-04(40)-87-2 | 1151(D)-04(40)-87-4 | 滚珠 Ball Bearing |
130mm (5-1/16") |
活动 90mm 刹车 137mm (短踏板) 刹车 160mm (超大踏板) Swivel 90mm Swivel W/Brake 137mm (Short Pedal) Swivel W/Brake 160mm (Extra Big Pedal) |
| 122mm x 36mm (4-13/16" x 1-7/16") |
350 kgs (770 lbs) | 铣轮 Cast Iron |
1151(D)-04-14-1 | 1151(D)-04-14-2 | — | 滚珠 Ball Bearing |
153.5mm (6-1/16") |
活动 101mm Swivel 101mm |
| 122mm x 36mm (4-13/16" x 1-7/16") |
160 kgs (350 lbs) | W 全效轮 W Resolute |
1151(D)-05-64-1 | 1151(D)-05-64-2 | 1151(D)-05-64-4 | 滚珠 Ball Bearing |
155mm (6-1/8") |
活动 103mm 刹车 137mm (短踏板) 刹车 160mm (超大踏板) Swivel 103mm Swivel W/Brake 137mm (Short Pedal) Swivel W/Brake 160mm (Extra Big Pedal) |
| 125mm x 40mm (5" x 1-9/16") |
350 kgs (770 lbs) | 铝芯AQPU轮(圆弧) QPU on AL Core (Round) |
1151(D)-05-87-1 | 1151(D)-05-87-2 | 1151(D)-05-87-4 | |||
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 迴旋半径 | ||
| 固定 | 活动 | 剎车 | ||||||
| 125mm x 40mm (5" x 1-9/16") |
250 kgs (550 lbs) | 铁芯聚氨酯 PU on Cast |
1151(D)-05-33-1 | 1151(D)-05-33-2 | 1151(D)-05-33-4 | 滚珠 Ball Bearing |
155mm (6-1/8") |
活动 103mm 刹车 137mm (短踏板) 刹车 160mm (超大踏板) Swivel 103mm Swivel W/Brake 137mm (Short Pedal) Swivel W/Brake 160mm (Extra Big Pedal) |
| 350 kgs (770 lbs) | QPU轮 QPU |
1151(D)-05-80-1 | 1151(D)-05-80-2 | 1151(D)-05-80-4 | ||||
| 250 kgs (550 lbs) | EPU轮 EPU |
1151(D)-05-78-1 | 1151(D)-05-78-2 | 1151(D)-05-78-4 | ||||
| 300 kgs (660 lbs) | EQPU轮 EQPU |
1151(D)-05-81-1 | 1151(D)-05-81-2 | 1151(D)-05-81-4 | ||||
| 200 kgs (440 lbs) | 三星轮 Rubber on Cast |
1151(D)-05-03-1 | 1151(D)-05-03-2 | 1151(D)-05-03-4 | ||||
| 200 kgs (440 lbs) | 铁芯NBR橡胶轮 NBR Rubber on Cast |
1151(D)-05-04-1 | 1151(D)-05-04-2 | 1151(D)-05-04-4 | ||||
| 200 kgs (440 lbs) | 环保NBR橡胶轮 Non-marking Rubber on Cast |
1151(D)-05-11-1 | 1151(D)-05-11-2 | 1151(D)-05-11-4 | ||||
| 125mm x 41mm (5" x 1-5/8") |
250 kgs (550 lbs) | 尼龙轮 Nylon |
1151(D)-05-07-1 | 1151(D)-05-07-2 | 1151(D)-05-07-4 | |||
| 200 kgs (440 lbs) | CPD轮 CPD |
1151(D)-05-49-1 | 1151(D)-05-49-2 | 1151(D)-05-49-4 | ||||
| 138mm x 42mm (5-7/16" x 1-5/8") |
350 kgs (770 lbs) | 铣轮 Cast Iron |
1151(D)-05-14-1 | 1151(D)-05-14-2 | — | 滚珠 Ball Bearing |
182mm (7-1/5") |
活动 109mm Swivel 109mm |
| 150mm x 37.5mm (6" x 1-1/2") |
180 kgs (396 lbs) | W 全效轮 W Resolute |
1151(D)-06-64-1 | 1151(D)-06-64-2 | 1151(D)-06-64-4 | 滚珠 Ball Bearing |
188mm (7-1/2") |
活动 115mm 刹车 137mm (短踏板) 刹车 160mm (超大踏板) Swivel 115mm Swivel W/Brake 137mm (Short Pedal) Swivel W/Brake 160mm (Extra Big Pedal) |
| 150mm x 40mm (6" x 1-9/16") |
250 kgs (550 lbs) | 铁芯NBR橡胶轮 NBR Rubber on Cast |
1151(D)-06-04-1 | 1151(D)-06-04-2 | 1151(D)-06-04-4 | |||
| 350 kgs (770 lbs) | 尼龙轮 Nylon |
1151(D)-06-07-1 | 1151(D)-06-07-4 | 1151(D)-06-07-2 | ||||
| 250 kgs (550 lbs) | CPD轮 CPD |
1151(D)-06-49-1 | 1151(D)-06-49-2 | 1151(D)-06-49-4 | ||||
| 250 kgs (550 lbs) | 环保NBR橡胶轮 Non-marking Rubber on Cast |
1151(D)-06-11-1 | 1151(D)-06-11-2 | 1151(D)-06-11-4 | ||||
| 350 kgs (770 lbs) | WMRC轮 WMRC |
1151(D)-06-45-1 | 1151(D)-06-45-2 | 1151(D)-06-45-4 | ||||
| 250 kgs (550 lbs) | WCPD轮 WCPD |
1151(D)-06-79-1 | 1151(D)-06-79-2 | 1151(D)-06-79-4 | ||||
| 150mm x 42mm (6" x 1-5/8") |
350 kgs (770 lbs) | 铁芯聚氨酯 PU on Cast |
1151(D)-06-33-1 | 1151(D)-06-33-2 | 1151(D)-06-33-4 | |||
| 450 kgs (990 lbs) | QPU轮 QPU |
1151(D)-06-80-1 | 1151(D)-06-80-2 | 1151(D)-06-80-4 | ||||
| 350 kgs (770 lbs) | EPU轮 EPU |
1151(D)-06-78-1 | 1151(D)-06-78-2 | 1151(D)-06-78-4 | ||||
| 400 kgs (880 lbs) | EQPU轮 EQPU |
1151(D)-06-81-1 | 1151(D)-06-81-2 | 1151(D)-06-81-4 | ||||
| 350 kgs (770 lbs) | 铝芯AQPU轮(圆弧) QPU on AL Core (Round) |
1151(D)-06-87-1 | 1151(D)-06-87-2 | 1151(D)-06-87-4 | ||||
| 150mm x 45.5mm (6" x 1-13/16") |
220 kgs (485 lbs) | 三星轮 Rubber on Cast |
1151(D)-06-03-1 | 1151(D)-06-03-2 | — | |||
