1151系列 — 51欧规底板系列

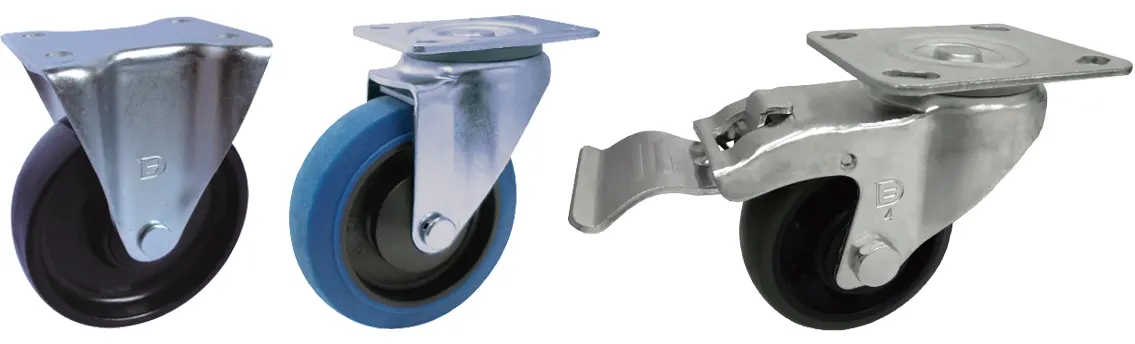

欧规底板，脚架採特别结构设计，特高荷重、3.5mm板，转动灵活，适用于中、重型台车。

特色区

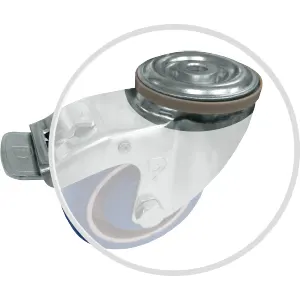

双剎

双剎(超大踏板)(常规)

波盘防尘圈

波盘防尘圈

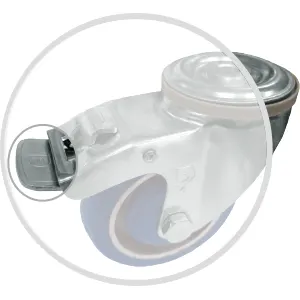

双剎

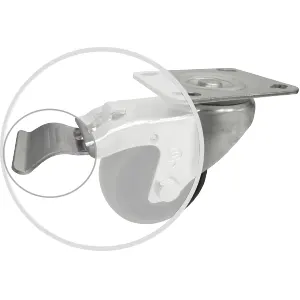

双剎(短踏板)

特色区

轮子选择

  • 高科技耐磨聚氨酯
    高科技耐磨聚氨酯
  • 超级人造胶(514)
    超级人造胶(514)
  • 全效轮(514)
    全效轮(514)
  • WHDR轮
    WHDR轮
  • 导电轮
    导电轮
  • 超级人造胶(515)
    超级人造胶(515)
  • 全效轮(515)
    全效轮(515)
  • W 全效轮
    W 全效轮
  • W 超级人造胶
    W 超级人造胶
  • WPP轮
    WPP轮
  • WMRC轮
    WMRC轮
  • CPD轮
    CPD轮
  • 蓝色弹力轮
    蓝色弹力轮
  • 三明治轮
    三明治轮
  • 铝芯AQPU
    铝芯AQPU

底板规格

编号
Suffix		 底板尺寸
Top Plate Size		 底板孔距
Bolt Hole Spacing		 安装尼帽尺寸
Attaching Bolt Size
1 85 x 105 mm
(3-5/16" x 4-1/8")		 60 x 80 mm(欧规底板)
2-3/8"x3-1/4"(European Plate)		 8 mm (5/16")
2 95 x65 mm
(3-3/4" x 2-1/2")		 75 x 45 mm
(3" x 1-3/4")		 8 mm (5/16")
3 100 x 115 mm
(3-7/8" x 4-1/2")		 75 x 80 mm
(3" x 3-1/4")		 10 mm (3/8")

底板规格

编号
Suffix		 底板尺寸
Top Plate Size		 底板孔距
Bolt Hole Spacing		 安装尼帽尺寸
Attaching Bolt Size
1 85 x 105 mm
(3-5/16" x 4-1/8")		 60 x 80 mm(欧规底板)
2-3/8"x3-1/4"(European Plate)		 8 mm (5/16")
编号
Suffix		 底板尺寸
Top Plate Size		 底板孔距
Bolt Hole Spacing		 安装尼帽尺寸
Attaching Bolt Size
1 85 x 105 mm
(3-5/16" x 4-1/8")		 60 x 80 mm(欧规底板)
2-3/8"x3-1/4"(European Plate)		 8 mm (5/16")
2 95 x65 mm
(3-3/4" x 2-1/2")		 75 x 45 mm
(3" x 1-3/4")		 8 mm (5/16")
3 100 x 115 mm
(3-7/8" x 4-1/2")		 75 x 80 mm
(3" x 3-1/4")		 10 mm (3/8")

轮子详细资讯

轮径 × 轮宽 载重 材质 型号 轴承 总高 迴旋半径
固定 活动 剎车
100mm x 31mm
(4" x 1-1/4")		 120kgs(265lbs) 高科技耐磨聚氨酯
PU on PP Core		 1151-04-31-1 1151-04-31-2 1151-04-31-4 滚珠
Ball Bearing		 130mm
(5-1/16")		 活动 90mm
刹车 137mm
(短踏板)
刹车 160mm
(超大踏版)

Swivel 90mm

Swivel W/Brake 137mm
(Short Pedal)

Swivel W/Brake 160mm
(Extra Big Pedal)
100kgs(220lbs) 超级人造胶
TPR on PP Core		 1151-04-75-1 1151-04-75-2 1151-04-75-4
125kgs(275lbs) 全效轮
Resolute		 1151-04-68-1 1151-04-68-2 1151-04-68-4
80kgs(176lbs) 导电轮
E-Conductive		 1151-04-17-1 1151-04-17-2 1151-04-17-4
180kgs(400lbs) WHDR轮
WHDR		 1151-04-66-1 1151-04-66-2 1151-04-66-4
135kgs(300lbs) W 全效轮
W Resoiute		 1151-04-48-1 1151-04-48-2 1151-04-48-4
100kgs(220lbs) W超级人造胶
WPPR		 1151-04-47-1 1151-04-47-2 1151-04-47-4
130kgs(285lbs) WPP轮
WPP		 1151-04-46-1 1151-04-46-2 1151-04-46-4
180kgs(396lbs) WMRC轮
WMRC		 1151-04-45-1 1151-04-45-2 1151-04-45-4
100mm x 36mm
(4" x 1-1/2")		 160kgs(352lbs) CPD轮
CPD		 1151-04-71-1 1151-04-71-2 1151-04-71-4 滚珠
Ball Bearing		 130mm
(5-1/16")		 活动 90mm
刹车 137mm
(短踏板)
刹车 160mm
(超大踏版)

Swivel 90mm

Swivel W/Brake 137mm
(Short Pedal)

Swivel W/Brake 160mm
(Extra Big Pedal)
160kgs(352lbs) 蓝色弹力轮
Blue Resilient Rubber Wheel		 1151-04-50-1 1151-04-50-2 1151-04-50-4
140kgs(308lbs) 超级人造胶
TPR on PP Core		 1151-04-77-1 1151-04-77-2 1151-04-77-4
160kgs(352lbs) 全效轮
Resolute		 1151-04-76-1 1151-04-76-2 1151-04-76-4
325kgs(715lbs) 铝芯AQPU轮(圆弧)
QPU on AL Core(Round)		 1151-04-87-1 1151-04-87-2 1151-04-87-4
100mm x 40mm
(4" x 1-9/16")		 350kgs(770lbs) 铝芯AQPU轮(圆弧)
QPU on AL Core(Round)		 1151-04(40)-87-1 1151-04(40)-87-2 1151-04(40)-87-4 滚珠
Ball Bearing		 130mm
(5-1/16")		 活动 90mm
刹车 137mm
(短踏板)
刹车 160mm
(超大踏版)

Swivel 90mm

Swivel W/Brake 137mm
(Short Pedal)

Swivel W/Brake 160mm
(Extra Big Pedal)
125mm x 31mm
(5" x 1-1/4")		 130kgs(285lbs) 高科技耐磨聚氨酯
PU on PP Core		 1151-05-31-1 1151-05-31-2 1151-05-31-4 滚珠
Ball Bearing		 155mm
(6-1/8")		 活动 103mm
刹车 137mm
(短踏板)
刹车 160mm
(超大踏版)

Swivel 103mm

Swivel W/Brake 137mm
(Short Pedal)

Swivel W/Brake 160mm
(Extra Big Pedal)
110kgs(240lbs) 超级人造胶
TPR on PP Core		 1151-05-75-1 1151-05-75-2 1151-05-75-4
147kgs(325lbs) 全效轮
Resolute		 1151-05-68-1 1151-05-68-2 1151-05-68-4
90kgs(198lbs) 导电轮
E-Conductive		 1151-05-17-1 1151-05-17-2 1151-05-17-4
200kgs(440lbs) WHDR轮
WHDR		 1151-05-66-1 1151-05-66-2 1151-05-66-4
147kgs(325lbs) W 全效轮
W Resoiute		 1151-05-48-1 1151-05-48-2 1151-05-48-4
110kgs(240lbs) W超级人造胶
WPPR		 1151-05-47-1 1151-05-47-2 1151-05-47-4
150kgs(330lbs) WPP轮
WPP		 1151-05-46-1 1151-05-46-2 1151-05-46-4
200kgs(440lbs) WMRC轮
WMRC		 1151-05-45-1 1151-05-45-2 1151-05-45-4
125mm x 36mm
(5" x 1-1/2")		 200kgs(440lbs) CPD轮
CPD		 1151-05-71-1 1151-05-71-2 1151-05-71-4 滚珠
Ball Bearing		 155mm
(6-1/8")		 活动 103mm
刹车 137mm
(短踏板)
刹车 160mm
(超大踏版)

Swivel 103mm

Swivel W/Brake 137mm
(Short Pedal)

Swivel W/Brake 160mm
(Extra Big Pedal)
250kgs(550lbs) 蓝色弹力轮
Blue Resilient Rubber Wheel		 1151-05-50-1 1151-05-50-2 1151-05-50-4
160kgs(352lbs) 超级人造胶
TPR on PP Core		 1151-05-77-1 1151-05-77-2 1151-05-77-4
180kgs(400lbs) 全效轮
Resolute		 1151-05-76-1 1151-05-76-2 1151-05-76-4
250kgs(550lbs) 三明治轮
Sandwich Wheel		 1151-05-40-1 1151-05-40-2 1151-05-40-4 滚针
Roller Bearing

轮径 × 轮宽 载重 材质 型号 轴承 总高 迴旋半径
固定 活动 剎车
125mm x 40mm
(5" x 1-9/16")		 350kgs (770lbs) 铝芯AQPU轮(圆弧)
QPU on AL Core(Round)		 1151-05-87-1 1151-05-87-2 1151-05-87-4 滚珠
Ball Bearing		 155mm
(6-1/8")		 活动 103mm
刹车 137mm
(短踏板)
刹车 160mm
(超大踏版)

Swivel 103mm

Swivel W/Brake 137mm
(Short Pedal)

Swivel W/Brake 160mm
(Extra Big Pedal)
150mm x 31mm
(6" x 1-1/4")		 130kgs (285lbs) 高科技耐磨聚氨酯
PU on PP Core		 1151-06-31-1 1151-06-31-2 1151-06-31-4 滚珠
Ball Bearing		 188mm
(6-1/8")		 活动 115mm
刹车 137mm
(短踏板)
刹车 160mm
(超大踏版)

Swivel 115mm

Swivel W/Brake 137mm
(Short Pedal)

Swivel W/Brake 160mm
(Extra Big Pedal)
110kgs (240lbs) 超级人造胶
TPR on PP Core		 1151-06-75-1 1151-06-75-2 1151-06-75-4
147kgs (325lbs) 全效轮
Resolute		 1151-06-68-1 1151-06-68-2 1151-06-68-4
90kgs (198lbs) 导电轮
E-Conductive		 1151-06-17-1 1151-06-17-2 1151-06-17-4
200kgs (440lbs) WHDR轮
WHDR		 1151-06-66-1 1151-06-66-2 1151-06-66-4
147kgs (325lbs) W全效轮
W Resolute		 1151-06-66-1 1151-06-66-2 1151-06-66-4
110kgs (240lbs) W超级人造胶
WPPR		 1151-06-47-1 1151-06-47-2 1151-06-47-4
150mm x 42mm
(6" x 1-5/8")		 350kgs (770lbs) 铝芯AQPU轮(圆弧)
QPU on AL Core(Round)		 1151-06-87-1 1151-06-87-2 1151-06-87-4 滚珠
Ball Bearing		 188mm
(6-1/8")		 活动 115mm
刹车 137mm
(短踏板)
刹车 160mm
(超大踏版)

Swivel 115mm

Swivel W/Brake 137mm
(Short Pedal)

Swivel W/Brake 160mm
(Extra Big Pedal)
