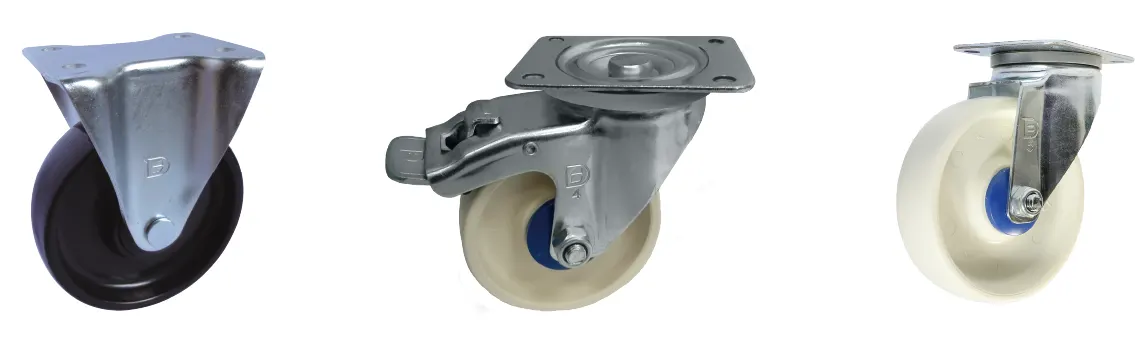

1150系列 — 50系列(欧规脚架系列)
欧规底板，脚架採特别结构设计，荷重高、转动灵活，双剎制动，适用于中、轻型台车。
特色区

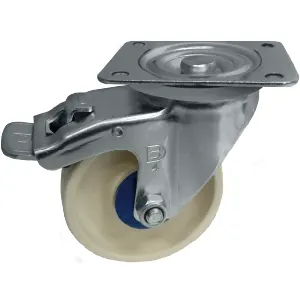

双剎

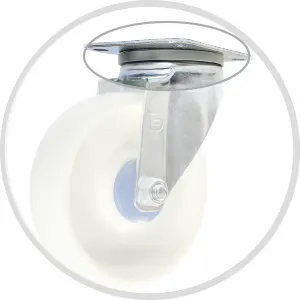

波盘防尘圈
特色区
双剎
波盘防尘圈
轮子选择
-
高科技耐磨聚氨酯
-
超级人造胶(514)
-
全效轮(514)
-
WHDR轮
-
导电轮
-
超级人造胶(515)
-
全效轮(515)
-
W 全效轮
-
W 超级人造胶
-
WPP轮
-
WMRC轮
-
CPD轮
-
蓝色弹力轮
-
三明治轮
-
铝芯AQPU
-
耐高温轮
底板规格
| 编号 Suffix |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1 | 80 x 105 mm (3-1/2" x 4-1/8") | 60 x 80 mm (欧规孔距) 2-3/8" x 3-1/8"(European Plate) |
8 mm (5/16") |
空铆规格
| 编号 Suffix |
孔径 Centre Hole |
编号 Suffix |
孔径 Centre Hole |
| 1 | 10.5mm | 2 | 12.5mm |
底板规格
| 编号 Suffix |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1 | 80 x 105 mm (3-1/2" x 4-1/8") | 60 x 80 mm (欧规孔距) 2-3/8" x 3-1/8"(European Plate) |
8 mm (5/16") |
| 编号 Suffix |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1 | 80 x 105 mm (3-1/2" x 4-1/8") | 60 x 80 mm (欧规孔距) 2-3/8" x 3-1/8"(European Plate) |
8 mm (5/16") |
空铆规格
| 编号 Suffix |
孔径 Centre Hole |
编号 Suffix |
孔径 Centre Hole |
| 1 | 10.5mm | 2 | 12.5mm |
轮子详细资讯
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 迴旋半径 | ||
| 固定 | 活动 | 剎车 | ||||||
| 100mm x 32mm (4" x 1-1/4") |
120kgs (265lbs) | 高科技耐磨聚氨酯 PU on PP Core |
1150-04-31-1 | 1150-04-31-2 | 1150-04-31-4 | 滚珠 Ball Bearing |
128mm (5-1/16") |
活动 90mm 剎车 115mm Swivel 90mm Swivel W/Brake 115mm |
| 100kgs (220lbs) | 超级人造胶 TPR on PP Core |
1150-04-75-1 | 1150-04-75-2 | 1150-04-75-4 | ||||
| 125kgs (275lbs) | 全效轮 Rseoulute |
1150-04-68-1 | 1150-04-68-2 | 1150-04-68-4 | ||||
| 80kgs (175lbs) | 导电轮 E-Conductive |
1150-04-17-1 | 1150-04-17-2 | 1150-04-17-4 | ||||
| 180kgs (396lbs) | WHDR轮 WHDR |
1150-04-66-1 | 1150-04-66-2 | 1150-04-66-4 | ||||
| 135kgs (300lbs) | W全效轮 W Rseoulute |
1150-04-48-1 | 1150-04-48-2 | 1150-04-48-4 | ||||
| 100kgs (220lbs) | W超级人造胶 WPPR |
1150-04-47-1 | 1150-04-47-2 | 1150-04-47-4 | ||||
| 130kgs (285lbs) | WPP轮 WPP |
1150-04-46-1 | 1150-04-46-2 | 1150-04-46-4 | ||||
| 180kgs (396lbs) | WMRC轮 WMRC |
1150-04-45-1 | 1150-04-45-2 | 1150-04-45-4 | ||||
| 230kgs (506lbs) | 铝芯AQPU QPU on AL Core |
1150-04-87-1 | 1150-04-87-2 | 1150-04-87-4 | ||||
| 135kgs (300lbs) | 耐高温轮 Hi-temp |
1150-04-25-1 | 1150-04-25-2 | 1150-04-25-4 | ||||
| 100mm x 36mm (4" x 1-1/2") |
160kgs (352lbs) | CPD轮 CPD |
1150-04-71-1 | 1150-04-71-2 | 1150-04-71-4 | 滚珠 Ball Bearing |
128mm (5-1/16") |
活动 90mm 剎车 115mm Swivel 90mm Swivel W/Brake 115mm |
| 160kgs (352lbs) | 蓝色弹力轮 Blue Resilient Resolute Rubber |
1150-04-50-1 | 1150-04-50-2 | 1150-04-50-4 | ||||
| 140kgs (308lbs) | 超级人造胶 TPR on PP Core |
1150-04-77-1 | 1150-04-77-2 | 1150-04-77-4 | ||||
| 160kgs (352lbs) | 全效轮 Rseoulute |
1150-04-76-1 | 1150-04-76-2 | 1150-04-76-4 | ||||
| 250kgs (550lbs) | 铝芯AQPU QPU on AL Core |
1150-04-87-1 | 1150-04-87-2 | 1150-04-87-4 | ||||
| 200kgs (440lbs) | 三明治轮 Sandwich Wheel |
1150-04-40-1 | 1150-04-40-2 | 1150-04-40-4 | 滚珠 Ball Bearing |
|||
| 滚针 Roller Bearing |
||||||||
| 100mm x 40mm (4" x 1-3/5") |
250kgs (550lbs) | 铝芯AQPU QPU on AL Core |
1150-04-87-1 | 1150-04-87-2 | 1150-04-87-4 | 滚珠 Ball Bearing |
128mm (5-1/16") |
活动 90mm 剎车 115mm Swivel 90mm Swivel W/Brake 115mm |
| 125mm x 32mm (5" x 1-1/4") |
130kgs (285lbs) | 高科技耐磨聚氨酯 PU on PP Core |
1150-05-31-1 | 1150-05-31-2 | 1150-05-31-4 | 滚珠 Ball Bearing |
155mm (6-1/8") |
活动 102.5mm 剎车 115mm Swivel 102.5mm Swivel W/Brake 115mm |
| 110kgs (240lbs) | 超级人造胶 TPR on PP Core |
1150-05-75-1 | 1150-05-75-2 | 1150-05-75-4 | ||||
| 147kgs (325lbs) | 全效轮 Rseoulute |
1150-05-68-1 | 1150-05-68-2 | 1150-05-68-4 | ||||
| 90kgs (198lbs) | 导电轮 E-Conductive |
1150-05-17-1 | 1150-05-17-2 | 1150-05-17-4 | ||||
| 200kgs (440lbs) | WHDR轮 WHDR |
1150-05-66-1 | 1150-05-66-2 | 1150-05-66-4 | ||||
| 147kgs (325lbs) | W全效轮 W Rseoulute |
1150-05-48-1 | 1150-05-48-2 | 1150-05-48-4 | ||||
| 110kgs (240lbs) | W超级人造胶 WPPR |
1150-05-47-1 | 1150-05-47-2 | 1150-05-47-4 | ||||
| 150kgs (330lbs) | WPP轮 WPP |
1150-05-46-1 | 1150-05-46-2 | 1150-05-46-4 | ||||
| 200kgs (440lbs) | WMRC轮 WMRC |
1150-05-45-1 | 1150-05-45-2 | 1150-05-45-4 | ||||
| 250kgs (550lbs) | 铝芯AQPU QPU on AL Core |
1150-05-87-1 | 1150-05-87-2 | 1150-05-87-4 | ||||
| 125mm x 36mm (5" x 1-1/2") |
200kgs (440lbs) | CPD轮 CPD |
1150-05-71-1 | 1150-05-71-2 | 1150-05-71-4 | 滚珠 Ball Bearing |
155mm (6-1/8") |
活动 102.5mm 剎车 115mm Swivel 102.5mm Swivel W/Brake 115mm |
| 250kgs (550lbs) | 蓝色弹力轮 Blue Resilient Resolute Rubber |
1150-05-50-1 | 1150-05-50-2 | 1150-05-50-4 | ||||
| 160kgs (352lbs) | 超级人造胶 TPR on PP Core |
1150-05-77-1 | 1150-05-77-2 | 1150-05-77-4 | ||||
| 180kgs (396lbs) | 全效轮 Rseoulute |
1150-05-76-1 | 1150-05-76-2 | 1150-05-76-4 | ||||
| 250kgs (550lbs) | 三明治轮 Sandwich Wheel |
1150-05-40-1 | 1150-05-40-2 | 1150-05-40-4 | 滚珠 Ball Bearing |
|||
| 滚针 Roller Bearing |
||||||||
| 125mm x 40mm (5" x 1-3/5") |
250kgs (550lbs) | 铝芯AQPU QPU on AL Core |
1150-05-87-1 | 1150-05-87-2 | 1150-05-87-4 | 滚珠 Ball Bearing |
155mm (6-1/8") |
活动 102.5mm 剎车 115mm Swivel 102.5mm Swivel W/Brake 115mm |
