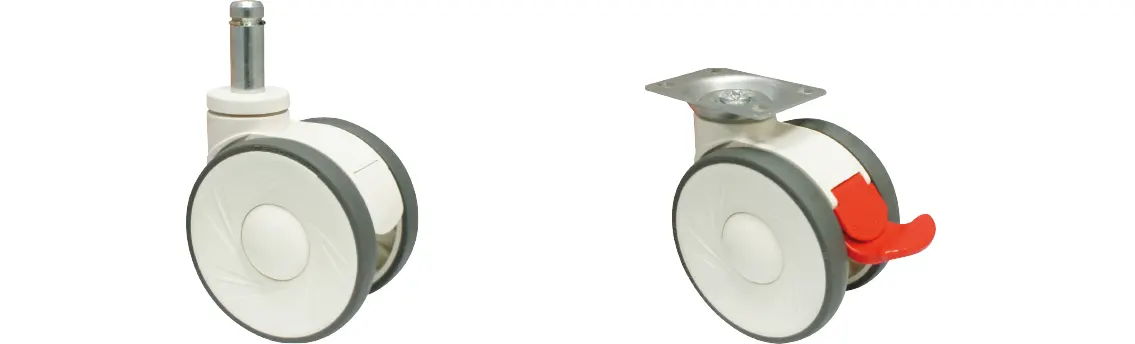

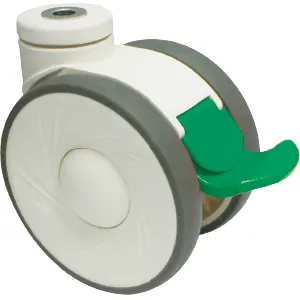

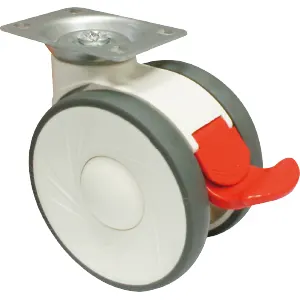

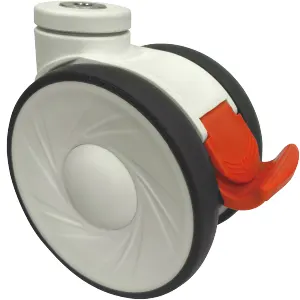

1146系列 — 46塑钢双球轮系列
转动灵活、承载重量高、外型美观，低重心，行走稳定顺畅，另有不鏽钢材质的五金件可供选择；可提供无磁脚轮。
特色区
双剎
定向剎
短踏板(只有4"&5"脚轮)
无磁脚轮
导电轮
特色区
双剎
定向剎
短踏板(只有4"&5"脚轮)
无磁脚轮
导电轮
轮子选择
全效轮
超级人造胶
导电轮
底板规格
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 3",4"经典(narrow) | 42 x 42 mm | 32 x 32 mm * | M4/M5 |
| 3",4"经典(narrow) | 60 x 60 mm | 42.5 x 42.5 mm * | M6 |
| 3",4"经典(narrow) | 62 x 94 mm | 45 x 75 mm (高级底板) * | M8 |
| 4",5" | 69 x 96 mm | 45 x 75 mm (高级底板) * | M8 |
| 3",4"经典(narrow),4",5" | 69 x 96 mm | 49 x 74.5 mm (斜孔底板) * | M8 |
*有固定架和定向活动架可供选择 (Fixed Caster and Directional Swivel Caster is available. Please consult the factory.)

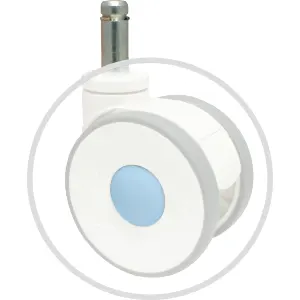

插杆规格
| 规格 Size |
插杆直径 x 长度 Diameter x Length |
规格 Size |
插杆直径 x 长度 Diameter x Length |
| 3",4"经典(narrow) | 11 x 22 mm | ─ | C 型环(Grip Ring) |
| 3",4"经典(narrow) | 11 x 38 mm | ─ | C 型铜釦环(Grip Ring) |
| 4",5" | 21.6 x 56 mm | ─ | C 型环(Grip Ring) |
| 4",5" | 21.5 x 44.5 mm | 25.4 mm * | #10 X 24UNC+C 型环(Grip Ring) |
| 4",5" | 28 x 30 mm | 19 mm * | M8 |
| 4",5" | 28 x 40 mm | 19 mm * | M8 |
*有固定架和定向活动架可供选择 (Fixed Caster and Directional Swivel Caster is available. Please consult the factory.)

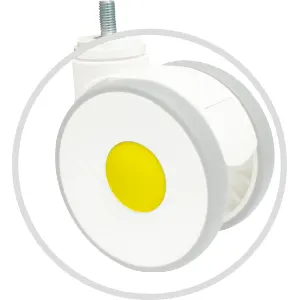

丝扣规格
| 规格 Size |
丝扣牙径 x 长度 Threaded Size |
规格 Size |
丝扣牙径 x 长度 Threaded Size |
| 3",4"经典(narrow) | 3/8-16UNC x 25 mm | 3",4"经典(narrow) | M10 x 15 mm |
| 3",4"经典(narrow),4",5" | M12 x 25 mm | 4",5" | 3/8-16UNC x 32 mm |
| 4",5" | M12 x 25 mm (不锈钢SS) | 4",5" | 1/2-12UNC x 25 mm |
| 4",5" | 1/2-12UNC x 25 mm (不锈钢SS) | 4",5" | M16 x 30 mm |
空铆规格
| 规格 Size |
孔径 Centre Hole |
规格 Size |
孔径 Centre Hole |
| 3",4"经典(narrow),4",5" | 10.5 mm | 4",5" | 12.5 mm |
底板规格
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 3",4"经典(narrow) | 42 x 42 mm | 32 x 32 mm * | M4/M5 |
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 3",4"经典(narrow) | 42 x 42 mm | 32 x 32 mm * | M4/M5 |
| 3",4"经典(narrow) | 60 x 60 mm | 42.5 x 42.5 mm * | M6 |
| 3",4"经典(narrow),4",5" | 69 x 96 mm | 45 x 75 mm (高级底板) * | M8 |
| 4",5" | 69 x 96 mm | 49 x 74.5 mm (斜孔底板) * | M8 |
*有固定架和定向活动架可供选择 (Fixed Caster and Directional Swivel Caster is available. Please consult the factory.)
插杆规格
| 规格 Size |
插杆直径 x 长度 Diameter x Length |
规格 Size |
插杆直径 x 长度 Diameter x Length |
| 3",4"经典(narrow) | 11 x 22 mm | ─ | C 型环(Grip Ring) |
| 3",4"经典(narrow) | 11 x 38 mm | ─ | C 型铜釦环(Grip Ring) |
| 4",5" | 21.6 x 56 mm | ─ | C 型环(Grip Ring) |
| 4",5" | 21.5 x 44.5 mm | 25.4 mm * | #10 X 24UNC+C 型环(Grip Ring) |
| 4",5" | 28 x 30 mm | 19 mm * | M8 |
| 4",5" | 28 x 40 mm | 19 mm * | M8 |
*有固定架和定向活动架可供选择 (Fixed Caster and Directional Swivel Caster is available. Please consult the factory.)
丝扣规格
| 规格 Size |
丝扣牙径 x 长度 Threaded Size |
规格 Size |
丝扣牙径 x 长度 Threaded Size |
| 3",4"经典(narrow) | 3/8-16UNC x 25 mm | 3",4"经典(narrow) | M10 x 15 mm |
| 3",4"经典(narrow),4",5" | M12 x 25 mm | 4",5" | 3/8-16UNC x 32 mm |
| 4",5" | M12 x 25 mm (不锈钢SS) | 4",5" | 1/2-12UNC x 25 mm 0 |
| 4",5" | 1/2-12UNC x 25 mm (不锈钢SS) | 4",5" | M16 x 30 mm |
空铆规格
| 规格 Size |
孔径 Centre Hole |
规格 Size |
孔径 Centre Hole |
| 3",4"经典(narrow),4",5" | 10.5 mm | 4",5" | 12.5 mm |
轮子详细资讯
| 轮径 × 轮宽 | 规格 | 载重 | 材质 | 型号 | 轴承 | 总高 | 偏心距 | 迴旋半径 | |||
| 固定 | 活动 | 双剎 | 定向剎 | ||||||||
| 轮面宽度 Width of Tread 75mm x 14mm (3" x 0.55") _________ 脚轮宽度 Caster width 75mm x 59mm (3" x 2.3") |
四角底板 Plate |
90kgs (198lbs) | 全效轮 Resolute |
1146-03-84-1 | 1146-03-84-2 | 1146-03-84-4 | 1146-03-84-9 | 滚珠轴承 Ball Bearing |
91mm | 23mm | 活动 67mm |
| 90kgs (198lbs) | 导电轮 E-conductive |
1146-03-85-1 | 1146-03-85-2 | 1146-03-85-4 | 1146-03-85-9 | ||||||
| 90kgs (198lbs) | 超级人造胶 TPR on PP Core |
1146-03-86-1 | 1146-03-86-2 | 1146-03-86-4 | 1146-03-86-9 | ||||||
| 丝扣 Threaded Stem |
90kgs (198lbs) | 全效轮 Resolute |
─ | 1146-03-84-2 | 1146-03-84-4 | ─ | 84mm | ||||
| 90kgs (198lbs) | 导电轮 E-conductive |
─ | 1146-03-85-2 | 1146-03-85-4 | ─ | ||||||
| 90kgs (198lbs) | 超级人造胶 TPR on PP Core |
─ | 1146-03-86-2 | 1146-03-86-4 | ─ | ||||||
| 空铆 SingleBolt Hole |
90kgs (198lbs) | 全效轮 Resolute |
─ | 1146-03-84-2 | 1146-03-84-4 | ─ | 81mm | ||||
| 90kgs (198lbs) | 导电轮 E-conductive |
─ | 1146-03-85-2 | 1146-03-85-4 | ─ | ||||||
| 90kgs (198lbs) | 超级人造胶 TPR on PP Core |
─ | 1146-03-86-2 | 1146-03-86-4 | ─ | ||||||
| 插杆 Cylindrical Stem |
90kgs (198lbs) | 全效轮 Resolute |
─ | 1146-03-84-2 | 1146-03-84-4 | ─ | 81mm | ||||
| 90kgs (198lbs) | 导电轮 E-conductive |
─ | 1146-03-85-2 | 1146-03-85-4 | ─ | ||||||
| 90kgs (198lbs) | 超级人造胶 TPR on PP Core |
─ | 1146-03-86-2 | 1146-03-86-4 | ─ | ||||||
| 经典款 (Narrow Version) 轮面宽度 Width of Tread 100mm x 14mm (4" x 0.55") _________ 脚轮宽度 Caster width 100mm x 60.5mm (4" x 2.4") |
四角底板 Plate |
90kgs (198lbs) | 全效轮 Resolute |
1146-04-84-1(1) | 1146-04-84-2(1) | 1146-04-84-4(1) | 1146-04-84-9(1) | 滚珠轴承 Ball Bearing |
122mm | 28mm | 活动 83mm 剎车(短踏板) |
| 90kgs (198lbs) | 导电轮 E-conductive |
1146-04-85-1(1) | 1146-04-85-2(1) | 1146-04-85-4(1) | 1146-04-85-9(1) | ||||||
| 90kgs (198lbs) | 超级人造胶 TPR on PP Core |
1146-04-86-1(1) | 1146-04-86-2(1) | 1146-04-86-4(1) | 1146-04-86-9(1) | ||||||
| 丝扣 Threaded Stem |
90kgs (198lbs) | 全效轮 Resolute |
─ | 1146-04-84-5(1) | 1146-04-84-6(1) | ─ | 115mm | ||||
| 90kgs (198lbs) | 导电轮 E-conductive |
─ | 1146-04-85-5(1) | 1146-04-85-6(1) | ─ | ||||||
| 90kgs (198lbs) | 超级人造胶 TPR on PP Core |
─ | 1146-04-86-5(1) | 1146-04-86-6(1) | ─ | ||||||
| 空铆 SingleBolt Hole |
90kgs (198lbs) | 全效轮 Resolute |
─ | 1146-04-84-5(1) | 1146-04-84-6(1) | ─ | 112mm | ||||
| 90kgs (198lbs) | 导电轮 E-conductive |
─ | 1146-04-85-5(1) | 1146-04-85-6(1) | ─ | ||||||
| 90kgs (198lbs) | 超级人造胶 TPR on PP Core |
─ | 1146-04-86-5(1) | 1146-04-86-6(1) | ─ | ||||||
| 插杆 Cylindrical Stem |
90kgs (198lbs) | 全效轮 Resolute |
─ | 1146-04-84-5(1) | 1146-04-84-6(1) | ─ | 112mm | ||||
| 90kgs (198lbs) | 导电轮 E-conductive |
─ | 1146-04-85-5(1) | 1146-04-85-6(1) | ─ | ||||||
| 90kgs (198lbs) | 超级人造胶 TPR on PP Core |
─ | 1146-04-86-5(1) | 1146-04-86-6(1) | ─ | ||||||
| 轮面宽度 Width of Tread 100mm x 18mm (4" x 0.7") _________ 脚轮宽度 Caster width 100mm x 82mm (4" x 3.2") |
四角底板 Plate |
100kgs (220lbs) | 全效轮 Resolute |
1146-04-84-1 | 1146-04-84-2 | 1146-04-84-4 | 1146-04-84-9 | 滚珠轴承 Ball Bearing |
122mm | 32mm | 活动 91mm 剎车(短踏板) |
| 100kgs (220lbs) | 导电轮 E-conductive |
1146-04-85-1 | 1146-04-85-2 | 1146-04-85-4 | 1146-04-85-9 | ||||||
| 100kgs (220lbs) | 超级人造胶 TPR on PP Core |
1146-04-86-1 | 1146-04-86-2 | 1146-04-86-4 | 1146-04-86-9 | ||||||
| 丝扣 Threaded Stem |
100kgs (220lbs) | 全效轮 Resolute |
─ | 1146-04-84-2 | 1146-04-84-4 | ─ | 120mm | ||||
| 100kgs (220lbs) | 导电轮 E-conductive |
─ | 1146-04-85-2 | 1146-04-85-4 | ─ | ||||||
| 100kgs (220lbs) | 超级人造胶 TPR on PP Core |
─ | 1146-04-86-2 | 1146-04-86-4 | ─ | ||||||
| 空铆 SingleBolt Hole |
100kgs (220lbs) | 全效轮 Resolute |
─ | 1146-04-84-2 | 1146-04-84-4 | ─ | 120mm | ||||
| 100kgs (220lbs) | 导电轮 E-conductive |
─ | 1146-04-85-2 | 1146-04-85-4 | ─ | ||||||
| 100kgs (220lbs) | 超级人造胶 TPR on PP Core |
─ | 1146-04-86-2 | 1146-04-86-4 | ─ | ||||||
| 插杆 Cylindrical Stem |
100kgs (220lbs) | 全效轮 Resolute |
1146-04-84-1 | 1146-04-84-2 | 1146-04-84-4 | 1146-04-84-9 | 120mm | ||||
| 100kgs (220lbs) | 导电轮 E-conductive |
1146-04-85-1 | 1146-04-85-2 | 1146-04-85-4 | 1146-04-85-9 | ||||||
| 100kgs (220lbs) | 超级人造胶 TPR on PP Core |
1146-04-86-1 | 1146-04-86-2 | 1146-04-86-4 | 1146-04-86-9 | ||||||
| 轮径 × 轮宽 | 规格 | 载重 | 材质 | 型号 | 轴承 | 总高 | 偏心距 | 迴旋半径 | |||
| 固定 | 活动 | 双煞 | 定向煞 | ||||||||
| 轮面宽度 Width of Tread 125mm x 18mm (5" x 0.7") _________ 脚轮宽度 Caster width 125mm x 84.5mm (5" x 3.3") |
四角底板 Plate |
110kgs (242lbs) | 全效轮 Resolute |
1146-05-84-1 | 1146-05-84-2 | 1146-05-84-4 | 1146-05-84-9 | 滚珠轴承 Ball Bearing |
146mm | 40mm | 活动 110mm |
| 110kgs (242lbs) | 导电轮 E-conductive |
1146-05-85-1 | 1146-05-85-2 | 1146-05-85-4 | 1146-05-85-9 | ||||||
| 110kgs (242lbs) | 超级人造胶 TPR on PP Core |
1146-05-86-1 | 1146-05-86-2 | 1146-05-86-4 | 1146-05-86-9 | ||||||
| 丝扣 Threaded Stem |
110kgs (242lbs) | 全效轮 Resolute |
─ | 1146-05-84-2 | 1146-05-84-4 | ─ | 144mm | ||||
| 110kgs (242lbs) | 导电轮 E-conductive |
─ | 1146-05-85-2 | 1146-05-85-4 | ─ | ||||||
| 110kgs (242lbs) | 超级人造胶 TPR on PP Core |
─ | 1146-05-86-2 | 1146-05-86-4 | ─ | ||||||
| 空铆 SingleBolt Hole |
110kgs (242lbs) | 全效轮 Resolute |
─ | 1146-05-84-2 | 1146-05-84-4 | ─ | 143mm | ||||
| 110kgs (242lbs) | 导电轮 E-conductive |
─ | 1146-05-85-2 | 1146-05-85-4 | ─ | ||||||
| 110kgs (242lbs) | 超级人造胶 TPR on PP Core |
─ | 1146-05-86-2 | 1146-05-86-4 | ─ | ||||||
| 插杆 Cylindrical Stem |
110kgs (242lbs) | 全效轮 Resolute |
1146-05-84-1 | 1146-05-84-2 | 1146-05-84-4 | 1146-05-84-9 | 143mm | ||||
| 110kgs (242lbs) | 导电轮 E-conductive |
1146-05-85-1 | 1146-05-85-2 | 1146-05-85-4 | 1146-05-85-9 | ||||||
| 110kgs (242lbs) | 超级人造胶 TPR on PP Core |
1146-05-86-1 | 1146-05-86-2 | 1146-05-86-4 | 146-05-86-9 | ||||||
| 轮面宽度 Width of Tread 125mm x 18mm (5" x 0.7") _________ 脚轮宽度 Caster width 125mm x 84.5mm (5" x 3.3") |
四角底板 Plate |
110kgs (242lbs) | 全效轮 Resolute |
1146-05-84-1 | 1146-05-84-2 | 1146-05-84-4 | 1146-05-84-9 | 滚珠轴承 Ball Bearing |
146mm | 40mm | 活动 110mm |
| 110kgs (242lbs) | 导电轮 E-conductive |
1146-05-85-1 | 1146-05-85-2 | 1146-05-85-4 | 1146-05-85-9 | ||||||
| 110kgs (242lbs) | 超级人造胶 TPR on PP Core |
1146-05-86-1 | 1146-05-86-2 | 1146-05-86-4 | 1146-05-86-9 | ||||||
| 丝扣 Threaded Stem |
110kgs (242lbs) | 全效轮 Resolute |
─ | 1146-05-84-2 | 1146-05-84-4 | ─ | 144mm | ||||
| 110kgs (242lbs) | 导电轮 E-conductive |
─ | 1146-05-85-2 | 1146-05-85-4 | ─ | ||||||
| 110kgs (242lbs) | 超级人造胶 TPR on PP Core |
─ | 1146-05-86-2 | 1146-05-86-4 | ─ | ||||||
| 空铆 SingleBolt Hole |
110kgs (242lbs) | 全效轮 Resolute |
─ | 1146-05-84-2 | 1146-05-84-4 | ─ | 143mm | ||||
| 110kgs (242lbs) | 导电轮 E-conductive |
─ | 1146-05-85-2 | 1146-05-85-4 | ─ | ||||||
| 110kgs (242lbs) | 超级人造胶 TPR on PP Core |
─ | 1146-05-86-2 | 1146-05-86-4 | ─ | ||||||
| 插杆 Cylindrical Stem |
110kgs (242lbs) | 全效轮 Resolute |
1146-05-84-1 | 1146-05-84-2 | 1146-05-84-4 | 1146-05-84-9 | 143mm | ||||
| 110kgs (242lbs) | 导电轮 E-conductive |
1146-05-85-1 | 1146-05-85-2 | 1146-05-85-4 | 1146-05-85-9 | ||||||
| 110kgs (242lbs) | 超级人造胶 TPR on PP Core |
1146-05-86-1 | 1146-05-86-2 | 1146-05-86-4 | 146-05-86-9 | ||||||
