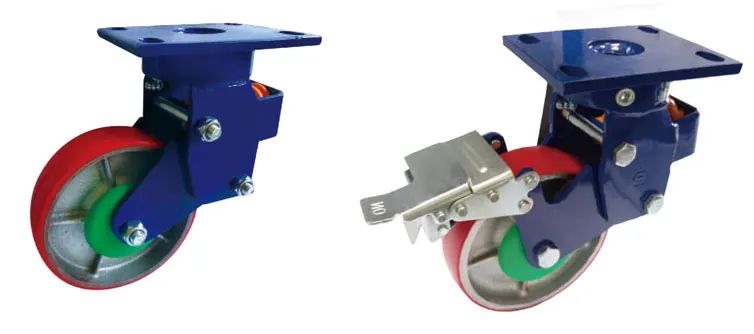

1145-H系列 — 载重抗冲击弹簧轮系列
属得貹专利产品，避震，超重负载且高抗冲击，在搬运过程可避免脚架变形扭曲，多款供选择。採超厚板材及高弹簧，品质、工艺明显优于市场上同产品。
特色区
.webp)
无铆钉设计
.webp)
AK剎&轮子可附塑胶防尘盖(供选择)
.webp)
PU轮面可以变化硬度
特色区
无铆钉设计
AK剎&轮子可附塑胶防尘盖(供选择)
PU轮面可以变化硬度
轮子选择
-
铁芯聚氨酯
-
铁芯NBR橡胶轮
-
QPU轮
-
EQPU轮
-
VPU轮
-
EPU轮
-
VQPU轮
-
环保牵引NBR
-
铝芯AQPU
底板规格
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1 | 110 x 140mm (4-11/32" x 5-1/2") |
75 x 110mm(常规标准底板) (2-15/16" x 4-11/32") |
12 mm (1/2") |
| 110 x 140mm (4-11/32" x 5-1/2") |
80 x 105mm(欧规孔距) (3-5/32" x 4-1/8") |
12 mm (1/2") |
|
| 130 x 165mm (5-1/8" x 6-1/2") |
100 x 130mm (3-15/16" x 5-1/8") |
12 mm (1/2") |
|
| 114 x 159mm (4-1/2" x 6-1/4") |
73.8 x 129.4mm (2-29/32" x 5-3/32") |
12 mm (1/2") |
底板规格
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1 | 110 x 140mm (4-11/32" x 5-1/2") |
75 x 110mm(常规标准底板) (2-15/16" x 4-11/32") |
12 mm (1/2") |
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1 | 110 x 140mm (4-11/32" x 5-1/2") |
75 x 110mm(常规标准底板) (2-15/16" x 4-11/32") |
12 mm (1/2") |
| 110 x 140mm (4-11/32" x 5-1/2") |
80 x 105mm(欧规孔距) (3-5/32" x 4-1/8") |
12 mm (1/2") |
|
| 130 x 165mm (5-1/8" x 6-1/2") |
100 x 130mm (3-15/16" x 5-1/8") |
12 mm (1/2") |
|
| 114 x 159mm (4-1/2" x 6-1/4") |
73.8 x 129.4mm (2-29/32" x 5-3/32") |
12 mm (1/2") |
轮子详细资讯
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 迴旋半径 | ||
| 固定 | 活动 | 剎车 | ||||||
| 100mm x 36mm (4" x 1-7/16") |
250 kgs (550lbs) | 铁芯聚氨酯 PU on Cast |
1145-H-04-33-1 | 1145-H-04-33-2 | 1145-H-04-33-4 | 滚珠 Ball Bearing |
198mm (7-13/16") |
活动 96mm AK剎 164mm Swivel 96mm Swivel W/AK lock brake 164mm |
| 250 kgs (550lbs) | 铝芯AQPU AQPU on AL Core |
1145-H-04-87-1 | 1145-H-04-87-2 | 1145-H-04-87-4 | ||||
| 300 kgs (660lbs) | QPU轮 QPU |
1145-H-04-80-1 | 1145-H-04-80-2 | 1145-H-04-80-4 | ||||
| 100mm x 38mm (4" x 1-1/2") |
200 kgs (440lbs) | 环保牵引NBR轮 Non-marking NBR Rubber on Cast |
1145-H-04-90-1 | 1145-H-04-90-2 | 1145-H-04-90-4 | |||
| 200 kgs (440lbs) | 铁芯NBR橡胶轮 NBR Rubber on Cast |
1145-H-04-04-1 | 1145-H-04-04-2 | 1145-H-04-04-4 | ||||
| 125mm x 40mm (5" x 1-9/16") |
250 kgs (550lbs) | 环保牵引NBR轮 Non-marking NBR Rubber on Cast |
1145-H-05-90-1 | 1145-H-05-90-2 | 1145-H-05-90-4 | 滚珠 Ball Bearing |
210mm (8-9/32") |
活动 132mm AK剎 194mm Swivel 132mm Swivel W/AK lock brake 194mm |
| 250 kgs (550lbs) | 铁芯聚氨酯 PU on Cast |
1145-H-05-33-1 | 1145-H-05-33-2 | 1145-H-05-33-4 | ||||
| 250 kgs (550lbs) | 铁芯NBR橡胶轮 NBR Rubber on Cast |
1145-H-05-04-1 | 1145-H-05-04-2 | 1145-H-05-04-4 | ||||
| 300 kgs (660lbs) | 铝芯AQPU QPU on AL Core |
1145-H-05-87-1 | 1145-H-05-87-2 | 1145-H-05-87-4 | ||||
| 300 kgs (660lbs) | QPU轮 QPU |
1145-H-05-80-1 | 1145-H-05-80-2 | 1145-H-05-80-4 | ||||
| 300 kgs (660lbs) | EPU轮 EPU |
1145-H-05-78-1 | 1145-H-05-78-2 | 1145-H-05-78-4 | ||||
| 400 kgs (880lbs) | EQPU轮 EQPU |
1145-H-05-81-1 | 1145-H-05-81-2 | 1145-H-05-81-4 | ||||
| 150mm x 40mm (6" x 1-9/16") |
300 kgs (660lbs) | 铁芯NBR橡胶轮 NBR Rubber on Cast |
1145-H-06-90-1 | 1145-H-06-04-2 | 1145-H-06-04-4 | 滚珠 Ball Bearing |
225mm (8-27/32") |
活动 146mm AK剎 200mm Swivel 146mm Swivel W/AK lock brake 200mm |
| 300 kgs (660lbs) | 环保牵引NBR轮 Non-marking NBR Rubber on Cast |
1145-H-06-04-1 | 1145-H-06-90-2 | 1145-H-06-90-4 | ||||
| 150mm x 42mm (5" x 1-5/8") |
300 kgs (660lbs) | 铁芯聚氨酯 PU on Cast |
1145-H-06-33-1 | 1145-H-06-33-2 | 1145-H-06-33-4 | |||
| 350 kgs (770lbs) | 铝芯AQPU QPU on AL Core |
1145-H-06-87-1 | 1145-H-06-87-2 | 1145-H-06-87-4 | ||||
| 350 kgs (770lbs) | QPU轮 QPU |
1145-H-06-80-1 | 1145-H-06-80-2 | 1145-H-06-80-4 | ||||
| 350 kgs (770lbs) | EPU轮 EPU |
1145-H-06-78-1 | 1145-H-06-78-2 | 1145-H-06-78-4 | ||||
| 450 kgs (990lbs) | EQPU轮 EQPU |
1145-H-06-81-1 | 1145-H-06-81-2 | 1145-H-06-81-4 | ||||
| 450 kgs (990lbs) | VPU轮 VPU |
1145-H-06-82-1 | 1145-H-06-82-2 | 1145-H-06-82-4 | ||||
| 550 kgs (1210lbs) | VQPU轮 VQPU |
1145-H-06-83-1 | 1145-H-06-83-2 | 1145-H-06-83-4 | ||||
| 150mm x 46mm (6" x 1-5/8") |
350 kgs (770lbs) | 铁芯NBR橡胶轮 NBR Rubber on Cast |
1145-H-06-04-1 | 1145-H-06-04-2 | 1145-H-06-04-4 | |||
| 200mm x 44mm (8" x 1-3/4") |
350 kgs (770lbs) | 铁芯NBR橡胶轮 NBR Rubber on Cast |
1145-H-08-04-1 | 1145-H-08-04-2 | 1145-H-08-04-4 | 滚珠 Ball Bearing |
280mm (11-1/32") |
活动 182mm AK剎 254mm Swivel 182mm Swivel W/AK lock brake 254mm |
| 350 kgs (770lbs) | 环保牵引NBR轮 Non-marking NBR Rubber on Cast |
1145-H-08-90-1 | 1145-H-08-90-2 | 1145-H-08-90-4 | ||||
| 200mm x 50mm (8" x 2") |
350 kgs (770lbs) | 铁芯聚氨酯 PU on Cast |
1145-H-08-33-1 | 1145-H-08-33-2 | 1145-H-08-33-4 | |||
| 400 kgs (880lbs) | QPU轮 QPU |
1145-H-08-80-1 | 1145-H-08-80-2 | 1145-H-08-80-4 | ||||
| 400 kgs (880lbs) | EPU轮 EPU |
1145-H-08-78-1 | 1145-H-08-78-2 | 1145-H-08-78-4 | ||||
| 400 kgs (880lbs) | 铝芯AQPU QPU on AL Core |
1145-H-08-87-1 | 1145-H-08-87-2 | 1145-H-08-87-4 | ||||
| 500 kgs (1100lbs) | EQPU轮 EQPU |
1145-H-08-81-1 | 1145-H-08-81-2 | 1145-H-08-81-4 | ||||
| 500 kgs (1100lbs) | VPU轮 VPU |
1145-H-08-82-1 | 1145-H-08-82-2 | 1145-H-08-82-4 | ||||
| 600 kgs (1320lbs) | VQPU轮 VQPU |
1145-H-08-83-1 | 1145-H-08-83-2 | 1145-H-08-83-4 | ||||
