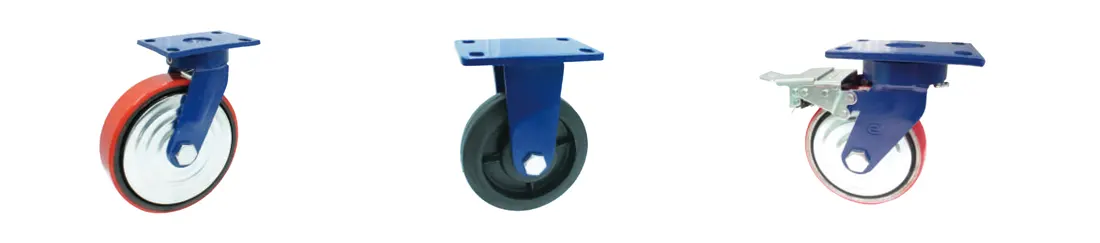

1142系列 — B型抗冲击系列

高负载且高抗冲击，在搬运过程可避免脚架变形扭曲，适用于汽车厂、汽车装配厂、玻璃厂、纺织厂等负载重的车间，可另附防缠丝及防尘盖，属得貹专利产品，可以有效防止脚轮因灰尘或缠丝而无法转动，提高脚轮使用寿命。

特色区


轮子可附金属防尘盖
(供选择)

轮子可附塑胶防尘盖
(供选择)

PU轮面可以变化硬度


AK剎

轮子可附防缠丝盖
(供选择)

无铆钉设计

特色区

轮子选择

  • 铁芯聚氨酯
    铁芯聚氨酯
  • 三星轮
    三星轮
  • 铁芯NBR橡胶轮
    铁芯NBR橡胶轮
  • 尼龙轮
    尼龙轮
  • WMRC轮
    WMRC轮
  • QPU轮
    QPU轮
  • APU轮
    APU轮
  • CPD轮
    CPD轮
  • 铣轮
    铣轮
  • 环保NBR橡胶轮
    环保NBR橡胶轮
  • EQPU轮
    EQPU轮
  • 铁芯聚氨酯(2050A/2050B)
    铁芯聚氨酯
    (2050A/2050B)
  • ZQPU轮(双轮)
    ZQPU轮(双轮)
  • VPU轮
    VPU轮
  • EPU轮
    EPU轮
  • VQPU轮
    VQPU轮
  • 铁芯VXPU
    铁芯VXPU
  • 铝芯QQ橡胶轮
    铝芯QQ橡胶轮
  • 环保牵引NBR
    环保牵引NBR
  • 铝芯AQPU
    铝芯AQPU

底板规格

规格
Size		 底板尺寸
Top Plate Size		 底板孔距
Bolt Hole Spacing		 安装尼帽尺寸
Attaching Bolt Size
4" 90 x 120 mm
(3-17/32" x 4-23/32")		 60 x 90 mm
(2-3/8" x 3-17/32")		 11 mm
(7/16")
5" 6" 8" 110 x 140 mm
(4-11/32" x 5-1/2")		 75 x 110 mm
(常规标准底板)
(2-15/16" x 4-11/32")		 12 mm
(1/2")
110 x 140 mm
(4-11/32" x 5-1/2")		 80 x 105 mm
(欧洲底板)
(3-5/32" x 4-1/8")		 12 mm
(1/2")
130 x 130
(5-1/8" x 5-1/8")		 105 x 105 mm
(4-1/8" x 4-1/8")		 9 mm
(3/8")
130 x 130 mm
(5-1/8" x 5-1/8")		 105 x 105 mm
(4-1/8" x 4-1/8")		 12 mm
(1/2")
130 x 165
(5-1/8" x 6-1/2")		 100 x 130 mm
(3-15/16" x 5-1/8")		 12 mm
(1/2")
114 x 159 mm
(4-1/2" x 6-1/4")		 73.8 x 129.4 mm
(2-29/32" x 5-3/32")		 12 mm
(1/2")

底板规格

规格
Size		 底板尺寸
Top Plate Size		 底板孔距
Bolt Hole Spacing		 安装尼帽尺寸
Attaching Bolt Size
4" 90 x 120 mm
(3-17/32" x 4-23/32")		 60 x 90 mm
(2-3/8" x 3-17/32")		 11 mm
(7/16")
规格
Size		 底板尺寸
Top Plate Size		 底板孔距
Bolt Hole Spacing		 安装尼帽尺寸
Attaching Bolt Size
4" 90 x 120 mm
(3-17/32" x 4-23/32")		 60 x 90 mm
(2-3/8" x 3-17/32")		 11 mm
(7/16")
5" 6" 8" 110 x 140 mm
(4-11/32" x 5-1/2")		 75 x 110 mm
(常规标准底板)
(2-15/16" x 4-11/32")		 12 mm
(1/2")
110 x 140 mm
(4-11/32" x 5-1/2")		 80 x 105 mm
(欧洲底板)
(3-5/32" x 4-1/8")		 12 mm
(1/2")
130 x 130
(5-1/8" x 5-1/8")		 105 x 105 mm
(4-1/8" x 4-1/8")		 9 mm
(3/8")
130 x 130 mm
(5-1/8" x 5-1/8")		 105 x 105 mm
(4-1/8" x 4-1/8")		 12 mm
(1/2")
130 x 165
(5-1/8" x 6-1/2")		 100 x 130 mm
(3-15/16" x 5-1/8")		 12 mm
(1/2")
114 x 159 mm
(4-1/2" x 6-1/4")		 73.8 x 129.4 mm
(2-29/32" x 5-3/32")		 12 mm
(1/2")

轮子详细资讯

轮径 × 轮宽 载重 材质 型号 轴承 总高 迴旋半径
固定 活动 剎车
93mm x 28mm
(3-21/32"x1-3/32")		 400 kgs (880 lbs) 铣轮
Cast Iron		 1142-04-14-1 1142-04-14-2 — 滚珠轴承
Ball Bearing		 143.5mm
(5-21/32")		 活动 87mm
Swivel 87mm
100mm x 32mm
(4"x1-1/4")		 250 kgs (550 lbs) 尼龙轮
Nylon		 1142-04-07-1 1142-04-07-2 1142-04-07-4 滚珠轴承
Ball Bearing		 147mm
(5-25/32")		 活动 92 mm
Swivel 92mm

AK剎 148 mm
Swivel W/AK Lock
Brake 148mm
200 kgs (440 lbs) CPD轮
CPD		 1142-04-49-1 1142-04-49-2 1142-04-49-4
100mm x 34mm
(4"x1-3/8")		 335 kgs (735 lbs) QPU轮(圆弧)
QPU (Round)		 1142-04-80-1 1142-04-80-2 1142-04-80-4
385 kgs (845 lbs) QPU轮(平面)
QPU (Flat)		 1142-04-80-1 1142-04-80-2 1142-04-80-4
100mm x 36mm
(4"x1-7/16")		 250 kgs (550 lbs) 铁芯聚氨脂
PU on Cast		 1142-04-33-1 1142-04-33-2 1142-04-33-4
200 kgs (440 lbs) 三星轮
Rubber on Cast		 1142-04-03-1 1142-04-03-2 1142-04-03-4
250 kgs (550 lbs) APU轮(圆弧)
PU on AL Core (Round)		 1142-04-108-1 1142-04-108-2 1142-04-108-4
300 kgs (660 lbs) 铝芯AQPU轮(圆弧)
QPU on AL Core (Round)		 1142-04-87-1 1142-04-87-2 1142-04-87-4
100mm x 38mm
(4"x1-1/2")		 200 kgs (440 lbs) 铁芯NBR橡胶轮
NBR Rubber on Cast		 1142-04-04-1 1142-04-04-2 1142-04-04-4
200 kgs (440 lbs) 环保NBR橡胶轮
Non-marking Rubber on Cast		 1142-04-11-1 1142-04-11-2 1142-04-11-4
200 kgs (440 lbs) 环保牵引NBR轮
Non-marking NBR Rubber on Cast		 1142-04-90-1 1142-04-90-2 1142-04-90-4
100mm x 40mm
(4"x1-9/16")		 275 kgs (600 lbs) APU轮(圆弧)
PU on AL Core (Round)		 1142-04-108-1 1142-04-108-2 1142-04-108-4
200 kgs (440 lbs) 铝芯QQ橡胶轮
Recilent rubber on AL Core		 1142-04-89-1 1142-04-89-2 1142-04-89-4
325 kgs (715 lbs) 铝芯AQPU轮(圆弧)
QPU on AL Core (Round)		 1142-04-87-1 1142-04-87-2 1142-04-87-4
100mm x 46.5mm
(4"x1-13/16")		 335 kgs (735 lbs) ZQPU轮(双轮)
ZQPU (Dual Wheels)		 1142-04-101-1 1142-04-101-2 1142-04-101-4
122mm x 36.5mm
(4-13/16"x1-7/16")		 600 kgs (1320 lbs) 铣轮
Cast Iron		 1142-05-14-1 1142-05-14-2 1142-05-14-4 滚珠轴承
Ball Bearing		 168.5mm
(6-5/8")		 活动 103 mm
Swivel 103mm
125mm x 40mm
(5"x1-9/16")		 340 kgs (750 lbs) 铁芯聚氨脂
PU on Cast		 1142-05-33-1 1142-05-33-2 1142-05-33-4 滚珠轴承
Ball Bearing		 170mm
(6-11/16")		 活动 107 mm
Swivel 107mm

AK剎 158 mm
Swivel W/AK Lock
Brake 158mm
220 kgs (485 lbs) 三星轮
Rubber on Cast		 1142-05-03-1 1142-05-03-2 1142-05-03-4
300 kgs (660 lbs) 尼龙轮
Nylon		 1142-05-07-1 1142-05-07-2 1142-05-07-4
300 kgs (660 lbs) APU轮(圆弧)
PU on AL Core (Round)		 1142-05-108-1 1142-05-108-2 1142-05-108-4
350 kgs (770 lbs) 铝芯AQPU轮(圆弧)
QPU on AL Core (Round)		 1142-05-87-1 1142-05-87-2 1142-05-87-4
250 kgs (550 lbs) 铁芯NBR橡胶轮
NBR Rubber on Cast		 1142-05-04-1 1142-05-04-2 1142-05-04-4
250 kgs (550 lbs) CPD轮
CPD		 1142-05-49-1 1142-05-49-2 1142-05-49-4
250 kgs (550 lbs) 环保NBR橡胶轮
Non-marking Rubber on Cast		 1142-05-11-1 1142-05-11-2 1142-05-11-4
250 kgs (550 lbs) 环保牵引NBR轮
Non-marking NBR Rubber on Cast		 1142-05-90-1 1142-05-90-2 1142-05-90-4
450 kgs (990 lbs) QPU轮(圆弧)
QPU (Round)		 1142-05-80-1 1142-05-80-2 1142-05-80-4
500 kgs (1100 lbs) QPU轮(平面)
QPU (Flat)		 1142-05-80-1 1142-05-80-2 1142-05-80-4
340 kgs (750 lbs) EPU轮(圆弧)
EPU (Round Shape)		 1142-05-78-1 1142-05-78-2 1142-05-78-4
390 kgs (860 lbs) EPU轮(平面)
EPU (Flat Shape)		 1142-05-78-1 1142-05-78-2 1142-05-78-4
450 kgs (990 lbs) EQPU轮(圆弧)
EQPU (Round Shape)		 1142-05-81-1 1142-05-81-2 1142-05-81-4
500 kgs (1100 lbs) EQPU轮(平面)
EQPU (Flat Shape)		 1142-05-81-1 1142-05-81-2 1142-05-81-4

轮径 × 轮宽 载重 材质 型号 轴承 总高 迴旋半径
固定 活动 剎车
125mm x 50mm
(5" x 2")		 400 kgs (880 lbs) APU轮(平面)
PU on AL Core (Flat)		 1142-05-108-1 1142-05-108-2 1142-05-108-4 滚珠轴承
Ball Bearing		 170mm
(6-11/16")		 活动 107 mm
Swivel 107mm

AK剎 158 mm
Swivel W/AK Lock
Brake 158mm
450 kgs (990 lbs) 铝芯AQPU轮(平面)
QPU on AL Core (Flat)		 1142-05-87-1 1142-05-87-2 1142-05-87-4
125mm x 51mm
(5" x 2")		 450 kgs (990 lbs) ZQPU轮(双轮)
ZQPU (Dual Wheels)		 1142-05-101-1 1142-05-101-2 1142-05-101-4
138mm x 36.5mm
(5-7/16"x1-7/16")		 700 kgs (1540 lbs) 铣轮
Cast Iron		 1142-06-14-1 1142-06-14-2 — 滚珠轴承
Ball Bearing		 191mm
(7-17/32")		 活动 111 mm
Swivel 111mm
150mm x 40mm
(6"x1-9/16")		 400 kgs (880 lbs) 尼龙轮
Nylon		 1142-06-07-1 1142-06-07-2 1142-06-07-4 滚珠轴承
Ball Bearing		 197mm
(7-3/4")		 活动 119 mm
Swivel 119mm

AK剎 160 mm
Swivel W/AK Lock
Brake 160mm
350 kgs (770 lbs) CPD轮
CPD		 1142-06-49-1 1142-06-49-2 1142-06-49-4
350 kgs (770 lbs) 铁芯NBR橡胶轮
NBR Rubber on Cast		 1142-06-04-1 1142-06-04-2 1142-06-04-4
300 kgs (660 lbs) 环保NBR橡胶轮
Non-marking Rubber on Cast		 1142-06-11-1 1142-06-11-2 1142-06-11-4
300 kgs (660 lbs) 环保牵引NBR轮
Non-marking NBR Rubber on Cast		 1142-06-90-1 1142-06-90-2 1142-06-90-4
400 kgs (880 lbs) WMRC轮
WMRC		 1142-06-45-1 1142-06-45-2 1142-06-45-4
150mm x 42mm
(6"x1-5/8")		 410 kgs (900 lbs) 铁芯聚氨脂
PU on Cast		 1142-06-33-1 1142-06-33-2 1142-06-33-4
400 kgs (880 lbs) APU轮(圆弧)
PU on AL Core (Round)		 1142-06-108-1 1142-06-108-2 1142-06-108-4
450 kgs (990 lbs) 铝芯AQPU轮(圆弧)
QPU on AL Core (Round)		 1142-06-87-1 1142-06-87-2 1142-06-87-4
550 kgs (1200 lbs) QPU轮(圆弧)
QPU (Round) 		1142-06-80-1 1142-06-80-2 1142-06-80-4
600 kgs (1320 lbs) QPU轮(平面)
QPU(Flat)		 1142-06-80-1 1142-06-80-2 1142-06-80-4
500 kgs (1100 lbs) VPU轮(圆弧)
VPU (Round)		 1142-06-82-1 1142-06-82-2 1142-06-82-4
670 kgs (1475 lbs) VQPU轮(圆弧)
VQPU (Round Shape)		 1142-06-83-1 1142-06-83-2 1142-06-83-4
800 kgs (1760 lbs) 铁芯VXPU轮(圆弧)
XPU on Iron Core (Round)		 1142-06-91-1 1142-06-91-2 1142-06-91-4
410 kgs (900 lbs) EPU轮(圆弧)
EPU (Round)		 1142-06-78-1 1142-06-78-2 1142-06-78-4
460 kgs (1010 lbs) EPU轮(平面)
EPU (Flat)		 1142-06-78-1 1142-06-78-2 1142-06-78-4
550 kgs (1200 lbs) EQPU轮(圆弧)
EQPU (Round)		 1142-06-81-1 1142-06-81-2 1142-06-81-4
600 kgs (1320 lbs) EQPU轮(平面)
EQPU (Flat)		 1142-06-81-1 1142-06-81-2 1142-06-81-4
150mm x 45.5mm
(6"x1-13/16")		 260 kgs (570 lbs) 三星轮
Rubber on Cast		 1142-06-03-1 1142-06-03-2 1142-06-03-4
150mm x 50mm
(6" x 2")		 450 kgs (990 lbs) APU轮(平面)
PU on AL Core (Flat)		 1142-06(50)-108-1 1142-06(50)-108-2 1142-06(50)-108-4
500 kgs (1100 lbs) 铝芯AQPU轮(平面)
QPU on AL Core (Flat)		 1142-06(50)-87-1 1142-06(50)-87-2 1142-06(50)-87-4
150mm x 51mm
(6" x 2")		 550 kgs (1210 lbs) ZQPU轮(双轮)
ZQPU (Dual Wheels)		 1142-06-101-1 1142-06-101-2 1142-06-101-4
180mm x 44mm
(7" x 1-3/4")		 450 kgs (990 lbs) APU轮(圆弧)
PU on AL Core (Round)		 1142-07-108-1 1142-07-108-2 1142-07-108-4 滚珠轴承
Ball Bearing		 238mm
(9-3/8")		 活动 140 mm
Swivel 140mm

AK剎 166 mm
Swivel W/AK Lock
Brake 166mm
600 kgs (1320 lbs) 铝芯AQPU轮(圆弧)
QPU on AL Core (Round)		 1142-07-87-1 1142-07-87-2 1142-07-87-4

轮径 × 轮宽 载重 材质 型号 轴承 总高 迴旋半径
固定 活动 剎车
180mm x 50mm
(7" x 2")		 450 kgs (990 lbs) 铁芯聚氨脂
PU on Cast		 1142-07-33-1 1142-07-33-2 1142-07-33-4 滚珠轴承
Ball Bearing		 238mm
(9-3/8")		 活动 140 mm
Swivel 140 mm

AK剎 166 mm
Swivel W/AK Lock
Brake 166 mm
600 kgs (1320 lbs) QPU轮(圆弧)
QPU(Round)		 1142-07-80-1 1142-07-80-2 1142-07-80-4
650 kgs (1430 lbs) VPU轮(圆弧)
VPU (Round)		 1142-07-82-1 1142-07-82-2 1142-07-82-4
650 kgs (1430 lbs) 铁芯VXPU轮(圆弧)
XPU on Iron Core (Round)		 1142-07-91-1 1142-07-91-2 1142-07-91-4
650 kgs (1430 lbs) VQPU轮(圆弧)
VQPU (Round Shape) 		1142-07-83-1 1142-07-83-2 1142-07-83-4
193mm x 46mm
(7-3/5"x1-13/16")		 300 kgs (660 lbs) 三星轮
Rubber on Cast		 1142-08-03-1 1142-08-03-2 — 滚珠轴承
Ball Bearing		 244.5mm
(9-5/8")		 活动 146 mm
Swivel 146mm
200mm x 44mm
(8"x1-3/4")		 350 kgs (770 lbs) 铁芯NBR橡胶轮
NBR Rubber on Cast		 1142-08-04-1 1142-08-04-2 1142-08-04-4 滚珠轴承
Ball Bearing		 248mm
(9-3/4")		 活动 150 mm
Swivel 150mm
AK剎 171 mm
Swivel W/AK Lock
Brake 171mm
350 kgs (770 lbs) 环保NBR橡胶轮
Non-marking Rubber on Cast		 1142-08-11-1 1142-08-11-2 1142-08-11-4
350 kgs (770 lbs) 环保牵引NBR轮
Non-marking NBR Rubber on Cast		 1142-08-90-1 1142-08-90-2 1142-08-90-4
400 kgs (880 lbs) 铝芯QQ橡胶轮
Recilent rubber on AL Core		 1142-08-89-1 1142-08-89-2 1142-08-89-4
200mm x 45.5mm
(8"x1-13/16")		 550 kgs (1200 lbs) 铣轮
Cast Iron		 1142-08-14-1 1142-08-14-2 1142-08-14-4
200mm x 50mm
(8" x 2")		 450 kgs (990 lbs) 铁芯聚氨脂
PU on Cast		 1142-08-33-1 1142-08-33-2 1142-08-33-4 滚珠轴承
Ball Bearing		 248mm
(9-3/4")		 活动 150 mm
Swivel 150mm
AK剎 171 mm
Swivel W/AK Lock
Brake 171mm
450 kgs (990 lbs) 尼龙轮
Nylon		 1142-08-07-1 1142-08-07-2 1142-08-07-4
750 kgs (1650 lbs) 铁芯聚氨脂(2050A/2050B)
PU on Cast (2050A/2050B)		 1142-08-62-1 1142-08-62-2 1142-08-62-4
400 kgs (880 lbs) CPD轮
CPD		 1142-08-49-1 1142-08-49-2 1142-08-49-4
450 kgs (990 lbs) WMRC轮
WMRC		 1142-08-45-1 1142-08-45-2 1142-08-45-4
500 kgs (1100 lbs) APU轮(圆弧)
PU on AL Core (Round)		 1142-08-108-1 1142-08-108-2 1142-08-108-4
550 kgs (1200 lbs) APU轮(平面)
PU on AL Core (Flat)		 1142-08-108-1 1142-08-108-2 1142-08-108-4
650 kgs (1430 lbs) 铝芯AQPU轮(圆弧)
QPU on AL Core (Round)		 1142-08-87-1 1142-08-87-2 1142-08-87-4
700 kgs (1540 lbs) 铝芯AQPU轮(平面)
QPU on AL Core (Flat)		 1142-08-87-1 1142-08-87-2 1142-08-87-4
670 kgs (1475 lbs) QPU轮(圆弧)
QPU (Round)		 1142-08-80-1 1142-08-80-2 1142-08-80-4
720 kgs (1580 lbs) QPU轮(平面)
QPU (Flat)		 1142-08-80-1 1142-08-80-2 1142-08-80-4
670 kgs (1475 lbs) VPU轮(圆弧)
VPU (Round)		 1142-08-82-1 1142-08-82-2 1142-08-82-4
800 kgs (1760 lbs) VQPU轮(圆弧)
VQPU (Round)		 1142-08-83-1 1142-08-83-2 1142-08-83-4
1100 kgs (2420 lbs) 铁芯VXPU轮(圆弧)
XPU on Iron Core (Round)		 1142-08-91-1 1142-08-91-2 1142-08-91-4
650 kgs (1430 lbs) EPU轮(圆弧)
EPU (Round Shape)		 1142-08-78-1 1142-08-78-2 1142-08-78-4
700 kgs (1540 lbs) EPU轮(平面)
EPU (Flat Shape)		 1142-08-78-1 1142-08-78-2 1142-08-78-4
750 kgs (1650 lbs) EQPU轮(圆弧)
EQPU (Round Shape)		 1142-08-81-1 1142-08-81-2 1142-08-81-4
800 kgs (1760 lbs) EQPU轮(平面)
EQPU (Flat Shape)		 1142-08-81-1 1142-08-81-2 1142-08-81-4
200mm x 51mm
(8" x 2")		 650 kgs (1430 lbs) ZQPU轮(双轮)
ZQPU (Dual Wheels)		 1142-08-101-1 1142-08-101-2 1142-08-101-4

长按关注微信公众号
可向得貹客服提问
