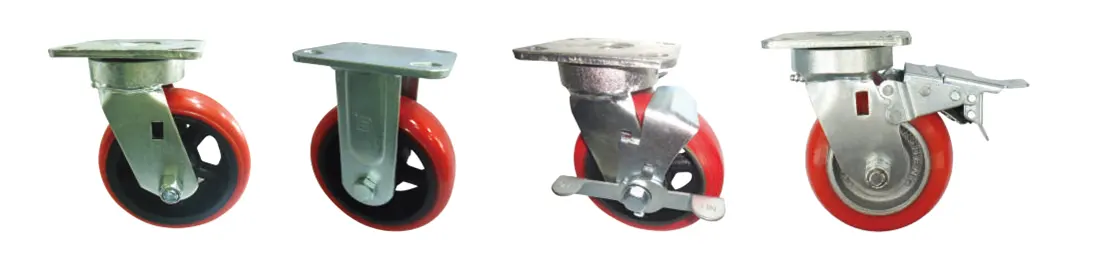

1141系列 — 长珠抗冲击系列
高负载且高抗冲击，在搬运过程可避免脚架变形扭曲，普遍适用于一般工厂搬运，可另附防尘盖，属得貹专利产品，可以有效防止脚轮因灰尘或缠丝而无法转动，提高脚轮使用寿命。
特色区
.webp)
侧剎
.webp)

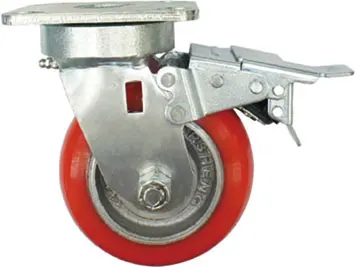

AK剎
.webp)
定向剎
.webp)
可选配双槽
特色区
侧剎
AK剎
定向剎
可选配双槽
轮子选择
-
高科技耐磨聚氨酯
-
铁芯NBR橡胶轮
-
铁芯聚氨酯
-
超级人造胶(圆弧形)
-
超级人造胶(平面)
-
铁芯聚氨酯(圆弧形)
-
电木轮
-
高科技耐磨聚氨酯
-
SS铁轮
-
VG轮
-
SPU轮
-
EPU轮
-
HDR轮(圆弧形)
-
WHDR轮
-
全效轮(圆弧形)
-
全效轮(平面)
-
W全效轮(平面)
-
W超级人造胶(平面)
-
EQPU轮
底板规格
| 编号 Suffix |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1 | 100 × 115 (4" × 4-1/2") |
70 × 85mm (2-5/8"~3" × 3"~3-5/8") |
9.5mm (3/8") |
| 2 | 115 × 159 (4-1/2" × 6-1/4") |
75 × 130mm (2-7/16"~3-3/8" × 4-15/16"~5-1/4") |
12.7mm (1/2") |
底板规格
| 编号 Suffix |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1 | 100 × 115 (4" × 4-1/2") |
70 × 85mm (2-5/8"~3" × 3"~3-5/8") |
9.5mm (3/8") |
| 编号 Suffix |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1 | 100 × 115 (4" × 4-1/2") |
70 × 85mm (2-5/8"~3" × 3"~3-5/8") |
9.5mm (3/8") |
| 2 | 115 × 159 (4-1/2" × 6-1/4") |
75 × 130mm (2-7/16"~3-3/8" × 4-15/16"~5-1/4") |
12.7mm (1/2") |
轮子详细资讯
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 迴旋半径 | ||
| 固定 | 活动 | 剎车 | ||||||
| 100×50mm (4"×2") |
270kgs(600lbs) | 高科技耐磨聚氨酯(圆弧形) PU on PP |
1141-04-43-1 | 1141-04-43-2 | 1141-04-43-4 | 滚珠 Ball Bearing |
142mm (5-5/8") |
单槽: 活动 80mm 侧剎 102mm AK剎 143mm 双槽: 活动 90mm 侧剎 112mm AK剎 153mm Single groove: Swivel 80mm Swivel W/Side Brake 102mm AK Brake 143mm Double groove: Swivel 90mm Swivel W/Side Brake 112mm AK Brake 153mm |
| 200kgs(440lbs) | 韩款铁芯聚氨酯(圆弧形) PU on Cast(Round Shpae) |
1141-04-42-1 | 1141-04-42-2 | 1141-04-42-4 | ||||
| 150kgs(325lbs) | 铁芯NBR橡胶轮 NBR Rubber on Cast |
1141-04-04-1 | 1141-04-04-2 | 1141-04-04-4 | 滚针 Roller Bearing |
|||
| 320kgs(700lbs) | 铁芯聚氨酯 PU on Cast |
1141-04-33-1 | 1141-04-33-2 | 1141-04-33-4 | ||||
| 360kgs(800lbs) | 电木轮 Phenolic |
1141-04-25-1 | 1141-04-25-2 | 1141-04-25-4 | ||||
| 270kgs(600lbs) | 高科技耐磨聚氨酯 PU on PP core |
1141-04-31-1 | 1141-04-31-2 | 1141-04-31-4 | ||||
| 360kgs(800lbs) | SS铁轮 Cast Iron |
1141-04-21-1 | 1141-04-21-2 | 1141-04-21-4 | ||||
| 360kgs(800lbs) | VG轮 V Groove |
1141-04-28-1 | 1141-04-28-2 | 1141-04-28-4 | ||||
| 120kgs(265lbs) | 超级人造胶(圆弧形) TPR on PP |
1141-04-26-1 | 1141-04-26-2 | 1141-04-26-4 | 滚针 Roller Bearing 精密长珠承轴 Annular ball bearing |
|||
| 150kgs(330lbs) | 超级人造胶(平面) TPR on PP Core(Flate Shape) |
1141-04-52-1 | 1141-04-52-2 | 1141-04-52-4 | ||||
| 150kgs(330lbs) | W超级人造胶 WPPR |
1141-04-47-1 | 1141-04-47-2 | 1141-04-47-4 | ||||
| 181kgs(400lbs) | W全效轮(平面) W Resolute(Flate Shape) |
1141-04-48-1 | 1141-04-48-2 | 1141-04-48-4 | ||||
| 181kgs(400lbs) | 全效轮(平面) Resolute(Flate Shape) |
1141-04-51-1 | 1141-04-51-2 | 1141-04-51-4 | ||||
| 136kgs(300lbs) | 全效轮(圆弧形) Resolute(Round Shape) |
1141-04-44-1 | 1141-04-44-2 | 1141-04-44-4 | ||||
| 228kgs(500lbs) | HDR轮(圆弧形) HD Resolute Wheel(Round Shape) |
1141-04-54-1 | 1141-04-54-2 | 1141-04-54-4 | ||||
| 270kgs(600lbs) | WHDR轮 WHDR |
1141-04-55-1 | 1141-04-55-2 | 1141-04-55-4 | ||||
| 125×50mm (5"×2") |
340kgs(750lbs) | 高科技耐磨聚氨酯(圆弧形) PU on PP Core(Round Shape) |
1141-05-43-1 | 1141-05-43-2 | 1141-05-43-4 | 滚珠 Ball Bearing |
167mm (6-1/2") |
单槽: 活动 95.5mm 侧剎 102mm AK剎 154mm 双槽: 活动 105.5mm 侧剎 122mm AK剎 164mm Single groove: Swivel 95.5mm Swivel W/Side Brake 102mm AK Brake 154mm Double groove: Swivel 105.5mm Swivel W/Side Brake 122mm AK Brake 164mm |
| 230kgs(500lbs) | 韩款铁芯聚氨酯(圆弧形) PU on Cast(Round Shape) |
1141-05-42-1 | 1141-05-42-2 | 1141-05-42-4 | ||||
| 340kgs(750lbs) | SPU轮 CPU on PP core |
1141-05-63-1 | 1141-05-63-2 | 1141-05-63-4 | ||||
| 400kgs(880lbs) | EPU轮 EPU |
1141-05-78-1 | 1141-05-78-2 | 1141-05-78-4 | ||||
| 500kgs(1100lbs) | EQPU轮 EQPU |
1141-05-81-1 | 1141-05-81-2 | 1141-05-81-4 | ||||
| 200kgs(440lbs) | 铁芯NBR橡胶轮 NBR Rubber on Cast |
1141-05-04-1 | 1141-05-04-2 | 1141-05-04-4 | 滚针 Roller Bearing |
|||
| 360kgs(790lbs) | 铁芯聚氨酯 PU on Cast |
1141-05-33-1 | 1141-05-33-2 | 1141-05-33-4 | ||||
| 400kgs(880lbs) | 电木轮 Phenolic |
1141-05-25-1 | 1141-05-25-2 | 1141-05-25-4 | ||||
| 340kgs(750lbs) | 高科技耐磨聚氨酯 PU on PP core |
1141-05-31-1 | 1141-05-31-2 | 1141-05-31-4 | ||||
| 400kgs(880lbs) | SS铁轮 Cast Iron |
1141-05-21-1 | 1141-05-21-2 | 1141-05-21-4 | ||||
| 400kgs(880lbs) | VG轮 V Groove |
1141-05-28-1 | 1141-05-28-2 | 1141-05-28-4 | ||||
| 140kgs(300lbs) | 超级人造胶(圆弧形) TPR on PP Core (Round Shpae) |
1141-05-26-1 | 1141-05-26-2 | 1141-05-26-4 | 滚针 Roller Bearing 精密长珠承轴 Annular ball bearing |
|||
| 180kgs(396lbs) | 超级人造胶(平面) TPR on PP Core(Flate Shape) |
1141-05-52-1 | 1141-05-52-2 | 1141-05-52-4 | ||||
| 180kgs(396lbs) | W超级人造胶 WPPR |
1141-05-47-1 | 1141-05-47-2 | 1141-05-47-4 | ||||
| 227kgs(500lbs) | W全效轮(平面) W Resolute(Flate Shape) |
1141-05-48-1 | 1141-05-48-2 | 1141-05-48-4 | ||||
| 227kgs(500lbs) | 全效轮(平面) Resolute(Flate Shape) |
1141-05-51-1 | 1141-05-51-2 | 1141-05-51-4 | ||||
| 170kgs(375lbs) | 全效轮(圆弧形) Resolute(Round Shape) |
1141-05-44-1 | 1141-05-44-2 | 1141-05-44-4 | ||||
| 261kgs(575lbs) | HDR轮(圆弧形) HD Resolute Wheel (Round Shape) |
1141-05-54-1 | 1141-05-54-2 | 1141-05-54-4 | ||||
| 340kgs(750lbs) | WHDR轮 WHDR |
1141-05-55-1 | 1141-05-55-2 | 1141-05-55-4 | ||||
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 迴旋半径 | ||
| 固定 | 活动 | 剎车 | ||||||
| 150×50mm (6"×2") |
410kgs(900lbs) | 高科技耐磨聚氨酯(圆弧形) PU on PP Core(Round Shape) |
1141-06-43-1 | 1141-06-43-2 | 1141-06-43-4 | 滚珠 Ball Bearing |
190mm (7-1/2") |
单槽: 活动 111mm 侧剎 123mm AK剎 158mm 双槽: 活动 123mm 侧剎 135mm AK剎 170mm Single groove: Swivel 111mm Swivel W/Side Brake 123mm AK Brake 158mm Double groove: Swivel 123mm Swivel W/Side Brake 135mm AK Brake 170mm |
| 260kgs(570lbs) | 韩款铁芯聚氨酯(圆弧形) PU on Cast(Round Shape) |
1141-06-42-1 | 1141-06-42-2 | 1141-06-42-4 | ||||
| 410kgs(900lbs) | SPU轮 CPU on PP core |
1141-06-63-1 | 1141-06-63-2 | 1141-06-63-4 | ||||
| 500kgs(1100lbs) | EPU轮 EPU |
1141-06-78-1 | 1141-06-78-2 | 1141-06-78-4 | ||||
| 600kgs(1320lbs) | EQPU轮 EQPU |
1141-06-81-1 | 1141-06-81-2 | 1141-06-81-4 | ||||
| 250kgs(550lbs) | 铁芯NBR橡胶轮 NBR Rubber on Cast |
1141-06-04-1 | 1141-06-04-2 | 1141-06-04-4 | 滚针 Roller Bearing |
|||
| 410kgs(900lbs) | 铁芯聚氨酯 PU on Cast |
1141-06-33-1 | 1141-06-33-2 | 1141-06-33-4 | ||||
| 420kgs(925lbs) | 电木轮 Phenolic |
1141-06-25-1 | 1141-06-25-2 | 1141-06-25-4 | ||||
| 410kgs(900lbs) | 高科技耐磨聚氨酯 PU on PP core |
1141-06-31-1 | 1141-06-31-2 | 1141-06-31-4 | ||||
| 420kgs(925lbs) | SS铁轮 Cast Iron |
1141-06-21-1 | 1141-06-21-2 | 1141-06-21-4 | ||||
| 420kgs(925lbs) | VG轮 V Groove |
1141-06-28-1 | 1141-06-28-2 | 1141-06-28-4 | ||||
| 160kgs(350lbs) | 超级人造胶(圆弧形) TPR on PP Core (Round Shpae) |
1141-06-26-1 | 1141-06-26-2 | 1141-06-26-4 | 滚针 Roller Bearing 精密长珠承轴 Annular ball bearing |
|||
| 210kgs(462lbs) | 超级人造胶(平面) TPR on PP Core(Flate Shape) |
1141-06-52-1 | 1141-06-52-2 | 1141-06-52-4 | ||||
| 210kgs(462lbs) | W超级人造胶 WPPR |
1141-06-47-1 | 1141-06-47-2 | 1141-06-47-4 | ||||
| 272kgs(600lbs) | W全效轮(平面) W Resolute(Flate Shape) |
1141-06-48-1 | 1141-06-48-2 | 1141-06-48-4 | ||||
| 272kgs(600lbs) | 全效轮(平面) Resolute(Flate Shape) |
1141-06-51-1 | 1141-06-51-2 | 1141-06-51-4 | ||||
| 204kgs(450lbs) | 全效轮(圆弧形) Resolute(Round Shape) |
1141-06-44-1 | 1141-06-44-2 | 1141-06-44-4 | ||||
| 295kgs(650lbs) | HDR轮(圆弧形) HD Resolute Wheel (Round Shape) |
1141-06-54-1 | 1141-06-54-2 | 1141-06-54-4 | ||||
| 408kgs(900lbs) | WHDR轮 WHDR |
1141-06-55-1 | 1141-06-55-2 | 1141-06-55-4 | ||||
| 200×50mm (8"×2") |
420kgs(925lbs) | 高科技耐磨聚氨酯(圆弧形) PU on PP Core(Round Shape) |
1141-08-43-1 | 1141-08-43-2 | 1141-08-43-4 | 滚珠 Ball Bearing |
240mm (9-1/2") |
单槽: 活动 145mm 侧剎 145mm AK剎 169mm 双槽: 活动 157mm 侧剎 157mm AK剎 181mm Single groove: Swivel 145mm Swivel W/Side Brake 145mm AK Brake 169mm Double groove: Swivel 157mm Swivel W/Side Brake 157mm AK Brake 181mm |
| 300kgs(660lbs) | 韩款铁芯聚氨酯(圆弧形) PU on Cast(Round Shape) |
1141-08-42-1 | 1141-08-42-2 | 1141-08-42-4 | ||||
| 420kgs(925lbs) | SPU轮 CPU on PP core |
1141-08-63-1 | 1141-08-63-2 | 1141-08-63-4 | ||||
| 600kgs(1320lbs) | EPU轮 EPU |
1141-08-78-1 | 1141-08-78-2 | 1141-08-78-4 | ||||
| 750kgs(1650lbs) | EQPU轮 EQPU |
1141-08-81-1 | 1141-08-81-2 | 1141-08-81-4 | ||||
| 300kgs(660lbs) | 铁芯NBR橡胶轮 NBR Rubber on Cast |
1141-08-04-1 | 1141-08-04-2 | 1141-08-04-4 | 滚针 Roller Bearing |
|||
| 450kgs(990lbs) | 铁芯聚氨酯 PU on Cast |
1141-08-33-1 | 1141-08-33-2 | 1141-08-33-4 | ||||
| 450kgs(990lbs) | 电木轮 Phenolic |
1141-08-25-1 | 1141-08-25-2 | 1141-08-25-4 | ||||
| 420kgs(925lbs) | 高科技耐磨聚氨酯 PU on PP core |
1141-08-31-1 | 1141-08-31-2 | 1141-08-31-4 | ||||
| 450kgs(990lbs) | SS铁轮 Cast Iron |
1141-08-21-1 | 1141-08-21-2 | 1141-08-21-4 | ||||
| 450kgs(990lbs) | VG轮 V Groove |
1141-08-28-1 | 1141-08-28-2 | 1141-08-28-4 | ||||
| 185kgs(400lbs) | 超级人造胶(圆弧形) TPR on PP Core (Round Shpae) |
1141-08-26-1 | 1141-08-26-2 | 1141-08-26-4 | 滚针 Roller Bearing 精密长珠承轴 Annular ball bearing |
|||
| 230kgs(506lbs) | 超级人造胶(平面) TPR on PP Core(Flate Shape) |
1141-08-52-1 | 1141-08-52-2 | 1141-08-52-4 | ||||
| 230kgs(506lbs) | W超级人造胶 WPPR |
1141-08-47-1 | 1141-08-47-2 | 1141-08-47-4 | ||||
| 306kgs(675lbs) | W全效轮(平面) W Resolute(Flate Shape) |
1141-08-48-1 | 1141-08-48-2 | 1141-08-48-4 | ||||
| 306kgs(675lbs) | 全效轮(平面) Resolute(Flate Shape) |
1141-08-51-1 | 1141-08-51-2 | 1141-08-51-4 | ||||
| 272kgs(600lbs) | 全效轮(圆弧形) Resolute(Round Shape) |
1141-08-44-1 | 1141-08-44-2 | 1141-08-44-4 | ||||
| 318kgs(700lbs) | HDR轮(圆弧形) HD Resolute Wheel (Round Shape) |
1141-08-54-1 | 1141-08-54-2 | 1141-08-54-4 | ||||
| 430kgs(950lbs) | WHDR轮 WHDR |
1141-08-55-1 | 1141-08-55-2 | 1141-08-55-4 | ||||
