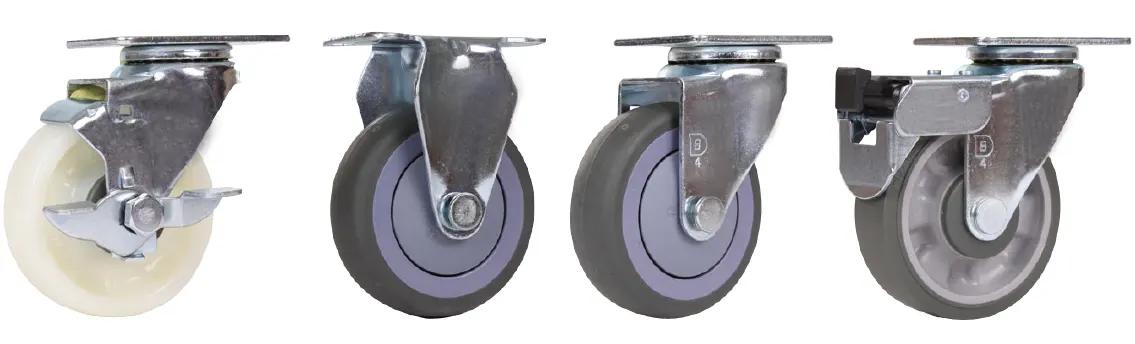

1139系列 — 39系列(大陆)美规脚架系列
脚架採特别结构设计，荷重高、转动灵活，有侧剎制动及双剎制动可供选择。
特色区

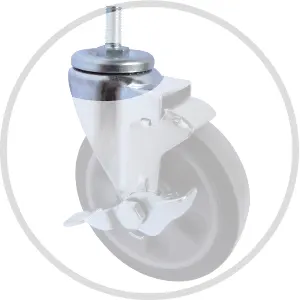

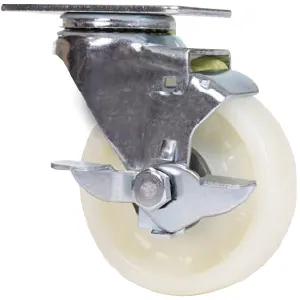

铁双剎

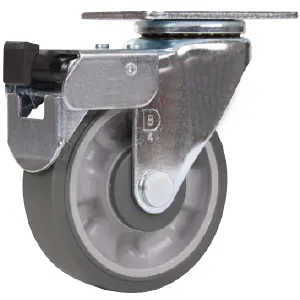

侧剎
波盘防尘盖
特色区
铁双剎
侧剎
波盘防尘盖
轮子选择
高科技耐磨聚氨酯
超级人造胶(514)
尼龙轮
WMRC轮
WPP轮
W超级人造胶
NPPR轮
铝芯橡胶轮
超级人造胶(515)
铝芯AQPU
橡胶轮
塑料轮
导电轮
耐高温轮
W 全效轮
全效轮(514)
WHDR轮
CPD轮
蓝色弹力轮
超级人造胶(大圆弧)
全效轮(大圆弧)
底板规格
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1 | 69 x 92 mm (2-23/32" x 3-5/8") | 45 x 75 mm (高级架底板)(Plate) (1-3/4" x 3") |
6.35 mm (1/4") |
插杆规格
| 规格 Size |
插杆直径 x 长度 Diameter x Length |
规格 Size |
插杆直径 x 长度 Diameter x Length |
| 1 | 方21.4 x 63 mm(square) | 43mm | 5/16"-18UNC |
| 2 | 21.6 x 56mm | — | C型环(Grip Ring) |
| 3 | 22.1 x 56mm | — | C型环(Grip Ring) |
丝扣规格
| 规格 Size |
丝扣牙径 x 长度 Threaded Size |
规格 Size |
丝扣牙径 x 长度 Threaded Size |
规格 Size |
丝扣牙径 x 长度 Threaded Size |
| 1 | 3/8-16UNC × 25 ** | 2 | M12 × 25 * | 3 | M12 × 25 * |
| 4 | 1/2-13UNC × 25 | 5 | M16 × 25 * |
*丝扣底部六角台阶 ** 丝扣底部圆头台阶
底板规格
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1 | 69 x 92 mm (2-23/32" x 3-5/8") | 45 x 75 mm (高级架底板)(Plate) (1-3/4" x 3") |
6.35 mm (1/4") |
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1 | 69 x 92 mm (2-23/32" x 3-5/8") | 45 x 75 mm (高级架底板)(Plate) (1-3/4" x 3") |
6.35 mm (1/4") |
插杆规格
| 规格 Size |
插杆直径 x 长度 Diameter x Length |
规格 Size |
插杆直径 x 长度 Diameter x Length |
| 1 | 方21.4 x 63 mm(square) | 43mm | 5/16"-18UNC |
| 2 | 21.6 x 56mm | — | C型环(Grip Ring) |
| 3 | 22.1 x 56mm | — | C型环(Grip Ring) |
丝扣规格
| 规格 Size |
丝扣牙径 x 长度 Threaded Size |
规格 Size |
丝扣牙径 x 长度 Threaded Size |
规格 Size |
丝扣牙径 x 长度 Threaded Size |
| 1 | 3/8-16UNC × 25 ** | 2 | M12 × 25 * | 3 | M12 × 25 * |
| 4 | 1/2-13UNC × 25 | 5 | M16 × 25 * |
*丝扣底部六角台阶 ** 丝扣底部圆头台阶
轮子详细资讯
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 迴旋半径 | ||
| 固定 | 活动 | 剎车 | ||||||
| 75mm x 24mm (3" x 1") |
40kgs (88lbs) | 超级人造胶 TPR on PP Core |
1139-R-03-75-1 | 1139-R-03-75-2 | 1139-R-03-75-4 | 滚珠 Ball Bearing |
底板类总高 Plate Version OAH: 105mm (4-1/8") 圆头丝扣类总高 Round Head Threaded Stem OAH: 101mm (3-31/32") 六角丝扣类总高 Hexagon Head Threaded Stem OAH: 105mm (4-1/8") 插杆类总高 Cylindrical Stem OAH: 101mm (3-31/32") |
活动 76mm 侧剎 82mm 双剎 114mm Swivel 76mm Swivel W/Side Brake 82mm Swivel W/Total lock 114mm |
| 50kgs (110lbs) | 全效轮 Resolute |
1139-R-03-68-1 | 1139-R-03-68-2 | 1139-R-03-68-4 | ||||
| 75mm x 32mm (3" x 1-1/4") |
90kgs (198lbs) | 超级人造胶 TPR on PP Core |
1139-03-75-1 | 1139-03-75-2 | 1139-03-75-4 | 滚珠 Ball Bearing |
||
| 90kgs (198lbs) | 全效轮 Resolute |
1139-03-68-1 | 1139-03-68-2 | 1139-03-68-4 | ||||
| 80kgs (175lbs) | 导电轮 E-Conductive |
1139-03-17-1 | 1139-03-17-2 | 1139-03-17-4 | ||||
| 160kgs (352lbs) | WMRC轮 WMRC |
1139-03-45-1 | 1139-03-45-2 | 1139-03-45-4 | ||||
| 100kgs (220lbs) | WPP轮 WPP |
1139-03-46-1 | 1139-03-46-2 | 1139-03-46-4 | ||||
| 90kgs (198lbs) | W超级人造胶 WPPR |
1139-03-47-1 | 1139-03-47-2 | 1139-03-47-4 | ||||
| 110kgs (250lbs) | W全效轮 W Resolute |
1139-03-48-1 | 1139-03-48-2 | 1139-03-48-4 | ||||
| 140kgs (310lbs) | WHDR轮 WHDR |
1139-03-66-1 | 1139-03-66-2 | 1139-03-66-4 | ||||
| 160kgs (352lbs) | 铝芯AQPU QPU on AL Core |
1139-03-87-1 | 1139-03-87-2 | 1139-03-87-4 | ||||
| 100kgs (220lbs) | 尼龙轮 Nylon |
1139-03-07-1 | 1139-03-07-2 | 1139-03-07-4 | 中管 Plain Bearing |
|||
| 70kgs (155lbs) | 橡胶轮 Rubber |
1139-03-06-1 | 1139-03-06-2 | 1139-03-06-4 | ||||
| 90kgs (198lbs) | 塑料轮 PP |
1139-03-29-1 | 1139-03-29-2 | 1139-03-29-4 | ||||
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 迴旋半径 | ||
| 固定 | 活动 | 剎车 | ||||||
| 100mm x 24mm (4" x 1") |
50kgs (110lbs) | 超级人造胶 TPR on PP Core |
1139-R-04-75-1 | 1139-R-04-75-2 | 1139-R-04-75-4 | 滚珠 Ball Bearing |
底板类总高 Plate Version OAH: 130mm (5-1/8") 圆头丝扣类总高 Round Head Threaded Stem OAH: 126mm (4-61/64") 六角丝扣类总高 Hexagon Head Threaded Stem OAH: 130mm (5-1/8") 插杆类总高 Cylindrical Stem OAH: 126mm (4-61/64") |
活动 88mm 侧剎 88mm 双剎 114mm Swivel 88mm Swivel W/Side Brake 88mm Swivel W/Total lock 114mm |
| 55kgs (121lbs) | 全效轮 Resolute |
1139-R-04-68-1 | 1139-R-04-68-2 | 1139-R-04-68-4 | ||||
| 100mm x 32mm (4" x 1-1/4") |
120kgs (265lbs) | 高科技耐磨聚氨酯 PU on PP Core |
1139-04-31-1 | 1139-04-31-2 | 1139-04-31-4 | 滚珠 Ball Bearing 中管 Plain Bearing |
||
| 100kgs (220lbs) | 超级人造胶 TPR on PP Core |
1139-04-75-1 | 1139-04-75-2 | 1139-04-75-4 | ||||
| 80kgs (175lbs) | 超级人造胶(大圆弧) TPR on PP Core(Dount) |
1139-04-110-1 | 1139-04-110-2 | 1139-04-110-4 | ||||
| 90kgs (198lbs) | 全效轮(大圆弧) Resolute(Dount) |
1139-04-111-1 | 1139-04-111-2 | 1139-04-111-4 | ||||
| 125kgs (275lbs) | 全效轮 Resolute |
1139-04-68-1 | 1139-04-68-2 | 1139-04-68-4 | 滚珠 Ball Bearing |
|||
| 80kgs (176lbs) | 导电轮 E-Conductive |
1139-04-17-1 | 1139-04-17-2 | 1139-04-17-4 | ||||
| 180kgs (396lbs) | WMRC轮 WMRC |
1139-04-45-1 | 1139-04-45-2 | 1139-04-45-4 | ||||
| 130kgs (285lbs) | WPP轮 WPP |
1139-04-46-1 | 1139-04-46-2 | 1139-04-46-4 | ||||
| 100kgs (220lbs) | W超级人造胶 WPPR |
1139-04-47-1 | 1139-04-47-2 | 1139-04-47-4 | ||||
| 135kgs (285lbs) | W全效轮 W Resolute |
1139-04-48-1 | 1139-04-48-2 | 1139-04-48-4 | ||||
| 180kgs (400lbs) | WHDR轮 WHDR |
1139-04-66-1 | 1139-04-66-2 | 1139-04-66-4 | ||||
| 135kgs (300lbs) | 铝芯橡胶轮 Rubber on AL Core |
1139-04-22-1 | 1139-04-22-2 | 1139-04-22-4 | ||||
| 200kgs (440lbs) | 铝芯AQPU QPU on AL Core |
1139-04-87-1 | 1139-04-87-2 | 1139-04-87-4 | ||||
| 100mm x 32mm (4" x 1-1/4") |
70kgs (154lbs) | NPPR轮 NPPR |
1139-04-67-1 | 1139-04-67-2 | 1139-04-67-4 | 中管 Plain Bearing |
底板类总高 Plate Version OAH: 130mm (5-1/8") 圆头丝扣类总高 Round Head Threaded Stem OAH: 126mm (4-61/64") 六角丝扣类总高 Hexagon Head Threaded Stem OAH: 130mm (5-1/8") 插杆类总高 Cylindrical Stem OAH: 126mm (4-61/64") |
活动 88mm 侧剎 88mm 双剎 114mm Swivel 88mm Swivel W/Side Brake 88mm Swivel W/Total lock 114mm |
| 120kgs (265lbs) | 尼龙轮 Nylon |
1139-04-07-1 | 1139-04-07-2 | 1139-04-07-4 | ||||
| 80kgs (176lbs) | 橡胶轮 Rubber |
1139-04-06-1 | 1139-04-06-2 | 1139-04-06-4 | ||||
| 90kgs (198lbs) | 塑料轮 PP |
1139-04-29-1 | 1139-04-29-2 | 1139-04-29-4 | ||||
| 135kgs (300lbs) | 耐高温轮 Hi-temp |
1139-04-25-1 | 1139-04-25-2 | 1139-04-25-4 | ||||
| 100mm x 36mm (4" x 1-1/2") |
160kgs (352lbs) | CPD轮 CPD |
1139-04-71-1 | 1139-04-71-2 | 1139-04-71-4 | 滚珠 Ball Bearing |
||
| 160kgs (352lbs) | 蓝色弹力轮 Blue Resilient Resolute Rubber |
1139-04-50-1 | 1139-04-50-2 | 1139-04-50-4 | ||||
| 140kgs (308lbs) | 超级人造胶 TPR on PP Core |
1139-04-77-1 | 1139-04-77-2 | 1139-04-77-4 | ||||
| 160kgs (352lbs) | 全效轮 Resolute |
1139-04-76-1 | 1139-04-76-2 | 1139-04-76-4 | ||||
| 250kgs (550lbs) | 铝芯AQPU QPU on AL Core |
1139-04-87-1 | 1139-04-87-2 | 1139-04-87-4 | ||||
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 迴旋半径 | ||
| 固定 | 活动 | 剎车 | ||||||
| 125mm x 24.5mm (5" x 1") |
70kgs (155lbs) | 超级人造胶 TPR on PP Core |
1139-R-05-75-1 | 1139-R-05-75-2 | 1139-R-05-75-4 | 滚珠 Ball Bearing |
底板类总高 Plate Version OAH: 158mm (6-1/5") 圆头丝扣类总高 Round Head Threaded Stem OAH: 154mm (6-1/16") 六角丝扣类总高 Hexagon Head Threaded Stem OAH: 158mm (6-1/5") 插杆类总高 Cylindrical Stem OAH: 154mm (6-1/16") |
活动 101mm 侧剎 101mm 双剎 114mm Swivel 101mm Swivel W/Side Brake 101mm Swivel W/Total lock 114mm |
| 80kgs (175lbs) | 全效轮 Resolute |
1139-R-05-68-1 | 1139-R-05-68-2 | 1139-R-05-68-4 | ||||
| 125mm x 32mm (5" x 1-1//4") |
130kgs (285lbs) | 高科技耐磨聚氨酯 PU on PP Core |
1139-05-31-1 | 1139-05-31-2 | 1139-05-31-4 | 滚珠 Ball Bearing 中管 Plain Bearing |
||
| 110kgs (240lbs) | 超级人造胶 TPR on PP Core |
1139-05-75-1 | 1139-05-75-2 | 1139-05-75-4 | ||||
| 100kgs (220lbs) | 超级人造胶(大圆弧) TPR on PP Core(Dount) |
1139-05-110-1 | 1139-05-110-2 | 1139-05-110-4 | ||||
| 120kgs (265lbs) | 全效轮(大圆弧) Resolute(Dount) |
1139-05-111-1 | 1139-05-111-2 | 1139-05-111-4 | ||||
| 147kgs (325lbs) | 全效轮 Resolute |
1139-05-68-1 | 1139-05-68-2 | 1139-05-68-4 | 滚珠 Ball Bearing |
|||
| 90kgs (198lbs) | 导电轮 E-Conductive |
1139-05-17-1 | 1139-05-17-2 | 1139-05-17-4 | ||||
| 200kgs (440lbs) | WMRC轮 WMRC |
1139-05-45-1 | 1139-05-45-2 | 1139-05-45-4 | ||||
| 150kgs (330lbs) | WPP轮 WPP |
1139-05-46-1 | 1139-05-46-2 | 1139-05-46-4 | ||||
| 110kgs (240lbs) | W超级人造胶 WPPR |
1139-05-47-1 | 1139-05-47-2 | 1139-05-47-4 | ||||
| 147kgs (325lbs) | W全效轮 WResolute |
1139-05-48-1 | 1139-05-48-2 | 1139-05-48-4 | ||||
| 200kgs (440lbs) | WHDR轮 WHDR |
1139-05-66-1 | 1139-05-66-2 | 1139-05-66-4 | ||||
| 230kgs (506lbs) | 铝芯AQPU QPU on AL Core |
1139-05-87-1 | 1139-05-87-2 | 1139-05-87-4 | 中管 Plain Bearing |
|||
| 140kgs (305lbs) | 尼龙轮 Nylon |
1139-05-07-1 | 1139-05-07-2 | 1139-05-07-4 | ||||
| 90kgs (198lbs) | 橡胶轮 Rubber |
1139-05-06-1 | 1139-05-06-2 | 1139-05-06-4 | ||||
| 100kgs (220lbs) | 塑料轮 PP |
1139-05-29-1 | 1139-05-29-2 | 1139-05-29-4 | ||||
| 125mm x 36mm (5" x 1-1/2") |
200kgs (440lbs) | CPD轮 CPD |
1139-05-71-1 | 1139-05-71-2 | 1139-05-71-4 | 滚珠 Ball Bearing |
||
| 250kgs (550lbs) | 蓝色弹力轮 Blue Resilient Resolute Rubber |
1139-05-50-1 | 1139-05-50-2 | 1139-05-50-4 | ||||
| 160kgs (352lbs) | 超级人造胶 TPR on PP Core |
1139-05-77-1 | 1139-05-77-2 | 1139-05-77-4 | ||||
| 180kgs (400lbs) | 全效轮 Resolute |
1139-05-76-1 | 1139-05-76-2 | 1139-05-76-4 | ||||
