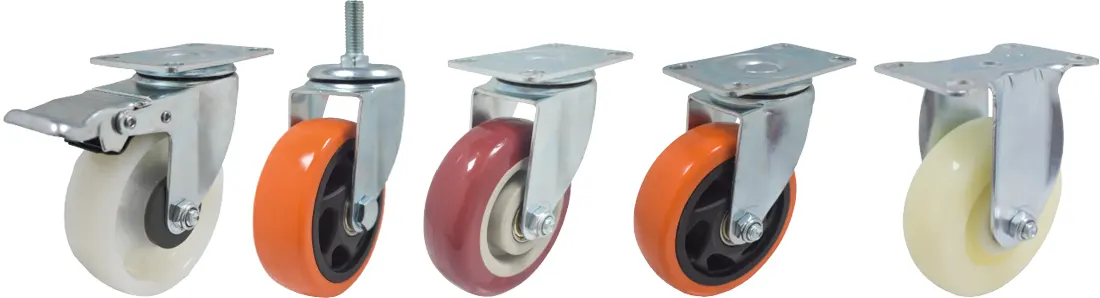

1139-1系列 — 39-1高级底板系列
39-1高级底板系列拥有优异的承载能力，转动灵活、转向便捷，可轻松改变方向，操作省力又高效。
移动时稳定性极佳，不易倾倒或晃动，适用性广泛。提供多种安装方式与尺寸规格，能灵活适配各类设备与工作环境，
安装与更换都非常方便。适合应用于工业、物流仓储、商业场所、医疗行业及餐饮服务等多种场景，是提升效率与稳定性的最佳选择。
轮子选择
通花PPP轮
PPR轮
白色PPP轮
WCPD轮
经典PPR轮
WMRC轮
韩式PPP轮
W 全效轮
底板规格
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1 | 94 X 63 mm (3-3/4" X 2-1/2") |
45 x 75 mm (高级架底板)(Plate) (1-3/4" x 3") |
M8 & 5/16 |
丝扣规格
| 规格 Size |
丝扣牙径 x 长度 Threaded Size |
| 1 | M12 x30 |
空铆规格
| 规格 Size |
孔径 Centre Hole |
| 1 | ψ10.5 & ψ12.5 |
底板规格
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1 | 94 X 63 mm (3-3/4" X 2-1/2") |
45 x 75 mm (高级架底板)(Plate) (1-3/4" x 3") |
M8 & 5/16 |
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1 | 94 X 63 mm (3-3/4" X 2-1/2") |
45 x 75 mm (高级架底板)(Plate) (1-3/4" x 3") |
M8 & 5/16 |
丝扣规格
| 规格 Size |
丝扣牙径 x 长度 Threaded Size |
| 1 | M12 x30 |
空铆规格
| 规格 Size |
孔径 Centre Hole |
| 1 | ψ10.5 & ψ12.5 |
轮子详细资讯
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 迴旋半径 | |||||
| 固定 | 活动 | 活煞(双煞) | 螺纹 | 螺纹(双煞) | 空铆(活动) | ||||||
| 63mm x 36mm (2-1/2" x 1-1/2") |
80kgs (176 lbs) |
通花PPP轮 PP on PP Core |
1139-025-29-1 | 1139-025-29-2 | 1139-025-29-4 | 1139-025-29-5 | 1139-025-29-6 | 1139-025-29-7 | 滚珠轴承 Ball Bearing |
93mm (3-5/8") |
活动 61.5mm 双煞 105mm Swivel 61.5mm Swivel W/Total lock 105mm |
| 63.5mm x 32mm (2-1/2" x 1-1/4") |
80 kgs (176 lbs) |
白色PPP轮 PP on PP Core |
1139-025-29-1 | 1139-025-29-2 | 1139-025-29-4 | 1139-025-29-5 | 1139-025-29-6 | 1139-025-29-7 | |||
| 62.5mm x 23.5mm (2-1/2" x 7/8") |
70 kgs (154 lbs) |
经典PPR轮 TPR on PP Core |
1139-025-26-1 | 1139-025-26-2 | 1139-025-26-4 | 1139-025-26-5 | 1139-025-26-6 | 1139-025-26-7 | |||
| 62.5mm x 32mm (2-1/2" x 1-1/4") |
80 kgs (176 lbs) |
韩式PPP轮 PP on PP Core |
1139-025-29-1 | 1139-025-29-2 | 1139-025-29-4 | 1139-025-29-5 | 1139-025-29-6 | 1139-025-29-7 | |||
| 75mm x 38mm (3" x 1-1/2") |
100kgs (220 lbs) |
通花PPP轮 PP on PP Core |
1139-030-29-1 | 1139-030-29-2 | 1139-030-29-4 | 1139-030-29-5 | 1139-030-29-6 | 1139-030-29-7 | 滚珠轴承 Ball Bearing |
106mm (4-1/8") |
活动 67.5mm 双煞 105mm Swivel 67.5mm Swivel W/Total lock 105mm |
| 75mm x 32mm (3" x 1-1/4") |
100 kgs (220 lbs) |
白色PPP轮 PP on PP Core |
1139-030-29-1 | 1139-030-29-2 | 1139-030-29-4 | 1139-030-29-5 | 1139-030-29-6 | 1139-030-29-7 | |||
| 75mm x 24mm (3" x 1") |
90 kgs (198 lbs) |
经典PPR轮 TPR on PP Core |
1139-030-26-1 | 1139-030-26-2 | 1139-030-26-4 | 1139-030-26-5 | 1139-030-26-6 | 1139-030-26-7 | |||
| 75mm x 32mm (3" x 1-1/4") |
100 kgs (220 lbs) |
韩式PPP轮 PP on PP Core |
1139-030-29-1 | 1139-030-29-2 | 1139-030-29-4 | 1139-030-29-5 | 1139-030-29-6 | 1139-030-29-7 | |||
| 75mm x 31mm (3" x 1-1/4") |
90 kgs (198 lbs) |
PPR轮 TPR on PP Core |
1139-030-26-1 | 1139-030-26-2 | 1139-030-26-4 | 1139-030-26-5 | 1139-030-26-6 | 1139-030-26-7 | |||
| 75mm x 31mm (3" x 1-1/4") |
110 kgs (243 lbs) |
WCPD轮 WCPD |
1139-030-44-1 | 1139-030-44-2 | 1139-030-44-4 | 1139-030-44-5 | 1139-030-44-6 | 1139-030-44-7 | |||
| 75mm x 31mm (3" x 1-1/4") |
130 kgs (287 lbs) |
WMRC轮 WMRC |
1139-030-07-1 | 1139-030-07-2 | 1139-030-07-4 | 1139-030-07-5 | 1139-030-07-6 | 1139-030-07-7 | |||
| 75mm x 31mm (3" x 1-1/4") |
90 kgs (198 lbs) |
W 全效轮 W Resolute |
1139-030-45-1 | 1139-030-45-2 | 1139-030-45-4 | 1139-030-45-5 | 1139-030-45-6 | 1139-030-45-7 | |||
| 100mm x 38mm (4" x 1-1/2") |
120kgs (264 lbs) |
通花PPP轮 PP on PP Core |
1139-040-29-1 | 1139-040-29-2 | 1139-040-29-4 | 1139-040-29-5 | 1139-040-29-6 | 1139-040-29-7 | 滚珠轴承 Ball Bearing |
130mm (5-1/8") |
活动 80mm 双煞 105mm Swivel 80mm Swivel W/Total lock 105mm |
| 100mm x 32mm (4" x 1-1/4") |
120 kgs (264 lbs) |
白色PPP轮 PP on PP Core |
1139-040-29-1 | 1139-040-29-2 | 1139-040-29-4 | 1139-040-29-5 | 1139-040-29-6 | 1139-040-29-7 | |||
| 100mm x 31mm (4" x 1-1/4") |
110 kgs (243 lbs) |
经典PPR轮 TPR on PP Core |
1139-040-26-1 | 1139-040-26-2 | 1139-040-26-4 | 1139-040-26-5 | 1139-040-26-6 | 1139-040-26-7 | |||
| 100mm x 32mm (4" x 1-1/4") |
120 kgs (264 lbs) |
韩式PPP轮 PP on PP Core |
1139-040-29-1 | 1139-040-29-2 | 1139-040-29-4 | 1139-040-29-5 | 1139-040-29-6 | 1139-040-29-7 | |||
| 100mm x 31mm (4" x 1-1/4") |
110 kgs (243 lbs) |
PPR轮 TPR on PP Core |
1139-040-26-1 | 1139-040-26-2 | 1139-040-26-4 | 1139-040-26-5 | 1139-040-26-6 | 1139-040-26-7 | |||
| 100mm x 31mm (4" x 1-1/4") |
120 kgs (264 lbs) |
WCPD轮 WCPD |
1139-040-44-1 | 1139-040-44-2 | 1139-040-44-4 | 1139-040-44-5 | 1139-040-44-6 | 1139-040-44-7 | |||
| 100mm x 31mm (4" x 1-1/4") |
140 kgs (309 lbs) |
WMRC轮 WMRC |
1139-040-07-1 | 1139-040-07-2 | 1139-040-07-4 | 1139-040-07-5 | 1139-040-07-6 | 1139-040-07-7 | |||
| 100mm x 31mm (4" x 1-1/4") |
110 kgs (243 lbs) |
W 全效轮 W Resolute |
1139-040-45-1 | 1139-040-45-2 | 1139-040-45-4 | 1139-040-45-5 | 1139-040-45-6 | 1139-040-45-7 | |||
| 125mm x 38mm (5" x 1-1/2") |
120kgs (264 lbs) |
通花PPP轮 PP on PP Core |
1139-050-29-1 | 1139-050-29-2 | 1139-050-29-4 | 1139-050-29-5 | 1139-050-29-6 | 1139-050-29-7 | 滚珠轴承 Ball Bearing |
155mm (6-1/8") |
活动 92.5mm 双煞 105mm Swivel 92.5mm Swivel W/Total lock 105mm |
| 125mm x 32mm (5" x 1-1/4") |
120 kgs (264 lbs) |
白色PPP轮 PP on PP Core |
1139-050-29-1 | 1139-050-29-2 | 1139-050-29-4 | 1139-050-29-5 | 1139-050-29-6 | 1139-050-29-7 | |||
| 125mm x 31mm (5" x 1-1/4") |
110 kgs (243 lbs) |
经典PPR轮 TPR on PP Core |
1139-050-26-1 | 1139-050-26-2 | 1139-050-26-4 | 1139-050-26-5 | 1139-050-26-6 | 1139-050-26-7 | |||
| 125mm x 32mm (5" x 1-1/4") |
120 kgs (264 lbs) |
韩式PPP轮 PP on PP Core |
1139-050-29-1 | 1139-050-29-2 | 1139-050-29-4 | 1139-050-29-5 | 1139-050-29-6 | 1139-050-29-7 | |||
| 125mm x 31mm (5" x 1-1/4") |
110 kgs (243 lbs) |
PPR轮 TPR on PP Core |
1139-050-26-1 | 1139-050-26-2 | 1139-050-26-4 | 1139-050-26-5 | 1139-050-26-6 | 1139-050-26-7 | |||
| 125mm x 31mm (5" x 1-1/4") |
130 kgs (287 lbs) |
WCPD轮 WCPD |
1139-050-44-1 | 1139-050-44-2 | 1139-050-44-4 | 1139-050-44-5 | 1139-050-44-6 | 1139-050-44-7 | |||
| 125mm x 31mm (5" x 1-1/4") |
150 kgs (330 lbs) |
WMRC轮 WMRC |
1139-050-07-1 | 1139-050-07-2 | 1139-050-07-4 | 1139-050-07-5 | 1139-050-07-6 | 1139-050-07-7 | |||
| 125mm x 31mm (5" x 1-1/4") |
120 kgs (264 lbs) |
W 全效轮 W Resolute |
1139-050-45-1 | 1139-050-45-2 | 1139-050-45-4 | 1139-050-45-5 | 1139-050-45-6 | 1139-050-45-7 | |||
