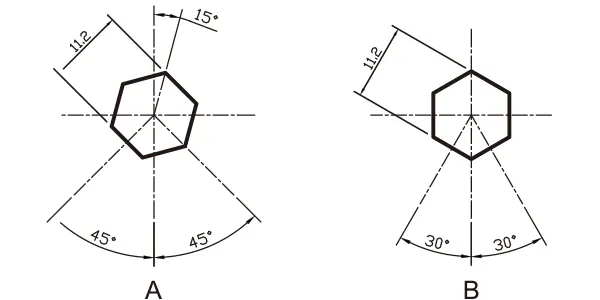

刹车型式	轮径	轮宽	插杆直径	插杆长度	偏心距	总高	载重	旋转半径	插杆六角孔中心高	插杆六角孔对边	六角转件角度	轮面材质	品号
Swivel caster with total lock 二段	100	31	28	96	43.4	138.8	90	93.4	78.5	11.2	A	TPR on PP Core 超级人造胶	11380400268010
											B		11380400268020
	100	31	32	50	43.4	138.8	90	93.4	34	11.2	A		11380400268030
											B		11380400268040
	125	31	28	96	38	162.5	125	100.5	78.5	11.2	A		11380500268040
											B		11380500268110
	125	31	32	50	38	162.5	125	100.5	34	11.2	A		11380500268130
											B		11380500268120
	150	31	28	96	39	190	125	114	78.5	11.2	A		11380600268010
											B		11380600268020
	150	31	32	50	39	190	125	114	34	11.2	A		11380600268040
											B		11380600268030
	100	31	28	96	43.4	138.8	90	93.4	78.5	11.2	A	Resolute Rubber 全效轮	11380400458010
											B		11380400458020
	100	31	32	50	43.4	138.8	90	93.4	34	11.2	A		11380400458030
											B		11380400458040
	125	31	28	96	38	162.5	125	100.5	78.5	11.2	A		11380500458030
											B		11380500458050
	125	31	32	50	38	162.5	125	100.5	34	11.2	A		11380500458080
											B		11380500458090
	150	31	28	96	39	190	125	114	78.5	11.2	A		11380600458010
											B		11380600458020
	150	31	32	50	39	190	125	114	34	11.2	A		11380600458030
											B		11380400268010

刹车型式	轮径	轮宽	插杆直径	插杆长度	偏心距	总高	载重	旋转半径	插杆六角孔中心高	插杆六角孔对边	六角转件角度	轮面材质	品号
Swivel caster with total and directional lock 三段	100	31	28	96	43.4	138.8	90	93.4	78.5	11.2	A	TPR on PP Core 超级人造胶	11380400268050
											B		11380400268060
	100	31	32	50	43.4	138.8	90	93.4	34	11.2	A		11380400268070
											B		11380400268080
	125	31	28	96	38	162.5	125	100.5	78.5	11.2	A		11380500268030
											B		11380500268010
	125	31	32	50	38	162.5	125	100.5	34	11.2	A		11380500268140
											B		11380500268020
	150	31	28	96	39	190	125	114	78.5	11.2	A		11380600268050
											B		11380600268060
	150	31	32	50	39	190	125	114	34	11.2	A		11380600268080
											B		11380600268070
	100	31	28	96	43.4	138.8	90	93.4	78.5	11.2	A	Resolute Rubber 全效轮	11380400458050
											B		11380400458060
	100	31	32	50	43.4	138.8	90	93.4	34	11.2	A		11380400458080
											B		11380400458070
	125	31	28	96	38	162.5	125	100.5	78.5	11.2	A		11380500458040
											B		11380500458010
	125	31	32	50	38	162.5	125	100.5	34	11.2	A		11380500458100
											B		11380500458020
	150	31	28	96	39	190	125	114	78.5	11.2	A		11380600458050
											B		11380600458060
	150	31	32	50	39	190	125	114	34	11.2	A		11380600458080
											B		11380400268070
