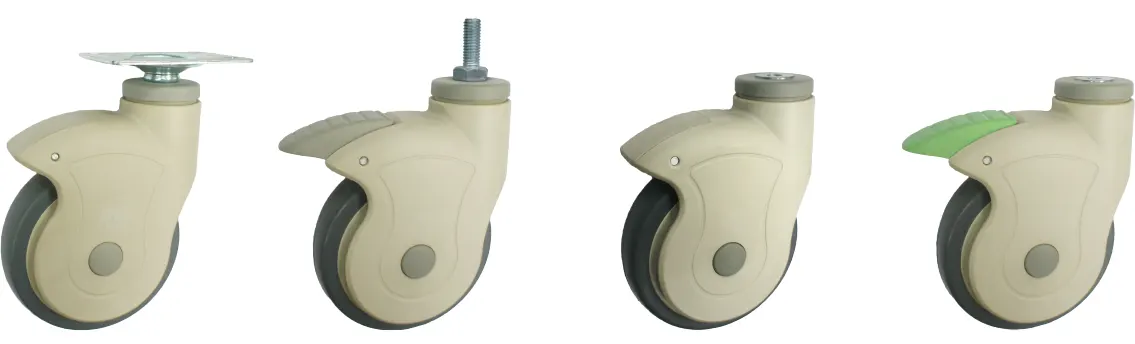

1135系列 — 全塑系列
*无汙染 *超静音 *防生鏽 *弹性佳 *低阻力 *转动灵活
*耐冲材质 *专利产品 *产品轻量化且坚固耐用
*可另选购有抗菌效果之全效轮TPR轮
*适用于医疗器材设备、傢俱置物架、食品工厂、学校、办公室等场所。
*另有不鏽钢材质的五金件可供选择 *可提供无磁脚轮
特色区

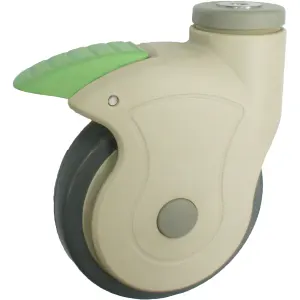

双剎
定向剎
无磁脚轮
特色区
双剎
定向剎
无磁脚轮
轮子选择
铝芯AQPU

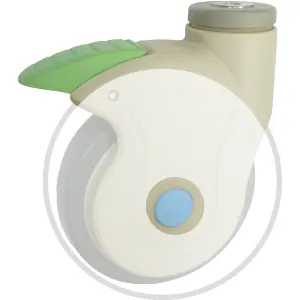

全效轮
超级人造胶
底板规格
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 4" 5" | 69 x 96 mm | 45 x 75 mm (高级底板) * | M8 |
| 4" 5" | 69 x 96 mm | 45 x 74.5 mm (斜孔底板) * | M8 |
*有固定架可供选择 (Fixed Caster is available. Please consult the factory.)
插杆规格
| 规格 Size |
插杆直径 x 长度 Diameter x Length |
规格 Size |
插杆直径 x 长度 Diameter x Length |
| 4" 5" | 21.6 x 56 mm | — | C型环(Grip Ring) |
| 4" 5" | 21.5 x 44.5mm | 25.4mm * | #10 X 24UNC+C型环(Grip Ring) |
| 4" 5" | 28 x 30 mm | 19mm * | M8 |
| 4" 5" | 28 x 30 mm | 19mm * | M8 |
*有固定架可供选择 (Fixed Caster is available. Please consult the factory.)

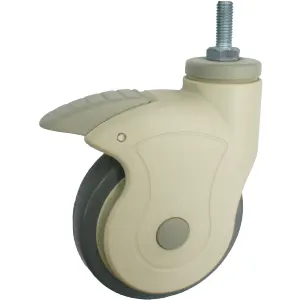

丝扣规格
| 规格 Size |
丝扣牙径 x 长度 Threaded Size |
规格 Size |
丝扣牙径 x 长度 Threaded Size |
| 4" 5" | 3/8-16UNC × 32mm | 4" 5" | M12 × 25mm |
| 4" 5" | M12X25mm (不鏽钢SS) | 4" 5" | 1/2-12UNC x 25 mm |
| 4" 5" | 1/2-20UNC x 25mm (不鏽钢SS) | 4" 5" | M16 x 30 mm |
空铆规格
| 规格 Size |
孔径 Centre Hole |
规格 Size |
孔径 Centre Hole |
| 3" 4" 5" | 10.5 mm | 4" 5" | 12.5 mm |
底板规格
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 4" 5" | 69 x 96 mm | 45 x 75 mm (高级底板) * | M8 |
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 4" 5" | 69 x 96 mm | 45 x 75 mm (高级底板) * | M8 |
| 4" 5" | 69 x 96 mm | 45 x 74.5 mm (斜孔底板) * | M8 |
*有固定架可供选择 (Fixed Caster is available. Please consult the factory.)
插杆规格
| 规格 Size |
插杆直径 x 长度 Diameter x Length |
规格 Size |
插杆直径 x 长度 Diameter x Length |
| 4" 5" | 21.6 x 56 mm | — | C型环(Grip Ring) |
| 4" 5" | 21.5 x 44.5mm | 25.4mm * | #10 X 24UNC+C型环(Grip Ring) |
| 4" 5" | 28 x 30 mm | 19mm * | M8 |
| 4" 5" | 28 x 30 mm | 19mm * | M8 |
*有固定架可供选择 (Fixed Caster is available. Please consult the factory.)
丝扣规格
| 规格 Size |
丝扣牙径 x 长度 Threaded Size |
规格 Size |
丝扣牙径 x 长度 Threaded Size |
| 4" 5" | 3/8-16UNC × 32mm | 4" 5" | M12 × 25mm |
| 4" 5" | M12X25mm (不鏽钢SS) | 4" 5" | 1/2-12UNC x 25 mm |
| 4" 5" | 1/2-20UNC x 25mm (不鏽钢SS) | 4" 5" | M16 x 30 mm |
空铆规格
| 规格 Size |
孔径 Centre Hole |
规格 Size |
孔径 Centre Hole |
| 3" 4" 5" | 10.5 mm | 4" 5" | 12.5 mm |
轮子详细资讯
| 轮径 × 轮宽 | 规格 | 载重 | 材质 | 型号 | 轴承 | 总高 | 偏心距 | 迴旋半径 | |||
| 固定 | 活动 | 双剎 | 定向剎 | ||||||||
| 100mm x 31mm (4" x 1-1/4") |
四角底板 Plate |
90kgs (198lbs) |
全效轮 Resolute |
11350400451013 | 11350400452013 | 11350400454013 | 11350400454213 | 滚珠轴承 Ball Bearing |
146mm (5"-3/4") |
34mm (1"-11/32") |
活动 84mm 活剎 105.5mm Swivel 84mm Swivel W/Total Lock Brake 105.5mm |
| 90kgs (198lbs) |
超级人造胶 TPR on PP Core |
11350400261013 | 11350400262013 | 11350400264013 | 11350400264213 | ||||||
| 丝扣 Threaded Stem |
90kgs (198lbs) |
全效轮 Resolute |
─ | 11350400455013 | 11350400456013 | ─ | 145mm (5"-45/65") |
||||
| 90kgs (198lbs) |
超级人造胶 TPR on PP Core |
─ | 11350400265013 | 11350400266013 | ─ | ||||||
| 空铆 Single Bolt Hole |
90kgs (198lbs) |
全效轮 Resolute |
─ | 11350400459213 | 11350400459413 | ─ | 144mm (5"-43/64") |
||||
| 90kgs (198lbs) |
超级人造胶 TPR on PP Core |
─ | 11350400269213 | 11350400269413 | ─ | ||||||
| 插杆 Cylindrical Stem |
90kgs (198lbs) |
全效轮 Resolute |
11350400457313 | 11350400457013 | 11350400458013 | 11350400458213 | 144mm (5"-43/64") |
||||
| 90kgs (198lbs) |
超级人造胶 TPR on PP Core |
11350400267313 | 11350400267013 | 11350400268013 | 11350400268213 | ||||||
| 125mm x 31mm (5" x 1-1/4") |
四角底板 Plate |
100kgs (220lbs) |
全效轮 Resolute |
11350500451013 | 11350500452013 | 11350500454013 | 11350500454213 | 滚珠轴承 Ball Bearing |
175mm (6"-57/64") |
44.5mm (1"-3/4") |
活动 107mm 活剎 124.5mm Swivel 107mm Swivel W/Total Lock Brake 124.5mm |
| 100kgs (220lbs) |
超级人造胶 TPR on PP Core |
11350500261013 | 11350500262013 | 11350500264013 | 11350500264213 | ||||||
| 100kgs (220lbs) |
铝芯AQPU QPU on AL Core |
1135-05-87-1 | 1135-05-87-2 | 1135-05-87-4 | 1135-05-87-9 | ||||||
| 丝扣 Threaded Stem |
100kgs (220lbs) |
全效轮 Resolute |
─ | 11350500455013 | 11350500456013 | ─ | 174mm (6"-27/32") |
||||
| 100kgs (220lbs) |
超级人造胶 TPR on PP Core |
─ | 11350500265013 | 11350500266013 | ─ | ||||||
| 100kgs (220lbs) |
铝芯AQPU QPU on AL Core |
─ | 1135-05-87-2 | 1135-05-87-4 | ─ | ||||||
| 空铆 Single Bolt Hole |
100kgs (220lbs) |
全效轮 Resolute |
─ | 11350500459213 | 11350500459413 | ─ | 173mm (6"-13/16") |
||||
| 100kgs (220lbs) |
超级人造胶 TPR on PP Core |
─ | 11350500269213 | 11350500269413 | ─ | ||||||
| 100kgs (220lbs) |
铝芯AQPU QPU on AL Core |
─ | 1135-05-87-2 | 1135-05-87-4 | ─ | ||||||
| 插杆 Cylindrical Stem |
100kgs (220lbs) |
全效轮 Resolute |
11350500457313 | 11350500457013 | 11350500458013 | 11350500458213 | 173mm (6"-13/16") |
||||
| 100kgs (220lbs) |
超级人造胶 TPR on PP Core |
11350500267313 | 11350500267013 | 11350500268013 | 11350500268213 | ||||||
| 100kgs (220lbs) |
铝芯AQPU QPU on AL Core |
1135-05-87-1 | 1135-05-87-2 | 1135-05-87-4 | 1135-05-87-9 | ||||||
