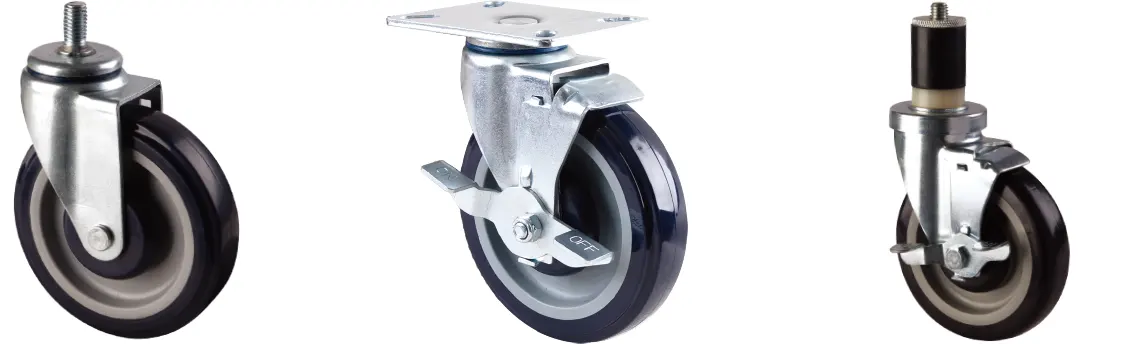

1133系列 — 33系列(美规脚架/美规超市车轮系列)
採用特别脚架荷重结构设计，转动灵活，侧剎制动效果良好。
特色区

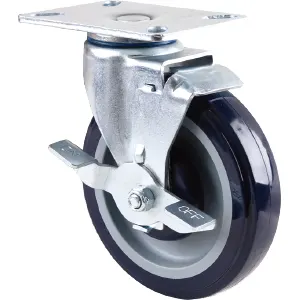

侧剎
APP三件套
波盘防尘盖
特色区
侧剎
APP三件套
波盘防尘盖
轮子选择
塑料轮
橡胶轮
高科技耐磨聚氨酯(平地轮)
超级人造胶(514)
WMRC轮
WHDR轮
阻力轮(平地轮)
超级橡胶轮
阻力轮(超级橡胶轮)
高科技耐磨聚氨酯
导电轮(平地轮)
尼龙轮
耐高温轮
WPP轮
W 全效轮
W 超级人造胶
全效轮
蓝色弹力全效轮(515)
底板规格
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1 | 69 x 96 mm (2-23/32" x 3-25/32") | 45 x 75 mm (高级架底板)(Plate) (1-3/4" x 3") |
6.35 mm (1/4") |
| 2 | 80 x 105 mm (3-1/8" x 4-1/8") | 60 x 85 mm (美规孔距) 2-3/8" x 3-7/16"(American Plate) |
8 mm (5/16") |
插杆规格
| 规格 Size |
插杆直径 x 长度 Diameter x Length |
规格 Size |
插杆直径 x 长度 Diameter x Length |
| 4" 5" | 21.6 x 56 mm | — | C型环(Grip Ring) |
| 4" 5" | 方18 x 21.6 x 51L SQ | 31.7 | 10.5mm |
| 4" 5" | 方21.6 x 21.6 x 51L SQ | 26 | 8.5mm |
丝扣规格
| 规格 Size |
丝扣牙径 x 长度 Threaded Size |
规格 Size |
丝扣牙径 x 长度 Threaded Size |
规格 Size |
丝扣牙径 x 长度 Threaded Size |
| 1 | 1/2 x 13UNC x 25 mm | 2 | 1/2 x 13UNC x 45 mm | 3 | 1/2 x 13UNC x 70 mm |

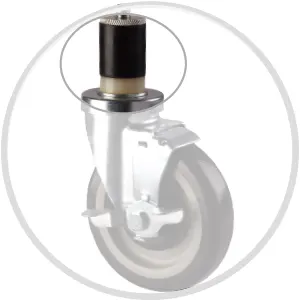

APP四件套
| APP号码 Adapter Number |
方/圆管内径 ID of Round or Square Tube |
通用管子内径范围 Tube Size Range |
APP零件 Adapter Kit Parts | |||
| 橡胶圈 Rubber Bushing |
滚花螺母 Top Knurled Nut |
塑胶垫片 Plastic Bushing |
金属华司 Base Washer |
|||
| 9 | 3/4 | 0.720-0.851 | 1644-00 | 1421-02 | 1429-02 | 1709-02 |
| 11* | 7/8 | 0.852-0.927 | 1645-00 | 1435-02 | 1432-02 | 1709-02 |
| 13 | 1 | 0.928-1.029 | 1646-00 | 1435-02 | 1432-02 | 1709-02 |
| 15 | 1-1/8 | 1.030-1.140 | 1647-00 | 1436-02 | 1431-02 | 1709-02 |
| 17B | 1-3/16 | 1.178-1.303 | 1651-00 | 1441-02 | 1430-02 | 1709-02 |
| 19C* | 1-3/8 | 1.360-1.425 | 1648-00 | 1438-02 | 1433-02 | 1709-02 |
| 19A | 1-1/2 | 1.426-1.589 | 1649-00 | 1437-02 | 1434-02 | 1709-02 |
| 21 | 1-7/8 | 1.790-1.850 | 1650-00 | 1422-02 | 1440-02 | 1473-02 |
底板规格
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1 | 69 x 96 mm (2-23/32" x 3-25/32") | 45 x 75 mm (高级架底板)(Plate) (1-3/4" x 3") |
6.35 mm (1/4") |
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1 | 69 x 96 mm (2-23/32" x 3-25/32") | 45 x 75 mm (高级架底板)(Plate) (1-3/4" x 3") |
6.35 mm (1/4") |
| 2 | 80 x 105 mm (3-1/8" x 4-1/8") | 60 x 85 mm (美规孔距) 2-3/8" x 3-7/16"(American Plate) |
8 mm (5/16") |

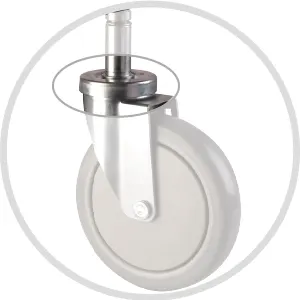

插杆规格
| 规格 Size |
插杆直径 x 长度 Diameter x Length |
规格 Size |
插杆直径 x 长度 Diameter x Length |
| 4" 5" | 21.6 x 56 mm | — | C型环(Grip Ring) |
| 4" 5" | 方18 x 21.6 x 51L SQ | 31.7 | 10.5mm |
| 4" 5" | 方21.6 x 21.6 x 51L SQ | 26 | 8.5mm |
丝扣规格
| 规格 Size |
丝扣牙径 x 长度 Threaded Size |
规格 Size |
丝扣牙径 x 长度 Threaded Size |
规格 Size |
丝扣牙径 x 长度 Threaded Size |
| 1 | 1/2 x 13UNC x 25 mm | 2 | 1/2 x 13UNC x 45 mm | 3 | 1/2 x 13UNC x 70 mm |
APP四件套
| APP号码 Adapter Number |
方/圆管内径 ID of Round or Square Tube |
通用管子内径范围 Tube Size Range |
APP零件 Adapter Kit Parts | |||
| 橡胶圈 Rubber Bushing |
滚花螺母 Top Knurled Nut |
塑胶垫片 Plastic Bushing |
金属华司 Base Washer |
|||
| 9 | 3/4 | 0.720-0.851 | 1644-00 | 1421-02 | 1429-02 | 1709-02 |
| 11* | 7/8 | 0.852-0.927 | 1645-00 | 1435-02 | 1432-02 | 1709-02 |
| 13 | 1 | 0.928-1.029 | 1646-00 | 1435-02 | 1432-02 | 1709-02 |
| 15 | 1-1/8 | 1.030-1.140 | 1647-00 | 1436-02 | 1431-02 | 1709-02 |
| 17B | 1-3/16 | 1.178-1.303 | 1651-00 | 1441-02 | 1430-02 | 1709-02 |
| 19C* | 1-3/8 | 1.360-1.425 | 1648-00 | 1438-02 | 1433-02 | 1709-02 |
| 19A | 1-1/2 | 1.426-1.589 | 1649-00 | 1437-02 | 1434-02 | 1709-02 |
| 21 | 1-7/8 | 1.790-1.850 | 1650-00 | 1422-02 | 1440-02 | 1473-02 |
轮子详细资讯
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 迴旋半径 | ||
| 固定 | 活动 | 剎车 | ||||||
| 75mm x 32mm (3" x 1-1/4") |
160 kgs (325lbs) | WMRC轮 WMRC |
1133-03-45-1 | 1133-03-45-2 | 1133-03-45-4 | 滚珠 Ball Bearing |
螺丝总高 103mm 插杆总高 102.5mm 底板总高 107mm Total height (Threaded stem) 103mm Total height (Cylindrical stem) 102.5mm Total height (Top plate stem) 107mm |
活动 71mm 侧剎 92mm 波西剎 102mm Swivel 71mm Swivel W/Side Brake 92mm Posi lock Brake 102mm |
| 100 kgs (220lbs) | WPP轮 WPP |
1133-03-46-1 | 1133-03-46-2 | 1133-03-46-4 | ||||
| 90 kgs (198lbs) | W超级人造胶 WPPR |
1133-03-47-1 | 1133-03-47-2 | 1133-03-47-4 | ||||
| 110 kgs (240lbs) | W全效轮 W Resolute |
1133-03-48-1 | 1133-03-48-2 | 1133-03-48-4 | ||||
| 140 kgs (310lbs) | WHDR轮 WHDR |
1133-03-66-1 | 1133-03-66-2 | 1133-03-66-4 | ||||
| 100 kgs (220lbs) | 高科技耐磨聚氨酯 PU on PP Core |
1133-03-31-1 | 1133-03-31-2 | 1133-03-31-4 | 滚珠 Ball Bearing 中管 Plain Bearing |
|||
| 90 kgs (198lbs) | 超级人造胶 TPR on PP Core |
1133-03-75-1 | 1133-03-75-2 | 1133-03-75-4 | ||||
| 80 kgs (175lbs) | 导电轮 E-Conductive |
1133-03-17-1 | 1133-03-17-2 | 1133-03-17-4 | ||||
| 100 kgs (220lbs) | 尼龙轮 Nylon |
1133-03-07-1 | 1133-03-07-2 | 1133-03-07-4 | 中管 Plain Bearing |
|||
| 70 kgs (155lbs) | 橡胶轮 Rubber |
1133-03-06-1 | 1133-03-06-2 | 1133-03-06-4 | ||||
| 90 kgs (198lbs) | 塑料轮 PP |
1133-03-29-1 | 1133-03-29-2 | 1133-03-29-4 | ||||
| 100mm x 32mm (4" x 1-1/4") |
180 kgs (396lbs) | WMRC轮 WMRC |
1133-04-45-1 | 1133-04-45-2 | 1133-04-45-4 | 滚珠 Ball Bearing |
螺丝总高 126mm 插杆总高 125.5mm 底板总高 130mm Total height (Threaded stem) 126mm Total height (Cylindrical stem) 125.5mm Total height (Top plate stem) 130mm |
活动 82mm 侧剎 92mm 波西剎 108mm Swivel 82mm Swivel W/Side Brake 92mm Posi lock Brake 108mm |
| 130 kgs (285lbs) | WPP轮 WPP |
1133-04-46-1 | 1133-04-46-2 | 1133-04-46-4 | ||||
| 100 kgs (220lbs) | W超级人造胶 WPPR |
1133-04-47-1 | 1133-04-47-2 | 1133-04-47-4 | ||||
| 135 kgs (300lbs) | W全效轮 W Resolute |
1133-04-48-1 | 1133-04-48-2 | 1133-04-48-4 | ||||
| 180 kgs (400lbs) | WHDR轮 WHDR |
1133-04-66-1 | 1133-04-66-2 | 1133-04-66-4 | ||||
| 120 kgs (265lbs) | 高科技耐磨聚氨酯 PU on PP Core |
1133-04-31-1 | 1133-04-31-2 | 1133-04-31-4 | 滚珠 Ball Bearing 中管 Plain Bearing |
|||
| 100 kgs (220lbs) | 超级人造胶 TPR on PP Core |
1133-04-75-1 | 1133-04-75-2 | 1133-04-75-4 | ||||
| 80 kgs (176lbs) | 导电轮 E-Conductive |
1133-04-17-1 | 1133-04-17-2 | 1133-04-17-4 | ||||
| 120 kgs (265lbs) | 尼龙轮 Nylon |
1133-04-07-1 | 1133-04-07-2 | 1133-04-07-4 | 中管 Plain Bearing |
|||
| 135 kgs (300lbs) | 耐高温轮 Hi-temp |
1133-04-25-1 | 1133-04-25-2 | 1133-04-25-4 | ||||
| 80 kgs (175lbs) | 橡胶轮 Rubber |
1133-04-06-1 | 1133-04-06-2 | 1133-04-06-4 | ||||
| 90 kgs (198lbs) | 塑料轮 PP |
1133-04-29-1 | 1133-04-29-2 | 1133-04-29-4 | ||||
| 100mm x 34mm (4" x 1-1/2") |
140 kgs (310lbs) | 蓝色弹力全效轮 Blue Resilient Resolute Rubber |
1133-04-76-1 | 1133-04-76-2 | 1133-04-76-4 | 滚珠 Ball Bearing |
129mm (5-1/8") |
|
| 125mm x 32mm (5" x 1-1/4") |
113 kgs (250lbs) | 阻力轮(平地轮) Friction Wheel |
1133-05-76-1 | 1133-05-76-2 | 1133-05-76-4 | 滚珠 Ball Bearing |
螺丝总高 150mm 插杆总高 149.5mm 底板总高 154mm Total height (Threaded stem) 150mm Total height (Cylindrical stem) 149.5mm Total height (Top plate stem) 154mm |
活动 96mm 侧剎 96mm 波西剎 114mm Swivel 96mm Swivel W/Side Brake 96mm Posi lock Brake 114mm |
| 200 kgs (440lbs) | WMRC轮 WMRC |
1133-05-45-1 | 1133-05-45-2 | 1133-05-45-4 | ||||
| 150 kgs (330lbs) | WPP轮 WPP |
1133-05-46-1 | 1133-05-46-2 | 1133-05-46-4 | ||||
| 110 kgs (240lbs) | W超级人造胶 WPPR |
1133-05-47-1 | 1133-05-47-2 | 1133-05-47-4 | ||||
| 147 kgs (325lbs) | W全效轮 W Resolute |
1133-05-48-1 | 1133-05-48-2 | 1133-05-48-4 | ||||
| 200 kgs (440lbs) | WHDR轮 WHDR |
1133-05-66-1 | 1133-05-66-2 | 1133-05-66-4 | ||||
| 113 kgs (250lbs) | 高科技耐磨聚氨酯(平地轮) PU on PP Core |
1133-05-39-1 | 1133-05-39-2 | 1133-05-39-4 | ||||
| 113 kgs (250lbs) | 超级橡胶轮 Super Wheel (Rubber) |
11330500511 | 11330500512 | 11330500514 | ||||
| 113 kgs (250lbs) | 超级橡胶阻力轮 Super Friction Wheel (Rubber) |
11330500511 | 11330500512 | 11330500514 | ||||
| 130 kgs (285lbs) | 高科技耐磨聚氨酯 PU on PP Core |
1133-05-31-1 | 1133-05-31-2 | 1133-05-31-4 | 滚珠 Ball Bearing 中管 Plain Bearing |
|||
| 110 kgs (240lbs) | 超级人造胶 TPR on PP Core |
1133-05-75-1 | 1133-05-75-2 | 1133-05-75-4 | ||||
| 113 kgs (250lbs) | 导电轮(平地轮) E-Conductive |
1133-05-17-1 | 1133-05-17-2 | 1133-05-17-4 | ||||
| 140 kgs (305lbs) | 尼龙轮 Nylon |
1133-05-07-1 | 1133-05-07-2 | 1133-05-07-4 | 中管 Plain Bearing |
|||
| 90 kgs (198lbs) | 橡胶轮 Rubber |
1133-05-06-1 | 1133-05-06-2 | 1133-05-06-4 | ||||
| 100 kgs (220lbs) | 塑料轮 PP |
1133-05-29-1 | 1133-05-29-2 | 1133-05-29-4 | ||||
| 125mm x 36mm (5" x 1-1/2") |
160 kgs (352lbs) | 蓝色弹力全效轮 Blue Resilient Resolute Rubber |
1133-05-76-1 | 1133-05-76-2 | 1133-05-76-4 | 滚珠 Ball Bearing |
155mm (6-1/8") |
|
