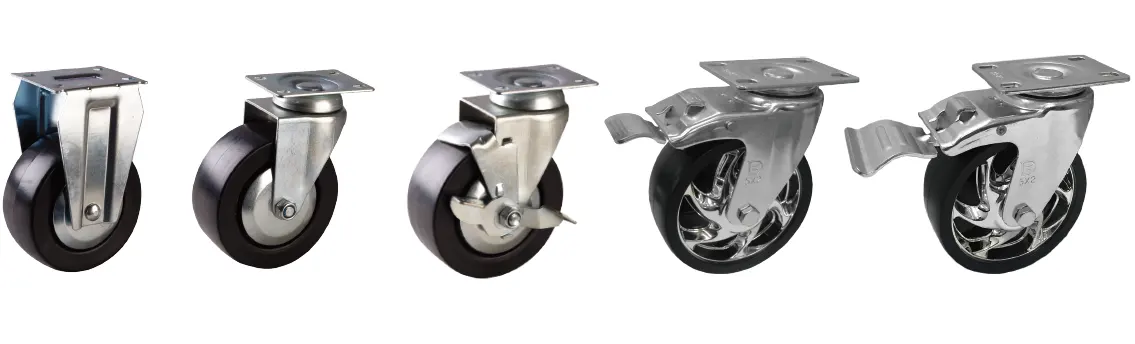

1130-TC系列 — 30-TC系列
专门为工具箱用的高荷重轮，外型设计美观、耐用。
特色区

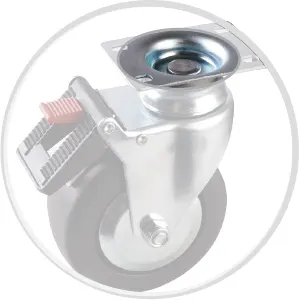

反珠碗

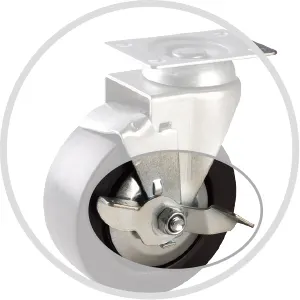

侧剎

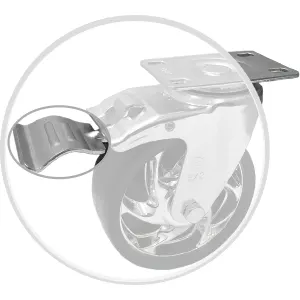

铁双剎(超大踏板)

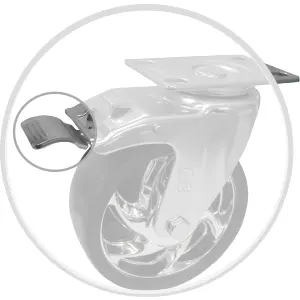

铁双剎(长踏)
特色区
反珠碗
侧剎
铁双剎(超大踏板)
铁双剎(长踏)
轮子选择
塑料轮
超级人造胶
风火轮
塑料轮(三风型)
HDR轮
底板规格
| 编号 Suffix |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1 | 69 x 96 mm (2-23/32" x 3-25/32") | 45 x 75 mm (高级架底板)(Plate) (1-3/4" x 3") |
6.35 mm (1/4") |
| 2 | 93 x 110 mm (3-5/8" x 4-3/8") | 70 x 85 mm (大底板)(Big Plate) (2-5/8"~3" x 3"~3-5/8") |
9.5 mm (3/8") |
底板规格
| 编号 Suffix |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1 | 69 x 96 mm (2-23/32" x 3-25/32") | 45 x 75 mm (高级架底板)(Plate) (1-3/4" x 3") |
6.35 mm (1/4") |
| 编号 Suffix |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1 | 69 x 96 mm (2-23/32" x 3-25/32") | 45 x 75 mm (高级架底板)(Plate) (1-3/4" x 3") |
6.35 mm (1/4") |
| 2 | 93 x 110 mm (3-5/8" x 4-3/8") | 70 x 85 mm (大底板)(Big Plate) (2-5/8"~3" x 3"~3-5/8") |
9.5 mm (3/8") |
轮子详细资讯
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 偏心距 | ||
| 固定 | 活动 | 剎车 | ||||||
| 125mm x 49mm (5" x 1-15/16") |
100kgs (220 lbs) |
塑料轮 PP |
1130-TC-05-29-1 | 1130-TC-05-29-2 | 1130-TC-05-29-4 | 中管 Plain Bearing |
高级架底板类总高 Plate OAH: 158mm (6-1/4") 高级架底板+反珠碗类总高 Plate with extra clerance OAH: 176.5mm (6-15/16") 高级架底板+反珠碗+无垫圈类总高 Plate with extra clearance (w/o washer) OAH: 170.5mm (6-15/16") 大底板类总高 Big Plate OAH: 159mm (6-1/4") |
活动 93.5mm 侧剎 93.5mm 铁双剎(超大踏板) 140.5mm 铁双剎(长踏板) 119mm Swivel 93.5mm Swivel W/Side Brake 93.5mm Swivel W/Total lock brake (Extra Big Pedal) 140.5mm Swivel W/Total lock brake (Long pedal) 119mm |
| 100kgs (220 lbs) |
风火轮 Designed PP Wheel |
1130-TC-05-65-1 | 1130-TC-05-65-2 | 1130-TC-05-65-4 | 中管 Plain Bearing |
|||
| 100kgs (220 lbs) |
塑料轮(三风型) PP |
1130-TC-05-73-1 | 1130-TC-05-73-2 | 1130-TC-05-73-4 | 中管 Plain Bearing |
|||
| 125mm x 50mm (5" x 2") |
90kgs (198 lbs) |
超级人造胶 TPR on PP Core |
1130-TC-05-26-1 | 1130-TC-05-26-2 | 1130-TC-05-26-4 | 中管 Plain Bearing |
||
| 130kgs (286 lbs) |
HDR轮 HDR |
1130-TC-05-74-1 | 1130-TC-05-74-2 | 1130-TC-05-74-4 | 滚珠 Ball Bearing A珠轴承 Flanged Ball Bearing |
|||
