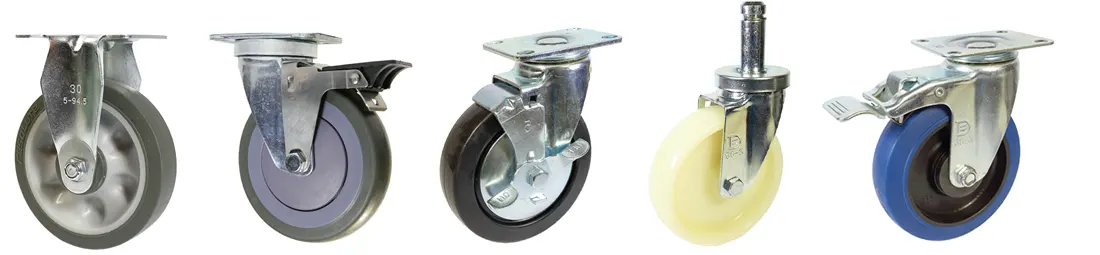

1130系列 — 30系列(台湾)美规脚架系列
脚架採用特别结构设计，荷重高、转动灵活，有侧剎制动及双剎制动可供选择
特色区
30新式固定架(谘询工厂)
铁双剎(超大踏板)
波西剎
铁双剎(长踏)(常规)
铁双剎(短踏)
侧剎
波盘防尘盖
加高底板
角铁底板
特色区
30新式固定架(谘询工厂)
铁双剎(超大踏板)
波西剎
铁双剎(长踏)(常规)
铁双剎(短踏)
侧剎
波盘防尘盖
加高底板
角铁底板
轮子选择
高科技耐磨聚氨酯
超级人造胶(514)
尼龙轮
WMRC轮
WPP轮
W超级人造胶
NPPR轮
铝芯橡胶轮
超级人造胶(515)
铝芯AQPU
橡胶轮
塑料轮
导电轮
耐高温轮
W 全效轮
全效轮(514)
WHDR轮
CPD轮
蓝色弹力轮
三星轮
超级人造胶(大圆弧)
全效轮(大圆弧)
底板规格
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1 | 69 x 96 mm (2-3/4" x 3-3/4") | 45 x 75 mm (高级架底板) 1-3/4" x 3" |
6.35mm (1/4") |
| 2 | 72 x 91 mm (2-13/16" x 3-19/32") | 53 x 72 mm (医疗/仪器架底板) 2-1/8" x 2-7/8" |
6.35mm (1/4") |
| 3 | 93 x 110 mm (3-5/8" x 4-3/8") | 70 x 85 mm (大底板)(Big Plate) 2-5/8"~3"x3"~3-5/8" |
9.5 mm (3/8") |
插杆规格
| 规格 Size |
插杆直径 x 长度 Diameter x Length |
规格 Size |
插杆直径 x 长度 Diameter x Length |
| 1 | 11X38mm (7/16"diameter X 1-1/2") | 2 | 21.6 x 56mm (0.845" diameter x 2-3/16") |
| 3 | 22X56mm (0.865"diameter X 2-3/16") |
丝扣规格
| 规格 Size |
丝扣牙径 x 长度 Threaded Size |
规格 Size |
丝扣牙径 x 长度 Threaded Size |
规格 ize |
丝扣牙径 x 长度 Threaded Size |
| 1 | 3/8-16UNCx19 ** | 2 | 3/8-16UNCx25 ** | 3 | 3/8-16UNCx32 * |
| 4 | 3/8-16UNCx38 ** | 5 | 1/2-12UNCx19 ** | 6 | 1/2-12UNCx25 ** |
| 7 | 1/2-12UNCx32 * | 8 | 1/2-12UNCx38 ** | 9 | 1/2-13UNCx19 ** |
| 10 | 1/2-13UNCx25 ** | 11 | 1/2-13UNCx32 ** | 12 | 1/2-13UNCx38 ** |
| 13 | 1/2-13UNCx70 ** | 14 | 5/8-11UNCx25 ** | 15 | 5/8-11UNCx32 * |
| 16 | M16-2.0x20 * |
*丝扣底部六角台阶 ** 丝扣底部圆头台阶
APP四件套
| APP号码 Adapter Number |
方/圆管内径 ID of Round or Square Tube |
通用管子内径范围 Tube Size Range |
APP零件Adapter Kit Parts | |||
| 橡胶圈 Rubber Bushing |
滚花螺母 Top Knurled Nut |
塑胶垫片 Plastic Bushing |
金属华司 Base Washer |
|||
| 9 | 3/4 | 0.720-0.851 | 1644-00 | 1421-02 | 1429-02 | 1709-02 |
| 11* | 7/8 | 0.852-0.927 | 1645-00 | 1435-02 | 1432-02 | 1709-02 |
| 13 | 1 | 0.928-1.029 | 1646-00 | 1435-02 | 1432-02 | 1709-02 |
| 15 | 1-1/8 | 1.030-1.140 | 1647-00 | 1436-02 | 1431-02 | 1709-02 |
| 17B | 1-3/16 | 1.178-1.303 | 1651-00 | 1441-02 | 1430-02 | 1709-02 |
| 19C* | 1-3/8 | 1.360-1.425 | 1648-00 | 1438-02 | 1433-02 | 1709-02 |
| 19A | 1-1/2 | 1.426-1.589 | 1649-00 | 1437-02 | 1434-02 | 1709-02 |
| 21 | 1-7/8 | 1.790-1.850 | 1650-00 | 1422-02 | 1440-02 | 1473-02 |
角铁底板规格
| 2孔规格 Two Holes Specification | 3孔规格Three Holes Specification |
 |
 |
底板规格
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1 | 69 x 96 mm (2-3/4" x 3-3/4") | 45 x 75 mm (高级架底板) 1-3/4" x 3" |
6.35mm (1/4") |
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1 | 69 x 96 mm (2-3/4" x 3-3/4") | 45 x 75 mm (高级架底板) 1-3/4" x 3" |
6.35mm (1/4") |
| 2 | 72 x 91 mm (2-13/16" x 3-19/32") | 53 x 72 mm (医疗/仪器架底板) 2-1/8" x 2-7/8" |
6.35mm (1/4") |
| 3 | 93 x 110 mm (3-5/8" x 4-3/8") | 70 x 85 mm (大底板)(Big Plate) 2-5/8"~3"x3"~3-5/8" |
9.5 mm (3/8") |
插杆规格
| 规格 Size |
插杆直径 x 长度 Diameter x Length |
规格 Size |
插杆直径 x 长度 Diameter x Length |
| 1 | 11X38mm (7/16"diameter X 1-1/2") | 2 | 21.6 x 56mm (0.845" diameter x 2-3/16") |
| 3 | 22X56mm (0.865"diameter X 2-3/16") |
丝扣规格
| 规格 Size |
丝扣牙径 x 长度 Threaded Size |
规格 Size |
丝扣牙径 x 长度 Threaded Size |
规格 Size |
丝扣牙径 x 长度 Threaded Size |
| 1 | 3/8-16UNCx19 ** | 2 | 3/8-16UNCx25 ** | 3 | 3/8-16UNCx32 * |
| 4 | 3/8-16UNCx38 ** | 5 | 1/2-12UNCx19 ** | 6 | 1/2-12UNCx25 ** |
| 7 | 1/2-12UNCx32 * | 8 | 1/2-12UNCx38 ** | 9 | 1/2-13UNCx19 ** |
| 10 | 1/2-13UNCx25 ** | 11 | 1/2-13UNCx32 ** | 12 | 1/2-13UNCx38 ** |
| 13 | 1/2-13UNCx70 ** | 14 | 5/8-11UNCx25 ** | 15 | 5/8-11UNCx32 * |
| 16 | M16-2.0x20 * |
*丝扣底部六角台阶 ** 丝扣底部圆头台阶
APP四件套
| APP号码 Adapter Number |
方/圆管内径 ID of Round or Square Tube |
通用管子内径范围 Tube Size Range |
APP零件 Adapter Kit Parts |
橡胶圈 Rubber Bushing |
滚花螺母 Top Knurled Nut |
塑胶垫片 Plastic Bushing |
金属华司 Base Washer |
| 9 | 3/4 | 0.720-0.851 | 1644-00 | 1421-02 | 1429-02 | 1709-02 |
| 11* | 7/8 | 0.852-0.927 | 1645-00 | 1435-02 | 1432-02 | 1709-02 |
| 13 | 1 | 0.928-1.029 | 1646-00 | 1435-02 | 1432-02 | 1709-02 |
| 15 | 1-1/8 | 1.030-1.140 | 1647-00 | 1436-02 | 1431-02 | 1709-02 |
| 17B | 1-3/16 | 1.178-1.303 | 1651-00 | 1441-02 | 1430-02 | 1709-02 |
| 19C* | 1-3/8 | 1.360-1.425 | 1648-00 | 1438-02 | 1433-02 | 1709-02 |
| 19A | 1-1/2 | 1.426-1.589 | 1649-00 | 1437-02 | 1434-02 | 1709-02 |
| 21 | 1-7/8 | 1.790-1.850 | 1650-00 | 1422-02 | 1440-02 | 1473-02 |
角铁底板规格
| 2孔规格 Two Holes Specification | 3孔规格 Three Holes Specification |
|
|
轮子详细资讯
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 迴旋半径 | ||
| 固定 | 活动 | 剎车 | ||||||
| 75mm x 32mm (3" x 1-1/4") |
90 kgs (198 lbs) |
超级人造胶 TPR on PP Core |
1130-03-75-1 | 1130-03-75-2 | 1130-03-75-4 | 滚珠 Ball Bearing |
底板类总高: Plate Version OAH: 有铁防尘盖 with dust cover 106mm(4-3/16") 无铁防尘盖 without dust cover 105mm(4-1/8") 丝扣/插杆类总高 Stem Version OAH: 有铁防尘盖 with dust cover 102mm(4-1/16") 无铁防尘盖 without dust cover 101mm(4") 两孔角铁底板总高 Two holes angle bar plate OAH: 106mm(4-3/16") 三孔角铁底板总高 Three holes angle bar plate OAH: 125mm(4-59/64") |
活动 73 mm 侧剎 73 mm 剎车(短踏板) 111 mm 剎车(长踏板) 121 mm 剎车(超大踏板) 140 mm 波西剎 105 mm Swivel 73 mm Swivel W/Side Brake 73 mm Swivel W/Brake (Shorter pedal) 111 mm Swivel W/Brake (Long pedal) 121 mm Swivel W/Brake (Extra Big Pedal) 140 mm Posi Lock Brake 105 mm |
| 90 kgs (198 lbs) |
全效轮 Resolute |
1130-03-68-1 | 1130-03-68-2 | 1130-03-68-4 | ||||
| 80 kgs (175 lbs) |
导电轮 E-conductive |
1130-03-17-1 | 1130-03-17-2 | 1130-03-17-4 | ||||
| 160 kgs (352 lbs) |
WMRC轮 WMRC |
1130-03-45-1 | 1130-03-45-2 | 1130-03-45-4 | ||||
| 100 kgs (220 lbs) |
WPP轮 WPP |
1130-03-46-1 | 1130-03-46-2 | 1130-03-46-4 | ||||
| 90 kgs (198 lbs) |
W超级人造胶 WPPR |
1130-03-47-1 | 1130-03-47-2 | 1130-03-47-4 | ||||
| 110 kgs (250 lbs) |
W全效轮 W Resolute |
1130-03-48-1 | 1130-03-48-2 | 1130-03-48-4 | ||||
| 140 kgs (310 lbs) |
WHDR轮 WHDR |
1130-03-66-1 | 1130-03-66-2 | 1130-03-66-4 | ||||
| 160 kgs (352 lbs) |
铝芯AQPU QPU on AL Core |
1130-03-87-1 | 1130-03-87-2 | 1130-03-87-4 | ||||
| 100 kgs (220 lbs) |
尼龙轮 Nylon |
1130-03-07-1 | 1130-03-07-2 | 1130-03-07-4 | 中管 Plain Bearing |
|||
| 70 kgs (155 lbs) |
橡胶轮 Rubber |
1130-03-06-1 | 1130-03-06-2 | 1130-03-06-4 | ||||
| 90 kgs (198 lbs) |
塑料轮 PP |
1130-03-29-1 | 1130-03-29-2 | 1130-03-29-4 | ||||
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 迴旋半径 | ||
| 固定 | 活动 | 剎车 | ||||||
| 88mm x 32mm (3-1/2" x 1-1/4 ") |
95 kgs (209 lbs) |
W超级人造胶 WPPR |
1130-35-47-1 | 1130-35-47-2 | 1130-35-47-4 | 滚珠 Ball Bearing |
底板类总高 Plate Version OAH 有铁防尘盖 with dust cover 117mm(4-5/8") 无铁防尘盖 without dust cover 116mm(4-9/16") 丝扣/插杆类总高 Stem Version OAH 有铁防尘盖 with dust cover 113mm(4-7/16") 无铁防尘盖 without dust cover 112mm(4-3/8") 两孔角铁底板总高 Two holes angle bar plate OAH: 117mm(4-39/64") |
活动 80 mm 侧剎 80 mm 剎车(短踏板) 111 mm 剎车(长踏板) 121 mm 剎车(超大踏板) 140 mm 波西剎 114 mm Swivel 80 mm Swivel W/Side Brake 80 mm Swivel W/Brake (Shorter pedal) 111 mm Swivel W/Brake (Long pedal) 121 mm Swivel W/Brake (Extra Big Pedal) 140 mm Posi Lock Brake 114 mm |
| 120 kgs (264 lbs) |
W全效轮 W Resolute |
1130-35-48-1 | 1130-35-48-2 | 1130-35-48-4 | ||||
| 160 kgs (350 lbs) |
WHDR轮 WHDR |
1130-35-66-1 | 1130-35-66-2 | 1130-35-66-4 | ||||
| 100mm x 32mm (4" x 1-1/4") |
120 kgs (265 lbs) |
高科技耐磨聚氨酯 PU on PP Core |
1130-04-31-1 | 1130-04-31-2 | 1130-04-31-4 | 滚珠 Ball Bearing 中管 Plain Bearing |
底板类总高 Plate Version OAH 有铁防尘盖 with dust cover 130mm(5-1/8") 无铁防尘盖 without dust cover 129mm(5-1/16") 丝扣/插杆类总高 Stem Version OAH 有铁防尘盖 with dust cover 126mm(5") 无铁防尘盖 with out dust cover 125mm(4-15/16") 两孔角铁底板总高 Two holes angle bar plate OAH: 129mm(5-1/16") 三孔角铁底板总高 Three holes angle bar plate OAH: 148mm(5-53/64") |
活动 85 mm 侧剎 85 mm 剎车(短踏板) 111 mm 剎车(长踏板) 121 mm 剎车(超大踏板) 140 mm 波西剎 115 mm Swivel 85 mm Swivel W/Side Brake 85 mm Swivel W/Brake (Shorter pedal) 111 mm Swivel W/Brake (Long pedal) 121 mm Swivel W/Brake (Extra Big Pedal) 140 mm Posi Lock Brake 115 mm |
| 100 kgs (220 lbs) |
超级人造胶 TPR on PP Core |
1130-04-75-1 | 1130-04-75-2 | 1130-04-75-4 | ||||
| 80 kgs (175 lbs) |
超级人造胶(大圆弧) TPR on PP Core (Donut) |
1130-04-110-1 | 1130-04-110-2 | 1130-04-110-4 | ||||
| 90 kgs (198 lbs) |
全效轮(大圆弧) Resolute (Donut) |
1130-04-111-1 | 1130-04-111-2 | 1130-04-111-4 | ||||
| 125 kgs (275 lbs) |
全效轮 Resolute |
1130-04-68-1 | 1130-04-68-2 | 1130-04-68-4 | 滚珠 Ball Bearing |
|||
| 80 kgs (176 lbs) |
导电轮 E-conductive |
1130-04-17-1 | 1130-04-17-2 | 1130-04-17-4 | ||||
| 180 kgs (396 lbs) |
WMRC轮 WMRC |
1130-04-45-1 | 1130-04-45-2 | 1130-04-45-4 | ||||
| 130 kgs (285 lbs) |
WPP轮 WPP |
1130-04-46-1 | 1130-04-46-2 | 1130-04-46-4 | ||||
| 100 kgs (220 lbs) |
W超级人造胶 WPPR |
1130-04-47-1 | 1130-04-47-2 | 1130-04-47-4 | ||||
| 135 kgs (300 lbs) |
W全效轮 W Resolute |
1130-04-48-1 | 1130-04-48-2 | 1130-04-48-4 | ||||
| 180 kgs (400 lbs) |
WHDR轮 WHDR |
1130-04-66-1 | 1130-04-66-2 | 1130-04-66-4 | ||||
| 135 kgs (300 lbs) |
铝芯橡胶轮 |
1130-04-22-1 | 1130-04-22-2 | 1130-04-22-4 | ||||
| 230 kgs (506 lbs) |
铝芯AQPU QPU on AL Core |
1130-04-87-1 | 1130-04-87-2 | 1130-04-87-4 | ||||
| 70 kgs (154 lbs) |
NPPR轮 NPPR |
1130-04-67-1 | 1130-04-67-2 | 1130-04-67-4 | 中管 Plain Bearing |
|||
| 120 kgs (265 lbs) |
尼龙轮 Nylon |
1130-04-07-1 | 1130-04-07-2 | 1130-04-07-4 | ||||
| 80 kgs (176 lbs) |
橡胶轮 Rubber |
1130-04-06-1 | 1130-04-06-2 | 1130-04-06-4 | ||||
| 90 kgs (198 lbs) |
塑料轮 PP |
1130-04-29-1 | 1130-04-29-2 | 1130-04-29-4 | ||||
| 135 kgs (300 lbs) |
耐高温轮 Hi-temp |
1130-04-25-1 | 1130-04-25-2 | 1130-04-25-4 | ||||
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 迴旋半径 | ||
| 固定 | 活动 | 剎车 | ||||||
| 100mm x 36mm (4" x 1-1/2") |
120kgs (265 lbs) | 三星轮 Rubber on Steel Core |
1130-04-03-1 | 1130-04-03-2 | 1130-04-03-4 | 滚珠 Ball Bearing |
底板类总高 Plate Version OAH: 有铁防尘盖 with dust cover 130mm(5-1/8") 无铁防尘盖 without dust cover 129mm(5-1/16") 丝扣/插杆类总高 Stem Version OAH: 有铁防尘盖 with dust cover 126mm(5") 无铁防尘盖 without dust cover 125mm(4-15/16") 两孔角铁底板总高 Two holes angle bar plate OAH: 129mm(5-1/16") 三孔角铁底板总高 Three holes angle bar plate OAH: 148mm(5-53/64") |
活动 85 mm 侧剎 85 mm 剎车(短踏板) 111 mm 剎车(长踏板) 121 mm 剎车(超大踏板) 140 mm 波西剎 115 mm Swivel 85 mm Swivel W/Side Brake 85 mm Swivel W/Brake (Shorter pedal) 111 mm Swivel W/Brake (Long pedal) 121 mm Swivel W/Brake (Extra Big Pedal) 140 mm Posi Lock Brake 115 mm |
| 160 kgs (352 lbs) |
CPD轮 CPD |
1130-04-71-1 | 1130-04-71-2 | 1130-04-71-4 | ||||
| 160 kgs (352 lbs) |
蓝色弹力轮 Blue Resilient Rubber Wheel |
1130-04-50-1 | 1130-04-50-2 | 1130-04-50-4 | ||||
| 140 kgs (308 lbs) |
超级人造胶 TPR on PP Core |
1130-04-77-1 | 1130-04-77-2 | 1130-04-77-4 | ||||
| 160 kgs (352 lbs) |
全效轮 Resolute |
1130-04-76-1 | 1130-04-76-2 | 1130-04-76-4 | ||||
| 250 kgs (550 lbs) |
铝芯AQPU QPU on AL Core |
1130-04-87-1 | 1130-04-87-2 | 1130-04-87-4 | ||||
| 125mm x 32mm (5" x 1-1/4") |
130 kgs (285 lbs) |
高科技耐磨聚氨酯 PU on PP Core |
1130-05-31-1 | 1130-05-31-2 | 1130-05-31-4 | 滚珠 Ball Bearing 中管 Plain Bearing |
底板类总高 Plate Version OAH: 有铁防尘盖 with dust cover 158mm(6-1/4") 无铁防尘盖 without dust cover 157mm(6-3/16") 丝扣/插杆类总高 Stem Version OAH: 有铁防尘盖 with dust cover 154mm(6-1/16") 无铁防尘盖 without dust cover 153mm(6") 两孔角铁底板总高 Two holes angle bar plate OAH: 157mm(6-3/16") 三孔角铁底板总高 Three holes angle bar plate OAH: 176mm(6-59/64") |
活动 97 mm 侧剎 97 mm 剎车(短踏板) 111 mm 剎车(长踏板) 121 mm 剎车(超大踏板) 140 mm 波西剎 112 mm Swivel 97 mm Swivel W/Side Brake 97 mm Swivel W/Brake (Shorter pedal) 111 mm Swivel W/Brake (Long pedal) 121 mm Swivel W/Brake (Extra Big Pedal) 140 mm Posi Lock Brake 112 mm |
| 110 kgs (240 lbs) |
超级人造胶 TPR on PP Core |
1130-05-75-1 | 1130-05-75-2 | 1130-05-75-4 | ||||
| 100 kgs (220 lbs) |
超级人造胶(大圆弧) TPR on PP Core (Donut) |
1130-05-110-1 | 1130-05-110-2 | 1130-05-110-4 | ||||
| 120 kgs (265 lbs) |
全效轮(大圆弧) Resolute (Donut) |
1130-05-111-1 | 1130-05-111-2 | 1130-05-111-4 | ||||
| 147 kgs (325 lbs) |
全效轮 Resolute |
1130-05-68-1 | 1130-05-68-2 | 1130-05-68-4 | 滚珠 Ball Bearing |
|||
| 90 kgs (198 lbs) |
导电轮 E-conductive |
1130-05-17-1 | 1130-05-17-2 | 1130-05-17-4 | ||||
| 200 kgs (440 lbs) |
WMRC轮 WMRC |
1130-05-45-1 | 1130-05-45-2 | 1130-05-45-4 | ||||
| 150 kgs (330 lbs) |
WPP轮 WPP |
1130-05-46-1 | 1130-05-46-2 | 1130-05-46-4 | ||||
| 110 kgs (240 lbs) |
W超级人造胶 WPPR |
1130-05-47-1 | 1130-05-47-2 | 1130-05-47-4 | ||||
| 147 kgs (325 lbs) |
W全效轮 W Resolute |
1130-05-48-1 | 1130-05-48-2 | 1130-05-48-4 | ||||
| 200 kgs (440 lbs) |
WHDR轮 WHDR |
1130-05-66-1 | 1130-05-66-2 | 1130-05-66-4 | ||||
| 250 kgs (550 lbs) |
铝芯AQPU QPU on AL Core |
1130-05-87-1 | 1130-05-87-2 | 1130-05-87-4 | ||||
| 140 kgs (305 lbs) |
尼龙轮 Nylon |
1130-05-07-1 | 1130-05-07-2 | 1130-05-07-4 | 中管 Plain Bearing |
|||
| 90 kgs (198 lbs) |
橡胶轮 Rubber |
1130-05-06-1 | 1130-05-06-2 | 1130-05-06-4 | ||||
| 100 kgs (220 lbs) |
塑料轮 PP |
1130-05-29-1 | 1130-05-29-2 | 1130-05-29-4 | ||||
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 迴旋半径 | ||
| 固定 | 活动 | 剎车 | ||||||
| 125mm x 36mm (5" x 1-1/2") |
140 kgs (308 lbs) |
三星轮 Rubber on Steel Core |
1130-05-03-1 | 1130-05-03-2 | 1130-05-03-4 | 滚珠 Ball Bearing |
底板类总高 Plate Version OAH: 有铁防尘盖 with dust cover 158mm(6-1/4") 无铁防尘盖 without dust cover 157mm(6-3/16") 丝扣/插杆类总高 Stem Version OAH: 有铁防尘盖 with dust cover 154mm(6-1/16") 无铁防尘盖 without dust cover 153mm(6") 两孔角铁底板总高 Two holes angle bar plate OAH: 157mm(6-3/16") 三孔角铁底板总高 Three holes angle bar plate OAH: 176mm(6-59/64") |
活动 97 mm 侧剎 97 mm 剎车(短踏板) 111 mm 剎车(长踏板) 121 mm 剎车(超大踏板) 140 mm 波西剎 112 mm Swivel 97 mm Swivel W/Side Brake 97 mm Swivel W/Brake (Shorter pedal) 111 mm Swivel W/Brake (Long pedal) 121 mm Swivel W/Brake (Extra Big Pedal) 140 mm Posi Lock Brake 112 mm |
| 200 kgs (440 lbs) |
CPD轮 CPD |
1130-05-71-1 | 1130-05-71-2 | 1130-05-71-4 | ||||
| 250 kgs (550 lbs) |
蓝色弹力轮 Blue Resilient Rubber Wheel |
1130-05-50-1 | 1130-05-50-2 | 1130-05-50-4 | ||||
| 160 kgs (352 lbs) |
超级人造胶 TPR on PP Core |
1130-05-77-1 | 1130-05-77-2 | 1130-05-77-4 | ||||
| 180 kgs (400 lbs) |
全效轮 Resolute |
1130-05-76-1 | 1130-05-76-2 | 1130-05-76-4 | ||||
