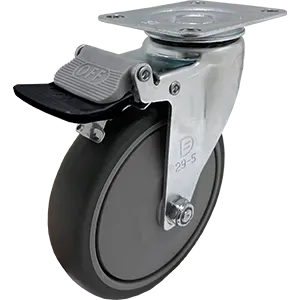

1129系列 — 医疗系列(CN)

採用特别脚架荷重结构设计, 超大波盘结构转动灵活, 刹车制动效果良好, 刹车採用尼龙加纤双踏板或铝踏板,弹片全部採用不锈钢製成, 不会因为长期使用而变形、生锈。

特色区

90度定向刹车架

90度定向刹车架

180度定向刹车架

180度定向刹车架

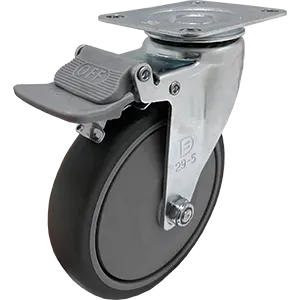

尼龙双踏板

尼龙双踏板

铝刹

铝刹

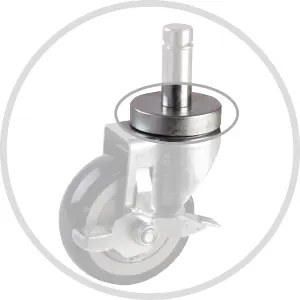

波盘防尘盖

波盘防尘盖

防尘护套

防尘护套

特色区

轮子选择

    高科技耐磨聚氨酯
    高科技耐磨聚氨酯
    超级人造胶(514)
    超级人造胶(514)
    尼龙轮
    尼龙轮
    WMRC轮
    WMRC轮
    WPP轮
    WPP轮
    W超级人造胶
    W超级人造胶
    NPPR轮
    NPPR轮
    铝芯橡胶轮
    铝芯橡胶轮
    超级人造胶(515)
    超级人造胶(515)
    铝芯AQPU
    铝芯AQPU
    橡胶轮
    橡胶轮
    塑料轮
    塑料轮
    导电轮
    导电轮
    耐高温轮
    耐高温轮
    W 全效轮
    W 全效轮
    全效轮(514)
    全效轮(514)
    WHDR轮
    WHDR轮
    CPD轮
    CPD轮
    蓝色弹力轮
    蓝色弹力轮
    超级人造胶(大圆弧)
    超级人造胶(大圆弧)
    全效轮(大圆弧)
    全效轮(大圆弧)

底板规格

规格
Size		 底板尺寸
Top Plate Size		 底板孔距
Bolt Hole Spacing		 安装尼帽尺寸
Attaching Bolt Size
1 64 x 64 mm
(2-1/2" x 2-1/2")		 48 x 48 mm (只有3"适用)
1-7/8" x 1-7/8" (3" Caster only)		 6mm
(3/16")
2 69 x 96 mm
(2-23/32" x 3-25/32")		 45 x 75 mm (高级架底板)
1-3/4" x 3"
 6.35mm
(1/4")
3 72 x 91 mm
(2-13/16" x 3-19/32")		 53 x 72 mm (医疗/仪器架底板)
2-1/8" x 2-7/8"		 6.35mm
(1/4")
4 80 x 105 mm
(3-1/8" x 4-1/8")		 60 x 85 mm (美规底板)
2-3/8" x 3-7/16" (American Plate)		 8mm
(5/16")
5 85 x 105 mm
(3-5/16" x 4-1/8")		 60 x 80 mm (欧规底板)
2-3/8" x 3-1/8" (European Plate)		 8mm
(5/16")
6 93 x 110 mm
(3"-5/8" x 4-3/8")		 70 x 85 mm (重型架底板)
2-5/8"~3" x 3"~3-5/8" (Heavy Duty Plate)		 9.5mm
(3/8")

插杆规格

规格
Size		 插杆直径 x 长度
Diameter x Length		 规格
Size		 插杆直径 x 长度
Diameter x Length
3" 11 x 22 mm (CN)
7/16" diameter x 7/8"		 3" 11 x 50 mm (CN)
7/16" diameter x 1-31/32"
4"~6" 21.6 x 56 mm (CN)
0.845" diameter x 2-3/16"
(For 3"~5" Casters)		 4"~6" 22.8 x 45 mm (CN)
0.897 " diameter x 1-3/4"
4"~6" 27.2 x 45 mm (CN)
1-5/64" diameter x 1-3/4"		 4"~6" 28 x 30 mm (CN)
1-7/64" diameter x 1-3/16"

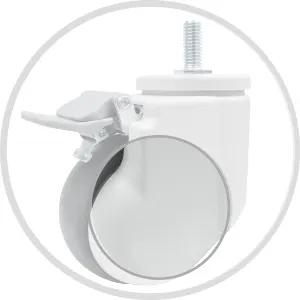

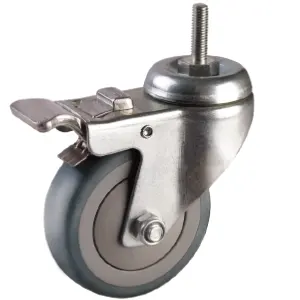

丝扣规格

规格
Size		 丝扣牙径 x 长度
Threaded Size		 规格
Size		 丝扣牙径 x 长度
Threaded Size
3" 3/8-16UNC x 25mm (CN) 3" M10 x 15mm (CN)
3" M10 x 25mm (CN) 3" M12 x 25mm (CN)
4"~6" 3/8-16UNC x 25mm (CN) 4"~6" M10 x 35mm (CN)
4"~6" M12 x 29mm (CN) 4"~6" 1/2-12UNC x 27.5mm (CN)
4"~6" 1/2-13UNC x 25mm (CN) 4"~6" M16 x 30mm (CN)

空铆规格

规格
Size		 孔径
Centre Hole		 规格
Size		 孔径
Centre Hole
3" 10.2mm (CN) 4"~6" 10.5mm (CN)
4"~6" 12.5mm (CN)

底板规格

规格
Size		 底板尺寸
Top Plate Size		 底板孔距
Bolt Hole Spacing		 安装尼帽尺寸
Attaching Bolt Size
1 64 x 64 mm
(2-1/2" x 2-1/2")		 48 x 48 mm (只有3"适用)
1-7/8" x 1-7/8" (3" Caster only)		 6mm
(3/16")
规格
Size		 底板尺寸
Top Plate Size		 底板孔距
Bolt Hole Spacing		 安装尼帽尺寸
Attaching Bolt Size
1 64 x 64 mm
(2-1/2" x 2-1/2")		 48 x 48 mm (只有3"适用)
1-7/8" x 1-7/8" (3" Caster only)		 6mm
(3/16")
2 69 x 96 mm
(2-23/32" x 3-25/32")		 45 x 75 mm (高级架底板)
1-3/4" x 3"
 6.35mm
(1/4")
3 72 x 91 mm
(2-13/16" x 3-19/32")		 53 x 72 mm (医疗/仪器架底板)
2-1/8" x 2-7/8"		 6.35mm
(1/4")
4 80 x 105 mm
(3-1/8" x 4-1/8")		 60 x 85 mm (美规底板)
2-3/8" x 3-7/16" (American Plate)		 8mm
(5/16")
5 85 x 105 mm
(3-5/16" x 4-1/8")		 60 x 80 mm (欧规底板)
2-3/8" x 3-1/8" (European Plate)		 8mm
(5/16")
6 93 x 110 mm
(3"-5/8" x 4-3/8")		 70 x 85 mm (重型架底板)
2-5/8"~3" x 3"~3-5/8" (Heavy Duty Plate)		 9.5mm
(3/8")

插杆规格

规格
Size		 插杆直径 x 长度
Diameter x Length		 规格
Size		 插杆直径 x 长度
Diameter x Length
3" 11 x 22 mm (CN)
7/16" diameter x 7/8"		 3" 11 x 50 mm (CN)
7/16" diameter x 1-31/32"
4"~6" 21.6 x 56 mm (CN)
0.845" diameter x 2-3/16"
(For 3"~5" Casters)		 4"~6" 22.8 x 45 mm (CN)
0.897 " diameter x 1-3/4"
4"~6" 27.2 x 45 mm (CN)
1-5/64" diameter x 1-3/4"		 4"~6" 28 x 30 mm (CN)
1-7/64" diameter x 1-3/16"

丝扣规格

规格
Size		 丝扣牙径 x 长度
Threaded Size		 规格
Size		 丝扣牙径 x 长度
Threaded Size
3" 3/8-16UNC x 25mm (CN) 3" M10 x 15mm (CN)
3" M10 x 25mm (CN) 3" M12 x 25mm (CN)
4"~6" 3/8-16UNC x 25mm (CN) 4"~6" M10 x 35mm (CN)
4"~6" M12 x 29mm (CN) 4"~6" 1/2-12UNC x 27.5mm (CN)
4"~6" 1/2-13UNC x 25mm (CN) 4"~6" M16 x 30mm (CN)

空铆规格

规格
Size		 孔径
Centre Hole		 规格
Size		 孔径
Centre Hole
3" 10.2mm (CN) 4"~6" 10.5mm (CN)
4"~6" 12.5mm (CN)

轮子详细资讯

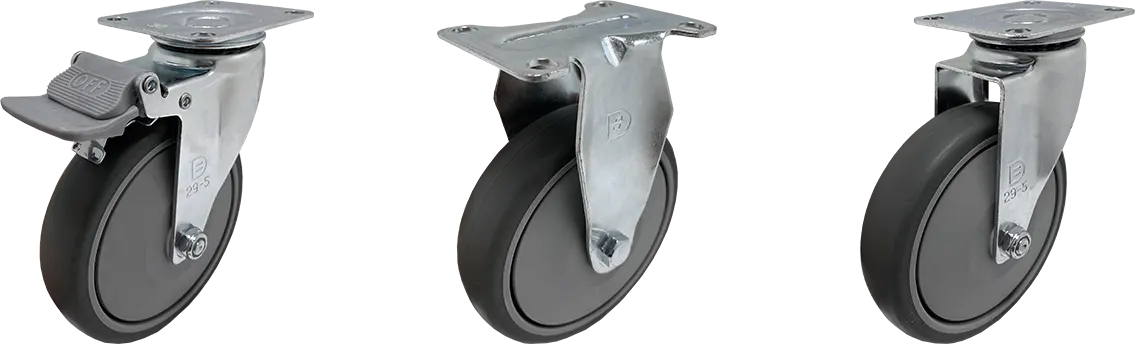

轮径 × 轮宽 载重 材质 型号 轴承 总高 迴旋半径
固定 活动 剎车
75mm x 27mm
(3" x 1")		 70 kgs
(155 lbs)		 高科技耐磨聚氨酯
PU on PP Core		 1129-03-31-1 1129-03-31-2 1129-03-31-4 滚珠
Ball Bearing

中管
Plain Bearing

底板类总高
Plate Version OAH:
106mm (4-1/8")

丝扣类总高
Threaded Stem OAH:
110mm (4-21/64")

空心/插杆类总高
Single Bolt Hole/
Cylindrical Stem OAH:
104mm (4-3/32")

活动 74mm

双剎 91mm

Swivel 67mm

Swivel W/Total lock 91mm
70 kgs
(155 lbs)		 超级人造胶
TPR on PP Core		 1129-03-75-1 1129-03-75-2 1129-03-75-4
56 kgs
(125 lbs)		 全效轮
Resolute		 1129-03-68-1 1129-03-68-2 1129-03-68-4 滚珠
Ball Bearing
60 kgs
(132 lbs)		 NPPR轮
NPPR		 1129-03-67-1 1129-03-67-2 1129-03-67-4
80 kgs
(175 lbs)		 导电轮
E-conductive		 1129-03-17-1 1129-03-17-2 1129-03-17-4
70 kgs
(155 lbs)		 尼龙轮
Nylon		 1129-03-07-1 1129-03-07-2 1129-03-07-4 中管
Plain Bearing
50 kgs
(110 lbs)		 橡胶轮
Rubber 		1129-03-06-1 1129-03-06-2 1129-03-06-4
60 kgs
(132 lbs)		 塑料轮
PP		 1129-03-29-1 1129-03-29-2 1129-03-29-4
100mm x 24mm
(4" x 1")		 50 kgs
(110 lbs)		 超级人造胶
TPR on PP Core		 1129-R-04-75-1 1129-R-04-75-2 1129-R-04-75-4 滚珠
Ball Bearing

底板类总高
Plate Version OAH:
136mm (5-3/8")

丝扣类总高
Threaded Stem OAH:
136mm (5-3/8")

空心/插杆类总高
Single Bolt Hole/
Cylindrical Stem OAH:
132mm (5-13/64")

活动 91mm

剎车 98mm

侧剎 95mm

Swivel 91mm

Swivel W/Total lock 98mm

Swivel W/Side Brake 95mm

55 kgs
(121 lbs)		 全效轮
Resolute		 1129-R-04-68-1 1129-R-04-68-2 1129-R-04-68-4
100mm x 32mm
(4" x 1-1/4")		 120kgs
(265 lbs)		 高科技耐磨聚氨酯
PU on PP Core		 1129-04-31-1 1129-04-31-2 1129-04-31-4 滚珠
Ball Bearing

中管
Plain Bearing
100kgs
(220 lbs)		 超级人造胶
TPR on PP Core		 1129-04-75-1 1129-04-75-2 1129-04-75-4
80kgs
(175 lbs)		 超级人造胶(大圆弧)
TPR on PP Core (Donut)		 1129-04-110-1 1129-04-110-2 1129-04-110-4
90kgs
(198 lbs)		 全效轮(大圆弧)
Resolute (Donut)		 1129-04-111-1 1129-04-111-2 1129-04-111-4
125kgs
(275 lbs)		 全效轮
Resolute		 1129-04-68-1 1129-04-68-2 1129-04-68-4 滚珠
Ball Bearing
80kgs
(176 lbs)		 导电轮
E-conductive		 1129-04-17-1 1129-04-17-2 1129-04-17-4
135kgs
(300 lbs)		 W全效轮
W Resolute		 1129-04-48-1 1129-04-48-2 1129-04-48-4
180kgs
(400 lbs)		 WHDR轮
WHDR		 1129-04-66-1 1129-04-66-2 1129-04-66-4
100kgs
(220 lbs)		 W超级人造胶
WPPR		 1129-04-47-1 1129-04-47-2 1129-04-47-4
180kgs
(396 lbs)		 WMRC轮
WMRC		 1129-04-45-1 1129-04-45-2 1129-04-45-4
130kgs
(285 lbs)		 WPP轮
WPP		 1129-04-46-1 1129-04-46-2 1129-04-46-4
135kgs
(300 lbs)

铝芯橡胶轮
Rubber on Aluminum Core

 1129-04-22-1 1129-04-22-2 1129-04-22-4
200kgs
(440 lbs)		 铝芯AQPU
QPU on AL Core		 1129-04-87-1 1129-04-87-2 1129-04-87-4
70kgs
(154 lbs)		 NPPR轮
NPPR		 1129-04-67-1 1129-04-67-2 1129-04-67-4 中管
Plain Bearing
120kgs
(265 lbs)		 尼龙轮
Nylon		 1129-04-07-1 1129-04-07-2 1129-04-07-4
135kgs
(300 lbs)		 耐高温轮
Hi-temp		 1129-04-25-1 1129-04-25-2 1129-04-25-4
80kgs
(175 lbs)		 橡胶轮
Rubber 		1129-04-06-1 1129-04-06-2 1129-04-06-4
90kgs
(198 lbs)		 塑料轮
PP		 1129-04-29-1 1129-04-29-2 1129-04-29-4

轮径 × 轮宽 载重 材质 型号 轴承 总高 迴旋半径
固定 活动 剎车
100mm x 36mm
(4" x 1-1/2")		 160 kgs
(352 lbs)		 CPD轮
CPD		 1129-04-71-1 1129-04-71-2 1129-04-71-4 滚珠
Ball Bearing

底板类总高
Plate Version OAH:
136mm (5-3/8")

丝扣类总高
Threaded Stem OAH:
136mm (5-3/8")

空心/插杆类总高
Single Bolt Hole/
Cylindrical Stem OAH:
132mm (5-13/64")

活动 91mm
双剎 98mm
侧剎 95mm

Swivel 91mm
Swivel W/Total lock 98mm
Swivel W/Side Brake 95mm

160 kgs
(352 lbs)		 蓝色弹力轮
Blue Resilient Rubber Wheel		 1129-04-50-1 1129-04-50-2 1129-04-50-4
140 kgs
(308 lbs)		 超级人造胶
TPR on PP Core		 1129-04-77-1 1129-04-77-2 1129-04-77-4
160 kgs
(352 lbs)		 全效轮
Resolute		 1129-04-76-1 1129-04-76-2 1129-04-76-4
200 kgs
(440 lbs)		 铝芯AQPU
QPU on AL Core		 1129-04-87-1 1129-04-87-2 1129-04-87-4
125mm x 24.5mm
(5" x 1")		 70 kgs
(155 lbs)		 超级人造胶
TPR on PP Core		 1129-R-05-75-1 1129-R-05-75-2 1129-R-05-75-4 滚珠
Ball Bearing

底板类总高
Plate Version OAH:
162mm (6-3/8")

丝扣类总高
Threaded Stem OAH:
162mm (6-3/8")

空心/插杆类总高
Single Bolt Hole/
Cylindrical Stem OAH:
156mm (6-9/64")

活动 101mm

双剎 101mm

侧剎 101mm

Swivel 101mm

Swivel W/Total lock 101mm

Swivel W/Side Brake 101mm

80 kgs
(175 lbs)		 全效轮
Resolute		 1129-R-05-68-1 1129-R-05-68-2 1129-R-05-68-4
125mm x 32mm
(5" x 1-1/4")		 130 kgs
(285 lbs)		 高科技耐磨聚氨酯
PU on PP Core		 1129-05-31-1 1129-05-31-2 1129-05-31-4 滚珠
Ball Bearing

中管
Plain Bearing
110 kgs
(240 lbs)		 超级人造胶
TPR on PP Core		 1129-05-75-1 1129-05-75-2 1129-05-75-4
100 kgs
(220 lbs)		 超级人造胶(大圆弧)
TPR on PP Core (Donut)		 1129-05-110-1 1129-05-110-2 1129-05-110-4
120kgs
(265 lbs)		 全效轮(大圆弧)
Resolute (Donut)		 1129-05-111-1 1129-05-111-2 1129-05-111-4
147 kgs
(325 lbs)		 全效轮
Resolute		 1129-05-68-1 1129-05-68-2 1129-05-68-4 滚珠
Ball Bearing
90 kgs
(198 lbs)		 导电轮
E-conductive		 1129-05-17-1 1129-05-17-2 1129-05-17-4
147 kgs
(325 lbs)		 W全效轮
W Resolute		 1129-05-48-1 1129-05-48-2 1129-05-48-4
180 kgs
(400 lbs)		 WHDR轮
WHDR		 1129-05-66-1 1129-05-66-2 1129-05-66-4
110kgs
(240 lbs)		 W超级人造胶
WPPR		 1129-05-47-1 1129-05-47-2 1129-05-47-4
200kgs
(440 lbs)		 WMRC轮
WMRC		 1129-05-45-1 1129-05-45-2 1129-05-45-4
150kgs
(330 lbs)		 WPP轮
WPP		 1129-05-46-1 1129-05-46-2 1129-05-46-4
200kgs
(440 lbs)		 铝芯AQPU
QPU on AL Core		 1129-05-87-1 1129-05-87-2 1129-05-87-4
140kgs
(305 lbs)		 尼龙轮
Nylon		 1129-05-07-1 1129-05-07-2 1129-05-07-4 中管
Plain Bearing
90kgs
(198 lbs)		 橡胶轮
Rubber 		1129-05-06-1 1129-05-06-2 1129-05-06-4
100kgs
(220 lbs)		 塑料轮
PP		 1129-05-29-1 1129-05-29-2 1129-05-29-4
125mm x 36mm
(5" x 1-1/2")		 200kgs
(440 lbs)		 CPD轮
CPD		 1129-05-71-1 1129-05-71-2 1129-05-71-4 滚珠
Ball Bearing

底板类总高
Plate Version OAH:
162mm (6-3/8")

丝扣类总高
Threaded Stem OAH:
162mm (6-3/8")

空心/插杆类总高
Single Bolt Hole/
Cylindrical Stem OAH:
156mm (6-9/64")

 活动 101mm
双剎 101mm
侧剎 101mm

Swivel 101mm
Swivel W/Total lock 101mm
Swivel W/Side Brake 101mm
250kgs
(550 lbs)		 蓝色弹力轮
Blue Resilient Rubber Wheel		 1129-05-50-1 1129-05-50-2 1129-05-50-4
160kgs
(352 lbs)		 超级人造胶
TPR on PP Core		 1129-05-77-1 1129-05-77-2 1129-05-77-4
180kgs
(400 lbs)		 全效轮
Resolute		 1129-05-76-1 1129-05-76-2 1129-05-76-4

轮径 × 轮宽 载重 材质 型号 轴承 总高 迴旋半径
固定 活动 剎车
150mm x 32mm
(6" x 1-1/4")		 110kgs
(240 lbs)		 超级人造胶
TPR on PP Core		 1129-06-75-1 1129-06-75-2 1129-06-75-4 滚珠
Ball Bearing

底板类总高
Plate Version OAH:
186mm (7-3/8")

丝扣类总高
Threaded Stem OAH:
186mm (7-3/8")

空心/插杆类总高
Single Bolt Hole/
Cylindrical Stem OAH:
181mm (7-1/8")

 活动 113mm

双剎 113mm

侧剎 113mm

Swivel 113mm
Swivel W/Total
lock 113mm
Swivel W/Side
Brake 113mm
147kgs
(325 lbs)		 全效轮
Resolute		 1129-06-68-1 1129-06-68-2 1129-06-68-4
147kgs
(325 lbs)		 W全效轮
W Resolute		 1129-06-48-1 1129-06-48-2 1129-06-48-4
200kgs
(440 lbs)		 WHDR轮
WHDR		 1129-06-66-1 1129-06-66-2 1129-06-66-4
110kgs
(240 lbs)		 W超级人造胶
WPPR		 1129-06-47-1 1129-06-47-2 1129-06-47-4

长按关注微信公众号
可向得貹客服提问
