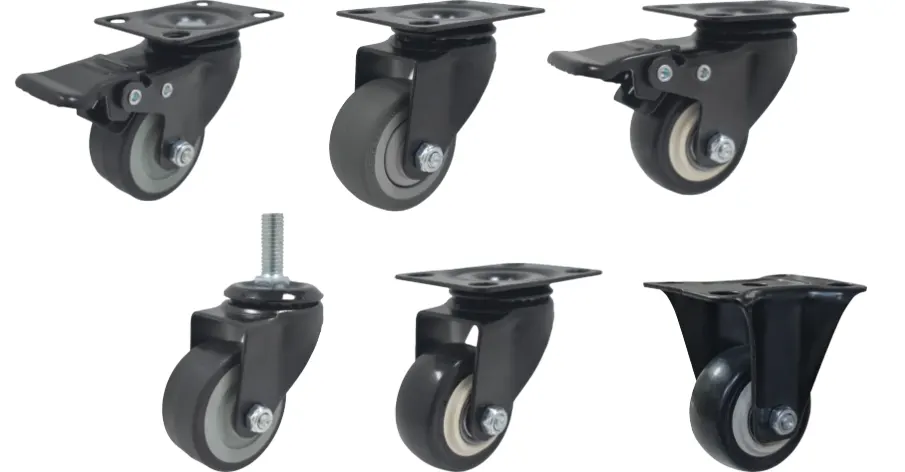

1127系列 — H-3系列
H-3系列拥有优异的承载能力，转动灵活、转向便捷，可轻松改变方向，操作省力又高效。
移动时稳定性极佳，不易倾倒或晃动，适用性广泛。提供多种安装方式与尺寸规格，能灵活适配各类设备与工作环境，
安装与更换都非常方便。适合应用于工业、物流仓储、商业场所、医疗行业及餐饮服务等多种场景，是提升效率与稳定性的最佳选择。
轮子选择
PPR轮
全效轮
PPP轮
底板规格
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1-1/2" | 60mm × 43mm (2-3/8"× 1-3/4") |
45mm × 30mm (1-3/4"× 1-1/8") |
6mm (3/16") |
| 2" | 69mm × 49mm (2-3/4"× 1-7/8") |
52mm × 35mm (2"× 1-3/8") |
8mm (5/16") |
丝扣规格
| 规格 Size |
丝扣牙径 x 长度 Threaded Size |
规格 Size |
丝扣牙径 x 长度 Threaded Size |
| 1-1/2" | M8 × 25mm | 2" | M8 × 25mm |
底板规格
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1-1/2" | 60mm × 43mm (2-3/8"× 1-3/4") |
45mm × 30mm (1-3/4"× 1-1/8") |
6mm (3/16") |
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1-1/2" | 60mm × 43mm (2-3/8"× 1-3/4") |
45mm × 30mm (1-3/4"× 1-1/8") |
6mm (3/16") |
| 2" | 69mm × 49mm (2-3/4"× 1-7/8") |
52mm × 35mm (2"× 1-3/8") |
8mm (5/16") |
丝扣规格
| 规格 Size |
丝扣牙径 x 长度 Threaded Size |
规格 Size |
丝扣牙径 x 长度 Threaded Size |
| 1-1/2" | M8 × 25mm | 2" | M8 × 25mm |
轮子详细资讯
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 迴旋半径 | ||
| 固定 | 活动 | 煞车 | ||||||
| 40mm x 20mm (1-5/8" x 3/4") |
40kgs (88 lbs) |
PPP轮 PP on PP Core |
1127-015-29-1 | 1127-015-29-2 | 1127-015-29-4 | 滚珠轴承 Ball Bearing |
60mm (2-3/8") |
活动 39mm 双煞 66mm Swivel 38mm Swivel W/Total lock 66mm |
| 38mm x 24mm (1-1/2" x 1") |
40 kgs (88 lbs) |
PPR轮 TPR on PP Core |
1127-015-26-1 | 1127-015-26-2 | 1127-015-26-4 | 滚珠轴承 Ball Bearing |
59mm (2-3/8") |
活动 37mm 双煞 66mm Swivel 37mm Swivel W/Total lock 66mm |
| 42mm x 22mm (1-5/8" x 7/8") |
40 kgs (88 lbs) |
全效轮 Resolute |
1127-015-45-1 | 1127-015-45-2 | 1127-015-45-4 | |||
| 50mm x 23mm (1-5/8" x 7/8") |
50kgs (110 lbs) |
PPP轮 PP on PP Core |
1127-02-29-1 | 1127-02-29-2 | 1127-02-29-4 | 滚珠轴承 Ball Bearing |
71mm (2-3/4") |
活动 45mm 双煞 77mm Swivel 45mm Swivel W/Total lock 77mm |
| 50mm x 22.5mm (2" x 7/8") |
50 kgs (110 lbs) |
全效轮(平面) Resolute(Flat) |
1127-02-45-1 | 1127-02-45-2 | 1127-02-45-4 | |||
| 50mm x 22mm (2" x 7/8") |
50 kgs (110 lbs) |
全效轮 Resolute |
1127-02-45-1 | 1127-02-45-2 | 1127-02-45-4 | 中管 Plain Bearing |
71mm (2-3/4") |
活动 45mm 双煞 77mm Swivel 45mm Swivel W/Total lock 77mm |
| 51.5mm x 21mm (2" x 7/8") |
50 kgs (110 lbs) |
PPR轮 TPR on PP Core |
1127-02-26-1 | 1127-02-26-2 | 1127-02-26-4 | 中管 Plain Bearing |
71.8mm (2-7/8") |
活动 45.8mm 双煞 77mm Swivel 45.8mm Swivel W/Total lock 77mm |
