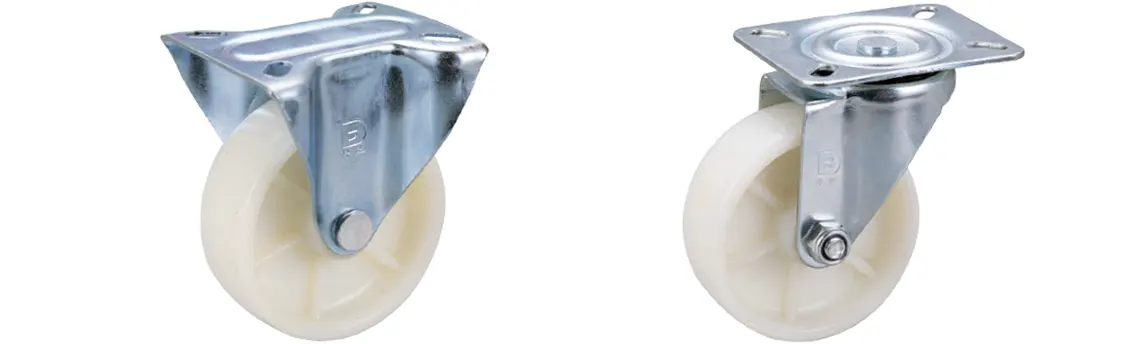

1126系列 — 轻型系列
中轻型，适用于多种使用环境下的物流器材。採用特别脚架贺种结构设计，灵活转动。
轮子选择
高科技耐磨聚氨酯
超级人造胶(514)
尼龙轮
WMRC轮
WPP轮
W超级人造胶
NPPR轮
铝芯橡胶轮
超级人造胶(515)
铝芯AQPU
橡胶轮
塑料轮
导电轮
耐高温轮
W全效轮
全效轮(514)
WHDR轮
CPD轮
蓝色弹力轮
全效轮(515)
底板规格
| 编号 Suffix |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1 | 85 x 105mm (3-5/16" x 4-1/8") |
60 x 80mm (欧规孔距) (2-3/8" x 3-1/8")(European Plate) |
8mm (5/16") |
轮子详细资讯
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 偏心距 | ||
| 固定 | 活动 | 剎车 | ||||||
| 100mm × 32mm (4" × 1-1/4") |
100kgs (220lbs) | 高科技耐磨聚氨酯 PU on PP Core |
1126-04-31-1 | 1126-04-31-2 | — | 滚珠 Ball Bearing 中管 Plain Bearing |
128mm (5-1/16") |
活动 90mm Swivel 90mm |
| 100kgs (220lbs) | 超级人造胶 TPR on PP Core |
1126-04-75-1 | 1126-04-75-2 | — | ||||
| 100kgs (220lbs) | 全效轮 Resolute |
1126-04-68-1 | 1126-04-68-2 | — | 滚珠 Ball Bearing |
|||
| 80kgs (175lbs) | 导电轮 E-Conductive |
1126-04-17-1 | 1126-04-17-2 | — | ||||
| 100kgs (220lbs) | WMRC轮 WMRC |
1126-04-45-1 | 1126-04-45-2 | — | ||||
| 100kgs (220lbs) | WPP轮 WPP |
1126-04-46-1 | 1126-04-46-2 | — | ||||
| 100kgs (220lbs) | W超级人造胶 WPPR |
1126-04-47-1 | 1126-04-47-2 | — | ||||
| 100kgs (220lbs) | W全效轮 W Resolute |
1126-04-48-1 | 1126-04-48-2 | — | ||||
| 100kgs (220lbs) | WHDR轮 WHDR |
1126-04-66-1 | 1126-04-66-2 | — | ||||
| 100kgs (220lbs) | 铝芯橡胶轮 Rubber on Aluminum Core |
1126-04-22-1 | 1126-04-22-2 | — | ||||
| 120kgs (264lbs) | 铝芯AQPU QPU on AL Core |
1126-04-87-1 | 1126-04-87-2 | — | ||||
| 70kgs (154lbs) | NPPR轮 NPPR |
1126-04-67-1 | 1126-04-67-2 | — | 中管 Plain Bearing |
|||
| 100kgs (220lbs) | 尼龙轮 Nylon |
1126-04-07-1 | 1126-04-07-2 | — | ||||
| 80kgs (176lbs) | 橡胶轮 Rubber |
1126-04-06-1 | 1126-04-06-2 | — | ||||
| 90kgs (198lbs) | 塑料轮 PP |
1126-04-29-1 | 1126-04-29-2 | — | ||||
| 100kgs (220lbs) | 耐高温轮 Hi-temp |
1126-04-25-1 | 1126-04-25-2 | — | ||||
| 100mm × 36mm (4" × 1-1/2") |
100kgs (220lbs) | CPD轮 CPD |
1126-04-71-1 | 1126-04-71-2 | — | 滚珠 Ball Bearing |
128mm (5-1/16") |
活动 90mm Swivel 90mm |
| 100kgs (220lbs) | 蓝色弹力轮 Blue Resilient Rubber Wheeel |
1126-04-50-1 | 1126-04-50-2 | — | ||||
| 120kgs (264lbs) | 超级人造胶 TPR on PP Core |
1126-04-77-1 | 1126-04-77-2 | — | ||||
| 120kgs (264lbs) | 全效轮 Resolute |
1126-04-76-1 | 1126-04-76-2 | — | ||||
| 120kgs (264lbs) | 铝芯AQPU QPU on AL Core |
1126-04-87-1 | 1126-04-87-2 | — | ||||
| 125mm × 32mm (5" × 1-1/4") |
120kgs (264lbs) | 高科技耐磨聚氨酯 PU on PP Core |
1126-05-31-1 | 1126-05-31-2 | — | 滚珠 Ball Bearing 中管 Plain Bearing |
149.5mm (5-15/16") |
活动 91mm Swivel 91mm |
| 110kgs (240lbs) | 超级人造胶 TPR on PP Core |
1126-05-75-1 | 1126-05-75-2 | — | ||||
| 120kgs (264lbs) | 全效轮 Resolute |
1126-05-68-1 | 1126-05-68-2 | — | 滚珠 Ball Bearing |
|||
| 90kgs (198lbs) | 导电轮 E-Conductive |
1126-05-17-1 | 1126-05-17-2 | — | ||||
| 120kgs (264lbs) | WMRC轮 WMRC |
1126-05-45-1 | 1126-05-45-2 | — | ||||
| 120kgs (264lbs) | WPP轮 WPP |
1126-05-46-1 | 1126-05-46-2 | — | ||||
| 110kgs (240lbs) | W超级人造胶 WPPR |
1126-05-47-1 | 1126-05-47-2 | — | ||||
| 120kgs (264lbs) | W全效轮 W Resolute |
1126-05-48-1 | 1126-05-48-2 | — | ||||
| 120kgs (264lbs) | WHDR轮 WHDR |
1126-05-66-1 | 1126-05-66-2 | — | ||||
| 120kgs (264lbs) | 铝芯AQPU QPU on AL Core |
1126-05-87-1 | 1126-05-87-2 | — | ||||
| 120kgs (264lbs) | 尼龙轮 Nylon |
1126-05-07-1 | 1126-05-07-2 | — | 中管 Plain Bearing |
|||
| 90kgs (198lbs) | 橡胶轮 Rubber |
1126-05-06-1 | 1126-05-06-2 | — | ||||
| 100kgs (220lbs) | 塑料轮 PP |
1126-05-29-1 | 1126-05-29-2 | — | ||||
| 125mm × 36mm (5" × 1-1/2") |
120kgs (264lbs) | CPD轮 CPD |
1126-05-71-1 | 1126-05-71-2 | — | 滚珠 Ball Bearing |
149.5mm (5-15/16") |
活动 91mm Swivel 91mm |
| 120kgs (264lbs) | 蓝色弹力轮 Blue Resilient Rubber Wheeel |
1126-05-50-1 | 1126-05-50-2 | — | ||||
| 120kgs (264lbs) | 超级人造胶 TPR on PP Core |
1126-05-77-1 | 1126-05-77-2 | — | ||||
| 120kgs (264lbs) | 全效轮 Resolute |
1126-05-76-1 | 1126-05-76-2 | — | ||||
