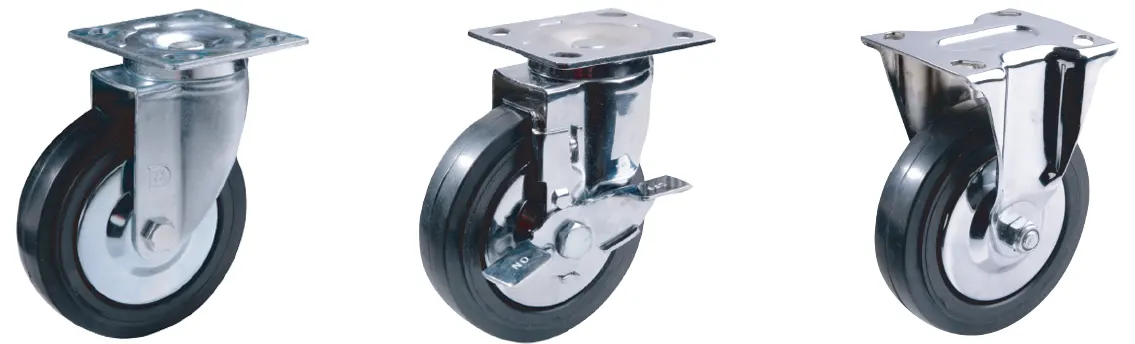

1125系列 — 中荷重系列
支架一体成形，流线美观，坚固耐用，荷重高，适用于讲究美观、又强调荷重的环境。
特色区

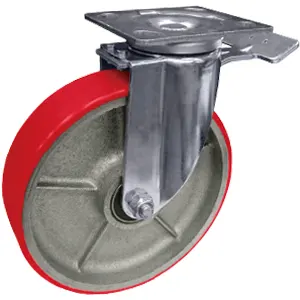

后剎(只有8")

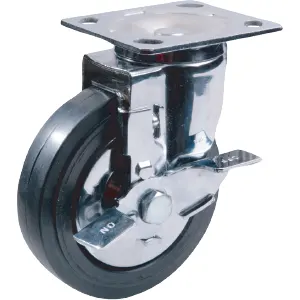

侧剎(只有4"、5"、6")
轮子可附防尘盖
特色区
后剎(只有8")
侧剎(只有4"、5"、6")
轮子可附防尘盖
轮子选择
-
铝芯AQPU
-
QPU轮
-
铁芯聚氨酯
-
铁芯NBR橡胶轮
-
尼龙轮
-
W 全效轮
-
CPD轮
-
三星轮
-
高弹力橡胶轮
-
WMRC轮
底板规格
| 编号 Suffix |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1 | 105 x 115mm (4-1/8" x 4-1/2" ) | 70 x 85 mm (2-5/8"~3"x3"~3-5/8") | 9.5mm (3/8") |
轮子详细资讯
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 迴旋半径 | ||
| 固定 | 活动 | 剎车 | ||||||
| 100mm x 32mm (4" x 1-1/4") |
200 kgs (440 lbs) | 尼龙轮 Nylon |
1125-04-07-1 | 1125-04-07-2 | 1125-04-07-4 | 滚珠 Ball Bearing |
136.5mm (5-3/8") |
活动 87mm 剎车 99.5mm Swivel 87mm Swivel W/Brake 99.5mm |
| 150 kgs (330 lbs) | CPD轮 CPD |
1125-04-49-1 | 1125-04-49-2 | 1125-04-49-4 | ||||
| 100mm x 34mm (4" x 1-1/3") |
200 kgs (440 lbs) | 铁芯聚氨酯 PU on Cast |
1125-04-33-1 | 1125-04-33-2 | 1125-04-33-4 | 滚珠 Ball Bearing |
136.5mm (5-3/8") |
活动 87mm 剎车 99.5mm Swivel 87mm Swivel W/Brake 99.5mm |
| 300 kgs (660 lbs) | QPU轮 QPU |
1125-04-80-1 | 1125-04-80-2 | 1125-04-80-4 | ||||
| 150 kgs (330 lbs) | 高弹力橡胶轮 Resilent Rubber on PA Core |
1125-04-10-1 | 1125-04-10-2 | 1125-04-10-4 | ||||
| 100mm x 36mm (4" x 1-7/16") |
325 kgs (715 lbs) | 铝芯AQPU轮(圆弧) QPU on AL Core (Round) |
1125-04-87-1 | 1125-04-87-2 | 1125-04-87-4 | 滚珠 Ball Bearing |
136.5mm (5-3/8") |
活动 87mm 剎车 99.5mm Swivel 87mm Swivel W/Brake 99.5mm |
| 100mm x 38mm (4" x 1-1/2") |
150 kgs (330 lbs) | 三星轮 Rubber on Cast |
1125-04-03-1 | 1125-04-03-2 | 1125-04-03-4 | 滚珠 Ball Bearing |
136.5mm (5-3/8") |
活动 87mm 剎车 99.5mm Swivel 87mm Swivel W/Brake 99.5mm |
| 140 kgs (308 lbs) | W 全效轮 W Resolute |
1125-04-64-1 | 1125-04-64-2 | 1125-04-64-4 | ||||
| 150 kgs (330 lbs) | 铁芯聚氨酯 PU on Cast |
1125-04-04-1 | 1125-04-04-2 | 1125-04-04-4 | ||||
| 100mm x 40mm (4" x 1-9/16") |
350 kgs (770 lbs) | 铝芯AQPU轮(圆弧) QPU on AL Core (Round) |
1125-04(40)-87-1 | 1125-04(40)-87-2 | 1125-04(40)-87-4 | 滚珠 Ball Bearing |
136.5mm (5-3/8") |
活动 87mm 剎车 99.5mm Swivel 87mm Swivel W/Brake 99.5mm |
| 125mm x 38mm (5" x 1-1/2") |
170 kgs (375 lbs) | 高弹力橡胶轮 Resilent Rubber on PA Core |
1125-05-10-1 | 1125-05-10-2 | 1125-05-10-4 | 滚珠 Ball Bearing |
136.5mm (6-7/16") |
活动 101.5mm 剎车 101.5mm Swivel 101.5mm Swivel W/Brake 101.5mm |
| 250 kgs (550 lbs) | W 全效轮 W Resolute |
1125-05-64-1 | 1125-05-64-2 | 1125-05-64-4 | ||||
| 125mm x 40mm (5" x 1-9/16") |
250 kgs (550 lbs) | 尼龙轮 Nylon |
1125-05-07-1 | 1125-05-07-2 | 1125-05-07-4 | 滚珠 Ball Bearing |
163mm (6-7/16") |
活动 101.5mm 剎车 101.5mm Swivel 101.5mm Swivel W/Brake 101.5mm |
| 200 kgs (440 lbs) | CPD轮 CPD |
1125-05-49-1 | 1125-05-49-2 | 1125-05-49-4 | ||||
| 250 kgs (550 lbs) | 铁芯聚氨酯 PU on Cast |
1125-05-33-1 | 1125-05-33-2 | 1125-05-33-4 | ||||
| 350 kgs (770 lbs) | QPU轮 QPU |
1125-05-80-1 | 1125-05-80-2 | 1125-05-80-4 | ||||
| 200 kgs (440 lbs) | 铁芯NBR橡胶轮 NBR Rubber on Cast |
1125-05-04-1 | 1125-05-04-2 | 1125-05-04-4 | ||||
| 350 kgs (770 lbs) | 铝芯AQPU轮(圆弧) QPU on AL Core (Round) |
1125-05-87-1 | 1125-05-87-2 | 1125-05-87-4 | ||||
| 200 kgs (440 lbs) | 三星轮 Rubber on Cast |
1125-05-03-1 | 1125-05-03-2 | 1125-05-03-4 | ||||
| 150mm x 38mm (6" x 1-1/2") |
190 kgs (415 lbs) | 高弹力橡胶轮 Resilent Rubber on PA Core |
1125-06-10-1 | 1125-06-10-2 | 1125-06-10-4 | 滚珠 Ball Bearing |
187mm (7-3/8") |
活动 113mm 剎车 113mm Swivel 113mm Swivel W/Brake 113mm |
| 180 kgs (396 lbs) | W 全效轮 W Resolute |
1125-06-64-1 | 1125-06-64-2 | 1125-06-64-4 | ||||
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 迴旋半径 | ||
| 固定 | 活动 | 剎车 | ||||||
| 150mm x 40mm (6" x 1-9/16") |
350 kgs (770 lbs) | 尼龙轮 Nylon |
1125-06-07-1 | 1125-06-07-2 | 1125-06-07-4 | 滚珠 Ball Bearing |
187mm (7-3/8") |
活动 113mm 剎车 113mm Swivel 113mm Swivel W/Brake 113mm |
| 350 kgs (770 lbs) | WMRC轮 WMRC |
1125-06-45-1 | 1125-06-45-2 | 1125-06-45-4 | ||||
| 250 kgs (550 lbs) | CPD轮 CPD |
1125-06-49-1 | 1125-06-49-2 | 1125-06-49-4 | ||||
| 150mm x 42mm (6" x 1-11/16") |
350 kgs (770 lbs) | 铁芯聚氨酯 PU on Cast |
1125-06-33-1 | 1125-06-33-2 | 1125-06-33-4 | 滚珠 Ball Bearing |
187mm (7-3/8") |
活动 113mm 剎车 113mm Swivel 113mm Swivel W/Brake 113mm |
| 400 kgs (880 lbs) | QPU轮 QPU |
1125-06-80-1 | 1125-06-80-2 | 1125-06-80-4 | ||||
| 400 kgs (880 lbs) | 铝芯AQPU轮(圆弧) QPU on AL Core (Round) |
1125-06-87-1 | 1125-06-87-2 | 1125-06-87-4 | ||||
| 250 kgs (550 lbs) | 铁芯NBR橡胶轮 NBR Rubber on Cast |
1125-06-04-1 | 1125-06-04-2 | 1125-06-04-4 | ||||
| 150mm x 45mm (6" x 1-3/4") |
220 kgs (485 lbs) | 三星轮 Rubber on Cast |
1125-06-03-1 | 1125-06-03-2 | 1125-06-03-4 | 滚珠 Ball Bearing |
187mm (7-3/8") |
活动 113mm 剎车 113mm Swivel 113mm Swivel W/Brake 113mm |
| 200mm x 44mm (8" x 1-3/4") |
300 kgs (660 lbs | 铁芯NBR橡胶轮 NBR Rubber on Cast |
1125-08-04-1 | 1125-08-04-2 | 1125-08-04-4 | 滚珠 Ball Bearing |
240mm (9-7/16") |
活动 140.5mm 剎车 140.5mm Swivel 140.5mm Swivel W/Brake 140.5mm |
| 200mm x 48mm (8" x 1-7/8") |
260 kgs (570 lbs) | 三星轮 Rubber on Cast |
1125-08-03-1 | 1125-08-03-2 | 1125-08-03-4 | 滚珠 Ball Bearing |
240mm (9-7/16") |
活动 140.5mm 剎车 140.5mm Swivel 140.5mm Swivel W/Brake 140.5mm |
| 300 kgs (660 lbs | 高弹力橡胶轮 Resilent Rubber on PA Core |
1125-08-10-1 | 1125-08-10-2 | 1125-08-10-4 | ||||
| 200mm x 50mm (8" x 2") |
400 kgs (880 lbs) | 铁芯聚氨酯 PU on Cast |
1125-08-33-1 | 1125-08-33-2 | 1125-08-33-4 | 滚珠 Ball Bearing |
240mm (9-7/16") |
活动 140.5mm 剎车 140.5mm Swivel 140.5mm Swivel W/Brake 140.5mm |
| 400 kgs (880 lbs) | QPU轮 QPU |
1125-08-80-1 | 1125-08-80-2 | 1125-08-80-4 | ||||
| 306 kgs (675 lbs) | W 全效轮 W Resolute |
1125-08-64-1 | 1125-08-64-2 | 1125-08-64-4 | ||||
| 400 kgs (880 lbs) | 尼龙轮 Nylon |
1125-08-07-1 | 1125-08-07-2 | 1125-08-07-4 | ||||
| 400 kgs (880 lbs) | WMRC轮 WMRC |
1125-08-45-1 | 1125-08-45-2 | 1125-08-45-4 | ||||
| 400 kgs (880 lbs) | 铝芯AQPU轮(圆弧) QPU on AL Core (Round) |
1125-08-87-1 | 1125-08-87-2 | 1125-08-87-4 | ||||
| 400 kgs (880 lbs) | 铝芯AQPU轮(平面) QPU on AL Core (Flat) |
1125-08-87-1 | 1125-08-87-2 | 1125-08-87-4 | ||||
| 300 kgs (660 lbs) | CPD轮 CPD |
1125-08-49-1 | 1125-08-49-2 | 1125-08-49-4 | ||||
