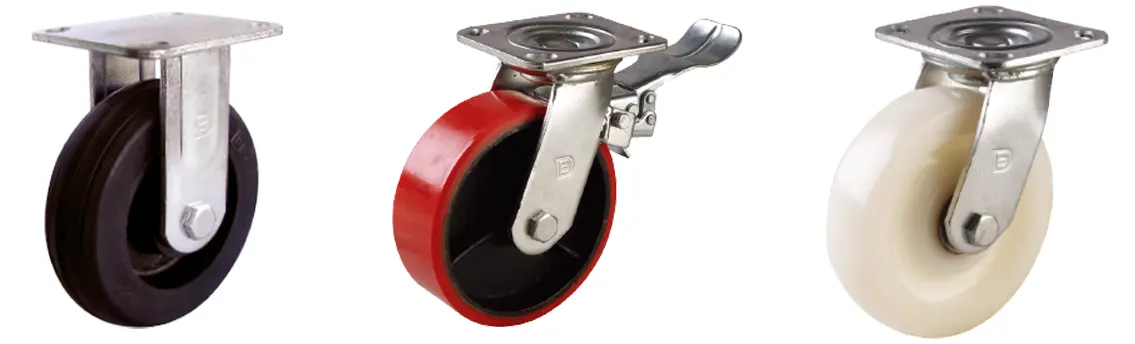

1124系列 — DF系列
高负载且转动灵活，普遍适用于一般工厂搬运，另可附防缠丝及防尘盖，属得貹专利产品，可以有效防止脚轮因灰尘或缠丝而无法转动，提高脚轮使用寿命。
特色区

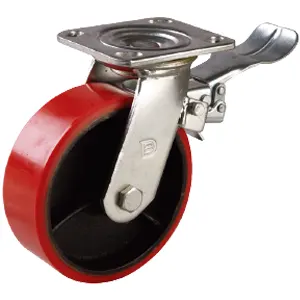

中剎

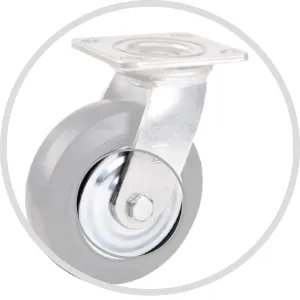

轮子可附防缠丝盖
(供选择)
轮子可附金属防尘盖
(供选择)

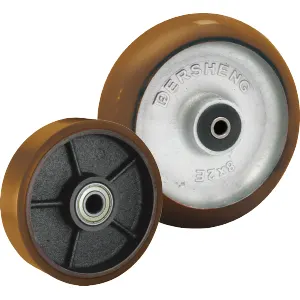

PU轮面可以变化硬度
特色区
中剎
轮子可附防缠丝盖
(供选择)
轮子可附金属防尘盖
(供选择)
PU轮面可以变化硬度
轮子选择
-
铁芯聚氨酯
-
三星轮
-
铁芯NBR橡胶轮
-
尼龙轮
-
WMRC轮
-
QPU轮
-
CPD轮
-
WCPD轮
-
铣轮
-
环保NBR橡胶轮
-
EQPU轮
-
EPU轮
-
铝芯AQPU
-
W全校轮
-
风硬全效轮
-
金钢轮
底板规格
| 编号 Suffix |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1 | 100 x 115 mm (4"x 4-1/2") | 70 x 85 mm (2-5/8"~3" x 3"~3-5/8") | 9.5mm(3/8") |
| 2 | 108 x 84 mm (4-1/4"x 3-5/16") | 87.5 x 63.5 mm (3-7/16 x 2-1/2") | M8 (5/16") |
| 3 | 115 x 159 mm (4-1/2"x 6-1/4") | 75 x 130 mm (2-7/16~3-3/8" x 4-15/16"~5-1/4") | 12.7mm(1/2") |
底板规格
| 编号 Suffix |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1 | 100 x 115 mm (4"x 4-1/2") | 70 x 85 mm (2-5/8"~3" x 3"~3-5/8") | 9.5mm(3/8") |
| 编号 Suffix |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1 | 100 x 115 mm (4"x 4-1/2") | 70 x 85 mm (2-5/8"~3" x 3"~3-5/8") | 9.5mm(3/8") |
| 2 | 108 x 84 mm (4-1/4"x 3-5/16") | 87.5 x 63.5 mm (3-7/16 x 2-1/2") | M8 (5/16") |
| 3 | 115 x 159 mm (4-1/2"x 6-1/4") | 75 x 130 mm (2-7/16~3-3/8" x 4-15/16"~5-1/4") | 12.7mm(1/2") |
轮子详细资讯
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 迴旋半径 | ||
| 固定 | 活动 | 剎车 | ||||||
| 50mm x 45mm (2" x 1-3/4") |
275 kgs(606 lbs) | 金刚轮 King Kong Wheel |
11240200711013 | 11240200712013 | — | 滚珠 Ball Bearing |
82mm (3-1/4") |
活动 51mm (2") Swivel 51mm (2") |
| 93mm x 28mm (3-21/32" x 1-3/32") |
175 kgs(385 lbs) | 铣轮 Cast Iron |
1124-04-14-1 | 1124-04-14-2 | — | 滚珠 Ball Bearing |
138.5mm | 活动 71.5mm Swivel 71.5mm |
| 100mm x 32mm (4" x 1-1/4") |
200 kgs(440 lbs) | 尼龙轮 Nylon |
1124-04-07-1 | 1124-04-07-2 | 1124-04-07-4 | 滚珠 Ball Bearing |
142mm (5-5/8") |

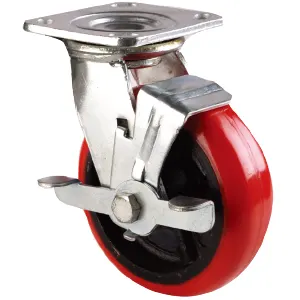

活动 75mm 侧剎 75mm 中剎 115mm Swivel 75mm Swivel W/Side Brake 75mm Swivel W/Center lock 115mm |
| 150 kgs(330 lbs) | CPD轮 CPD |
1124-04-49-1 | 1124-04-49-2 | 1124-04-49-4 | ||||
| 100mm x 34mm (4" x 1-1/3") |
200 kgs(440 lbs) | 铁芯聚氨酯 PU on Cast |
1124-04-33-1 | 1124-04-33-2 | 1124-04-33-4 | |||
| 300 kgs(660 lbs) | QPU轮 QPU |
1124-04-80-1 | 1124-04-80-2 | 1124-04-80-4 | ||||
| 150 kgs(330 lbs) | 铁芯NBR橡胶轮 NBR Rubber on Cast |
1124-04-04-1 | 1124-04-04-2 | 1124-04-04-4 | ||||
| 150 kgs(330 lbs) | 环保NBR橡胶轮 Non-marking Rubber on Cast |
1124-04-11-1 | 1124-04-11-2 | 1124-04-11-4 | ||||
| 100mm x 35mm (4" x 1-1/8") |
150 kgs(330 lbs) | 三星轮 Rubber on Cast |
1124-04-03-1 | 1124-04-03-2 | 1124-04-03-4 | |||
| 100mm x 36mm (4" x 1-7/16") |
325 kgs(715 lbs) | 铝芯AQPU(圆弧) QPU on AL Core (Round) |
1124-04-87-1 | 1124-04-87-2 | 1124-04-87-4 | |||
| 100mm x 37.5mm (4" x 1-1/2") |
140 kgs(308 lbs) | W全效轮 W Resolute |
1124-04-64-1 | 1124-04-64-2 | 1124-04-64-4 | |||
| 100mm x 40mm (4" x 1-9/16") |
350 kgs(770 lbs) | 铝芯AQPU(圆弧) QPU on AL Core (Round) |
1124-04(40)-87-1 | 1124-04(40)-87-2 | 1124-04(40)-87-4 | |||
| 122mm x 36mm (4-13/16" x 1-7/16") |
250 kgs(550 lbs) | 铣轮 Cast Iron |
1124-05-14-1 | 1124-05-14-2 | — | 滚珠 Ball Bearing |
165.5mm | 活动 91.5mm Swivel 91.5mm |
| 125mm x 37.5mm (5" x 1-1/2") |
250 kgs(550 lbs) | W全效轮 W Resolute |
1124-05-64-1 | 1124-05-64-2 | 1124-05-64-4 | 滚珠 Ball Bearing |
167mm (6-1/2") |
活动 93mm 侧剎 93mm 中剎 112mm Swivel 93mm Swivel W/Side Brake 93mm Swivel W/Center lock 112mm |
| 125mm x 40mm (5" x 1-9/16") |
250 kgs(550 lbs) | 铁芯聚氨酯 PU on Cast |
1124-05-33-1 | 1124-05-33-2 | 1124-05-33-4 | |||
| 350 kgs(770 lbs) | QPU轮 QPU |
1124-05-80-1 | 1124-05-80-2 | 1124-05-80-4 | ||||
| 350 kgs(770 lbs) | 铝芯AQPU(圆弧) QPU on AL Core (Round) |
1124-05-87-1 | 1124-05-87-2 | 1124-05-87-4 | ||||
| 250 kgs(550 lbs) | EPU轮 EPU |
1124-05-78-1 | 1124-05-78-2 | 1124-05-78-4 | ||||
| 300 kgs(660 lbs) | EQPU轮 EQPU |
1124-05-81-1 | 1124-05-81-2 | 1124-05-81-4 | ||||
| 200 kgs(440 lbs) | 三星轮 Rubber on Cast |
1124-05-03-1 | 1124-05-03-2 | 1124-05-03-4 | ||||
| 200 kgs(440 lbs) | 铁芯NBR橡胶轮 NBR Rubber on Cast |
1124-05-04-1 | 1124-05-04-2 | 1124-05-04-4 | ||||
| 200 kgs(440 lbs) | 环保NBR橡胶轮 Non-marking Rubber on Cast |
1124-05-11-1 | 1124-05-11-2 | 1124-05-11-4 | ||||
| 125mm x 41mm (5" x 1-5/8") |
250 kgs(550 lbs) | 尼龙轮 Nylon |
1124-05-07-1 | 1124-05-07-2 | 1124-05-07-4 | |||
| 200 kgs(440 lbs) | CPD轮 CPD |
1124-05-49-1 | 1124-05-49-2 | 1124-05-49-4 | ||||
| 138mm x 42mm (5-7/16" x 1-5/8") |
300 kgs(660 lbs) | 铣轮 Cast Iron |
1124-06-14-1 | 1124-06-14-2 | — | 滚珠 Ball Bearing |
184mm | 活动 104mm Swivel 104mm |
| 150mm x 37.5mm (6" x 1-1/2") |
180 kgs(396 lbs) | W全效轮 W Resolute |
1124-06-64-1 | 1124-06-64-2 | 1124-06-64-4 | 滚珠 Ball Bearing |
190mm (7-1/2") |
活动 110mm 侧剎 110mm 中剎 160mm Swivel 110mm Swivel W/Side Brake 110mm Swivel W/Center lock 160mm |
| 150mm x 40mm (6" x 1-9/16") |
250 kgs(550 lbs) | 铁芯NBR橡胶轮 NBR Rubber on Cast |
1124-06-04-1 | 1124-06-04-2 | 1124-06-04-4 | |||
| 250 kgs(550 lbs) | 环保NBR橡胶轮 Non-marking Rubber on Cast |
1124-06-11-1 | 1124-06-11-2 | 1124-06-11-4 | ||||
| 350 kgs(770 lbs) | 尼龙轮 Nylon |
1124-06-07-1 | 1124-06-07-2 | 1124-06-07-4 | ||||
| 250 kgs(550 lbs) | CPD轮 CPD |
1124-06-49-1 | 1124-06-49-2 | 1124-06-49-4 | ||||
| 350 kgs(770 lbs) | WMRC轮 WMRC |
1124-06-45-1 | 1124-06-45-2 | 1124-06-45-4 | ||||
| 250 kgs(550 lbs) | WCPD轮 WCPD |
1124-06-79-1 | 1124-06-79-2 | 1124-06-79-4 | ||||
* 50mm x 45mm (2" x 1-3/4") Static load capacity:550kg (1212.5 lbs)
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 迴旋半径 | ||
| 固定 | 活动 | 剎车 | ||||||
| 150mm x 42mm (6" x 1-5/8") |
350 kgs(770 lbs) | 铁芯聚氨酯 PU on Cast |
1124-06-33-1 | 1124-06-33-2 | 1124-06-33-4 | 滚珠 Ball Bearing |
190mm (7-1/2") |
活动 110mm 侧剎 110mm 中剎 160mm Swivel 110mm Swivel W/Side Brake 110mm Swivel W/Center lock 160mm |
| 400 kgs(880 lbs) | QPU轮 QPU |
1124-06-80-1 | 1124-06-80-2 | 1124-06-80-4 | ||||
| 350 kgs(770 lbs) | EPU轮 EPU |
1124-06-78-1 | 1124-06-78-2 | 1124-06-78-4 | ||||
| 400 kgs(880 lbs) | EQPU轮 EQPU |
1124-06-81-1 | 1124-06-81-2 | 1124-06-81-4 | ||||
| 400 kgs(880 lbs) | 铝芯AQPU(圆弧) QPU on AL Core (Round) |
1124-06-87-1 | 1124-06-87-2 | 1124-06-87-4 | ||||
| 150mm x 45.5mm (6" x 1-13/16") |
220 kgs(485 lbs) | 三星轮 Rubber on Cast |
1124-06-03-1 | 1124-06-03-2 | 1124-06-03-4 | |||
| 200mm x 44mm (8" x 1-3/4") |
300 kgs(660 lbs) | 铁芯NBR橡胶轮 NBR Rubber on Cast |
1124-08-04-1 | 1124-08-04-2 | 1124-08-04-4 | 滚珠 Ball Bearing |
240mm (9-1/2") |
活动 145mm 侧剎 145mm 中剎 162.5mm Swivel 145mm Swivel W/Side Brake 145mm Swivel W/Center lock 162.5mm |
| 300 kgs(660 lbs) | 环保NBR橡胶轮 Non-marking Rubber on Cast |
1124-08-11-1 | 1124-08-11-2 | 1124-08-11-4 | ||||
| 200mm x 45mm (8" x 1-13/16") |
350 kgs(770 lbs) | 铣轮 Cast Iron |
1124-08-14-1 | 1124-08-14-2 | 1124-08-14-4 | |||
| 200mm x 50mm (8" x 2") |
400 kgs(880 lbs) | 铁芯聚氨酯 PU on Cast |
1124-08-33-1 | 1124-08-33-2 | 1124-08-33-4 | |||
| 400 kgs(880 lbs) | QPU轮 QPU |
1124-08-80-1 | 1124-08-80-2 | 1124-08-80-4 | ||||
| 400 kgs(880 lbs) | EPU轮 EPU |
1124-08-78-1 | 1124-08-78-2 | 1124-08-78-4 | ||||
| 400 kgs(880 lbs) | EQPU轮 EQPU |
1124-08-81-1 | 1124-08-81-2 | 1124-08-81-4 | ||||
| 260 kgs(570 lbs) | 三星轮 Rubber on Cast |
1124-08-03-1 | 1124-08-03-2 | 1124-08-03-4 | ||||
| 300 kgs(660 lbs) | 铁芯NBR橡胶轮 NBR Rubber on Cast |
1124-08-04-1 | 1124-08-04-2 | 1124-08-04-4 | ||||
| 300 kgs(660 lbs) | 环保NBR橡胶轮 Non-marking Rubber on Cast |
1124-08-11-1 | 1124-08-11-2 | 1124-08-11-4 | ||||
| 400 kgs(880 lbs) | 尼龙轮 Nylon |
1124-08-07-1 | 1124-08-07-2 | 1124-08-07-4 | ||||
| 300 kgs(660 lbs) | CPD轮 CPD |
1124-08-49-1 | 1124-08-49-2 | 1124-08-49-4 | ||||
| 180 kgs(396 lbs) | 风硬全效轮 Resolute |
1124-08-53-1 | 1124-08-53-2 | 1124-08-53-4 | ||||
| 400 kgs(880 lbs) | WMRC轮 WMRC |
1124-08-45-1 | 1124-08-45-2 | 1124-08-45-4 | ||||
| 300 kgs(660 lbs) | WCPD轮 WCPD |
1124-08-79-1 | 1124-08-79-2 | 1124-08-79-4 | ||||
| 400 kgs(880 lbs) | 铝芯AQPU(圆弧) QPU on AL Core (Round) |
1124-08-87-1 | 1124-08-87-2 | 1124-08-87-4 | ||||
| 400 kgs(880 lbs) | 铝芯AQPU(平面) QPU on AL Core (Flat) |
1124-08-87-1 | 1124-08-87-2 | 1124-08-87-4 | ||||
