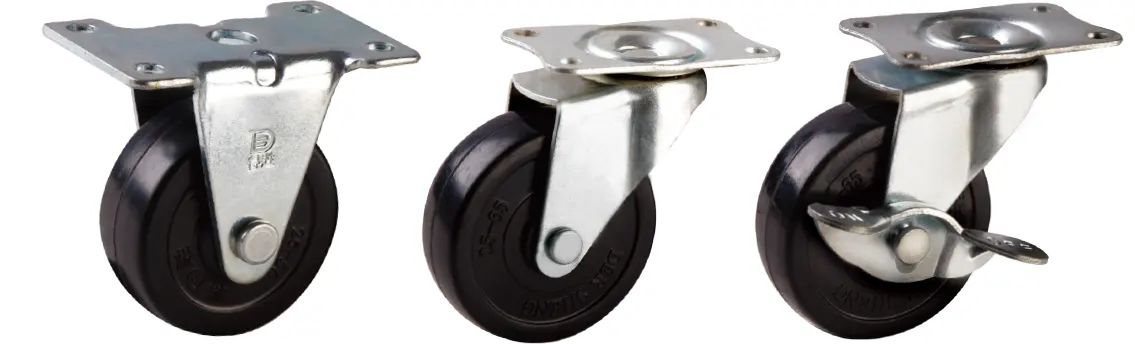

1121系列 — 25系列
轻型脚架，製成经济，适用于轻型置物架等。
特色区

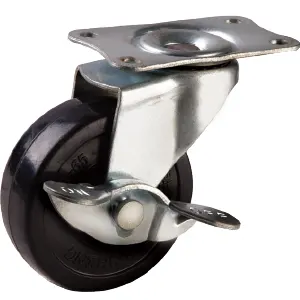

侧剎

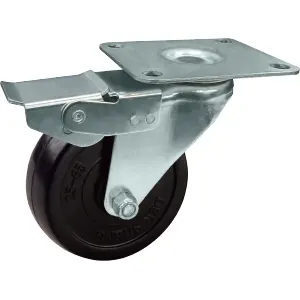

铁双剎(For 4" 5" only)
特色区
侧剎
铁双剎(For 4" 5" only)
轮子选择
-
尼龙轮
-
橡胶轮
-
塑料轮
-
超级人造胶(风火轮)
底板规格
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1-1/2" | 31 x 51mm (1-7/32" x 2") | 20 x 40mm (13/16" x 1-9/16") | 5mm (3/16") |
| 2" | 42 x 70mm (1-5/8" x 2-3/4") | 28 x 56mm (1-1/8" x 2-3/16") | 6mm (7/32") |
| 2-1/2" | 42 x 70mm (1-5/8" x 2-3/4") | 28 x 56mm (1-1/8" x 2-3/16") | 6mm (7/32") |
| 3" | 42 x 70mm (1-5/8" x 2-3/4") | 28 x 56mm (1-1/8" x 2-3/16") | 6mm (7/32") |
| 4" | 58 x 100mm (2-9/32" x 3-15/16" ) | 40 x 82mm (1-9/16" x 3-7/32") | 8mm (5/16") |
| 5" | 58 x 100mm (2-9/32" x 3-15/16" ) | 40 x 82mm (1-9/16" x 3-7/32") | 8mm (5/16") |
插杆规格
| 规格 Size |
插杆直径 x 长度 Diameter x Length |
规格 Size |
插杆直径 x 长度 Diameter x Length |
| 1-1/2" | 26 x 46mm (1" x 1-13/16") | — | C型环 (Grip Ring) |
丝扣规格
| 规格 Size |
丝扣牙径 x 长度 Threaded Size |
规格 Size |
丝扣牙径 x 长度 Threaded Size |
规格 Size |
丝扣牙径 x 长度 Threaded Size |
| 1-1/2"~3" casters | M8 x 15mm | 1-1/2"~3" casters | 3/8-16UNC x 19mm | 1-1/2"~3" casters | M10 x 15mm |
| 1-1/2"~3" casters | M10 x 25mm | 4"~5" | M12 x 29mm |
底板规格
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1-1/2" | 31 x 51mm (1-7/32" x 2") | 20 x 40mm (13/16" x 1-9/16") | 5mm (3/16") |
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1-1/2" | 31 x 51mm (1-7/32" x 2") | 20 x 40mm (13/16" x 1-9/16") | 5mm (3/16") |
| 2" | 42 x 70mm (1-5/8" x 2-3/4") | 28 x 56mm (1-1/8" x 2-3/16") | 6mm (7/32") |
| 2-1/2" | 42 x 70mm (1-5/8" x 2-3/4") | 28 x 56mm (1-1/8" x 2-3/16") | 6mm (7/32") |
| 3" | 42 x 70mm (1-5/8" x 2-3/4") | 28 x 56mm (1-1/8" x 2-3/16") | 6mm (7/32") |
| 4" | 58 x 100mm (2-9/32" x 3-15/16" ) | 40 x 82mm (1-9/16" x 3-7/32") | 8mm (5/16") |
| 5" | 58 x 100mm (2-9/32" x 3-15/16" ) | 40 x 82mm (1-9/16" x 3-7/32") | 8mm (5/16") |
插杆规格
| 规格 Size |
插杆直径 x 长度 Diameter x Length |
规格 Size |
插杆直径 x 长度 Diameter x Length |
| 1-1/2" | 26 x 46mm (1" x 1-13/16") | — | C型环 (Grip Ring) |
丝扣规格
| 规格 Size |
丝扣牙径 x 长度 Threaded Size |
规格 Size |
丝扣牙径 x 长度 Threaded Size |
规格 Size |
丝扣牙径 x 长度 Threaded Size |
| 1-1/2"~3" casters | M8 x 15mm | 1-1/2"~3" casters | 3/8-16UNC x 19mm | 1-1/2"~3" casters | M10 x 15mm |
| 1-1/2"~3" casters | M10 x 25mm | 4"~5" | M12 x 29mm |
轮子详细资讯
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 迴旋半径 | ||
| 固定 | 活动 | 剎车 | ||||||
| 38mm x 22mm (1-1/2" x 7/8") |
30kgs (66 lbs) |
尼龙轮 Nylon |
1121-15-07-1 | 1121-15-07-2 | 1121-15-07-4 | 中管 Plain Bearing |
58mm (2-5/16") |
活动 39mm 侧刹 45mm Swivel 39mm Swivel W/Side Brake 45mm |
| 25kgs (55 lbs) |
橡胶轮 Rubber |
1121-15-06-1 | 1121-15-06-2 | 1121-15-06-4 | ||||
| 25kgs (55 lbs) |
塑料轮 PP |
1121-15-29-1 | 1121-15-29-2 | 1121-15-29-4 | ||||
| 50mm x 20mm (2" x 13/16") |
35kgs (77 lbs) |
超级人造胶(风火轮) TPR on PP Core |
1121-02-94-1 | 1121-02-94-2 | 1121-02-94-4 | 滚珠 Ball Bearing |
65mm (2-9/16") |
活动 50mm 侧刹 51mm Swivel 50mm Swivel W/Side Brake 51mm |
| 50mm x 22mm (2" x 7/8") |
40kgs (88 lbs) |
尼龙轮 Nylon |
1121-02-07-1 | 1121-02-07-2 | 1121-02-07-4 | 中管 Plain Bearing |
65mm (2-9/16") |
活动 50mm 侧刹 51mm Swivel 50mm Swivel W/Side Brake 51mm |
| 35kgs (77 lbs) |
橡胶轮 Rubber |
1121-02-06-1 | 1121-02-06-2 | 1121-02-06-4 | ||||
| 35kgs (77 lbs) |
塑料轮 PP |
1121-02-29-1 | 1121-02-29-2 | 1121-02-29-4 | ||||
| 35kgs (77 lbs) |
全效轮 Resolute Wheel |
1121-02-68-1 | 1121-02-68-2 | 1121-02-68-4 | ||||
| 63mm x 22mm (2-1/2" x 7/8") |
40kgs (88 lbs) |
橡胶轮 Rubber |
1121-25-06-1 | 1121-25-06-2 | 1121-25-06-4 | 中管 Plain Bearing |
82mm (3-7/32") |
活动 64mm 侧刹 64mm Swivel 64mm Swivel W/Side Brake 64mm |
| 75mm x 22mm (3" x 7/8") |
50kgs (110 lbs) |
橡胶轮 Rubber |
1121-03-06-1 | 1121-03-06-2 | 1121-03-06-4 | 中管 Plain Bearing |
93.5mm (3-5/8") |
活动 72mm 侧刹 72mm Swivel 72mm Swivel W/Side Brake 72mm |
| 100mm x 25mm (4" x 1") |
70kgs (154 lbs) |
橡胶轮 Rubber |
1121-04-06-1 | 1121-04-06-2 | 1121-04-06-4 | 中管 Plain Bearing |
126mm (5") |
活动 83mm 侧刹 83mm 铁双刹106mm Swivel 83mm Swivel W/Side Brake 83mm Total lock 106mm |
| 125mm x 25mm (5" x 1") |
90kgs (198 lbs) |
橡胶轮 Rubber |
1121-05-06-1 | 1121-05-06-2 | 1121-05-06-4 | 中管 Plain Bearing |
149mm (5-7/8") |
活动 101mm 侧刹 101mm 铁双刹106mm Swivel 101mm Swivel W/Side Brake 101mm Total lock 106mm |
