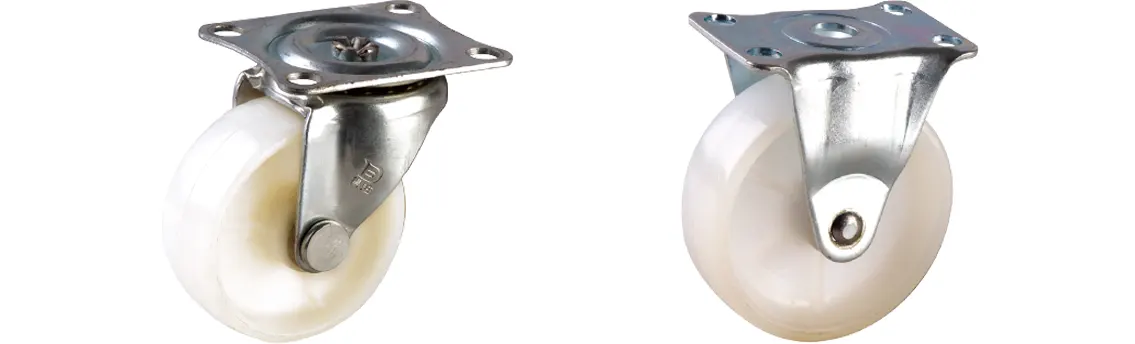

1120系列 — 10系列
轻型脚架，製成经济，适用于轻型置物架等。
轮子选择
-
尼龙轮
-
橡胶轮
-
塑料轮
-
超级人造胶(风火轮)
活动底板规格
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1-1/2" | 38 x 46mm (1-1/2" x 1-13/16") | 28 x 36mm (1-1/8" x 1-1/2") | 5mm (1/5") |
| 2" | 47 x 59mm (1-7/8" x 2-1/3") | 35 x 46mm (1-3/8" x 1-13/16") | 6mm (3/16") |
| 2-1/2" | 57 x 70mm (2-1/4" x 2-3/4") | 42 x 55mm (1-5/8" x 2-3/16") | 8mm (5/16") |
| 3" | 57 x 70mm (2-1/4" x 2-3/4") | 42 x 55mm (1-5/8" x 2-3/16") | 8mm (5/16") |
固定底板规格
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1-1/2" | 26 x 46mm (1" x 1-13/16") | 15 x 36mm (3/5" x 1-7/16") | 5mm (1/5") |
| 2" | 40 x 58mm (1 x 9/16" x 2-7/15") | 25 x 45mm (1" x 1-3/4") | 6mm (3/16") |
| 2-1/2" | 46 x 70mm (1-13/16" x 2-3/4") | 28 x 55mm (1-1/8" x 2-3/16") | 8mm (5/16") |
| 3" | 46 x 70mm (1-13/16" x 2-3/4") | 28 x 55mm (1-1/8" x 2-3/16") | 8mm (5/16") |
活动底板规格
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1-1/2" | 38 x 46mm (1-1/2" x 1-13/16") | 28 x 36mm (1-1/8" x 1-1/2") | 5mm (1/5") |
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1-1/2" | 38 x 46mm (1-1/2" x 1-13/16") | 28 x 36mm (1-1/8" x 1-1/2") | 5mm (1/5") |
| 2" | 47 x 59mm (1-7/8" x 2-1/3") | 35 x 46mm (1-3/8" x 1-13/16") | 6mm (3/16") |
| 2-1/2" | 57 x 70mm (2-1/4" x 2-3/4") | 42 x 55mm (1-5/8" x 2-3/16") | 8mm (5/16") |
| 3" | 57 x 70mm (2-1/4" x 2-3/4") | 42 x 55mm (1-5/8" x 2-3/16") | 8mm (5/16") |
固定底板规格
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1-1/2" | 26 x 46mm (1" x 1-13/16") | 15 x 36mm (3/5" x 1-7/16") | 5mm (1/5") |
| 2" | 40 x 58mm (1 x 9/16" x 2-7/15") | 25 x 45mm (1" x 1-3/4") | 6mm (3/16") |
| 2-1/2" | 46 x 70mm (1-13/16" x 2-3/4") | 28 x 55mm (1-1/8" x 2-3/16") | 8mm (5/16") |
| 3" | 46 x 70mm (1-13/16" x 2-3/4") | 28 x 55mm (1-1/8" x 2-3/16") | 8mm (5/16") |
轮子详细资讯
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 迴旋半径 | ||
| 固定 | 活动 | 剎车 | ||||||
| 38mm x 16mm (1-1/2" x 5/8") |
20kgs (44lbs) |
塑料轮 PP |
1120-15-29-1 | 1120-15-29-2 | — | 中管 Plain Bearing |
49mm (2") |
活动 35mm Swivel 35mm |
| 20kgs (44lbs) |
橡胶轮 Rubber |
1120-15-06-1 | 1120-15-06-2 | — | ||||
| 20kgs (44lbs) |
尼龙轮 Nylon |
1120-15-07-1 | 1120-15-07-2 | — | ||||
| 50mm x 20mm (2" x 13/16") |
35kgs (77lbs) |
超级人造胶(风火轮) TPR on PP Core |
1120-02-94-1 | 1120-02-94-2 | — | 滚珠 Ball Bearing |
65mm (2-9/16") |
活动 49mm Swivel 49mm |
| 50mm x 22mm (2" x 7/8") |
25kgs (55lbs) |
塑料轮 PP |
1120-02-29-1 | 1120-02-29-2 | — | 中管 Plain Bearing |
65mm (2-9/16") |
活动 49mm Swivel 49mm |
| 30kgs (66lbs) |
尼龙轮 Nylon |
1120-02-07-1 | 1120-02-07-2 | — | ||||
| 25kgs (55lbs) |
橡胶轮 Rubber |
1120-02-06-1 | 1120-02-06-2 | — | ||||
| 35kgs (77lbs) |
全效轮 Resolute Wheel |
1120-02-68-1 | 1120-02-68-2 | — | ||||
| 63mm x 25mm (2-1/2" x 1") |
30kgs (66lbs) |
塑料轮 PP |
1120-25-29-1 | 1120-25-29-2 | — | 中管 Plain Bearing |
80mm (3-1/8") |
活动 52mm Swivel 52mm |
| 35kgs (77lbs) |
尼龙轮 Nylon |
1120-25-07-1 | 1120-25-07-2 | — | ||||
| 75mm x 25mm (3" x 1") |
35kgs (77lbs) |
塑料轮 PP |
1120-03-29-1 | 1120-03-29-2 | — | 中管 Plain Bearing |
90.5mm (3-9/16") |
活动 59mm Swivel 59mm |
| 40kgs (88lbs) |
尼龙轮 Nylon |
1120-03-07-1 | 1120-03-07-2 | — | ||||
