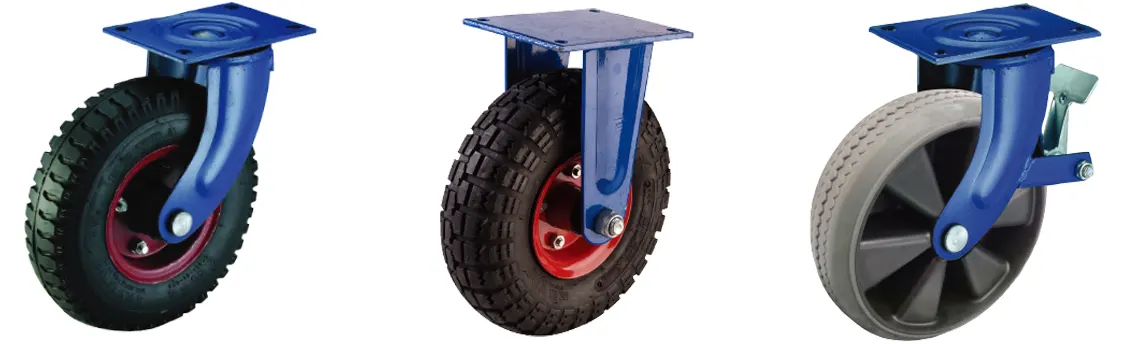

1117系列 — 蓝架系列
高负载, 适用于水泥路面或凹凸不平的地面,所配风轮、风硬轮, 採用优质橡胶製成,荷重高,耐磨耐冲击
轮子选择
-
风轮(烤漆铁框)
-
风轮(塑框)
-
风轮(镀锌铁框)
-
风硬轮(烤漆铁框)
-
防爆轮
-
风硬W全效轮
-
风硬全效轮
-
风硬轮(镀锌铁框)
底板规格
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 8"蓝架 8"Caster |
105 mm x 144 mm (4-1/8" x 5-11/16") | 75 mm x 120 mm (3" x 4-3/4") |
12 mm (1/2") |
| 10"蓝架 10"Caster |
130 mm x 167 mm (5-1/8" x 6-11/16") | 100 mm x 140 mm (4" x 5-1/2") |
12 mm (1/2") |
| 12"蓝架 12"Caster |
130 mm x 167 mm (5-1/8" x 6-11/16") | 100 mm x 140 mm (4" x 5-1/2") | 12 mm (1/2") |
底板规格
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 8"蓝架 8"Caster |
105 mm x 144 mm (4-1/8" x 5-11/16") | 75 mm x 120 mm (3" x 4-3/4") |
12 mm (1/2") |
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 8"蓝架 8"Caster |
105 mm x 144 mm (4-1/8" x 5-11/16") | 75 mm x 120 mm (3" x 4-3/4") |
12 mm (1/2") |
| 10"蓝架 10"Caster |
130 mm x 167 mm (5-1/8" x 6-11/16") | 100 mm x 140 mm (4" x 5-1/2") |
12 mm (1/2") |
| 12"蓝架 12"Caster |
130 mm x 167 mm (5-1/8" x 6-11/16") | 100 mm x 140 mm (4" x 5-1/2") | 12 mm (1/2") |
轮子详细资讯
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 迴旋半径 | 轮子样式 | ||
| 固定 | 活动 | 剎车 | |||||||
| 200mm x 53mm (8" x 2-1/8") |
120kgs(256 lbs) | 风硬轮 Solid Rubber |
1117-08-02-1 | 1117-08-02-2 | 1117-08-02-4 | 滚珠 Ball Bearing |
245mm (9-5/8") |
活动 163mm |
 |
| 202mm x 51mm (8" x 2") |
180kgs(400 lbs) | 风硬全效轮 Resolute Rubber |
1117-08-53-1 | 1117-08-53-2 | 1117-08-53-4 | 滚珠 Ball Bearing |
246mm (9-5/8") |
活动 164mm 剎车 164mm Swivel 164mm Swivel W/Brake 164mm |
 |
| 208mm x 55mm (8-3/16" x 2-3/16") |
100kgs(220 lbs) | 防爆轮 Resolute Rubber |
1117-08-05-1 | 1117-08-05-2 | 1117-08-05-4 | 滚珠 Ball Bearing |
249mm (9-13/16") |
活动 167mm 剎车 167mm Swivel 167mm Swivel W/Brake 167mm |
 |
| 216mm x 65mm (8-1/2" x 2-9/16") |
150kgs(330 lbs) | 风轮 Pneumatic |
1117-08-01-1 | 1117-08-01-2 | 1117-08-01-4 | 滚珠 Ball Bearing |
253mm |
活动 171mm 剎车 171mm Swivel 171mm Swivel W/Brake 171mm |
 |
| 246mm x 74mm (10" x 2-15/16") |
230kgs(505 lbs) | 风硬W全效轮 W Resolute Rubber |
1117-10-95-1 | 1117-10-95-2 | 1117-10-95-4 | 滚珠 Ball Bearing |
296 mm (11-11/16") |
活动 199mm 剎车 199mm Swivel 199mm Swivel W/Brake 199mm |
 |
| 250mm x 74mm (10" x 2-15/16") |
180kgs(395 lbs) | 风硬轮 Solid Rubber |
1117-10-02-1 | 1117-10-02-2 | 1117-10-02-4 | 滚珠 Ball Bearing |
298 mm (11-3/4") |
活动 201mm 剎车 201mm Swivel 201mm Swivel W/Brake 201mm |
|
| 260mm x 85mm (10-1/4" x 3-3/8") |
150kgs(330 lbs) | 防爆轮 Resolute Rubber |
1117-10-05-1 | 1117-10-05-2 | 1117-10-05-4 | 滚珠 Ball Bearing |
303 mm (11-15/16") |
活动 206mm 剎车 206mm Swivel 206mm Swivel W/Brake 206mm |
|
| 270mm x 86mm (10-5/8" x 3-3/8") |
200kgs(440 lbs) | 风轮 Pneumatic |
1117-10-01-1 | 1117-10-01-2 | 1117-10-01-4 | 滚珠 Ball Bearing |
308 mm (12-3/16") |
活动 211mm 剎车 211mm Swivel 211mm Swivel W/Brake 211mm |
|
| 307mm x 85mm (12-1/8" x 3-3/8") |
250kgs(550 lbs) | 风轮 Pneumatic |
1117-12-01-1 | 1117-12-01-2 | 1117-12-01-4 | 滚珠 Ball Bearing |
350 mm (13-13/16") |
活动 230mm 剎车 230mm Swivel 230mm Swivel W/Brake 230mm |
|
