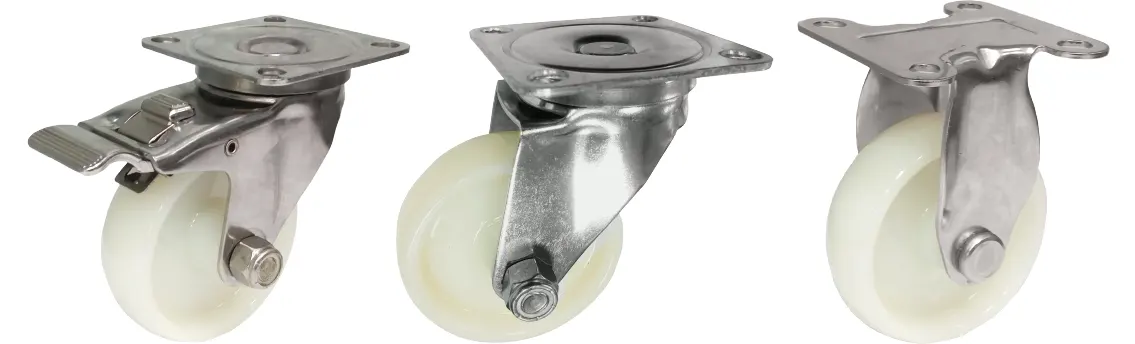

1116-SS-MJ系列 — 日式不锈钢系列
本产品採用不锈钢脚架。 适用于纤维厂、食品加工厂等。
特色区

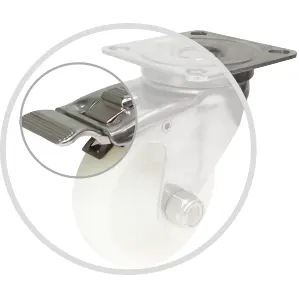

双剎

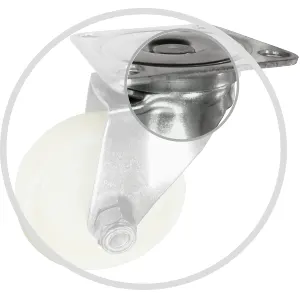

波盘防尘盖
特色区
双剎
波盘防尘盖
轮子选择
尼龙轮
铝芯橡胶轮
铝芯QQ橡胶轮
铝芯AQPU
W 全效轮
红火轮-H150
底板规格
| 编号 Suffix |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1 | 92 x 92 mm (3-5/8"x 3-5/8") | 70 x 70 mm (2-3/4"x 2-3/4") | 8mm (5/16") |
轮子详细资讯
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 迴旋半径 | ||
| 固定 | 活动 | 剎车 | ||||||
| 100mm x 36mm (4" x 1-1/2") |
160 kgs (352 lbs) |
尼龙轮 Nylon |
1116-MJ-04-07-1 | 1116-MJ-04-07-2 | 1116-MJ-04-07-4 (Total lock 双剎) |
滚珠 Ball Bearing |
134.5mm |
活动 92mm |
| 160 kgs (352 lbs) |
中管 Plain Bearing |
|||||||
| 140 kgs (308 lbs) |
铝芯QQ橡胶轮 Recilent rubber on AL Core |
1116-MJ-04-89-1 | 1116-MJ-04-89-2 | 1116-MJ-04-07-4 (Total lock 双剎) |
滚珠 Ball Bearing |
|||
| 140 kgs (308 lbs) |
铝芯AQPU QPU on AL Core |
1116-MJ-04-87-1 | 1116-MJ-04-87-2 | 1116-MJ-04-87-4 (Total lock 双剎) |
||||
| 100mm x 36mm (4" x 1-7/16") |
140 kgs (308 lbs) |
W全效轮 W Resolute |
1116-MJ-04(36)-64-1 | 1116-MJ-04(36)-64-2 | 1116-MJ-04(36)-64-4 (Total lock 双剎) |
滚珠 Ball Bearing |
134.5mm (5-1/4") |
活动 92mm 双剎 117mm Swivel 92mm Swivel W/Total Lock Brake 117mm |
| 160 kgs (352 lbs) |
铝芯AQPU QPU on AL Core |
1116-MJ-04(36)-87-1 | 1116-MJ-04(36)-87-2 | 1116-MJ-04(36)-87-4 (Total lock 双剎) |
||||
| 100mm x 40mm (4" x 1-9/16") |
140 kgs (308 lbs) |
火红轮-H150 Firecate wheel-H150 |
1116-MJ-04(40)-109-1 | 1116-MJ-04(40)-109-2 | 1116-MJ-04(40)-109-4 (Total lock 双剎) |
滚珠 Ball Bearing |
134.5mm |
活动 92mm |
| 160 kgs (352 lbs) |
铝芯AQPU QPU on AL Core |
1116-MJ-04(40)-87-1 | 1116-MJ-04(40)-87-2 | 1116-MJ-04(40)-87-4 (Total lock 双剎) |
||||
| 160 kgs (352 lbs) |
铝芯QQ橡胶轮 Recilent rubber on AL Core |
1116-MJ-04(40)-89-1 | 1116-MJ-04(40)-89-2 | 1116-MJ-04(40)-89-4 (Total lock 双剎) |
||||
| 160 kgs (352 lbs) |
铝芯橡胶轮 Rubber on Aluminum Core |
1116-MJ-04(40)-22-1 | 1116-MJ-04(40)-22-2 | 1116-MJ-04(40)-22-4 (Total lock 双剎) |
||||
| 125mm x 32mm (5" x 1-1/4") |
160 kgs (352 lbs) |
铝芯AQPU QPU on AL Core |
1116-MJ-05-87-1 | 1116-MJ-05-87-2 | 1116-MJ-05-87-4 (Total lock 双剎) |
滚珠 Ball Bearing |
158mm (6-1/4") |
活动 102mm 双剎 117mm Swivel 102mm Swivel W/Total Lock Brake 117mm |
| 160 kgs (352 lbs) |
铝芯QQ橡胶轮 Recilent rubber on AL Core |
1116-MJ-05-89-1 | 1116-MJ-05-89-2 | 1116-MJ-05-89-4 (Total lock 双剎) |
||||
| 125mm x 38mm (5" x 1-1/2") |
160 kgs (352 lbs) |
W全效轮 W Resolute |
1116-MJ-05(38)-64-1 | 1116-MJ-05(38)-64-2 | 1116-MJ-05(38)-64-4 (Total lock 双剎) |
滚珠 Ball Bearing |
158mm (6-1/4") |
活动 102mm 双剎 117mm Swivel 102mm Swivel W/Total Lock Brake 117mm |
| 160 kgs (352 lbs) |
尼龙轮 Nylon |
1116-MJ-05(38)-07-1 | 1116-MJ-05(38)-07-2 | 1116-MJ-05(38)-07-4 (Total lock 双剎) |
中管 Plain Bearing |
|||
| 125mm x 40mm (5" x 1-9/16") |
175 kgs (385 lbs) |
火红轮-H150 Firecate wheel-H150 |
1116-MJ-05(40)-109-1 | 1116-MJ-05(40)-109-2 | 1116-MJ-05(40)-109-4 (Total lock 双剎) |
滚珠 Ball Bearing |
158mm (6-1/4") |
活动 102mm 双剎 117mm Swivel 102mm Swivel W/Total Lock Brake 117mm |
| 180 kgs (396 lbs) |
铝芯QQ橡胶轮 Recilent rubber on AL Core |
1116-MJ-05(40)-89-1 | 1116-MJ-05(40)-89-2 | 1116-MJ-05(40)-89-4 (Total lock 双剎) |
||||
| 180 kgs (396 lbs) |
铝芯橡胶轮 Rubber on Aluminum Core |
1116-MJ-05(40)-22-1 | 1116-MJ-05(40)-22-2 | 1116-MJ-05(40)-22-4 (Total lock 双剎) |
||||
| 180 kgs (396 lbs) |
铝芯AQPU QPU on AL Core |
1116-MJ-05(40)-87-1 | 1116-MJ-05(40)-87-2 | 1116-MJ-05(40)-87-4 (Total lock 双剎) |
||||
| 180 kgs (396 lbs) |
尼龙轮 Nylon |
1116-MJ-05(40)-07-1 | 1116-MJ-05(40)-07-2 | 1116-MJ-05(40)-07-4 (Total lock 双剎) |
||||
