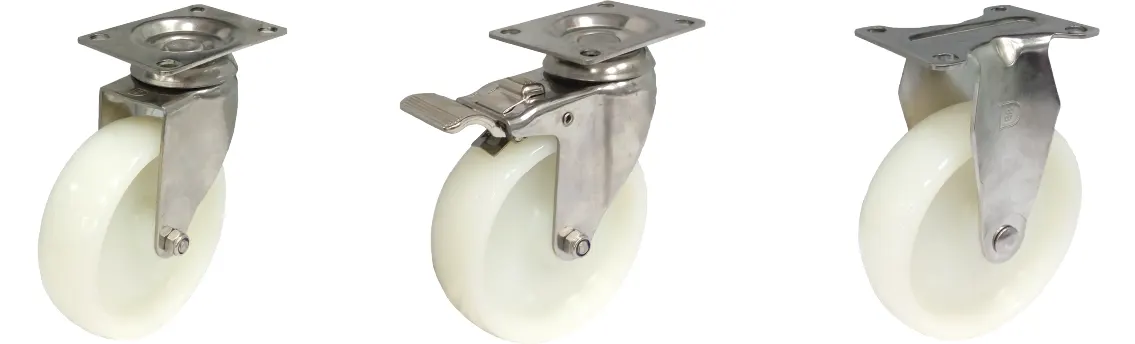

1116-SS-MI系列 — 仪器不锈钢脚轮系列
本产品採用不锈钢脚架。 适用于纤维厂、食品加工厂等。
特色区

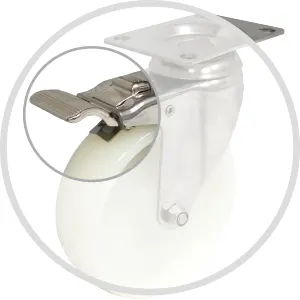

双剎
特色区
双剎
轮子选择
超级人造胶(514)
尼龙轮
WMRC轮
NPPR轮
铝芯AQPU
耐高温轮
全效轮(514)
蓝色弹力轮
火烧轮
红火轮-H150
底板规格
| 编号 Suffix |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1 | 92 x 70 mm (3-5/8"x 2-3/4") | 45 x 75 mm (1-3/4"x 3") | 8mm (5/16") |
| 2 | 92 x 70 mm (3-5/8"x 2-3/4") | 54 x 72 mm (2-1/8"x 2-7/8") | 8mm (5/16") |
插杆规格
| 编号 Suffix |
插杆直径 x 长度 Diameter x Length |
孔位高度 Bolt Hole Spacing |
孔尺寸 Attaching Bolt Size |
| 1 | 21.6 x 56 mm (0.845 diameter x 2-3/16") |
- | C型环 (Grip Ring) |
丝扣规格
| 编号 Suffix |
丝扣牙径 x 长度 Threaded Size |
| 1 | 1/2-12UNC x 28 mm |
| 2 | 5/8-11UNC x 32 mm |
| 3 | M12-1.75 x 25 mm |
底板规格
| 编号 Suffix |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1 | 92 x 70 mm (3-5/8"x 2-3/4") | 45 x 75 mm (1-3/4"x 3") | 8mm (5/16") |
| 编号 Suffix |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1 | 92 x 70 mm (3-5/8"x 2-3/4") | 45 x 75 mm (1-3/4"x 3") | 8mm (5/16") |
| 2 | 92 x 70 mm (3-5/8"x 2-3/4") | 54 x 72 mm (2-1/8"x 2-7/8") | 8mm (5/16") |
插杆规格
| 编号 Suffix |
插杆直径 x 长度 Diameter x Length |
孔位高度 Bolt Hole Spacing |
孔尺寸 Attaching Bolt Size |
| 1 | 21.6 x 56 mm (0.845 diameter x 2-3/16") |
- | C型环 (Grip Ring) |
丝扣规格
| 编号 Suffix |
丝扣牙径 x 长度 Threaded Size |
| 1 | 1/2-12UNC x 28 mm |
| 2 | 5/8-11UNC x 32 mm |
| 3 | M12-1.75 x 25 mm |
轮子详细资讯
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 迴旋半径 | ||
| 固定 | 活动 | 剎车 | ||||||
| 75mm x 32mm (3"-1-1/4") |
90 kgs (198 lbs) |
超级人造胶 TPR on PP Core |
1116-MI-03-75-1 | 1116-MI-03-75-2 | 1116-MI-03-75-4 | 滚珠 Ball Bearing |
112.5 mm (4-7/16") |
活动 79.5mm 双剎 105.5mm Swivel 79.5mm Swivel W/Total Lock Brake 105.5mm |
| 90 kgs (198 lbs) |
全效轮 Resolute |
1116-MI-03-68-1 | 1116-MI-03-68-2 | 1116-MI-03-68-4 | ||||
| 90 kgs (198 lbs) |
W超级人造胶 WPPR |
1116-MI-03-47-1 | 1116-MI-03-47-2 | 1116-MI-03-47-4 | ||||
| 110 kgs (250 lbs) |
W全效轮 W Resolute |
1116-MI-03-48-1 | 1116-MI-03-48-2 | 1116-MI-03-48-4 | ||||
| 125 kgs (275 lbs) |
铝芯AQPU QPU on AL Core |
1116-MI-03-87-1 | 1116-MI-03-87-2 | 1116-MI-03-87-4 | ||||
| 125 kgs (275 lbs) |
WMRC轮 WMRC |
1116-MI-03-45-1 | 1116-MI-03-45-2 | 1116-MI-03-45-4 | ||||
| 100 kgs (220 lbs) |
尼龙轮 Nylon |
1116-MI-03-07-1 | 1116-MI-03-07-2 | 1116-MI-03-07-4 | 中管 Plain Bearing |
|||
| 80mm x 30mm (3-1/8" x 1-3/16") |
100 kgs (220 lbs) |
火烧轮 High Temp Rubber Wheel |
1116-MI-32-92-1 | 1116-MI-32-92-2 | - | 滚珠 Ball Bearing |
115 mm (4-1/2") |
活动 82mm Swivel 82mm |
| 100mm x 30mm (4" x 1-3/16") |
120 kgs (264 lbs) |
火烧轮 High Temp Rubber Wheel |
1116-MI-04-92-1 | 1116-MI-04-92-2 | 1116-MI-04-92-4 | 滚珠 Ball Bearing |
137 mm (5-3/8") |
活动 89.5mm 双剎 105.5mm Swivel 89.5mm Swivel W/Total Lock Brake 105.5mm |
| 100mm x 32mm (4" x 1-1/4") |
100 kgs (220 lbs) |
超级人造胶 TPR on PP Core |
1116-MI-04-75-1 | 1116-MI-04-75-2 | 1116-MI-04-75-4 | 滚珠 Ball Bearing |
137 mm (5-3/8") |
活动 89.5mm |
| 中管 Plain Bearing |
||||||||
| 105 kgs (231 lbs) |
红火轮-H150 Firecat Wheel-H150 |
1116-MI-04-109-1 | 1116-MI-04-109-2 | 1116-MI-04-109-4 | 滚珠 Ball Bearing |
|||
| 125 kgs (275 lbs) |
全效轮 Resolute |
1116-MI-04-68-1 | 1116-MI-04-68-2 | 1116-MI-04-68-4 | ||||
| 100 kgs (220 lbs) |
W超级人造胶 WPPR |
1116-MI-04-47-1 | 1116-MI-04-47-2 | 1116-MI-04-47-4 | ||||
| 135 kgs (300 lbs) |
W全效轮 W Resolute |
1116-MI-04-48-1 | 1116-MI-04-48-2 | 1116-MI-04-48-4 | ||||
| 135 kgs (300 lbs) |
铝芯AQPU QPU on AL Core |
1116-MI-04-87-1 | 1116-MI-04-87-2 | 1116-MI-04-87-4 | ||||
| 135 kgs (300 lbs) |
WMRC轮 WMRC |
1116-MI-04-45-1 | 1116-MI-04-45-2 | 1116-MI-04-45-4 | ||||
| 120 kgs (264 lbs) |
尼龙轮 Nylon |
1116-MI-04-07-1 | 1116-MI-04-07-2 | 1116-MI-04-07-4 | ||||
| 135 kgs (300 lbs) |
耐高温轮 Hi-temp |
1116-MI-04-25-1 | 1116-MI-04-25-2 | 1116-MI-04-25-4 | ||||
| 100mm x 36mm (4" x 1-1/2") |
150 kgs (330 lbs) |
蓝色弹力轮 Blue Resilient Rubber |
1116-MI-04-50-1 | 1116-MI-04-50-2 | 1116-MI-04-50-4 | 滚珠 Ball Bearing |
137 mm (5-3/8") |
活动 89.5mm 双剎 105.5mm Swivel 89.5mm Swivel W/Total Lock Brake 105.5mm |
| 125mm x 32mm (5" x 1-1/4") |
110 kgs (250 lbs) |
超级人造胶 TPR on PP Core |
1116-MI-05-75-1 | 1116-MI-05-75-2 | 1116-MI-05-75-4 | 滚珠 Ball Bearing |
163.5 mm (6-7/16") |
活动 104mm 双剎 105.5mm Swivel 104mm Swivel W/Total Lock Brake 105.5mm |
| 中管 Plain Bearing |
||||||||
| 140 kgs (308 lbs) |
红火轮-H150 Firecat Wheel-H150 |
1116-MI-05-109-1 | 1116-MI-05-109-2 | 1116-MI-05-109-4 | 滚珠 Ball Bearing |
|||
| 150 kgs (330 lbs) |
全效轮 Resolute |
1116-MI-05-68-1 | 1116-MI-05-68-2 | 1116-MI-05-68-4 | ||||
| 150 kgs (330 lbs) |
WMRC轮 |
1116-MI-05-45-1 | 1116-MI-05-45-2 | 1116-MI-05-45-4 | ||||
| 110 kgs (250 lbs) |
W超级人造胶 WPPR |
1116-MI-05-47-1 | 1116-MI-05-47-2 | 1116-MI-05-47-4 | ||||
| 150 kgs (330 lbs) |
W全效轮 W Resolute |
1116-MI-05-48-1 | 1116-MI-05-48-2 | 1116-MI-05-48-4 | ||||
| 150 kgs (330 lbs) |
铝芯AQPU QPU on AL Core |
1116-MI-05-87-1 | 1116-MI-05-87-2 | 1116-MI-05-87-4 | ||||
| 125mm x 36mm (5" x 1-1/2") |
150 kgs (330 lbs) |
蓝色弹力轮 Blue Resilient Rubber Wheel |
1116-MI-05-50-1 | 1116-MI-05-50-2 | 1116-MI-05-50-4 | 滚珠 Ball Bearing |
163.5 mm (6-7/16") |
活动 104mm 双剎 105.5mm Swivel 104mm Swivel W/Total Lock Brake 105.5mm |
| 150mm x 32mm (6" x 1-1/4") |
110 kgs (250 lbs) |
超级人造胶 TPR on PP Core |
1116-MI-06-75-1 | 1116-MI-06-75-2 | 1116-MI-06-75-4 | 滚珠 Ball Bearing |
188 mm (7-7/16") |
活动107mm 双剎107mm Swivel 107mm Swivel W/Total Lock Brake 107mm |
| 中管 Plain Bearing |
||||||||
| 150 kgs (330 lbs) |
全效轮 Resolute |
1116-MI-06-68-1 | 1116-MI-06-68-2 | 1116-MI-06-68-4 | 滚珠 Ball Bearing |
|||
