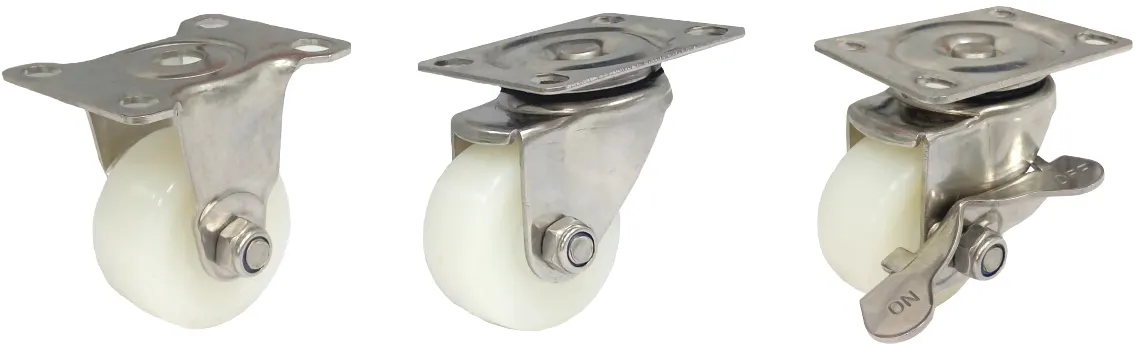

1116-SS-LI系列 — 美国轮不锈钢系列
本产品採用不鏽钢脚架。适用于纤维厂、食品加工厂等
特色区

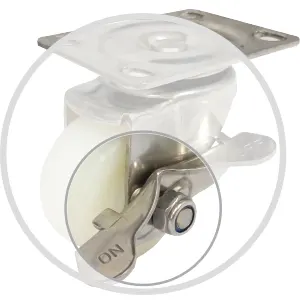

侧剎
特色区
侧剎
轮子选择
尼龙轮
塑料轮
全效轮
底板规格
| 编号 Suffix |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1 | 58 x 70 mm (2-1/4"x 2-3/4") | 38.5 x 55 mm (1-1/2"x 2-3/16") | 8mm (5/16") |
轮子详细资讯
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 迴旋半径 | ||
| 固定 | 活动 | 剎车 | ||||||
| 50mm x 22mm (2" x 7/8") |
40 kgs (88 lbs) |
全效轮 Resolute |
1116-LI-02-68-1 | 1116-LI-02-68-2 | — | 中管 Plain Bearing |
70mm (2-3/4") |
活动 49mm Swivel 49mm |
| 50mm x 24.5mm (2" x 15/16") |
70 kgs (154 lbs) | 尼龙轮 Nylon |
1116-LI-02-07-1 | 1116-LI-02-07-2 | 1116-LI-02-07-4 | 中管 Plain Bearing |
70mm (2-3/4") |
活动 49mm 侧剎 61.5mm Swivel 49mm Swivel W/Side Brake 61.5mm |
| 50 kgs (110 lbs) | 塑料轮 PP |
1116-LI-02-29-1 | 1116-LI-02-29-2 | 1116-LI-02-29-4 | ||||
| 62.5mm x 23.5mm (2-1/2" x 15/16") |
50 kgs (110 lbs) | 全效轮 Resolute |
1116-LI-25-93-1 | 1116-LI-25-93-2 | 1116-LI-25-93-4 | 中管 Plain Bearing |
84.5mm (3-5/16") |
活动 56.5mm 侧剎 63mm Swivel 56.5mm Swivel W/Side Brake 63mm |
| 62.5mm x 26mm (2-1/2" x 1-1/16") |
70 kgs (154 lbs) | 尼龙轮 Nylon |
1116-LI-25-07-1 | 1116-LI-25-07-2 | 1116-LI-25-07-4 | |||
| 50 kgs (110 lbs) | 塑料轮 PP |
1116-LI-25-29-1 | 1116-LI-25-29-2 | 1116-LI-25-29-4 | ||||
