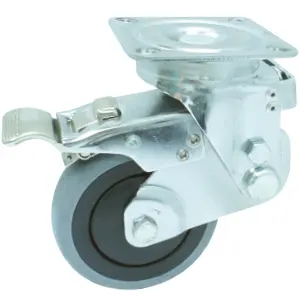

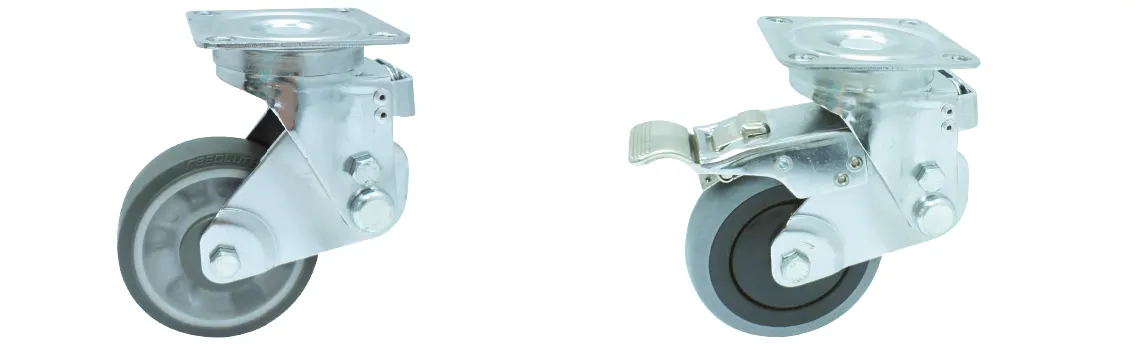

1115-L系列 — 特轻弹簧轮系列
属得貹专利产品，高避震力，针对电子产业需要高度防震产品市场。
特色区

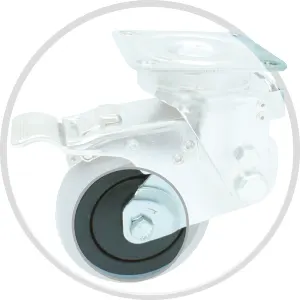

铝剎
轮子可附防尘盖
特色区
铝剎
轮子可附防尘盖
轮子选择
导电轮
超级人造胶
W全效轮
全效轮
铝芯AQPU
底板规格
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 4" 5" | 91 x 91 mm(3-9/16"x 3-9/16") | 68 x 68 mm (2-11/16" x 2-11/16") | 10 mm (3/8") |
轮子详细资讯
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 偏心距 | ||
| 固定 | 活动 | 剎车 | ||||||
| 100mm × 32mm (4" × 1-1/4") | 60 kgs (130lbs) | 导电轮 E-Conductive |
-- | 1115-04-17-2-L | 1115-04-17-4-L | 滚珠 Ball Bearing |
155.5 mm (6-1/8") |
活动 82.5 mm 剎车 105 mm Swivel 82.5mm Swivel W/Center lock 105 mm |
| 90 kgs (198lbs) | 超级人造胶 TPR on PP core |
-- | 1115-04-75-2-L | 1115-04-75-4-L | ||||
| 130 kgs (286lbs) | W全效轮 W Resolute |
-- | 1115-04-48-2-L | 1115-04-48-4-L | ||||
| 120 kgs (264lbs) | 全效轮 Resolute |
-- | 1115-04-68-2-L | 1115-04-68-4-L | ||||
| 140 kgs (308lbs) | 铝芯AQPU QPU on AL Core |
-- | 1115-04-87-2-L | 1115-04-87-4-L | ||||
| 125mm × 32mm (5" × 1-1/4") | 70 kgs (150lbs) | 导电轮 E-Conductive |
-- | 1115-05-17-2-L | 1115-05-17-4-L | 滚珠 Ball Bearing |
193 mm (7-5/8") |
活动 91.5 mm 剎车 105 mm Swivel 91.5mm Swivel W/Center lock 105 mm |
| 100 kgs (200lbs) | 超级人造胶 TPR on PP core |
-- | 1115-05-75-2-L | 1115-05-75-4-L | ||||
| 147 kgs (323lbs) | W全效轮 W Resolute |
-- | 1115-05-48-2-L | 1115-05-48-4-L | ||||
| 40 kgs (308lbs) | 全效轮 Resolute |
-- | 1115-05-68-2-L | 1115-05-68-4-L | ||||
| 150 kgs (330lbs) | 铝芯AQPU QPU on AL Core |
-- | 1115-05-87-2-L | 1115-05-87-4-L | ||||
