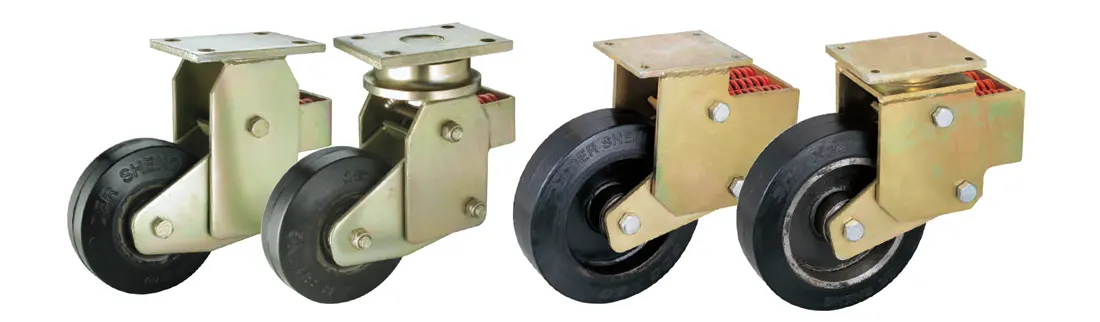

1115EH系列 — 高级弹簧轮系列
属得貹专利产品，避震，超重负载，多款供选择。採用超厚板材及高级弹簧，品质、工艺明显优于市场上同类产品。
轮子选择
-
铁芯NBR橡胶轮
-
QPU轮
-
EQPU轮
-
VPU轮
-
EPU轮
-
VQPU轮
-
铁芯VXPU
-
铁芯XPU
底板规格
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 4"、5" | 110 x 140mm (4-5/16" x 5-1/2") |
75 x 110mm (2-5/8" x 4-5/16") |
12.7mm (1/2") |
| 4"、5" | 130 x 130mm (5-1/8" x 5-1/8") |
105 x 105mm (4-1/8" x 4-1/8") |
12.7mm (1/2") |
| 6"、8" | 110 x 145mm (4-5/16" x 5-11/16") |
75-80 x 105mm (3-1/8" x 4-1/8") |
12.7mm (1/2") |
| 12" | 160 x 200mm (6-5/16" x 8") |
120 x 160mm (4-3/4" x 6-5/16") |
12.7mm (1/2") |
底板规格
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 4"、5" | 110 x 140mm (4-5/16" x 5-1/2") |
75 x 110mm (2-5/8" x 4-5/16") |
12.7mm (1/2") |
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 4"、5" | 110 x 140mm (4-5/16" x 5-1/2") |
75 x 110mm (2-5/8" x 4-5/16") |
12.7mm (1/2") |
| 4"、5" | 130 x 130mm (5-1/8" x 5-1/8") |
105 x 105mm (4-1/8" x 4-1/8") |
12.7mm (1/2") |
| 6"、8" | 110 x 145mm (4-5/16" x 5-11/16") |
75-80 x 105mm (3-1/8" x 4-1/8") |
12.7mm (1/2") |
| 12" | 160 x 200mm (6-5/16" x 8") |
120 x 160mm (4-3/4" x 6-5/16") |
12.7mm (1/2") |
轮子详细资讯
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 迴旋半径 | ||
| 固定 | 活动 | 剎车 | ||||||
| 100 x 34mm (4" x 1-5/16") |
200 kgs (440 lbs) | 铁芯XPU (圆弧) XPU on Iron Core (Round) |
1115-04-96-1-EH | 1115-04-96-2-EH | — | 滚珠 Ball Bearing |
194.5mm (标准型) (7-5/8") |
活动 95.5mm Swivel 95.5mm |
| 200 kgs (440 lbs) | 铁芯XPU (平面) XPU on Iron Core (Flat) |
1115-04-96-1-EH | 1115-04-96-2-EH | — | ||||
| 200 kgs (440 lbs) | QPU轮 (圆弧) QPU (Round) |
1115-04-80-1-EH | 1115-04-80-2-EH | — | ||||
| 200 kgs (440 lbs) | QPU轮 (平面) QPU (Flat) |
1115-04-80-1-EH | 1115-04-80-2-EH | — | ||||
| 100 x 37mm (4" x 1-7/16") |
160 kgs (350 lbs) | 铁芯NBR橡胶轮 NBR Rubber on Cast |
1115-04-04-1-EH | 1115-04-04-2-EH | — | 滚珠 Ball Bearing |
168.5mm (海鸥型) (6-5/8") |
活动 90.5mm Swivel 90.5mm |
| 125 x 40mm (5" x 1-9/16") |
200 kgs (440 lbs) | 铁芯XPU (圆弧) XPU on Iron Core (Round) |
1115-05-96-1-EH | 1115-05-96-2-EH | — | 滚珠 Ball Bearing |
207mm (标准型) (8-1/8") |
活动 108mm Swivel 108mm |
| 200 kgs (440 lbs) | 铁芯XPU (平面) XPU on Iron Core (Flat) |
1115-05-96-1-EH | 1115-05-96-2-EH | — | ||||
| 220 kgs (480 lbs) | QPU轮 (圆弧) QPU (Round) |
1115-05-80-1-EH | 1115-05-80-2-EH | — | ||||
| 220 kgs (480 lbs) | QPU轮 (平面) QPU (Flat) |
1115-05-80-1-EH | 1115-05-80-2-EH | — | ||||
| 220 kgs (480 lbs) | EPU轮 (圆弧) EPU (Round) |
1115-05-78-1-EH | 1115-05-78-2-EH | — | ||||
| 220 kgs (480 lbs) | EPU轮 (平面) EPU (Flat) |
1115-05-78-1-EH | 1115-05-78-2-EH | — | ||||
| 220 kgs (480 lbs) | EQPU轮 (圆弧) EQPU (Round) |
1115-05-81-1-EH | 1115-05-81-2-EH | — | ||||
| 220 kgs (480 lbs) | EQPU轮 (平面) EQPU (Flat) |
1115-05-81-1-EH | 1115-05-81-2-EH | — | ||||
| 180 kgs (400 lbs) | 铁芯NBR橡胶轮 NBR Rubber on Cast |
1115-05-04-1-EH | 1115-05-04-2-EH | — | 181mm (海鸥型) (7-1/8") |
活动 103mm Swivel 103mm |
||
| 150 x 40mm (6" x 1-9/16") |
350 kgs (770 lbs) | 铁芯NBR橡胶轮 NBR Rubber on Cast |
1115-06-04-1-EH | 1115-06-04-2-EH | — | 滚珠 Ball Bearing |
245.5mm (10") |
活动 178.5mm Swivel 178.5mm |
| 150 x 42mm (6" x 1-11/16") |
350 kgs (770 lbs) | EPU轮 (圆弧) EPU (Round) |
1115-06-78-1-EH | 1115-06-78-2-EH | — | 滚珠 Ball Bearing |
245.5mm (10") |
活动 178.5mm Swivel 178.5mm |
| 350 kgs (770 lbs) | EPU轮 (平面) EPU (Flat) |
1115-06-78-1-EH | 1115-06-78-2-EH | — | ||||
| 350 kgs (770 lbs) | EQPU轮 (圆弧) EQPU (Round) |
1115-06-81-1-EH | 1115-06-81-2-EH | — | ||||
| 350 kgs (770 lbs) | EQPU轮 (平面) EQPU (Flat) |
1115-06-81-1-EH | 1115-06-81-2-EH | — | ||||
| 350 kgs (770 lbs) | QPU轮 (圆弧) QPU (Round) |
1115-06-80-1-EH | 1115-06-80-2-EH | — | ||||
| 350 kgs (770 lbs) | QPU轮 (平面) QPU (Flat) |
1115-06-80-1-EH | 1115-06-80-2-EH | — | ||||
| 400 kgs (880 lbs) | 铁芯XPU (圆弧) XPU on Iron Core (Round) |
1115-06-96-1-EH | 1115-06-96-2-EH | — | ||||
| 400 kgs (880 lbs) | 铁芯XPU (平面) XPU on Iron Core (Flat) |
1115-06-96-1-EH | 1115-06-96-2-EH | — | ||||
| 350 kgs (770 lbs) | VPU轮 (圆弧) VPU (Round) |
1115-06-82-1-EH | 1115-06-82-2-EH | — | ||||
| 400 kgs (880 lbs) | VQPU轮 (圆弧) VQPU (Round) |
1115-06-83-1-EH | 1115-06-83-2-EH | — | ||||
| 400 kgs (880 lbs) | 铁芯VXPU (圆弧) XPU on Iron Core (Round) |
1115-06-91-1-EH | 1115-06-91-2-EH | — | ||||
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 迴旋半径 | ||
| 固定 | 活动 | 剎车 | ||||||
| 200 x 50mm (8" x 2") |
500 kgs (1100 lbs) | 铁芯XPU (圆弧) XPU on Iron Core (Round) |
1115-08-96-1-EH | 1115-08-96-2-EH | — | 滚珠 Ball Bearing |
279.5mm (11") |
活动 203.5mm Swivel 203.5mm |
| 500 kgs (1100 lbs) | 铁芯XPU (平面) XPU on Iron Core (Flat) |
1115-08-96-1-EH | 1115-08-96-2-EH | — | ||||
| 450 kgs (990 lbs) | QPU轮 (圆弧) QPU (Round) |
1115-08-80-1-EH | 1115-08-80-2-EH | — | ||||
| 450 kgs (990 lbs) | QPU轮 (平面) QPU (Flat) |
1115-08-80-1-EH | 1115-08-80-2-EH | — | ||||
| 450 kgs (990 lbs) | EPU轮 (圆弧) EPU (Round) |
1115-08-78-1-EH | 1115-08-78-2-EH | — | ||||
| 450 kgs (990 lbs) | EPU轮 (平面) EPU (Flat) |
1115-08-78-1-EH | 1115-08-78-2-EH | — | ||||
| 450 kgs (990 lbs) | EQPU轮 (圆弧) EQPU (Round) |
1115-08-81-1-EH | 1115-08-81-2-EH | — | ||||
| 450 kgs (990 lbs) | EQPU轮 (平面) EQPU (Flat) |
1115-08-81-1-EH | 1115-08-81-2-EH | — | ||||
| 450 kgs (990 lbs) | VPU轮 (圆弧) VPU (Round) |
1115-08-82-1-EH | 1115-08-82-2-EH | — | ||||
| 450 kgs (990 lbs) | VQPU轮 (圆弧) VQPU (Round) |
1115-08-83-1-EH | 1115-08-83-2-EH | — | ||||
| 500 kgs (1100 lbs) | 铁芯VXPU (圆弧) XPU on Iron Core (Round) |
1115-08-91-1-EH | 1115-08-91-2-EH | — | ||||
| 450 kgs (990 lbs) | 铁芯NBR橡胶轮 NBR Rubber on Cast |
1115-08-04-1-EH | 1115-08-04-2-EH | — | ||||
| 250 x 80mm (10" x 3-1/8") |
800 kgs (1760 lbs) | VPU轮 (平面) VPU (Flat) |
1115-10-82-1-EH | 1115-10-82-2-EH | — | 滚珠 Ball Bearing |
368.5mm (14-1/2") |
活动 308mm Swivel 308mm |
| 800 kgs (1760 lbs) | VQPU轮 (平面) VQPU (Flat) |
1115-10-83-1-EH | 1115-10-83-2-EH | — | ||||
| 800 kgs (1760 lbs) | 铁芯 VXPU (平面) XPU on Iron Core (Flat) |
1115-10-91-1-EH | 1115-10-91-2-EH | — | ||||
| 300 x 90mm (12" x 3-17/32") |
900 kgs (1980 lbs) | VPU轮 (平面) VPU (Flat) |
1115-12-82-1-EH | 1115-12-82-2-EH | — | 滚珠 Ball Bearing |
393.5mm (15-1/2") |
活动 333mm Swivel 333mm |
| 900 kgs (1980 lbs) | VPU轮 (圆弧) VPU (Round) |
1115-12-82-1-EH | 1115-12-82-2-EH | — | ||||
| 900 kgs (1980 lbs) | VQPU轮 (平面) VQPU (Flat) |
1115-12-83-1-EH | 1115-12-83-2-EH | — | ||||
| 900 kgs (1980 lbs) | VQPU轮 (圆弧) VQPU (Round) |
1115-12-83-1-EH | 1115-12-83-2-EH | — | ||||
| 900 kgs (1980 lbs) | 铁芯VXPU (平面) XPU on Iron Core (Flat) |
1115-12-91-1-EH | 1115-12-91-2-EH | — | ||||
| 900 kgs (1980 lbs) | 铁芯VXPU (圆弧) XPU on Iron Core (Round) |
1115-12-91-1-EH | 1115-12-91-2-EH | — | ||||
| 900 kgs (1980 lbs) | 铁芯NBR橡胶轮 NBR Rubber on Cast |
1115-12-04-1-EH | 1115-12-04-2-EH | — | ||||
