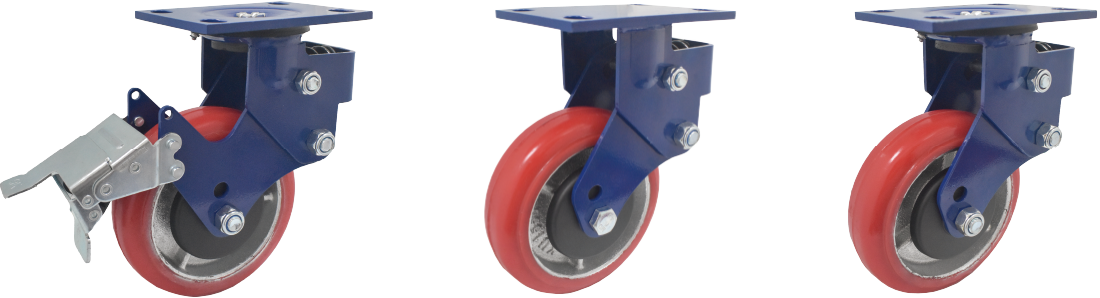

1115-1系列 — 经济弹簧轮系列
属得貹专利产品，避震，超重负载，多款供选择。採用超厚板材及高级弹簧，品质、工艺明显优于市场上同类产品。
特色区
.webp)

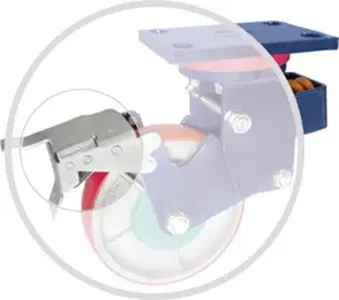

AK煞(For 4" 5" 6" 8")
.webp)

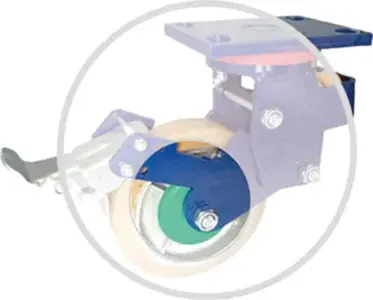

轮子可附金属防尘盖
(供选择)
.webp)
轮子可附塑胶防尘盖
(供选择)
.webp)

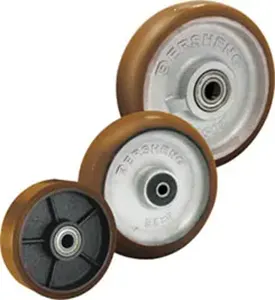

PU轮面可以变化硬度
特色区
AK煞(For 4" 5" 6" 8")
轮子可附金属防尘盖(供选择)
轮子可附塑胶防尘盖(供选择)
.webp)
PU轮面可以变化硬度
轮子选择
-
铁芯聚氨酯
-
韩款PU轮
-
牵引NBR
-
QPU轮
-
EQPU轮
底板规格
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 4" 5" 6" | 100 x 115 mm (4"x 4-1/2") | 70 x 85 mm (2-5/8"~3"x 3"~3-5/8") | 9.5mm (3/8") |
| 110 x 140 mm (4-11/32"x 5-1/2") | 75 x110mm (常规标准底板) (2-15/16" x 4-11/32") | 12mm (1/2") | |
| 110 x 137 mm (4-11/32"x 5-13/32") | 78 x105mm (欧洲直孔孔距) (3-5/32" x 4-1/8") | 12mm (1/2") | |
| 110 x 140 mm (4-11/32"x 5-1/2") | 78 x105mm (欧洲斜孔孔距) (3-5/32" x 4-1/8") | 12mm (1/2") | |
| 114 x 159 mm (4-1/2"x 6-1/4") | 73.8 x 129.4mm (2-29/32" x 5-3/32") | 12mm (1/2") |
底板规格
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 4" 5" 6" | 100 x 115 mm (4"x 4-1/2") |
70 x 85 mm (2-5/8"~3"x 3"~3-5/8") |
9.5mm (3/8") |
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 4" 5" 6" 8" | 100 x 115 mm (4"x 4-1/2") |
70 x 85 mm (2-5/8"~3"x 3"~3-5/8") |
9.5mm (3/8") |
| 110 x 140 mm (4-11/32"x 5-1/2") |
75 x110mm (常规标准底板) (2-15/16" x 4-11/32") |
12mm (1/2") | |
| 110 x 137 mm (4-11/32"x 5-13/32") |
78 x105mm (欧洲直孔孔距) (3-5/32" x 4-1/8") |
12mm (1/2") | |
| 110 x 140 mm (4-11/32"x 5-1/2") |
78 x105mm (欧洲斜孔孔距) (3-5/32" x 4-1/8") |
12mm (1/2") | |
| 114 x 159 mm (4-1/2"x 6-1/4") |
73.8 x 129.4mm (2-29/32" x 5-3/32") |
12mm (1/2") |
轮子详细资讯
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 迴旋半径 | ||
| 固定 | 活动 | 煞车 | ||||||
| 100mm x 34mm (4" x 1-3/8") |
250 kgs (550 lbs) |
铁芯聚氨酯 PU on Cast |
1115-04-33-1(1) | 1115-04-33-1(2) | 1115-04-33-1(3) | 滚珠轴承 Ball Bearing |
173mm (6-13/16") |
活动 97mm AK煞 155mm Swivel 97mm Swivel W/AK Lock Brake 155mm |
| 100mm x 37mm (4" x 1-1/2") |
200 kgs (440 lbs) |
牵引NBR轮 NBR Rubber on Cast |
1115-04-04-1(1) | 1115-04-04-1(2) | 1115-04-04-1(3) | |||
| 100mm x 34mm (4" x 1-3/8") |
300 kgs (660 lbs) |
QPU轮 QPU |
1115-04-53-1(1) | 1115-04-53-1(2) | 1115-04-53-1(3) | |||
| 125mm x 45mm (5" x 1-3/4") |
350 kgs (770 lbs) |
韩款PU轮 PU on Cast |
1115-05-33-1(1) | 1115-05-33-1(2) | 1115-05-33-1(3) | 滚珠轴承 Ball Bearing |
185mm (7-9/32") |
活动 109mm AK煞 171mm Swivel 109mm Swivel W/AK Lock Brake 171mm |
| 125mm x 40mm (5" x 1-5/8") |
250 kgs (550 lbs) |
铁芯聚氨酯 PU on Cast |
1115-05-33-1(1) | 1115-05-33-1(2) | 1115-05-33-1(3) | |||
| 125mm x 40mm (5" x 1-5/8") |
300 kgs (660 lbs) |
牵引NBR轮 NBR Rubber on Cast |
1115-05-04-1(1) | 1115-05-04-1(2) | 1115-05-04-1(3) | |||
| 125mm x 40mm (5" x 1-5/8") |
400 kgs (880 lbs) |
QPU轮 QPU |
1115-05-53-1(1) | 1115-05-53-1(2) | 1115-05-53-1(3) | 滚珠轴承 Ball Bearing |
207mm (8-5/32") |
活动 107mm AK煞 169mm Swivel 107mm Swivel W/AK Lock Brake 169mm |
| 125mm x 40mm (5" x 1-5/8") |
450 kgs (991 lbs) |
EQPU轮 EQPU |
1115-05-55-1(1) | 1115-05-55-1(2) | 1115-05-55-1(3) | |||
| 150mm x 45mm (6" x 1-3/4") |
420 kgs (925 lbs) |
韩款PU轮 PU on Cast |
1115-06-33-1(1) | 1115-06-33-1(2) | 1115-06-33-1(3) | 滚珠轴承 Ball Bearing |
198mm (7-25/32") |
活动 122mm AK煞 192mm Swivel 122mm Swivel W/AK Lock Brake 192mm |
| 150mm x 42mm (6" x 1-5/8") |
400 kgs (880 lbs) |
铁芯聚氨酯 PU on Cast |
1115-06-33-1(1) | 1115-06-33-1(2) | 1115-06-33-1(3) | |||
| 150mm x 42mm (6" x 1-5/8") |
300 kgs (660 lbs) |
牵引NBR轮 NBR Rubber on Cast |
1115-06-04-1(1) | 1115-06-04-1(2) | 1115-06-04-1(3) | |||
| 150mm x 42mm (6" x 1-5/8") |
500 kgs (1100 lbs) |
QPU轮 QPU |
1115-06-53-1(1) | 1115-06-53-1(2) | 1115-06-53-1(3) | 滚珠轴承 Ball Bearing |
220mm (8-21/32") |
活动 120mm AK煞 190mm Swivel 120mm Swivel W/AK Lock Brake 190mm |
| 150mm x 42mm (6" x 1-5/8") |
500 kgs (1100 lbs) |
EQPU轮 EQPU |
1115-06-55-1(1) | 1115-06-55-1(2) | 1115-06-55-1(3) | |||
