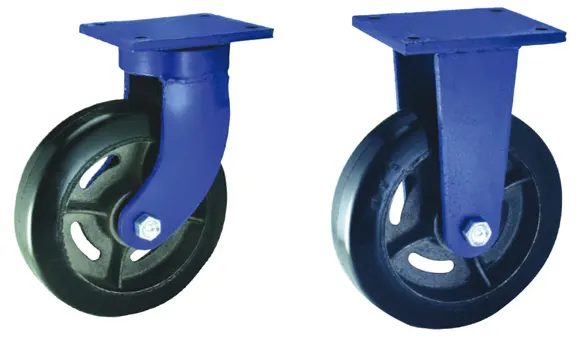

1113系列 — 斜珠系列
超高负载且转动灵活，适用于汽车厂、汽车装配厂、玻璃厂、纺织厂等负载重的车间。
特色区
斜珠承轴
此斜珠轴承用于架子上，及轴承之内轮及外轮的轨道面与轮子的转动面都经过设计，使其具有大的负荷能力，用于重负荷及冲击负荷最适合，且拆装容易．
轮子选择
铁芯聚氨酯
铁芯NBR橡胶轮
QPU轮
铁芯聚氨酯
(圆弧形)
VPU轮
VQPU轮
铁芯VXPU
底板规格
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 10，12" | 145 × 175mm (5-7/10" × 6-7/8") |
105 × 135mm (4-1/18" × 5-1/3") |
12 (1/2") |
轮子详细资讯
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 迴旋半径 | ||
| 固定 | 活动 | 剎车 | ||||||
| 250mm x 62mm (10" x 2-7/16") |
800 kgs (1760 lbs) | 铁芯聚氨酯(平面) PU on Cast |
1113-10-33-1 | 1113-10-33-2 | 1113-10-33-4 | 斜珠轴承 Tampered Bearing |
335mm (13-3/16") |
活动 192mm BCD剎 192mm Swivel 192mm Swiver W/Center lock 192mm |
| 800 kgs (1760 lbs) | 铁芯聚氨酯(圆弧形) PU on Cast (Round Shape) |
1113-10-42-1 | 1113-10-42-2 | 1113-10-42-4 | ||||
| 1050 kgs (2310 lbs) | QPU轮(圆弧) QPU (Round) |
1113-10-80-1 | 1113-10-80-2 | 1113-10-80-4 | ||||
| 1050 kgs (2310 lbs) | QPU轮(平面) QPU (Flat) |
1113-10-80-1 | 1113-10-80-2 | 1113-10-80-4 | ||||
| 1500 kgs (3300 lbs) | VPU轮(圆弧) VPU (Round) |
1113-10-82-1 | 1113-10-82-2 | 1113-10-82-4 | ||||
| 1500 kgs (3300 lbs) | VQPU轮(圆弧) VQPU (Round) |
1113-10-83-1 | 1113-10-83-2 | 1113-10-83-4 | ||||
| 1500 kgs (3300 lbs) | 铁芯VXPU轮(圆弧) XPU on Iron Core (Round) |
1113-10-91-1 | 1113-10-91-2 | 1113-10-91-4 | ||||
| 250mm x 63mm (10" x 2-1/2") |
450 kgs (990 lbs) | 铁芯NBR橡胶轮 NBR Rubber on Cast |
1113-10-04-1 | 1113-10-04-2 | 1113-10-04-4 | |||
| 250mm x 80mm (10" x 3-1/8") |
2000 kgs (4400 lbs) | VPU轮(平面) VPU (Flat) |
1113-10-82-1 | 1113-10-82-2 | 1113-10-82-4 | |||
| 2000 kgs (4400 lbs) | VQPU轮(平面) VQPU(Flat) |
1113-10-83-1 | 1113-10-83-2 | 1113-10-83-4 | ||||
| 2000 kgs (4400 lbs) | 铁芯VXPU轮(平面) XPU on Iron Core (Flat) |
1113-10-91-1 | 1113-10-91-2 | 1113-10-91-4 | ||||
| 254mm x 71mm (10" x 2-13/16") |
450 kgs (990 lbs) | 铁芯NBR橡胶轮 NBR Rubber on Cast |
1113-10-04-1 | 1113-10-04-2 | 1113-10-04-4 | |||
| 300mm x 76mm (12" x 3") |
550 kgs (1210 lbs) | 铁芯NBR橡胶轮 NBR Rubber on Cast |
1113-12-04-1 | 1113-12-04-2 | 1113-12-04-4 | 斜珠轴承 Tampered Bearing |
386mm (15-3/16") |
活动 240mm BCD剎 240mm Swivel 240mm Swiver W/Center lock 240mm |
| 300mm x 90mm (12" x 3-9/16") |
1800 kgs (3960 lbs) | VQPU轮(圆弧) VQPU (Round) |
1113-12-83-1 | 1113-12-83-2 | 1113-12-83-4 | |||
| 2400 kgs (5280 lbs) | VQPU轮(平面) VQPU (Flat) |
1113-12-83-1 | 1113-12-83-2 | 1113-12-83-4 | ||||
| 1800 kgs (3960 lbs) | 铁芯VXPU轮(圆弧) XPU on Iron Core (Round) |
1113-12-91-1 | 1113-12-91-2 | 1113-12-91-4 | ||||
| 2400 kgs (5280 lbs) | 铁芯VXPU轮(平面) XPU on Iron Core (Flat) |
1113-12-91-1 | 1113-12-91-2 | 1113-12-91-4 | ||||
| 304mm x 105mm (12" x 4-1/8") |
600 kgs (1320 lbs) | 铁芯NBR橡胶轮 NBR Rubber on Cast |
1113-12-04-1 | 1113-12-04-2 | 1113-12-04-4 | |||
| 305mm x 70mm (12" x 2-3/4") |
1800 kgs (3960 lbs) | 铁芯聚氨酯(平面) PU on Cast |
1113-12-33-1 | 1113-12-33-2 | 1113-12-33-4 | |||
| 1800 kgs (3960 lbs) | QPU轮(平面) QPU (Flat) |
1113-12-80-1 | 1113-12-80-2 | 1113-12-80-4 | ||||
| 305mm x 95mm (12" x 3-3/4") |
2400 kgs (5280 lbs) | 铁芯聚氨酯(平面) PU on Cast |
1113-12-33-1 | 1113-12-33-2 | 1113-12-33-4 | |||
| 2400 kgs (5280 lbs) | QPU轮(平面) QPU (Flat) |
1113-12-80-1 | 1113-12-80-2 | 1113-12-80-4 | ||||
