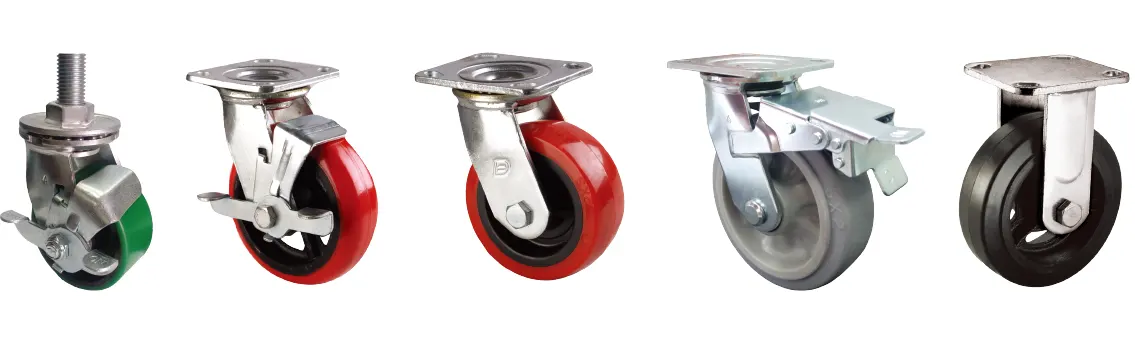

1112系列 — 长珠系列
高负载且转动灵活，普遍适用于一般工厂搬运，另可附防尘盖，属得貹专利产品，且可有效防止脚轮因灰尘或缠丝而无法转动，提高脚轮使用寿命。
特色区
侧剎
AK剎
轮子可防尘盖
定向杆
PU轮面可以变化硬度
特色区
侧剎
AK剎
轮子可防尘盖
定向杆
PU轮面可以变化硬度
轮子选择
-
高科技耐磨聚氨酯
-
铁芯NBR橡胶轮
-
铁芯聚氨酯
-
超级人造胶(圆弧形)
-
超级人造胶(平面)
-
铁芯聚氨酯(圆弧形)
-
电木轮
-
高科技耐磨聚氨酯
-
SS铁轮
-
VG轮
-
SPU轮
-
EPU轮
-
HDR轮(圆弧形)
-
WHDR轮
-
全效轮(圆弧形)
-
全效轮(平面)
-
W全效轮(平面)
-
W超级人造胶(平面)
-
EQPU轮
底板规格
| 编号 | 底板尺寸 | 底板孔径 | 安装尼帽尺寸 |
| 1 | 100 x 115 mm (4"x 4-1/2") | 70 x 85 mm (2-5/8"~3"x 3"~3-5/8") | 9.5mm (3/8") |
| 2 | 115 x 159 mm (4-1/2"x 6-1/4") | 75 x 130mm (2-7/16"~3-3/8" x 4-15/16"~5-1/4") | 12.7mm (1/2") |
丝扣规格
| 编号 | 丝扣牙径 X 长度 |
| 4" 5" 6" 8" | M24 × 150mm |
底板规格
| 编号 | 底板尺寸 | 底板孔径 | 安装尼帽尺寸 |
| 1 | 100 x 115 mm (4"x 4-1/2") |
70 x 85 mm (2-5/8"~3"x 3"~3-5/8") |
9.5mm (3/8") |
| 编号 | 底板尺寸 | 底板孔径 | 安装尼帽尺寸 |
| 1 | 100 x 115 mm (4"x 4-1/2") |
70 x 85 mm (2-5/8"~3"x 3"~3-5/8") |
9.5mm (3/8") |
| 2 | 115 x 159 mm (4-1/2"x 6-1/4") |
75 x 130mm (2-7/16"~3-3/8" x 4-15/16"~5-1/4") |
12.7mm (1/2") |
丝扣规格
| 编号 | 丝扣牙径 X 长度 |
| 4" 5" 6" 8" | M24 × 150mm |
轮子详细资讯
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 迴旋半径 | ||
| 固定 | 活动 | 剎车 | ||||||
| 100 × 50mm (4" × 2") |
270 kgs (600 lbs) | 高科技耐磨聚氨酯(圆弧形) PU on PP Core(Round Shape) |
1112-04-43-1 | 1112-04-43-2 | 1112-04-43-4 | 滚珠 Ball Bearing |
142mm (5-5/8") |
活动 74.5mm 侧刹 78.5mm AK刹 136.5mm Swivel 74.5mm Swivel W/Sidebrake 78.5mm AK Total Lock Brake 136.5mm |
| 200 kgs (440 lbs) | 铁芯聚氨酯(圆弧形) PU on Cast(Round Shape) |
1112-04-42-1 | 1112-04-42-2 | 1112-04-42-4 | ||||
| 150 kgs (325 lbs) | 铁芯NBR橡胶轮 NBR Rubber on Cast |
1112-04-04-1 | 1112-04-04-2 | 1112-04-04-4 | 滚针 Roller Bearing |
|||
| 270 kgs (600 lbs) | 铁芯聚氨酯 PU on Cast |
1112-04-33-1 | 1112-04-33-2 | 1112-04-33-4 | ||||
| 360 kgs (800 lbs) | 电木轮 Phenolic |
1112-04-25-1 | 1112-04-25-2 | 1112-04-25-4 | ||||
| 270 kgs (600 lbs) | 高科技耐磨聚氨酯 PU on PP Core |
1112-04-31-1 | 1112-04-31-2 | 1112-04-31-4 | ||||
| 360 kgs (800 lbs) | SS铁轮 Cast Iron |
1112-04-21-1 | 1112-04-21-2 | 1112-04-21-4 | ||||
| 360 kgs (800 lbs) | VG轮 V Groove |
1112-04-28-1 | 1112-04-28-2 | 1112-04-28-4 | ||||
| 120 kgs (265 lbs) | 超级人造胶(圆弧形) TPR on PP Core(Round Shape) |
1112-04-26-1 | 1112-04-26-2 | 1112-04-26-4 | 滚针 Roller Bearing 精密长珠轴承 Annular ball bearing |
|||
| 150 kgs (330 lbs) | 超级人造胶(平面) TPR on PP Core(Flat Shape) |
1112-04-52-1 | 1112-04-52-2 | 1112-04-52-4 | ||||
| 150 kgs (330 lbs) | W超级人造胶 WPPR |
1112-04-47-1 | 1112-04-47-2 | 1112-04-47-4 | ||||
| 181 kgs (400 lbs) | W全效轮 W Resolute |
1112-04-48-1 | 1112-04-48-2 | 1112-04-48-4 | ||||
| 181 kgs (400 lbs) | 全效轮(平面) Resolute(Flat Shape) |
1112-04-51-1 | 1112-04-51-2 | 1112-04-51-4 | ||||
| 136 kgs (300 lbs) | 全效轮(圆弧形) Resolute(Round Shape) |
1112-04-44-1 | 1112-04-44-2 | 1112-04-44-4 | ||||
| 228 kgs (500 lbs) | HDR轮(圆弧形) HD Resolute Wheel(Round Shape) |
1112-04-54-1 | 1112-04-54-2 | 1112-04-54-4 | ||||
| 270 kgs (600 lbs) | WHDR轮 WHDR |
1112-04-55-1 | 1112-04-55-2 | 1112-04-55-4 | 125 × 50mm (5" × 2") |
340 kgs (750 lbs) | 高科技耐磨聚氨酯(圆弧形) PU on PP Core(Round Shape) |
1112-05-43-1 | 1112-05-43-2 | 1112-05-43-4 | 滚珠 Ball Bearing |
167mm (6-1/2") |
活动 92.5mm 侧刹 92.5mm AK刹 140mm Swivel 92.5mm Swivel W/Sidebrake 92.5mm AK Total Lock Brake 140mm |
| 230 kgs (500 lbs) | 铁芯聚氨酯(圆弧形) PU on Cast(Round Shape) |
1112-05-42-1 | 1112-05-42-2 | 1112-05-42-4 | ||||
| 340 kgs (750 lbs) | SPU轮 CPU on PP core |
1112-05-63-1 | 1112-05-63-2 | 1112-05-63-4 | ||||
| 360 kgs (790 lbs) | EPU轮 EPU |
1112-05-78-1 | 1112-05-78-2 | 1112-05-78-4 | ||||
| 450 kgs (990 lbs) | EQPU轮 EQPU |
1112-05-81-1 | 1112-05-81-2 | 1112-05-81-4 | ||||
| 200 kgs (440 lbs) | 铁芯NBR橡胶轮 NBR Rubber on Cast |
1112-05-04-1 | 1112-05-04-2 | 1112-05-04-4 | 滚针 Roller Bearing |
|||
| 360 kgs (790 lbs) | 铁芯聚氨酯 PU on Cast |
1112-05-33-1 | 1112-05-33-2 | 1112-05-33-4 | ||||
| 400 kgs (880 lbs) | 电木轮 Phenolic |
1112-05-25-1 | 1112-05-25-2 | 1112-05-25-4 | ||||
| 340 kgs (750 lbs) | 高科技耐磨聚氨酯 PU on PP Core |
1112-05-31-1 | 1112-05-31-2 | 1112-05-31-4 | ||||
| 400 kgs (880 lbs) | SS铁轮 Cast Iron |
1112-05-21-1 | 1112-05-21-2 | 1112-05-21-4 | ||||
| 400 kgs (880 lbs) | VG轮 V Groove |
1112-05-28-1 | 1112-05-28-2 | 1112-05-28-4 | ||||
| 140 kgs (300 lbs) | 超级人造胶(圆弧形) TPR on PP Core(Round Shape) |
1112-05-26-1 | 1112-05-26-2 | 1112-05-26-4 | 滚针 Roller Bearing 精密长珠轴承 Annular ball bearing |
|||
| 180 kgs (396 lbs) | 超级人造胶(平面) TPR on PP Core(Flat Shape) |
1112-05-52-1 | 1112-05-52-2 | 1112-05-52-4 | ||||
| 180 kgs (396 lbs) | W超级人造胶 WPPR |
1112-05-47-1 | 1112-05-47-2 | 1112-05-47-4 | ||||
| 227 kgs (500 lbs) | W全效轮 W Resolute |
1112-05-48-1 | 1112-05-48-2 | 1112-05-48-4 | ||||
| 227 kgs (500 lbs) | 全效轮(平面) Resolute(Flat Shape) |
1112-05-51-1 | 1112-05-51-2 | 1112-05-51-4 | ||||
| 170 kgs (375 lbs) | 全效轮(圆弧形) Resolute(Round Shape) |
1112-05-44-1 | 1112-05-44-2 | 1112-05-44-4 | ||||
| 261 kgs (575 lbs) | HDR轮(圆弧形) HD Resolute Wheel(Round Shape) |
1112-05-54-1 | 1112-05-54-2 | 1112-05-54-4 | ||||
| 340 kgs (750 lbs) | WHDR轮 WHDR |
1112-05-55-1 | 1112-05-55-2 | 1112-05-55-4 | ||||
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 迴旋半径 | ||
| 固定 | 活动 | 剎车 | 150 × 50mm (6" × 2") |
410 kgs (900 lbs) | 高科技耐磨聚氨酯(圆弧形) PU on PP Core(Round Shape) |
1112-06-43-1 | 1112-06-43-2 | 1112-06-43-4 | 滚珠 Ball Bearing |
190mm (7-1/2") |
活动 111mm 侧刹 111mm AK刹 154mm Swivel 111mm Swivel W/Sidebrake 111mm AK Total Lock Brake 154mm |
| 260 kgs (570 lbs) | 铁芯聚氨酯(圆弧形) PU on Cast(Round Shape) |
1112-06-42-1 | 1112-06-42-2 | 1112-06-42-4 | ||||
| 410 kgs (900 lbs) | SPU轮 CPU on PP core |
1112-06-63-1 | 1112-06-63-2 | 1112-06-63-4 | ||||
| 450 kgs (990 lbs) | EPU轮 EPU |
1112-06-78-1 | 1112-06-78-2 | 1112-06-78-4 | ||||
| 450 kgs (990 lbs) | EQPU轮 EQPU |
1112-06-81-1 | 1112-06-81-2 | 1112-06-81-4 | ||||
| 250 kgs (550 lbs) | 铁芯NBR橡胶轮 NBR Rubber on Cast |
1112-06-04-1 | 1112-06-04-2 | 1112-06-04-4 | 滚针 Roller Bearing |
|||
| 410 kgs (900 lbs) | 铁芯聚氨酯 PU on Cast |
1112-06-33-1 | 1112-06-33-2 | 1112-06-33-4 | ||||
| 420 kgs (925 lbs) | 电木轮 Phenolic |
1112-06-25-1 | 1112-06-25-2 | 1112-06-25-4 | ||||
| 410 kgs (900 lbs) | 高科技耐磨聚氨酯 PU on PP Core |
1112-06-31-1 | 1112-06-31-2 | 1112-06-31-4 | ||||
| 420 kgs (925 lbs) | SS铁轮 Cast Iron |
1112-06-21-1 | 1112-06-21-2 | 1112-06-21-4 | ||||
| 420 kgs (925 lbs) | VG轮 V Groove |
1112-06-28-1 | 1112-06-28-2 | 1112-06-28-4 | ||||
| 160 kgs (350 lbs) | 超级人造胶(圆弧形) TPR on PP Core(Round Shape) |
1112-06-26-1 | 1112-06-26-2 | 1112-06-26-4 | 滚针 Roller Bearing 精密长珠轴承 Annular ball bearing |
|||
| 210 kgs (462 lbs) | 超级人造胶(平面) TPR on PP Core(Flat Shape) |
1112-06-52-1 | 1112-06-52-2 | 1112-06-52-4 | ||||
| 210 kgs (462 lbs) | W超级人造胶 WPPR |
1112-06-47-1 | 1112-06-47-2 | 1112-06-47-4 | ||||
| 272 kgs (600 lbs) | W全效轮 W Resolute |
1112-06-48-1 | 1112-06-48-2 | 1112-06-48-4 | ||||
| 272 kgs (600 lbs) | 全效轮(平面) Resolute(Flat Shape) |
1112-06-51-1 | 1112-06-51-2 | 1112-06-51-4 | ||||
| 204 kgs (450 lbs) | 全效轮(圆弧形) Resolute(Round Shape) |
1112-06-44-1 | 1112-06-44-2 | 1112-06-44-4 | ||||
| 295 kgs (650 lbs) | HDR轮(圆弧形) HD Resolute Wheel(Round Shape) |
1112-06-54-1 | 1112-06-54-2 | 1112-06-54-4 | ||||
| 410 kgs (900 lbs) | WHDR轮 WHDR |
1112-06-55-1 | 1112-06-55-2 | 1112-06-55-4 | 200 × 50mm (8" × 2") |
420 kgs (925 lbs) | 高科技耐磨聚氨酯(圆弧形) PU on PP Core(Round Shape) |
1112-08-43-1 | 1112-08-43-2 | 1112-08-43-4 | 滚珠 Ball Bearing |
240mm (9-1/2") |
活动 140mm 侧刹 140mm AK刹 160mm Swivel 140mm Swivel W/Sidebrake 140mm AK Total Lock Brake 160mm |
| 300 kgs (660 lbs) | 铁芯聚氨酯(圆弧形) PU on Cast(Round Shape) |
1112-08-42-1 | 1112-08-42-2 | 1112-08-42-4 | ||||
| 420 kgs (925 lbs) | SPU轮 CPU on PP core |
1112-08-63-1 | 1112-08-63-2 | 1112-08-63-4 | ||||
| 450 kgs (990 lbs) | EPU轮 EPU |
1112-08-78-1 | 1112-08-78-2 | 1112-08-78-4 | ||||
| 450 kgs (990 lbs) | EQPU轮 EQPU |
1112-08-81-1 | 1112-08-81-2 | 1112-08-81-4 | ||||
| 300 kgs (660 lbs) | 铁芯NBR橡胶轮 NBR Rubber on Cast |
1112-08-04-1 | 1112-08-04-2 | 1112-08-04-4 | 滚针 Roller Bearing |
|||
| 420 kgs (925 lbs) | 铁芯聚氨酯 PU on Cast |
1112-08-33-1 | 1112-08-33-2 | 1112-08-33-4 | ||||
| 450 kgs (990 lbs) | 电木轮 Phenolic |
1112-08-25-1 | 1112-08-25-2 | 1112-08-25-4 | ||||
| 420 kgs (925 lbs) | 高科技耐磨聚氨酯 PU on PP Core |
1112-08-31-1 | 1112-08-31-2 | 1112-08-31-4 | ||||
| 450 kgs (990 lbs) | SS铁轮 Cast Iron |
1112-08-21-1 | 1112-08-21-2 | 1112-08-21-4 | ||||
| 450 kgs (990 lbs) | VG轮 V Groove |
1112-08-28-1 | 1112-08-28-2 | 1112-08-28-4 | ||||
| 185 kgs (400 lbs) | 超级人造胶(圆弧形) TPR on PP Core(Round Shape) |
1112-08-26-1 | 1112-08-26-2 | 1112-08-26-4 | 滚针 Roller Bearing 精密长珠轴承 Annular ball bearing |
|||
| 230 kgs (506 lbs) | 超级人造胶(平面) TPR on PP Core(Flat Shape) |
1112-08-52-1 | 1112-08-52-2 | 1112-08-52-4 | ||||
| 230 kgs (506 lbs) | W超级人造胶 WPPR |
1112-08-47-1 | 1112-08-47-2 | 1112-08-47-4 | ||||
| 306 kgs (675 lbs) | W全效轮 W Resolute |
1112-08-48-1 | 1112-08-48-2 | 1112-08-48-4 | ||||
| 306 kgs (675 lbs) | 全效轮(平面) Resolute(Flat Shape) |
1112-08-51-1 | 1112-08-51-2 | 1112-08-51-4 | ||||
| 272 kgs (600 lbs) | 全效轮(圆弧形) Resolute(Round Shape) |
1112-08-44-1 | 1112-08-44-2 | 1112-08-44-4 | ||||
| 318 kgs (700 lbs) | HDR轮(圆弧形) HD Resolute Wheel(Round Shape) |
1112-08-54-1 | 1112-08-54-2 | 1112-08-54-4 | ||||
| 430 kgs (950 lbs) | WHDR轮 WHDR |
1112-08-55-1 | 1112-08-55-2 | 1112-08-55-4 | ||||
