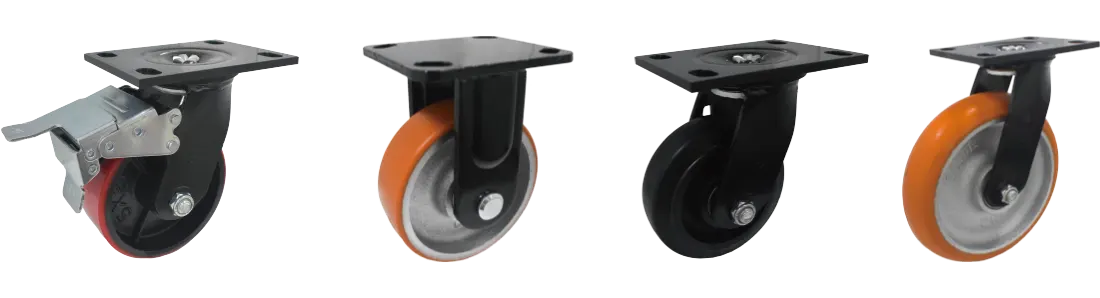

1112-1系列 — 强化长珠系列
上下珠道热处理，增加荷重与产品耐用度。高负载且转动灵活，普遍适用于一般工厂搬运，
另可附防尘盖，属得貹专利产品，且可有效防止脚轮因灰尘或缠丝而无法转动，提高脚轮使用寿命。
特色区

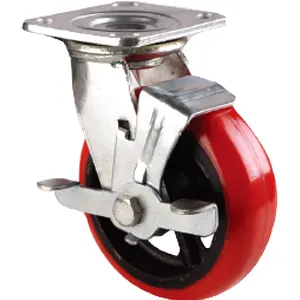

侧煞

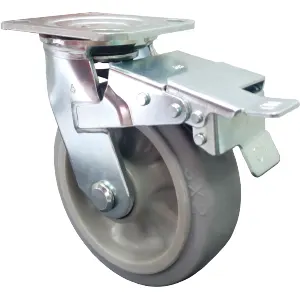

AK煞

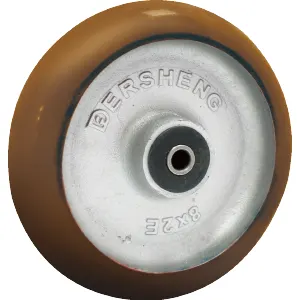

PU轮面可以变化硬度

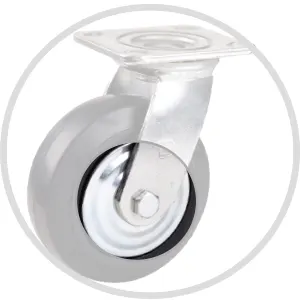

轮子可防尘盖

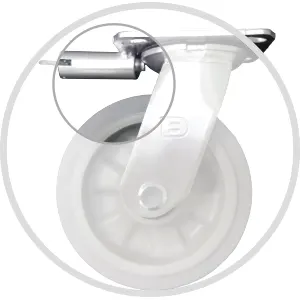

定向杆

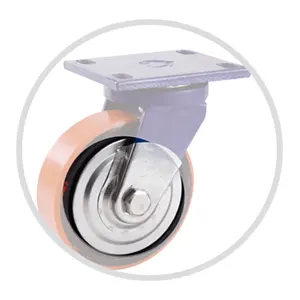

轮子可附防缠丝盖
(供选择)
特色区
侧煞
AK煞
PU轮面可以变化硬度
轮子可防尘盖
定向杆
轮子可附防缠丝盖(供选择)
轮子选择
-
铁芯聚氨酯
-
韩款PU轮
-
电木轮
-
牵引NBR
-
QPU轮
-
EQPU轮
-
VQPU轮
底板规格
| 脚轮尺寸 | 底板尺寸 | 底板孔径 | 安装尼帽尺寸 |
| 4" 5" 6" 8" | 100 x 115 mm (4"x 4-1/2") | 70 x 85 mm (2-5/8"~3"x 3"~3-5/8") | 9.5mm (3/8") |
| 110 x 140 mm (4-11/32"x 5-1/2") | 75 x110mm (常规标准底板) (2-15/16" x 4-11/32") | 12mm (1/2") | |
| 110 x 137 mm (4-11/32"x 5-13/32") | 78 x105mm (欧洲直孔孔距) (3-5/32" x 4-1/8") | 12mm (1/2") | |
| 110 x 140 mm (4-11/32"x 5-1/2") | 78 x105mm (欧洲斜孔孔距) (3-5/32" x 4-1/8") | 12mm (1/2") | |
| 114 x 159 mm (4-1/2"x 6-1/4") | 73.8 x 129.4mm (2-29/32" x 5-3/32") | 12mm (1/2") |
底板规格
| 脚轮尺寸 | 底板尺寸 | 底板孔径 | 安装尼帽尺寸 |
| 4" 5" 6" 8" | 100 x 115 mm (4"x 4-1/2") |
70 x 85 mm (2-5/8"~3"x 3"~3-5/8") |
9.5mm (3/8") |
| 脚轮尺寸 | 底板尺寸 | 底板孔径 | 安装尼帽尺寸 |
| 4" 5" 6" 8" | 100 x 115 mm (4"x 4-1/2") |
70 x 85 mm (2-5/8"~3"x 3"~3-5/8") |
9.5mm (3/8") |
| 110 x 140 mm (4-11/32"x 5-1/2") |
75 x110mm (常规标准底板) (2-15/16" x 4-11/32") |
12mm (1/2") | |
| 110 x 137 mm (4-11/32"x 5-13/32") |
78 x105mm (欧洲直孔孔距) (3-5/32" x 4-1/8") |
12mm (1/2") | |
| 110 x 140 mm (4-11/32"x 5-1/2") |
78 x105mm (欧洲斜孔孔距) (3-5/32" x 4-1/8") |
12mm (1/2") | |
| 114 x 159 mm (4-1/2"x 6-1/4") |
73.8 x 129.4mm (2-29/32" x 5-3/32") |
12mm (1/2") |
轮子详细资讯
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 迴旋半径 | ||
| 固定 | 活动 | 煞车 | ||||||
| 100mm x 45mm (4" x 1-3/4") |
200 kgs (440 lbs) |
韩款PU轮 PU on Cast |
1112-04-33-1(1) | 1112-04-33-1(2) | 1112-04-33-1(3) | 滚珠轴承 Ball Bearing |
142mm (5-5/8") |
活动 79mm 侧煞 98mm AK煞 145mm Swivel 79mm Swivel W/Side Brake 98mm Swivel W/AK Lock Brake 148mm |
| 100mm x 50mm (4" x 2") |
350 kgs (770 lbs) |
铁芯聚氨酯 PU on Cast |
1112-04-33-1(1) | 1112-04-33-1(2) | 1112-04-33-1(3) | |||
| 100mm x 50mm (4" x 2") |
200 kgs (440 lbs) |
电木轮 Phenolic |
1112-04-25-1(1) | 1112-04-25-1(2) | 1112-04-25-1(3) | |||
| 100mm x 34mm (4" x 1-3/8") |
300 kgs (660 lbs) |
QPU轮 QPU |
1112-04-53-1(1) | 1112-04-53-1(2) | 1112-04-53-1(3) | |||
| 100mm x 50mm (4" x 2") |
400 kgs (880 lbs) |
QPU轮 QPU |
1112-04-53-1(1) | 1112-04-53-1(2) | 1112-04-53-1(3) | |||
| 100mm x 38mm (4" x 1-1/2") |
400 kgs (880 lbs) |
牵引NBR轮 NBR Rubber on Cast |
1112-04-04-1(1) | 1112-04-04-1(2) | 1112-04-04-1(3) | |||
| 125mm x 45mm (5" x 1-3/4") |
230 kgs (507 lbs) |
韩款PU轮 PU on Cast |
1112-05-33-1(1) | 1112-05-33-1(2) | 1112-05-33-1(3) | 滚珠轴承 Ball Bearing |
167mm (6-1/2") |
活动 96mm 侧煞 102mm AK煞 153mm Swivel 96mm Swivel W/Side Brake 102mm Swivel W/AK Lock Brake 153mm |
| 125mm x 50mm (5" x 2") |
420 kgs (925 lbs) |
铁芯聚氨酯 PU on Cast |
1112-05-33-1(1) | 1112-05-33-1(2) | 1112-05-33-1(3) | |||
| 125mm x 50mm (5" x 2") |
250 kgs (550 lbs) |
电木轮 Phenolic |
1112-05-25-1(1) | 1112-05-25-1(2) | 1112-05-25-1(3) | |||
| 125mm x 40mm (5" x 1-5/8") |
400 kgs (880 lbs) |
QPU轮 QPU |
1112-05-53-1(1) | 1112-05-53-1(2) | 1112-05-53-1(3) | |||
| 125mm x 50mm (5" x 2") |
450 kgs (990 lbs) |
EQPU轮 EQPU |
1112-05-55-1(1) | 1112-05-55-1(2) | 1112-05-55-1(3) | |||
| 125mm x 40mm (5" x 1-5/8") |
400 kgs (880 lbs) |
牵引NBR轮 NBR Rubber on Cast |
1112-05-04-1(1) | 1112-05-04-1(2) | 1112-05-04-1(3) | |||
| 150mm x 45mm (6" x 1-3/4") |
260 kgs (573 lbs) |
韩款PU轮 PU on Cast |
1112-06-33-1(1) | 1112-06-33-1(2) | 1112-06-33-1(3) | 滚珠轴承 Ball Bearing |
190mm (7-1/2") |
活动 115mm 侧煞 115mm AK煞 154mm Swivel 115mm Swivel W/Side Brake 115mm Swivel W/AK Lock Brake 154mm |
| 150mm x 50mm (6" x 2") |
450 kgs (990 lbs) |
铁芯聚氨酯 PU on Cast |
1112-06-33-1(1) | 1112-06-33-1(2) | 1112-06-33-1(3) | |||
| 150mm x 50mm (6" x 2") |
500 kgs (1100 lbs) |
电木轮 Phenolic |
1112-06-25-1(1) | 1112-06-25-1(2) | 1112-06-25-1(3) | |||
| 150mm x 42mm (6" x 1-5/8") |
600 kgs (1320 lbs) |
QPU轮 QPU |
1112-06-53-1(1) | 1112-06-53-1(2) | 1112-06-53-1(3) | |||
| 150mm x 50mm (6" x 2") |
600 kgs (1320 lbs) |
EQPU轮 WQPU |
1112-06-55-1(1) | 1112-06-55-1(2) | 1112-06-55-1(3) | |||
| 150mm x 40mm (6" x 1-5/8") |
600 kgs (1320 lbs) |
VQPU轮 VQPU |
1112-06-54-1(1) | 1112-06-54-1(2) | 1112-06-54-1(3) | |||
| 150mm x 40mm (6" x 1-5/8") |
400 kgs (880 lbs) |
牵引NBR轮 NBR Rubber on Cast |
1112-06-04-1(1) | 1112-06-04-1(2) | 1112-06-04-1(3) | |||
| 200mm x 45mm (8" x 1-3/4") |
300 kgs (660 lbs) |
韩款PU轮 PU on Cast |
1112-08-33-1(1) | 1112-08-33-1(2) | 1112-08-33-1(3) | 滚珠轴承 Ball Bearing |
240mm (9-1/2") |
活动 145mm 侧煞 145mm AK煞 165mm Swivel 145mm Swivel W/Side Brake 145mm Swivel W/AK Lock Brake 165mm |
| 200mm x 50mm (8" x 2") |
500 kgs (1100 lbs) |
铁芯聚氨酯 PU on Cast |
1112-08-33-1(1) | 1112-08-33-1(2) | 1112-08-33-1(3) | |||
| 200mm x 50mm (8" x 2") |
400 kgs (880 lbs) |
电木轮 Phenolic |
1112-08-25-1(1) | 1112-08-25-1(2) | 1112-08-25-1(3) | |||
| 200mm x 50mm (8" x 2") |
700 kgs (1543 lbs) |
QPU轮 QPU |
1112-08-53-1(1) | 1112-08-53-1(2) | 1112-08-53-1(3) | |||
| 200mm x 50mm (8" x 2") |
700 kgs (1543 lbs) |
EQPU轮 EQPU |
1112-08-55-1(1) | 1112-08-55-1(2) | 1112-08-55-1(3) | |||
| 200mm x 50mm (8" x 2") |
700 kgs (1543 lbs) |
VQPU轮 VQPU |
1112-08-54-1(1) | 1112-08-54-1(2) | 1112-08-54-1(3) | |||
| 200mm x 44mm (8" x 1-3/4") |
400 kgs (880 lbs) |
牵引NBR轮 NBR Rubber on Cast |
1112-08-04-1(1) | 1112-08-04-1(2) | 1112-08-04-1(3) | |||
