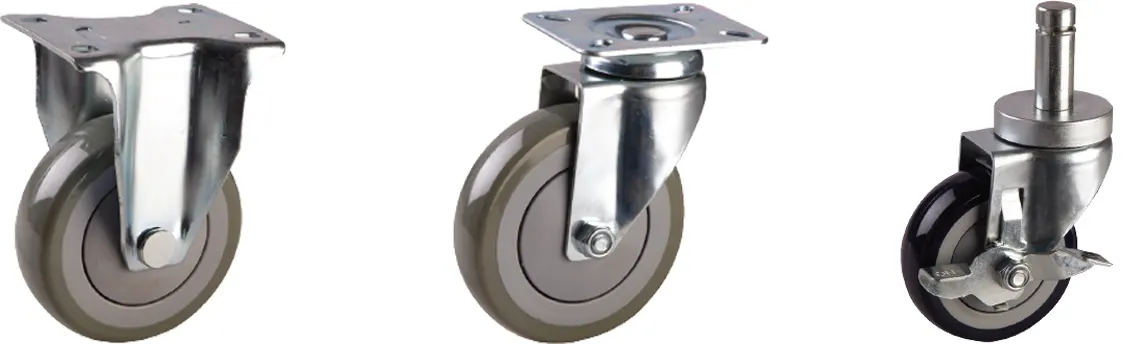

1111系列 — 高级系列
採用特别脚架荷重结构设计，转动灵活，侧剎制动效果良好。
特色区

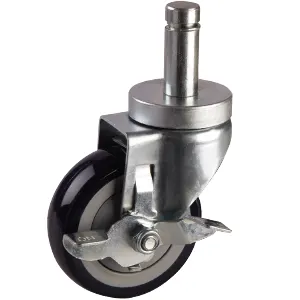

侧剎

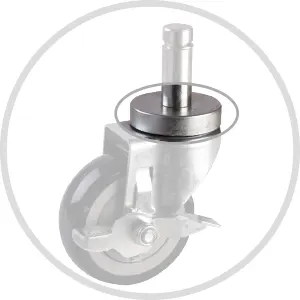

波盘防尘盖
特色区
侧剎
波盘防尘盖
轮子选择
高科技耐磨聚氨酯
超级人造胶(514)
尼龙轮
WMRC轮
WPP轮
W超级人造胶
NPPR轮
铝芯橡胶轮
超级人造胶(515)
铝芯AQPU
橡胶轮
塑料轮
导电轮
耐高温轮
W全效轮
全效轮(514)
WHDR轮
CPD轮
蓝色弹力轮
全效轮(515)
底板规格
| 编号 Suffix |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1 | 50 x 50 mm(2"x 2") | 38 x 38 mm (2"高级架底板)(TW)(CN) 1-1/2" x 1-1/2" (2" Caster only) |
6 mm (7/32") |
| 2 | 69 x 96 mm(2-23/32"x 3-25/32") | 45 x 75 mm (高级架底板)(TW)(CN) 1-3/4" x 3 |
6.35 mm (1/4") |
| 3 | 77 x 66.5 mm(3"x 2-5/8") | 59 x 49 mm (TW) 2-5/16" x 1-15/16" |
6.35 mm (1/4") |
| 4 | 93 x 110 mm(3-5/8"x 4-3/8") | 70 x 85 mm (重型架底板)(TW) 2-5/8"~3" x 3"~3-5/8" (Heavy Duty Plate) |
9.5 mm (3/8") |
插杆规格
| 编号 Suffix |
插杆直径 x 长度 Diameter x Length |
编号 Suffix |
插杆直径 x 长度 Diameter x Length |
| 1 | 11 x 22mm(2"高级架用) (TW)(CN) 7/16" diameter x 7/8" (2" Caster only) |
2 | 21.6 x 56mm (CN) 0.845" diameter x 2-3/16" (For 3"~5" Casters) |
| 3 | 21.9 x 56mm (TW) 0.862" diameter x 2-3/16" |
4 | 22.8 x 45mm (CN) 0.897" diameter x 1-3/4" |
| 5 | 27 x 63mm (TW) 1-1/16" diameter x 2-31/64" |
6 | 27.2 x 45mm (CN) 1-5/64" diameter x 1-3/4" |
| 7 | 28 x 30mm (CN) 1-7/64" diameter x 1-3/16" |
8 | 28 x 45mm (TW) 1-7/64" diameter x 1-49/64" |
丝扣规格
| 编号 Suffix |
丝扣牙径 x 长度 Threaded Size |
编号 Suffix |
丝扣牙径 x 长度 Threaded Size |
编号 Suffix |
丝扣牙径 x 长度 Threaded Size |
| 1 | 3/8-16UNCx19 ** | 2 | 3/8-16UNCx25 ** | 3 | 3/8-16UNCx32 * |
| 4 | 3/8-16UNCx38 ** | 5 | 1/2-12UNCx19 ** | 6 | 1/2-12UNCx25 ** |
| 7 | 1/2-12UNCx32 * | 8 | 1/2-12UNCx38 ** | 9 | 1/2-13UNCx19 ** |
| 10 | 1/2-13UNCx25 ** | 11 | 1/2-13UNCx32 ** | 12 | 1/2-13UNCx38 ** |
| 13 | 1/2-13UNCx70 ** | 14 | 5/8-11UNCx25 ** | 15 | 5/8-11UNCx32 * |
| 16 | M16-2.0x20 * |
空铆规格
| 编号 Suffix |
孔径 Centre Hole |
编号 Suffix |
孔径 Centre Hole |
| 3~5" | 10.5mm | 3~5" | 12.5mm |
底板规格
| 编号 Suffix |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1 | 50 x 50 mm(2"x 2") | 38 x 38 mm (2"高级架底板)(TW)(CN) 1-1/2" x 1-1/2" (2" Caster only) |
6 mm (7/32") |
| 编号 Suffix |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1 | 50 x 50 mm(2"x 2") | 38 x 38 mm (2"高级架底板)(TW)(CN) 1-1/2" x 1-1/2" (2" Caster only) |
6 mm (7/32") |
| 2 | 69 x 96 mm(2-23/32"x 3-25/32") | 45 x 75 mm (高级架底板)(TW)(CN) 1-3/4" x 3 |
6.35 mm (1/4") |
| 3 | 77 x 66.5 mm(3"x 2-5/8") | 59 x 49 mm (TW) 2-5/16" x 1-15/16" |
6.35 mm (1/4") |
| 4 | 93 x 110 mm(3-5/8"x 4-3/8") | 70 x 85 mm (重型架底板)(TW) 2-5/8"~3" x 3"~3-5/8" (Heavy Duty Plate) |
9.5 mm (3/8") |
插杆规格
| 编号 Suffix |
插杆直径 x 长度 Diameter x Length |
编号 Suffix |
插杆直径 x 长度 Diameter x Length |
| 1 | 11 x 22mm(2"高级架用) (TW)(CN) 7/16" diameter x 7/8" (2" Caster only) |
2 | 21.6 x 56mm (CN) 0.845" diameter x 2-3/16" (For 3"~5" Casters) |
| 3 | 21.9 x 56mm (TW) 0.862" diameter x 2-3/16" |
4 | 22.8 x 45mm (CN) 0.897" diameter x 1-3/4" |
| 5 | 27 x 63mm (TW) 1-1/16" diameter x 2-31/64" |
6 | 27.2 x 45mm (CN) 1-5/64" diameter x 1-3/4" |
| 7 | 28 x 30mm (CN) 1-7/64" diameter x 1-3/16" |
8 | 28 x 45mm (TW) 1-7/64" diameter x 1-49/64" |
丝扣规格
| 编号 Suffix |
丝扣牙径 x 长度 Threaded Size |
编号 Suffix |
丝扣牙径 x 长度 Threaded Size |
编号 Suffix |
丝扣牙径 x 长度 Threaded Size |
| 1 | 3/8-16UNCx19 ** | 2 | 3/8-16UNCx25 ** | 3 | 3/8-16UNCx32 * |
| 4 | 3/8-16UNCx38 ** | 5 | 1/2-12UNCx19 ** | 6 | 1/2-12UNCx25 ** |
| 7 | 1/2-12UNCx32 * | 8 | 1/2-12UNCx38 ** | 9 | 1/2-13UNCx19 ** |
| 10 | 1/2-13UNCx25 ** | 11 | 1/2-13UNCx32 ** | 12 | 1/2-13UNCx38 ** |
| 13 | 1/2-13UNCx70 ** | 14 | 5/8-11UNCx25 ** | 15 | 5/8-11UNCx32 * |
| 16 | M16-2.0x20 * |
空铆规格
| 编号 Suffix |
孔径 Centre Hole |
编号 Suffix |
孔径 Centre Hole |
| 3~5" | 10.5mm | 3~5" | 12.5mm |
轮子详细资讯
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 偏心距 | ||
| 固定 | 活动 | 剎车 | ||||||
| 50mm x 22mm (2" x 7/8") |
30 kgs (66 lbs) | PVC轮 PVC |
1111-02-70-1 | 1111-02-70-2 | 1111-02-70-4 | 滚珠 Ball Bearing |
底板类总高: Plate version OAH: 67 mm (2-5/8") 插杆类总高: Cylindrical Stem Version OAH: 65 mm (2-9/16") 丝扣类总高: Threaded Stem Version OAH: 70 mm (2-3/4") |
活动 47 mm 波西剎 67.5 mm 双剎 81.5 mm Swivel 47mm Posi Lock Brake 67.5 mm Swivel W/Total Lock 81.5 mm |
| 30 kgs (66 lbs) | 超级人造胶 (风火轮) TPR on PP Core |
1111-02-94-1 | 1111-02-94-2 | 1111-02-94-4 | ||||
| 30 kgs (66 lbs) | 超级人造胶 TPR on PP Core |
1111-02-75-1 | 1111-02-75-2 | 1111-02-75-4 | 中管 Plain Bearing |
|||
| 30 kgs (66 lbs) | 全效轮 Resoulte |
1111-02-68-1 | 1111-02-68-2 | 1111-02-68-4 | ||||
| 30 kgs (66 lbs) | 橡胶轮 Rubber |
1111-02-06-1 | 1111-02-06-2 | 1111-02-06-4 | ||||
| 35 kgs (77 lbs) | 塑料轮 PP |
1111-02-29-1 | 1111-02-29-2 | 1111-02-29-4 | ||||
| 40 kgs (88 lbs) | 尼龙轮 Nylon |
1111-02-07-1 | 1111-02-07-2 | 1111-02-07-4 | ||||
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 偏心距 | ||
| 固定 | 活动 | 剎车 | ||||||
| 75mm x 32mm (3" x 1/4") |
90kgs (198 lbs) | 超级人造胶 TPR on PP Core |
1111-03-75-1 | 1111-03-75-2 | 1111-03-75-4 | 滚珠 Ball Bearing |
底板类总高: Plate version OAH: 111.5 mm (4-3/8") 丝扣类总高: Threaded Stem Version OAH: 112.5 mm (4-7/16") |
活动 73.5 mm 侧剎 90 mm Swivel 73.5mm Swivel W/Side Brake 90 mm |
| 90kgs (198 lbs) | 全效轮 Resolute |
1111-03-68-1 | 1111-03-68-2 | 1111-03-68-4 | ||||
| 160kgs (352 lbs) | WMRC轮 WMRC |
1111-03-45-1 | 1111-03-45-2 | 1111-03-45-4 | ||||
| 100kgs (220 lbs) | WPP轮 WPP |
1111-03-46-1 | 1111-03-46-2 | 1111-03-46-4 | ||||
| 90kgs (198 lbs) | W超级人造胶 WPPR |
1111-03-47-1 | 1111-03-47-2 | 1111-03-47-4 | ||||
| 110kgs (250 lbs) | W全效轮 W Resolute |
1111-03-48-1 | 1111-03-48-2 | 1111-03-48-4 | ||||
| 140kgs (310 lbs) | WHDR轮 WHDR |
1111-03-66-1 | 1111-03-66-2 | 1111-03-66-4 | ||||
| 160kgs (352 lbs) | 铝芯AQPU QPU on AL Core |
1111-03-87-1 | 1111-03-87-2 | 1111-03-87-4 | ||||
| 80kgs (176 lbs) | 导电轮 E-Conductive |
1111-03-17-1 | 1111-03-17-2 | 1111-03-17-4 | ||||
| 100kgs (220 lbs) | 尼龙轮 Nylon |
1111-03-07-1 | 1111-03-07-2 | 1111-03-07-4 | 中管 Plain Bearing |
|||
| 70kgs (155 lbs) | 橡胶轮 Rubber |
1111-03-06-1 | 1111-03-06-2 | 1111-03-06-4 | ||||
| 90kgs (198 lbs) | 塑料轮 PP |
1111-03-29-1 | 1111-03-29-2 | 1111-03-29-4 | ||||
| 100mm x 32mm (4" x 1-1/4") |
120kgs (265 lbs) | 高科技耐磨聚氨酯 PU on PP Core |
1111-04-31-1 | 1111-04-31-2 | 1111-04-31-4 | 滚珠 Ball Bearing 中管 Plain Bearing |
底板类总高: Plate version OAH: 137 mm (5-3/8") 丝扣类总高: Threaded Stem Version OAH: 138 mm (5-7/16") |
活动 88 mm 侧剎 92 mm Swivel 88 mm Swivel W/Side Brake 92 mm |
| 100kgs (220 lbs) | 超级人造胶 TPR on PP Core |
1111-04-75-1 | 1111-04-75-2 | 1111-04-75-4 | ||||
| 125kgs (275 lbs) | 全效轮 Resolute |
1111-04-68-1 | 1111-04-68-2 | 1111-04-68-4 | 滚珠 Ball Bearing |
|||
| 180kgs (396 lbs) | WMRC轮 WMRC |
1111-04-45-1 | 1111-04-45-2 | 1111-04-45-4 | ||||
| 130kgs (285 lbs) | WPP轮 WPP |
1111-04-46-1 | 1111-04-46-2 | 1111-04-46-4 | ||||
| 100kgs (220 lbs) | W超级人造胶 WPPR |
1111-04-47-1 | 1111-04-47-2 | 1111-04-47-4 | ||||
| 135kgs (300 lbs) | W全效轮 W Resolute |
1111-04-48-1 | 1111-04-48-2 | 1111-04-48-4 | ||||
| 180kgs (400 lbs) | WHDR轮 WHDR |
1111-04-66-1 | 1111-04-66-2 | 1111-04-66-4 | ||||
| 80kgs (176 lbs) | 导电轮 E-Conductive |
1111-04-17-1 | 1111-04-17-2 | 1111-04-17-4 | ||||
| 135kgs (300 lbs) | 铝芯橡胶轮 Rubber on Aluminum Core |
1111-04-22-1 | 1111-04-22-2 | 1111-04-22-4 | ||||
| 230kgs (506 lbs) | 铝芯AQPU QPU on AL Core |
1111-04-87-1 | 1111-04-87-2 | 1111-04-87-4 | ||||
| 70kgs (155 lbs) | NPPR轮 NPPR |
1111-04-67-1 | 1111-04-67-2 | 1111-04-67-4 | 中管 Plain Bearing |
|||
| 120kgs (265 lbs) | 尼龙轮 Nylon |
1111-04-07-1 | 1111-04-07-2 | 1111-04-07-4 | ||||
| 135kgs (300 lbs) | 耐高温轮 Hi-temp |
1111-04-25-1 | 1111-04-25-2 | 1111-04-25-4 | ||||
| 80kgs (176 lbs) | 橡胶轮 Rubber |
1111-04-06-1 | 1111-04-06-2 | 1111-04-06-4 | ||||
| 90kgs (198 lbs) | 塑料轮 PP |
1111-04-29-1 | 1111-04-29-2 | 1111-04-29-4 | ||||
| 100mm x 36mm (4" x 1-1/2") |
160kgs (352 lbs) | CPD轮 CPD |
1111-04-71-1 | 1111-04-71-2 | 1111-04-71-4 | 滚珠 Ball Bearing |
底板类总高: Plate version OAH: 137 mm (5-3/8") 丝扣类总高: Threaded Stem Version OAH: 138 mm (5-7/16") |
活动 88 mm 侧剎 92 mm Swivel 88 mm Swivel W/Side Brake 92 mm |
| 160kgs (352 lbs) | 蓝色弹力轮 Blue Resilient Rubber Wheel |
1111-04-50-1 | 1111-04-50-2 | 1111-04-50-4 | ||||
| 140kgs (308 lbs) | 超级人造胶 TPR on PP Core |
1111-04-77-1 | 1111-04-77-2 | 1111-04-77-4 | ||||
| 160kgs (352 lbs) | 全效轮 Resolute |
1111-04-76-1 | 1111-04-76-2 | 1111-04-76-4 | ||||
| 250kgs (550 lbs) | 铝芯AQPU QPU on AL Core |
1111-04(36)-87-1 | 1111-04(36)-87-2 | 1111-04(36)-87-4 | ||||
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 偏心距 | ||
| 固定 | 活动 | 剎车 | ||||||
| 125mm x 32mm (5" x 1-1/4") |
130kgs (285 lbs) | 高科技耐磨聚氨酯 PU on PP Core |
1111-05-31-1 | 1111-05-31-2 | 1111-05-31-4 | 滚珠 Ball Bearing 中管 Plain Bearing |
底板类总高: Plate version OAH: 162 mm (6-3/8") 丝扣类总高: Threaded Stem Version OAH: 163 mm (6-7/16") |
活动 99 mm 侧剎 99 mm Swivel 99 mm Swivel W/Side Brake 99 mm |
| 110kgs (240 lbs) | 超级人造胶 TPR on PP Core |
1111-05-75-1 | 1111-05-75-2 | 1111-05-75-4 | ||||
| 147kgs (325 lbs) | 全效轮 Resolute |
1111-05-68-1 | 1111-05-68-2 | 1111-05-68-4 | 滚珠 Ball Bearing |
|||
| 200kgs (440 lbs) | WMRC轮 WMRC |
1111-05-45-1 | 1111-05-45-2 | 1111-05-45-4 | ||||
| 150kgs (330 lbs) | WPP轮 WPP |
1111-05-46-1 | 1111-05-46-2 | 1111-05-46-4 | ||||
| 110kgs (240 lbs) | W超级人造胶 WPPR |
1111-05-47-1 | 1111-05-47-2 | 1111-05-47-4 | ||||
| 147kgs (325 lbs) | W全效轮 W Resolute |
1111-05-48-1 | 1111-05-48-2 | 1111-05-48-4 | ||||
| 200kgs (440 lbs) | WHDR轮 WHDR |
1111-05-66-1 | 1111-05-66-2 | 1111-05-66-4 | ||||
| 250kgs (550 lbs) | 铝芯AQPU QPU on AL Core |
1111-05-87-1 | 1111-05-87-2 | 1111-05-87-4 | ||||
| 90kgs (198 lbs) | 导电轮 E-Conductive |
1111-05-17-1 | 1111-05-17-2 | 1111-05-17-4 | ||||
| 140kgs (305 lbs) | 尼龙轮 Nylon |
1111-05-07-1 | 1111-05-07-2 | 1111-05-07-4 | 中管 Plain Bearing |
|||
| 90kgs (198 lbs) | 橡胶轮 Rubber |
1111-05-06-1 | 1111-05-06-2 | 1111-05-06-4 | ||||
| 100kgs (220 lbs) | 塑料轮 PP |
1111-05-29-1 | 1111-05-29-2 | 1111-05-29-4 | ||||
| 125mm x 36mm (5" x 1-1/2") |
200kgs (440 lbs) | CPD轮 CPD |
1111-05-71-1 | 1111-05-71-2 | 1111-05-71-4 | 滚珠 Ball Bearing |
底板类总高: Plate version OAH: 162 mm (6-3/8") 丝扣类总高: Threaded Stem Version OAH: 163 mm (6-7/16") |
活动 99 mm 侧剎 99 mm Swivel 99 mm Swivel W/Side Brake 99 mm |
| 250kgs (550 lbs) | 蓝色弹力轮 Blue Resilient Rubber Wheel |
1111-05-50-1 | 1111-05-50-2 | 1111-05-50-4 | ||||
| 160kgs (352 lbs) | 超级人造胶 TPR on PP Core |
1111-05-77-1 | 1111-05-77-2 | 1111-05-77-4 | ||||
| 180kgs (400 lbs) | 全效轮 Resolute |
1111-05-76-1 | 1111-05-76-2 | 1111-05-76-4 | ||||
