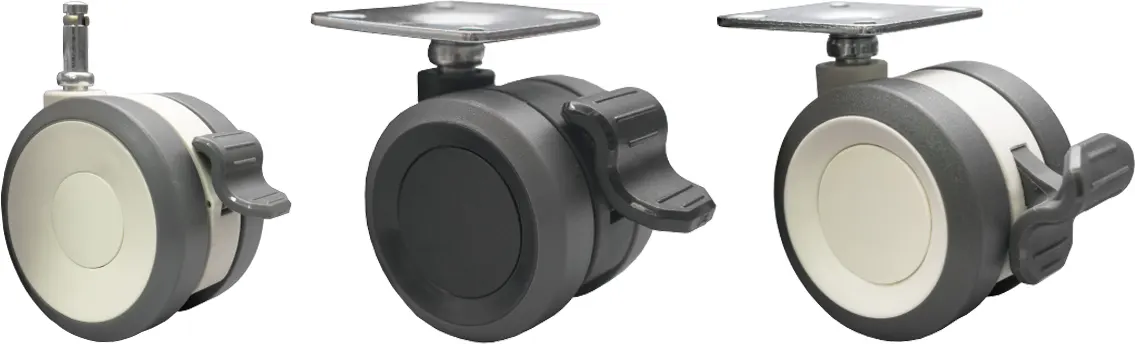

1110-YOYO系列 — 优优轮系列
大轮低设计，行走稳定顺畅且静音、转动灵活、外形美观、两种剎车踏板（大vs小)供选择，满足客人多样化需求、转向易操控。
特色区

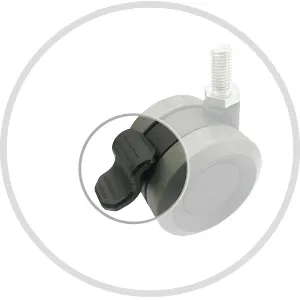

大踏板

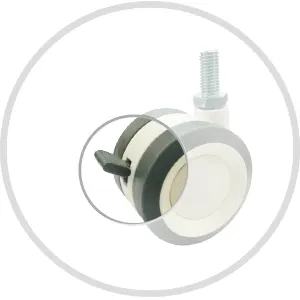

小踏板

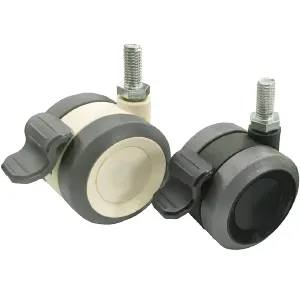

两种颜色供选择
特色区
大踏板
小踏板
两种颜色供选择
轮子选择
PVC轮
底板规格
| 底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 42X42mm | 32X32mm | M4/M5 |
| 60X60mm | 39X39mm / 46X46mm | M6 |
| 69X96mm | 45X75mm（高级底板） | M8 |
插杆规格
| 插杆直径 x 长度 Diameter x Length |
孔位高度 Hole Height |
孔尺寸 Bore Size |
| 11X22mm | — | C型环 (Grip Ring) |
| 11X31.8mm | — | C型铜扣环 (Grip Ring) |
| 11X38mm | — | C型铜扣环 (Grip Ring) |
| 11X50mm | — | C型环 (Grip Ring) |
丝扣规格
| 丝扣牙径 x 长度 Threaded Size |
丝扣牙径 x 长度 Threaded Size |
丝扣牙径 x 长度 Threaded Size |
丝扣牙径 x 长度 Threaded Size |
| M8X15mm （带法兰 With Flange） |
M8X25mm | M10X15mm | M10X19mm |
| M12X25mm | M12X25mm | 1/2-12UNCX25mm | 1/2-13UNCX25mm |
| 3/8-16UNCX25mm |
底板规格
| 底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 42X42mm | 32X32mm | M4/M5 |
| 底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 42X42mm | 32X32mm | M4/M5 |
| 60X60mm | 39X39mm / 46X46mm | M6 |
| 69X96mm | 45X75mm（高级底板） | M8 |
插杆规格
| 插杆直径 x 长度 Diameter x Length |
孔位高度 Hole Height |
孔尺寸 Bore Size |
| 11X22mm | — | C型环 (Grip Ring) |
| 11X31.8mm | — | C型铜扣环 (Grip Ring) |
| 11X38mm | — | C型铜扣环 (Grip Ring) |
| 11X50mm | — | C型环 (Grip Ring) |
丝扣规格
| 丝扣牙径 x 长度 Threaded Size |
丝扣牙径 x 长度 Threaded Size |
丝扣牙径 x 长度 Threaded Size |
丝扣牙径 x 长度 Threaded Size |
| M8X15mm （带法兰 With Flange） |
M8X25mm | M10X15mm | M10X19mm |
| M12X25mm | M12X25mm | 1/2-12UNCX25mm | 1/2-13UNCX25mm |
| 3/8-16UNCX25mm |
轮子详细资讯
| 轮径 × 轮宽 | 规格 | 载重 | 材质 | 型号 | 轴承 | 总高 | 偏心距 | 迴旋半径 | |
| 活动 | 中剎 | ||||||||
| 轮面宽度 Width of Tread 65mm x 14.6mm (2.5" x 0.57") ——————————— 脚轮宽度 Caster width 65mm x 59mm (2.5" x 2.3") |
四角底板 Plate |
45kgs (110 lbs) | PVC轮 PVC on PP Core |
1110-Y-25-113-2 | 1110-Y-25-113-4 | 中管 Plain Bearing |
81.5mm | 20 mm | 活动 52.5mm 刹车(大踏板) 77mm 刹车(小踏板) 68.5mm Swivel 52.5mm Swivel W/Brake (Big pedal) 77mm Swivel W/Brake (Small pedal) 68.5mm |
| 丝扣 Threaded Stem |
45kgs (110 lbs) | PVC轮 PVC on PP Core |
1110-Y-25-113-2 | 1110-Y-25-113-4 | 75mm | ||||
| 插杆 Cylindrical Stem |
45kgs (110 lbs) | PVC轮 PVC on PP Core |
1110-Y-25-113-2(1) | 1110-Y-25-113-4(1) | 72mm | ||||
| 1110-Y-25-113-2 | 1110-Y-25-113-4 | 79mm | |||||||
| 轮面宽度 Width of Tread 73mm x 16.3mm (3" x 0.64") ——————————— 脚轮宽度 Caster width 73mm x 63mm (3" x 2.48") |
四角底板 Plate |
45kgs (110 lbs) | PVC轮 PVC on PP Core |
1110-Y-03-113-2 | 1110-Y-03-113-4 | 中管 Plain Bearing |
90mm | 24.5mm | 活动 61mm 刹车(大踏板) 85mm 刹车(小踏板) 77mm Swivel 61mm Swivel W/Brake (Big pedal) 85mm Swivel W/Brake (Small pedal) 77mm |
| 丝扣 Threaded Stem |
45kgs (110 lbs) | PVC轮 PVC on PP Core |
1110-Y-03-113-2 | 1110-Y-03-113-4 | 83mm | ||||
| 插杆 Cylindrical Stem |
45kgs (110 lbs) | PVC轮 PVC on PP Core |
1110-Y-03-113-2(1) | 1110-Y-03-113-4(1) | 80mm | ||||
| 1110-Y-03-113-2 | 1110-Y-03-113-2 | 87mm | |||||||
| 轮面宽度 Width of Tread 100mm x 18mm (4" x 0.71") ——————————— 脚轮宽度 Caster width 100mm x 72mm (4" x 2.83") |
四角底板 Plate |
100kgs (220 lbs) | PVC轮 PVC on PP Core |
1110-Y-04-113-2 | 1110-Y-04-113-4 | 精密轴承 Precision Ball Bearing |
115mm | 32mm | 活动 82mm 刹车(大踏板) 105mm 刹车(小踏板) 99mm Swivel 82mm Swivel W/Brake (Big pedal) 105mm Swivel W/Brake (Small pedal) 99mm |
| 丝扣 Threaded Stem |
100kgs (220 lbs) | PVC轮 PVC on PP Core |
1110-Y-04-113-2 | 1110-Y-04-113-4 | 108.5mm | ||||
| 插杆 Cylindrical Stem |
100kgs (220 lbs) | PVC轮 PVC on PP Core |
1110-Y-04-113-2(1) | 1110-Y-04-113-4(1) | 105.5mm | ||||
| 1110-Y-04-113-2 | 1110-Y-04-113-4 | 113mm | |||||||
