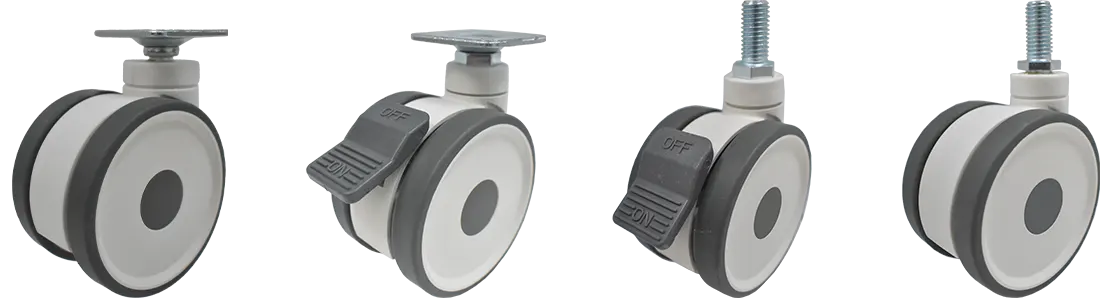

1110-3系列 — 美美轮系列
1110-3美美轮系列，经济实惠，具有良好的强度和耐用性能。
提供多种安装底板，变换灵活，能满足客户高性价比需求。
脚轮双煞制动，使用更便利，轮面採用TPR材质，静音、耐磨、保护地板，
适用于美容美发、医疗、家具、置物等多种行业。
轮子选择
PPR轮
底板规格
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 3"、4" | 42x42 (1-21/32" x 1-21/32") | 32x32 (1-1/4" x 1-1/4") | M4/M5 |
| 60x60 (2-3/8" x 2-3/8") | 42.5x42.5 (1-11/16" x 1-11/16") | M6 | |
| 59x73 (2-5/16"x2-7/8") | 39.3x53 (1-9/16"x2-1/16") | M6/M8 | |
| 62x94 (2-7/16"x3-11/16") | 45x75(高级底板) (1-3/4"x2-15/16") | M6/M8 | |
| 69x96 (2-11/16"x3-3/4) | 49x74.5(斜孔底板) (2-1/8"x3") | M8 |
丝扣规格
| 规格 Size |
丝扣牙径 x 长度 Threaded Size |
规格 Size |
丝扣牙径 x 长度 Threaded Size |
| 3"、4" | M10 x 15 | 3"、4" | M10 x 20 |
| 3"、4" | M10 x 25 | 3"、4" | M12 x 15 |
| 3"、4" | M12 x 20 | 3"、4" | M12 x 25 |
插杆规格
| 规格 Size |
插杆直径 x 长度 Diameter x Length |
孔位高度 Hole Height |
孔尺寸 Bore Size |
| 3"、4" | Ø11x22L | — | C型环 (Grip Ring) |
| Ø12x25L | 17 | 6.3 |
底板规格
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 3" | 42x42 (1-21/32" x 1-21/32") |
32x32 (1-1/4" x 1-1/4") |
M4/M5 |
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 3"、4" | 42x42 (1-21/32" x 1-21/32") | 32x32 (1-1/4" x 1-1/4") | M4/M5 |
| 60x60 (2-3/8" x 2-3/8") | 42.5x42.5 (1-11/16" x 1-11/16") | M6 | |
| 59x73 (2-5/16"x2-7/8") | 39.3x53 (1-9/16"x2-1/16") | M6/M8 | |
| 62x94 (2-7/16"x3-11/16") | 45x75(高级底板) (1-3/4"x2-15/16") | M6/M8 | |
| 69x96 (2-11/16"x3-3/4) | 49x74.5(斜孔底板) (2-1/8"x3") | M8 |
丝扣规格
| 规格 Size |
丝扣牙径 x 长度 Threaded Size |
规格 Size |
丝扣牙径 x 长度 Threaded Size |
| 3"、4" | M10 x 15 | 3"、4" | M10 x 20 |
| 3"、4" | M10 x 25 | 3"、4" | M12 x 15 |
| 3"、4" | M12 x 20 | 3"、4" | M12 x 25 |
插杆规格
| 规格 Size |
插杆直径 x 长度 Diameter x Length |
孔位高度 Hole Height |
孔尺寸 Bore Size |
| 3" | Ø11x22L | — | C型环 (Grip Ring) |
| Ø12x25L | 17 | 6.3 |
轮子详细资讯
| 轮径 × 轮宽 | 规格 | 载重 | 材质 | 型号 | 轴承 | 总高 | 偏心距 | 迴旋半径 | ||
| 活动 | 刹车 | 定向煞 | ||||||||
| 轮片宽度 75x12 (3" x 1/2") 脚轮宽度 75x50.5 (3" x 2") |
底板 | 30kgs (66lbs) |
PPR轮 TPR on PP Core |
1110-03-02-26-2 | 1110-03-02-26-4 | — | 中管 Plain Bearing |
100mm (3-15/16") |
22mm | 活动 66mm 活煞 79mm |
| 丝扣 | 30kgs (66lbs) |
PPR轮 TPR on PP Core |
1110-03-02-26-5 | 1110-03-02-26-6 | — | 93.5mm (3-11/16") |
||||
| 插杆 | 30kgs (66lbs) |
PPR轮 TPR on PP Core |
1110-03-02-26-7 | 1110-03-02-26-8 | — | 93.5mm (3-11/16") |
||||
| 轮片宽度 100x14 (4" x 9/16") 脚轮宽度 100x60.5 (4" x 2-7/16") |
底板 | 50kgs (110lbs) |
PPR轮 TPR on PP Core |
1110-04-02-26-2 | 1110-04-02-26-4 | — | 中管 Plain Bearing |
126.5mm (5") |
28mm | 活动 84mm 活煞 114mm |
| 底板 | 70kgs (154lbs) |
PPR轮 TPR on PP Core |
1110-04-02-26-2 | 1110-04-02-26-4 | — | 滚珠轴承 Ball Bearing |
||||
| 丝扣 | 50kgs (110lbs) |
PPR轮 TPR on PP Core |
1110-04-02-26-5 | 1110-04-02-26-6 | — | 中管 Plain Bearing |
120mm (4-3/4") |
|||
| 丝扣 | 70kgs (154lbs) |
PPR轮 TPR on PP Core |
1110-04-02-26-5 | 1110-04-02-26-6 | — | 滚珠轴承 Ball Bearing |
||||
| 插杆 | 50kgs (110lbs) |
PPR轮 TPR on PP Core |
1110-04-02-26-7 | 1110-04-02-26-8 | — | 中管 Plain Bearing |
120mm (4-3/4") |
|||
| 插杆 | 70kgs (154lbs) |
PPR轮 TPR on PP Core |
1110-04-02-26-7 | 1110-04-02-26-8 | — | 滚珠轴承 Ball Bearing |
||||
