1109系列 — 美国轮系列

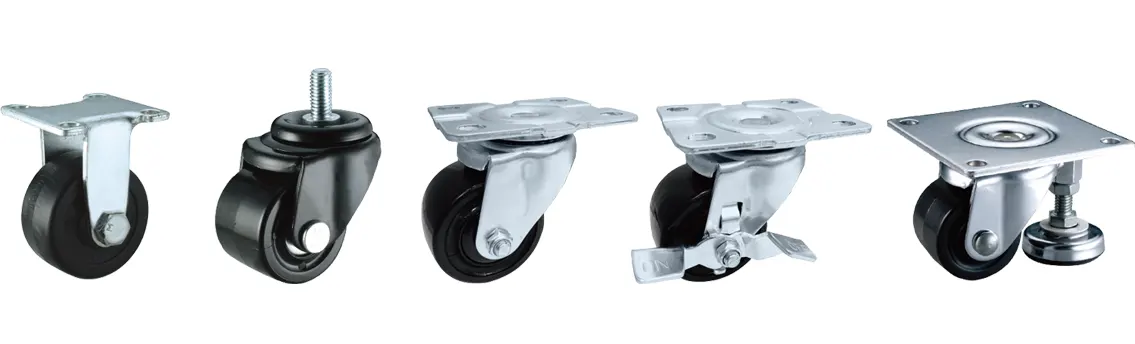

採用高耐磨尼龙製成，轮宽较大是小轮中负载高的系列，适用荷重高、移动较少的商业机械设备。其中大底板附支撑脚的款式，可增大荷重，其支撑脚可调整高度并可随意稳固地停放台车。
特色区

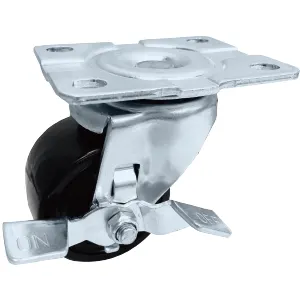

侧剎

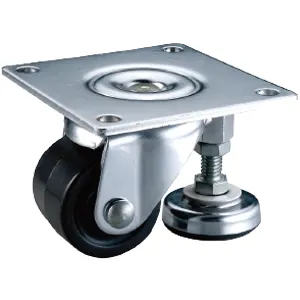

支撑脚
特色区
侧剎
支撑脚
轮子选择
-
尼龙轮
-
电木轮
-
塑料轮
-
ZQPU轮
-
QPU轮
-
金钢轮
底板规格
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 2" x 1" 美国轮 2" x 1" |
58 x 70 mm (2-1/4" x 2-3/4") | 40 x 55 mm(1-9/16" x 2-3/16") | 8 mm (5/16") |
| 2" x 1" - 15/16" 美国轮 2" x 1" - 15/16" |
65 x 95 mm (2-3/4" x 3-3/4") | 45 x 75 mm(1-3/4" x 3") | 8 mm (5/16") |
| 2" x 1" - 15/16" 美国大底板 2" x 1" - 15/16" Caster with floor Lock |
120 x 120 mm (4-23/32" x 4-23/32") | 95 x 95 mm(3-3/4" x 3-3/4") | 10 mm (3/8") |
| 2-1/2" x 1-15/16" 美国轮 2-1/2" x 1-15/16" |
65 x 95 mm (2-3/4" x 3-3/4") | 45 x 75 mm(1-3/4" x 3") | 8 mm (5/16") |
| 2-1/2" 美国大底板 2-1/2" x 1-15/16" Caster with floor Lock |
120 x 120 mm (4-23/32" x 4-23/32") | 95 x 95 mm(3-3/4" x 3-3/4") | 10 mm (3/8") |
| 3" 美国轮 3" x 1-15/16" |
86 x 110 mm (3-3/8" x 4-5/16") | 60 x 83 mm(2-3/8" x 3-1/4") | 10 mm (3/8") |
| 3" 美国大底板 3" x 1-15/16" Caster with floor Lock |
120 x 120 mm (4-23/32" x 4-23/32") | 95 x 95 mm(3-3/4" x 3-3/4") | 10 mm (3/8") |
丝扣规格
| 规格 Size |
丝扣牙径 x 长度 Threaded Size |
规格 Size |
丝扣牙径 x 长度 Threaded Size |
| 2" × 3/4" | M10 × 19mm (CN) * | 2" × 1" | M12 × 25mm (TW) * |
| 2-1/2" × 1-15/16" 3" × 1-3/4" |
M12 × 25mm (CN) ** | 2-1/2" × 1-15/16" 3" × 1-3/4" |
1/2-13UNC × 25mm (CN) ** |
| 2-1/2" × 1-15/16" 3" × 1-3/4" |
1/2-12UNC x 32mm (TW) ** | 2-1/2" × 1-15/16" 3" × 1-3/4" |
5/8-11UNC x 25mm (TW) ** |
*丝扣底部六角台阶 ** 丝扣底部圆头台阶
底板规格
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 2" x 1" 美国轮 2" x 1" |
58 x 70 mm (2-1/4" x 2-3/4") | 40 x 55 mm(1-9/16" x 2-3/16") | 8 mm (5/16") |
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 2" x 1" 美国轮 2" x 1" |
58 x 70 mm (2-1/4" x 2-3/4") | 40 x 55 mm(1-9/16" x 2-3/16") | 8 mm (5/16") |
| 2" x 1" - 15/16" 美国轮 2" x 1" - 15/16" |
65 x 95 mm (2-3/4" x 3-3/4") | 45 x 75 mm(1-3/4" x 3") | 8 mm (5/16") |
| 2" x 1" - 15/16" 美国大底板 2" x 1" - 15/16" Caster with floor Lock |
120 x 120 mm (4-23/32" x 4-23/32") | 95 x 95 mm(3-3/4" x 3-3/4") | 10 mm (3/8") |
| 2-1/2" x 1-15/16" 美国轮 2-1/2" x 1-15/16" |
65 x 95 mm (2-3/4" x 3-3/4") | 45 x 75 mm(1-3/4" x 3") | 8 mm (5/16") |
| 2-1/2" 美国大底板 2-1/2" x 1-15/16" Caster with floor Lock |
120 x 120 mm (4-23/32" x 4-23/32") | 95 x 95 mm(3-3/4" x 3-3/4") | 10 mm (3/8") |
| 3" 美国轮 3" x 1-15/16" |
86 x 110 mm (3-3/8" x 4-5/16") | 60 x 83 mm(2-3/8" x 3-1/4") | 10 mm (3/8") |
| 3" 美国大底板 3" x 1-15/16" Caster with floor Lock |
120 x 120 mm (4-23/32" x 4-23/32") | 95 x 95 mm(3-3/4" x 3-3/4") | 10 mm (3/8") |
丝扣规格
| 规格 Size |
丝扣牙径 x 长度 Threaded Size |
规格 Size |
丝扣牙径 x 长度 Threaded Size |
| 2" × 3/4" | M10 × 19mm (CN) * | 2" × 1" | M12 × 25mm (TW) * |
| 2-1/2" × 1-15/16" 3" × 1-3/4" |
M12 × 25mm (CN) ** | 2-1/2" × 1-15/16" 3" × 1-3/4" |
1/2-13UNC × 25mm (CN) ** |
| 2-1/2" × 1-15/16" 3" × 1-3/4" |
1/2-12UNC x 32mm (TW) ** | 2-1/2" × 1-15/16" 3" × 1-3/4" |
5/8-11UNC x 25mm (TW) ** |
*丝扣底部六角台阶 ** 丝扣底部圆头台阶
轮子详细资讯
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 迴旋半径 | ||
| 固定 | 活动 | 剎车 | ||||||
| 50mm x 25mm (2" x 1") |
70 kgs (150 lbs) |
尼龙轮 Nylon |
1109-02-07-1 | 1109-02-07-2 | 1109-02-07-4 | 中管 Plain Bearing |
70mm (2-3/4") |
活动 47.5mm 剎车 54mm Swivel 47.5mm Swivel W/Brake 54mm |
| 50 kgs (110 lbs) |
塑料轮 PP |
— | 1109-02-29-2 | 1109-02-29-4 | ||||
| 50mm x 45mm (2 x 1-3/4") |
300 kgs (660 lbs) |
QPU轮 QPU |
1109-02-80-1 | 1109-02-80-2 | — | 滚珠轴承 Ball Bearing |
73mm (2-7/8") |
活动 44mm Swivel 44mm |
| 300 kgs (660 lbs) |
ZQPU轮 ZQPU(Dual Wheels) |
1109-02-101-1 | 1109-02-101-2 | — | ||||
| 200 kgs (440 lbs) |
尼龙轮 Nylon |
1109-02-07-1 | 1109-02-07-2 | — | 滚珠轴承 Ball Bearing 中管 Plain Bearing |
|||
| 250 kgs (550 lbs) |
金钢轮 King Kong Wheel |
1109-02-100-1 | 1109-02-100-2 | — | 滚珠轴承 Ball Bearing 中管 Plain Bearing |
|||
| 62.5mm x 45mm (2-1/2" x 1-3/4") |
300 kgs (660 lbs) |
QPU轮 QPU |
1109-25-80-1 | 1109-25-80-2 | 1109-25-80-4 | 滚珠轴承 Ball Bearing |
91mm (3-3/5") |
活动60.5mm 剎车65.5mm Swivel 60.5mm Swivel W/Brake 65.5mm |
| 300 kgs (660 lbs) |
ZQPU轮 ZQPU(Dual Wheels) |
1109-25-101-1 | 1109-25-101-2 | 1109-25-101-4 | ||||
| 250 kgs (550 lbs) |
尼龙轮 Nylon |
1109-25-07-1 | 1109-25-07-2 | 1109-25-07-4 | ||||
| 140 kgs (305 lbs) |
塑料轮 PP |
1109-25-29-1 | 1109-25-29-2 | 1109-25-29-4 | ||||
| 350 kgs (770 lbs) |
金钢轮 King Kong Wheel |
1109-25-100-1 | 1109-25-100-2 | 1109-25-100-4 | 滚珠轴承 Ball Bearing 中管 Plain Bearing |
|||
| 75mm x 45mm (3" x 1-3/4") |
300 kgs (660 lbs) | QPU轮 QPU |
1109-03-80-1 | 1109-03-80-2 | 1109-03-80-4 | 滚珠轴承 Ball Bearing |
102.5mm (4-1/25") |
活动68.4mm 剎车68.4mm Swivel 68.4mm Swivel W/Brake 68.4mm |
| 300 kgs (660 lbs) |
ZQPU轮 ZQPU(Dual Wheels) |
1109-03-101-1 | 1109-03-101-2 | 1109-03-101-4 | ||||
| 300 kgs (660 lbs) |
尼龙轮 Nylon |
1109-03-07-1 | 1109-03-07-2 | 1109-03-07-4 | 滚珠轴承 Ball Bearing 中管 Plain Bearing |
|||
| 185 kgs (405 lbs) |
塑料轮 PP |
1109-03-29-1 | 1109-03-29-2 | 1109-03-29-4 | 滚珠轴承 Ball Bearing |
|||
| 225 kgs (500 lbs) |
电木轮 Phenolic |
1109-03-25-1 | 1109-03-25-2 | 1109-03-25-4 | 滚针轴承 Roller Bearing |
|||
| 400 kgs (880 lbs) |
金钢轮 King Kong Wheel |
1109-03-100-1 | 1109-03-100-2 | 1109-03-100-4 | 滚珠轴承 Ball Bearing 中管 Plain Bearing |
|||
