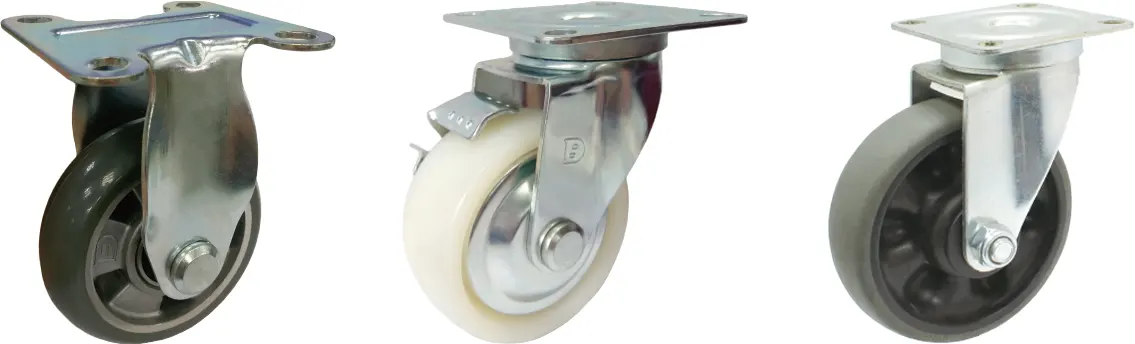

1108-M系列 — 日式轮系列(中型)
转动灵活宁静, 有双剎与侧剎可供选择。
特色区

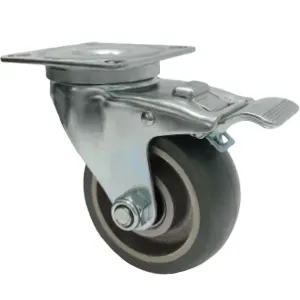

双剎

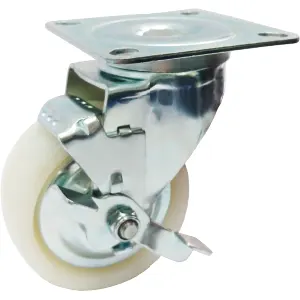

侧剎(限4",136.5mm总高)

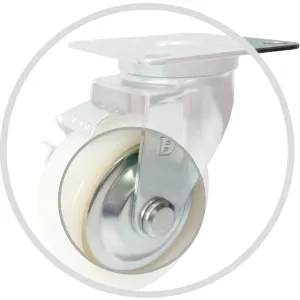

波盘防尘盖

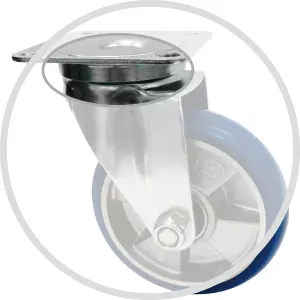

可附金属防尘盖(供选择)
特色区
双剎
侧剎(限4",136.5mm总高)
波盘防尘盖
可附金属防尘盖(供选择)
轮子选择
铝芯AQPU
铝芯橡胶轮
铝芯QQ橡胶轮
尼龙轮
W 全效轮
活动底板规格
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 4" 5"活动底板 4" 5" Plate |
92 x 92 mm (3-5/8" x 3-5/8") | 70 x 70 mm (2-3/4" x 2-3/4") |
8 mm (5/16") |
| 6" 8"活动底板 6" 8" Plate |
101 x 101 mm (4" x 4") | 78 x 78 mm (3-1/16" x 3-1/16") |
10 mm (3/8") |
固定底板规格
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 4" 5"固定底板 4" 5" Plate |
92 x 92 mm (3-5/8" x 3-5/8") | 70 x 70 mm (2-3/4" x 2-3/4") |
8 mm (5/16") |
活动底板规格
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 4" 5"活动底板 4" 5" Plate |
92 x 92 mm (3-5/8" x 3-5/8") |
70 x 70 mm (2-3/4" x 2-3/4") |
8 mm (5/16") |
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 4" 5"活动底板 4" 5" Plate |
92 x 92 mm (3-5/8" x 3-5/8") |
70 x 70 mm (2-3/4" x 2-3/4") |
8 mm (5/16") |
| 6" 8"活动底板 6" 8" Plate |
101 x 101 mm (4" x 4") |
78 x 78 mm (3-1/16" x 3-1/16") |
10 mm (3/8") |
固定底板规格
| 编号 Suffix |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 4" 5"固定底板 4" 5" Plate |
92 x 92 mm (3-5/8" x 3-5/8") |
70 x 70 mm (2-3/4" x 2-3/4") |
8 mm (5/16") |
轮子详细资讯
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 偏心距 | ||
| 固定 | 活动 | 剎车 | ||||||
| 100mm x 32mm (4" x 1-1/4") |
160 kgs (352 lbs) |
尼龙轮 Nylon |
1108-M-04-07-1 | 1108-M-04-07-2 | 1108-M-04-07-4 (Total lock 双剎) |
滚珠 Ball Bearing |
134.5mm (5-1/4") |
活动 85.5mm 双剎 117mm Swivel 85.5mm Swivel W/Total Lock Brake 117mm |
| 中管 Plain Bearing |
||||||||
| 140 kgs (308 lbs) |
铝芯QQ橡胶轮 Recilent rubber on AL Core |
1108-M-04-89-1 | 1108-M-04-89-2 | 1108-M-04-89-4 (Total lock 双剎) |
滚珠 Ball Bearing |
|||
| 140 kgs (308 lbs) |
铝芯AQPU QPU on AL Core |
1108-M-04-87-1 | 1108-M-04-87-2 | 1108-M-04-87-4 (Total lock 双剎) |
||||
| 100mm x 36mm (4" x 1-7/16") |
140 kgs (308 lbs) |
W全效轮 W Resolute Wheel |
1108-M-04(36)-64-1 | 1108-M-04(36)-64-2 | 1108-M-04(36)-64-4 (Total lock 双剎) |
滚珠 Ball Bearing |
134.5mm (5-1/4") |
活动 85.5mm 双剎 117mm Swivel 85.5mm Swivel W/Total Lock Brake 117mm |
| 160 kgs (352 lbs) |
铝芯AQPU QPU on AL Core |
1108-M-04(36)-87-1 | 1108-M-04(36)-87-2 | 1108-M-04(36)-87-4 (Total lock 双剎) |
||||
| 100mm x 40mm (4" x 1-9/16") |
160 kgs (352 lbs) |
铝芯AQPU QPU on AL Core |
1108-M-04(40)-87-1 | 1108-M-04(40)-87-2 | 1108-M-04(40)-87-4 (Total lock 双剎) |
|||
| 160 kgs (352 lbs) |
铝芯QQ橡胶轮 Recilent rubber on AL Core |
1108-M-04(40)-89-1 | 1108-M-04(40)-89-2 | 1108-M-04(40)-89-4 (Total lock 双剎) |
||||
| 160 kgs (352 lbs) |
铝芯橡胶轮 Rubber on AL Core |
1108-M-04(40)-22-1 | 1108-M-04(40)-22-2 | 1108-M-04(40)-22-4 (Total lock 双剎) |
||||
| 100mm x 32mm (4" x 1-1/4") |
160 kgs (352 lbs) |
尼龙轮 Nylon |
1108-M-04-07-1 | 1108-M-04-07-2 | 1108-M-04-07-4 (Side Brake 侧剎) |
滚珠 Ball Bearing |
136.5mm (5-3/8") |
活动 93.5mm 侧剎 93.5mm Swivel 93.5mm Swivel W/Side Brake 93.5mm |
| 中管 Plain Bearing |
||||||||
| 140 kgs (308 lbs) |
铝芯QQ橡胶轮 Recilent rubber on AL Core |
1108-M-04-89-1 | 1108-M-04-89-2 | 1108-M-04-89-4 (Side Brake 侧剎) |
滚珠 Ball Bearing |
|||
| 140 kgs (308 lbs) |
铝芯AQPU QPU on AL Core |
1108-M-04-87-1 | 1108-M-04-87-2 | 1108-M-04-87-4 (Side Brake 侧剎) |
||||
| 100mm x 36mm (4" x 1-7/16") |
140 kgs (308 lbs) |
W全效轮 W Resolute Wheel |
1108-M-04(36)-64-1 | 1108-M-04(36)-64-2 | 1108-M-04(36)-64-4 (Side Brake 侧剎) |
滚珠 Ball Bearing |
136.5mm (5-3/8") |
活动 93.5mm 侧剎 93.5mm Swivel 93.5mm Swivel W/Side Brake 93.5mm |
| 160 kgs (352 lbs) |
铝芯AQPU QPU on AL Core |
1108-M-04(36)-87-1 | 1108-M-04(36)-87-2 | 1108-M-04(36)-87-4 (Side Brake 侧剎) |
||||
| 100mm x 40mm (4" x 1-9/16") |
160 kgs (352 lbs) |
铝芯AQPU QPU on AL Core |
1108-M-04(40)-87-1 | 1108-M-04(40)-87-2 | 1108-M-04(40)-87-4 (Side Brake 侧剎) |
|||
| 160 kgs (352 lbs) |
铝芯QQ橡胶轮 Recilent rubber on AL Core |
1108-M-04(40)-89-1 | 1108-M-04(40)-89-2 | 1108-M-04(40)-89-4 (Side Brake 侧剎) |
||||
| 160 kgs (352 lbs) |
铝芯橡胶轮 Rubber on AL Core |
1108-M-04(40)-22-1 | 1108-M-04(40)-22-2 | 1108-M-04(40)-22-4 (Side Brake 侧剎) |
||||
| 125mm x 31mm (5" x 1-1/4") |
160 kgs (352 lbs) |
铝芯AQPU QPU on AL Core |
1108-M-05-87-1 | 1108-M-05-87-2 | 1108-M-05-87-4 (Total lock 双剎) |
滚珠 Ball Bearing |
159.5mm (6-1/4") |
活动 99.5mm 双剎 117mm Swivel 99.5mm Swivel W/Total Lock Brake 117mm |
| 150 kgs (330 lbs) |
铝芯QQ橡胶轮 Recilent rubber on AL Core |
1108-M-05-89-1 | 1108-M-05-89-2 | 1108-M-05-89-4 (Total lock 双剎) |
||||
| 125mm x 38mm (5" x 1-1/2") |
160 kgs (352 lbs) |
W全效轮 W Resolute Wheel |
1108-M-05(38)-64-1 | 1108-M-05(38)-64-2 | 1108-M-05(38)-64-4 (Total lock 双剎) |
|||
| 160 kgs (352 lbs) |
尼龙轮 Nylon |
1108-M-05(38)-07-1 | 1108-M-05(38)-07-2 | 1108-M-05(38)-07-4 (Total lock 双剎) |
中管 Plain Bearing |
|||
| 125mm x 40mm (5" x 1-9/16") |
180 kgs (396 lbs) |
铝芯QQ橡胶轮 Recilent rubber on AL Core |
1108-M-05(40)-89-1 | 1108-M-05(40)-89-2 | 1108-M-05(40)-89-4 (Total lock 双剎) |
滚珠 Ball Bearing |
159.5mm (6-1/4") |
活动 99.5mm 双剎 117mm Swivel 99.5mm Swivel W/Total Lock Brake 117mm |
| 180 kgs (396 lbs) |
铝芯橡胶轮 Rubber on AL Core |
1108-M-05(40)-22-1 | 1108-M-05(40)-22-2 | 1108-M-05(40)-22-4 (Total lock 双剎) |
||||
| 180 kgs (396 lbs) |
铝芯AQPU QPU on AL Core |
1108-M-05(40)-87-1 | 1108-M-05(40)-87-2 | 1108-M-05(40)-87-4 (Total lock 双剎) |
||||
| 180 kgs (396 lbs) |
尼龙轮 Nylon |
1108-M-05(40)-07-1 | 1108-M-05(40)-07-2 | 1108-M-05(40)-07-4 (Total lock 双剎) |
||||
