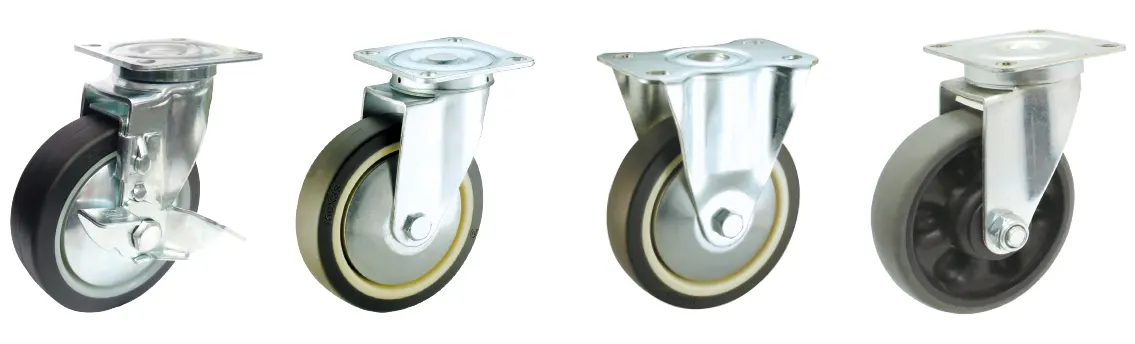

1108-H系列 — 日式轮系列(重型)
转动灵活宁静, 脚架已有特殊加强, 强度大幅度提升及抗冲击, 另有侧刹可供选择。
特色区

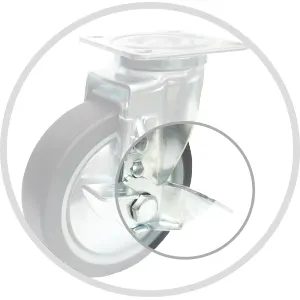

侧刹

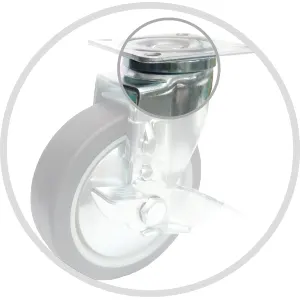

波盘防尘盖

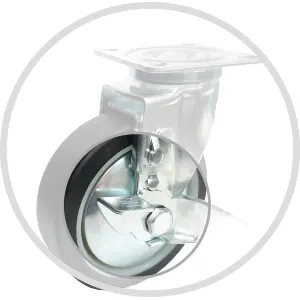

轮子可附金属防尘盖
特色区
侧刹
波盘防尘盖
轮子可附金属防尘盖
轮子选择
-
铁芯日式橡胶轮
-
尼龙轮
-
高科技耐磨聚氨酯
-
W全效轮
-
铝芯AQPU
-
EQPU轮
-
铝芯橡胶轮
-
WMRC轮
活动底板规格
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 4" 5" 6"活动底板 4" 5" 6" Plate |
101 x 101 mm (4" x 4") |
78 x 78 mm (3-1/16" x 3-1/16") |
10 mm (3/8") |
固定底板规格
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 5" 6"固定底板 5" 6" Plate |
91 x 140 mm (3-9/16" x 5-1/2") |
55 x 105mm (2-1/8" x 4-1/8") |
10mm (3/8") |
活动底板规格
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 4" 5" 6"活动底板 4" 5" 6" Plate |
101 x 101 mm (4" x 4") |
78 x 78 mm (3-1/16" x 3-1/16") |
10 mm (3/8") |
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 4" 5" 6"活动底板 4" 5" 6" Plate |
101 x 101 mm (4" x 4") |
78 x 78 mm (3-1/16" x 3-1/16") |
10 mm (3/8") |
固定底板规格
| 编号 Suffix |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 5" 6"固定底板 5" 6" Plate |
91 x 140 mm (3-9/16" x 5-1/2") |
55 x 105mm (2-1/8" x 4-1/8") |
10mm (3/8") |
轮子详细资讯
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 迴旋半径 | ||
| 固定 | 活动 | 剎车 | ||||||
| 100mm x 32mm (4"x1-1/4") |
250 kgs (550 lbs) |
尼龙轮 Nylon |
— | 1108-H-04-07-2 | 1108-H-04-07-4 | 滚珠轴承 Ball Bearing |
138mm (5-7/16") |
活动 87.5mm Swivel 67mm 侧刹87.5mm Swivel W/Side brake 87.5mm |
| 100mm x 36mm (4"x1-7/16") |
270 kgs (594 lbs) |
铝芯AQPU(圆弧) QPU on AL Core (Round) |
— | 1108-H-04-87-2 | 1108-H-04-87-4 | |||
| 140 kgs (308 lbs) |
W全效轮 W Resolute |
— | 1108-H-04-64-2 | 1108-H-04-64-4 | ||||
| 100mm x 40mm (4"x1-9/16") |
300 kgs (660 lbs) |
铝芯AQPU(圆弧) QPU on AL Core (Round) |
— | 1108-H-04-87(40)-2 | 1108-H-04-87(40)-4 | |||
| 200 kgs (440 lbs) |
铝芯橡胶轮 Rubber on AL Core |
— | 1108-H-04-22-2 | 1108-H-04-22-4 | ||||
| 125mm x 38mm (5"x1-1/2") |
160 kgs (352 lbs) |
W全效轮 W Resolute |
1108-H-05-64-1 | 1108-H-05-64-2 | 1108-H-05-64-4 | 滚珠轴承 Ball Bearing |
168mm (6-5/8") |
活动98.5mm Swivel 98.5mm 侧刹 98.5mm Swivel W/Side brake 98.5mm |
| 125mm x 40mm (5"x1-9/16") |
300 kgs (660 lbs) |
尼龙轮 Nylon |
1108-H-05-07-1 | 1108-H-05-07-2 | 1108-H-05-07-4 | |||
| 300 kgs (660 lbs) |
铝芯AQPU(圆弧) QPU on AL Core(Round) |
1108-H-05-87-1 | 1108-H-05-87-2 | 1108-H-05-87-4 | ||||
| 300 kgs (660 lbs) |
EQPU轮(圆弧) EQPU(Round) |
1108-H-05-81-1 | 1108-H-05-81-2 | 1108-H-05-81-4 | ||||
| 250 kgs (550 lbs) |
铝芯橡胶轮 Rubber on AL Core |
1108-H-05-22-1 | 1108-H-05-22-2 | 1108-H-05-22-4 | ||||
| 150mm x 38mm (6"x1-1/2") |
180kgs (396 lbs) |
W全效轮 W Resolute |
1108-H-06-64-1 | 1108-H-06-64-2 | 1108-H-06-64-4 | 滚珠轴承 Ball Bearing |
191mm (7-1/2") |
活动 113mm Swivel 113mm 侧刹 113mm Swivel W/Side brake 113mm |
| 150mm x 40mm (6"x1-9/16") |
160kgs (352 lbs) |
铁芯日式橡胶轮 Swivel Dust Cover |
1108-H-06-18-1 | 1108-H-06-18-2 | 1108-H-06-18-4 | |||
| 300kgs (660 lbs) |
WMRC轮 WMRC |
1108-H-06-45-1 | 1108-H-06-45-2 | 1108-H-06-45-4 | ||||
| 280kgs (616 lbs) |
铝芯橡胶轮 Rubber on AL Core |
1108-H-06-22-1 | 1108-H-06-22-2 | 1108-H-06-22-4 | ||||
| 150mm x 42mm (6"x1-5/8") |
300kgs (660 lbs) |
铝芯AQPU(圆弧) QPU on AL Core(Round) |
1108-H-06-87-1 | 1108-H-06-87-2 | 1108-H-06-87-4 | |||
| 300kgs (660 lbs) |
EQPU轮(圆弧) EQPU(Round) |
1108-H-06-81-1 | 1108-H-06-81-2 | 1108-H-06-81-4 | ||||
| 150mm x 44mm (6"x1-3/4") |
200kgs (440 lbs) |
高科技耐磨聚氨酯(尼龙芯) PU on PA Core |
1108-H-06-34-1 | 1108-H-06-34-2 | 1108-H-06-34-4 | |||
