1107系列 — 轻型仪器系列(TW)

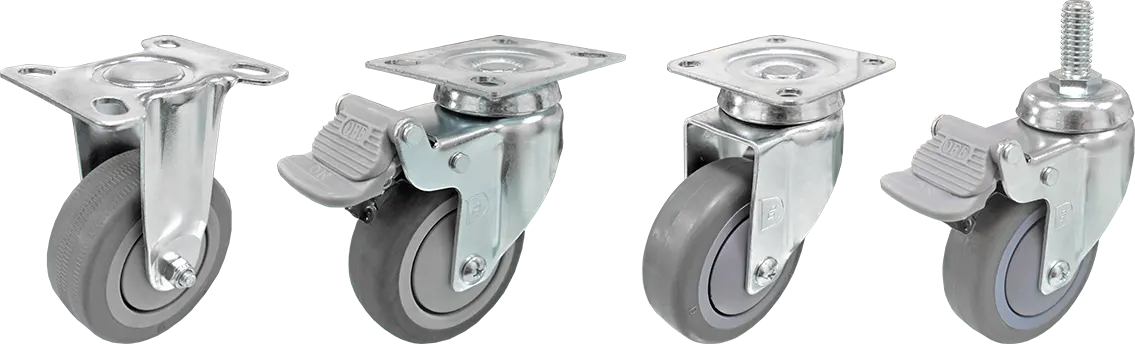

採用特别脚架荷重结构设计, 超大波盘结构转动灵活, 刹车制动效果良好, 刹车採用加纤塑料双踏板,弹片採用高张力钢制成, 不会因为长期使用而变形。
特色区

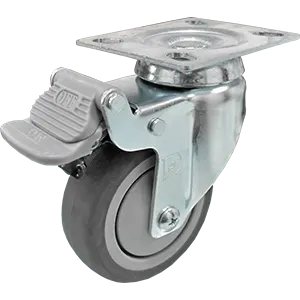

尼龙双踏板
特色区
尼龙双踏板
轮子选择
超级人造胶(514)
NPPR轮
橡胶轮
塑料轮
全效轮(514)
底板规格
| 编号 Suffix |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1 | 64 x 64mm (只有3") (2-1/2" x 2-1/2") |
48 x 48mm (只有3"适用) (1-7/8" x 1-7/8") |
6mm (1/4") |
| 2 | 75 x 65mm (2.5", 3"共用) (3" x 2-9/16") |
56 x 42mm (2.5", 3"共用) (2-3/16" x 1-5/8") |
8mm (5/16") |
| 3 | 95 x 75mm (只有4") (3-3/4" x 3") |
72.5 x 49.5mm (只有4"适用) (2-7/8" x 1-15/16") |
8mm (5/16") |
插杆规格
| 编号 Suffix |
插杆直径 x 长度 Diameter x Length |
编号 Suffix |
插杆直径 x 长度 Diameter x Length |
| 1 | 11 x 22mm (7/16" x 7/8") |
2 | 11 x 38mm (7/16" x 1-1/2") |
丝扣规格
| 编号 Suffix |
丝扣牙径 x 长度 Threaded Size |
编号 Suffix |
丝扣牙径 x 长度 Threaded Size |
| 1 | 3/8-16UNC x 28mm | 2 | M12 x 28mm |
| 3 | 1/2-12UNC x 28mm |
底板规格
| 编号 Suffix |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1 | 64 x 64mm (只有3") (2-1/2" x 2-1/2") |
48 x 48mm (只有3"适用) (1-7/8" x 1-7/8") |
6mm (1/4") |
| 编号 Suffix |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1 | 64 x 64mm (只有3") (2-1/2" x 2-1/2") |
48 x 48mm (只有3"适用) (1-7/8" x 1-7/8") |
6mm (1/4") |
| 2 | 75 x 65mm (2.5", 3"共用) (3" x 2-9/16") |
56 x 42mm (2.5", 3"共用) (2-3/16" x 1-5/8") |
8mm (5/16") |
| 3 | 95 x 75mm (只有4") (3-3/4" x 3") |
72.5 x 49.5mm (只有4"适用) (2-7/8" x 1-15/16") |
8mm (5/16") |
插杆规格
| 编号 Suffix |
插杆直径 x 长度 Diameter x Length |
编号 Suffix |
插杆直径 x 长度 Diameter x Length |
| 1 | 11 x 22mm (7/16" x 7/8") |
2 | 11 x 38mm (7/16" x 1-1/2") |
丝扣规格
| 编号 Suffix |
丝扣牙径 x 长度 Threaded Size |
编号 Suffix |
丝扣牙径 x 长度 Threaded Size |
| 1 | 3/8-16UNC x 28mm | 2 | M12 x 28mm |
| 3 | 1/2-12UNC x 28mm |
轮子详细资讯
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 偏心距 | ||
| 固定 | 活动 | 剎车 | ||||||
| 62.5 x 23.5mm (2-1/2" x 1") |
30 kgs (66 lbs) | 超级人造胶 TPR on PP Core |
1107-25-75-1 | 1107-25-75-2 | 1107-25-75-4 | 中管 Plain Bearing |
底板类总高 97mm (3-13/16") 牙心类总高 98mm (3-7/8") 插心类总高 98mm (3-13/16") |
活动 66.5mm 刹车 84.5mm Swivel 66.5mm Swivel W/Brake 84.5mm |
| 36 kgs (79 lbs) | 全效轮 Resolute Wheel |
1107-25-68-1 | 1107-25-68-2 | 1107-25-68-4 | ||||
| 36 kgs (79 lbs) | 超级人造胶 TPR on PP Core |
1107-25-75-1 | 1107-25-75-2 | 1107-25-75-4 | 滚珠 Ball Bearing |
|||
| 40 kgs (88 lbs) | 全效轮 Resolute Wheel |
1107-25-68-1 | 1107-25-68-2 | 1107-25-68-4 | ||||
| 75 x 24mm (3" x 1") |
36 kgs (79 lbs) | 超级人造胶 TPR on PP Core |
1107-03-75-1 | 1107-03-75-2 | 1107-03-75-4 | 中管 Plain Bearing |
底板类总高 107.5mm (4-1/4") 牙心类总高 108.5mm (4-1/4") 插心类总高 108.5mm (4-1/4") |
|
| 40 kgs (88 lbs) | 全效轮 Resolute Wheel |
1107-03-68-1 | 1107-03-68-2 | 1107-03-68-4 | ||||
| 40 kgs (88 lbs) | 超级人造胶 TPR on PP Core |
1107-03-75-1 | 1107-03-75-2 | 1107-03-75-4 | 滚珠 Ball Bearing |
|||
| 50 kgs (110 lbs) | 全效轮 Resolute Wheel |
1107-03-68-1 | 1107-03-68-2 | 1107-03-68-4 | ||||
| 100 x 24mm (4" x 1") |
40 kgs (88 lbs) | NPPR轮 NPPR |
1107-04-75-1 | 1107-04-75-2 | 1107-04-75-4 | 中管 Plain Bearing |
底板类总高 137mm (5-3/8") 牙心类总高 130mm (5-1/8") 插心类总高 130.5mm (5-1/8") |
|
| 50 kgs (110 lbs) | 全效轮 Resolute Wheel |
1107-04-68-1 | 1107-04-68-2 | 1107-04-68-4 | ||||
| 50 kgs (110 lbs) | 橡胶轮 Rubber |
1107-04-06-1 | 1107-04-06-2 | 1107-04-06-4 | 中管 Plain Bearing |
|||
| 55 kgs (121 lbs) | 塑料轮 PP |
1107-04-29-1 | 1107-04-29-2 | 1107-04-29-4 | ||||
| 50 kgs (110 lbs) | 超级人造胶 TPR on PP Core |
1107-04-75-1 | 1107-04-75-2 | 1107-04-75-4 | 滚珠 Ball Bearing |
|||
| 55 kgs (121 lbs) | 全效轮 Resolute Wheel |
1107-04-68-1 | 1107-04-68-2 | 1107-04-68-4 | ||||
