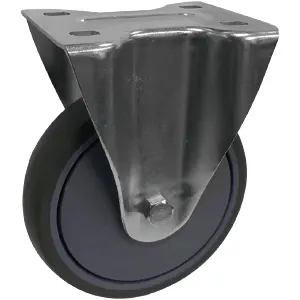

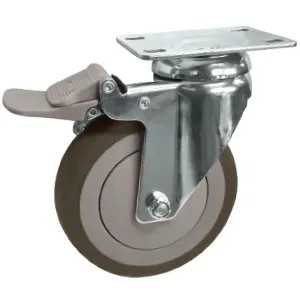

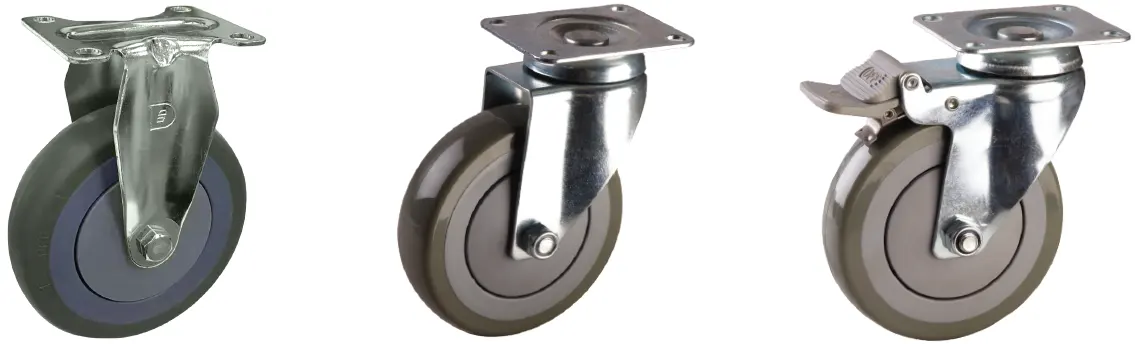

1106系列 — 仪器系列(TW)
採用特别脚架荷重结构设计, 超大波盘结构转动灵活, 刹车制动效果良好, 刹车採用加纤塑料 双踏板,弹片採用高张力钢制成, 不会因为长期使用而变形。
特色区
仪器新式固定架
(谘询工厂)

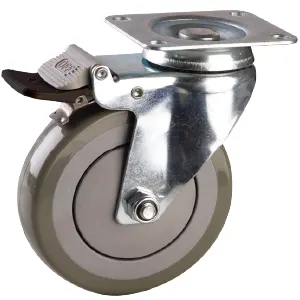

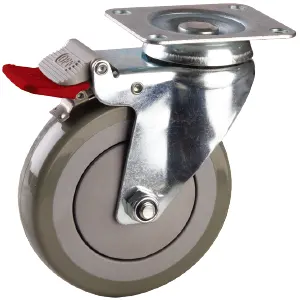

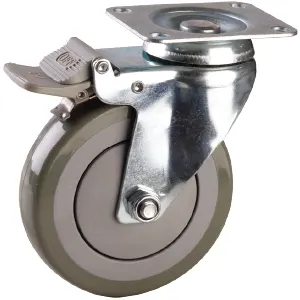

90度定向刹车架
180度定向刹车架
尼龙双踏板
尼龙双踏板(长踏板)

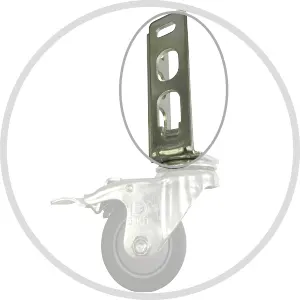

角铁底板
特色区
仪器新式固定架(谘询工厂)
90度定向刹车架
180度定向刹车架
尼龙双踏板
尼龙双踏板(长踏板)
角铁底板
轮子选择
高科技耐磨聚氨酯
超级人造胶(514)
尼龙轮
WMRC轮
WPP轮
W超级人造胶
NPPR轮
铝芯橡胶轮
超级人造胶(515)
铝芯AQPU
橡胶轮
塑料轮
导电轮
耐高温轮
W 全效轮
全效轮(514)
WHDR轮
CPD轮
蓝色弹力轮
超级人造胶(大圆弧)
全效轮(大圆弧)
底板规格
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1 | 69 x 96 mm (2-23/32" x 3-25/32") |
45 x 75 mm (高级架底板) (1-3/4" x 3") |
6.35mm (1/4") |
| 2 | 72 x 91 mm (2-13/16" x 3-19/32") |
53 x 72 mm (医疗/仪器架底板) (2-1/8" x 2-7/8") |
6.35mm (1/4") |
| 3 | 77 x 66.5 mm (3" x 2-5/8") |
59 x 49 mm (TW) 2-5/16" x 1-15/16" |
6.35mm (1/4") |
| 4 | 69 x 96 mm (2-23/32" x 3-25/32") |
49 x 74.5 mm (斜孔底板) (1-15/16" x 2-15/16") |
8mm (5/16") |
| 5 | 93 x 110 mm (3"-5/8" x 4-3/8") |
70 x 85 mm (重型架底板) 2-5/8"~3" x 3"~3-5/8" (Heavy Duty Plate) |
9.5mm (3/8") |
插杆规格
| 规格 Size |
插杆直径 x 长度 Diameter x Length |
规格 Size |
插杆直径 x 长度 Diameter x Length |
| 3"~6" | 11 x 38 mm (TW) | 3"~6" | 21.9 x 56mm (TW) 0.862" diameter x 2-3/16" |
| 3"~6" | 27 x 63 mm (TW) 1-1/16" diameter x 2-31/64" |
3"~6" | 28 x 45mm (TW) 1-7/64" diameter x 1-49/64" |
丝扣规格
| 规格 Size |
丝扣牙径 x 长度 Threaded Size |
规格 Size |
丝扣牙径 x 长度 Threaded Size |
| 3"~6" | 3/8-16UNC x 32mm (TW) | 3"~6" | 1/2-12UNC x 32mm (TW) |
| 3"~6" | 5/8-11UNC x 32mm (TW) | 3"~6" | M12-1.75 x 32mm (TW) |
空铆规格
| 规格 Size |
孔径 Centre Hole |
规格 Size |
孔径 Centre Hole |
| 3"~6" | 10.5 mm (TW)(for 3/8" & M10 shaft) | 3"~6" | 12.5 mm (TW)(for M12 shaft) |
| 3"~6" | 13mm (TW)(for 1/2" shaft) |
角铁底板规格
| 2孔规格 Two Holes Specification | 3孔规格 Three Holes Specification |
 |
 |
底板规格
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1 | 69 x 96 mm (2-23/32" x 3-25/32") |
45 x 75 mm (高级架底板) (1-3/4" x 3") |
6.35mm (1/4") |
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 1 | 69 x 96 mm (2-23/32" x 3-25/32") |
45 x 75 mm (高级架底板) (1-3/4" x 3") |
6.35mm (1/4") |
| 2 | 72 x 91 mm (2-13/16" x 3-19/32") |
53 x 72 mm (医疗/仪器架底板) (2-1/8" x 2-7/8") |
6.35mm (1/4") |
| 3 | 77 x 66.5 mm (3" x 2-5/8") |
59 x 49 mm (TW) 2-5/16" x 1-15/16" |
6.35mm (1/4") |
| 4 | 69 x 96 mm (2-23/32" x 3-25/32") |
49 x 74.5 mm (斜孔底板) (1-15/16" x 2-15/16") |
8mm (5/16") |
| 5 | 93 x 110 mm (3"-5/8" x 4-3/8") |
70 x 85 mm (重型架底板) 2-5/8"~3" x 3"~3-5/8" (Heavy Duty Plate) |
9.5mm (3/8") |
插杆规格
| 规格 Size |
插杆直径 x 长度 Diameter x Length |
规格 Size |
插杆直径 x 长度 Diameter x Length |
| 3"~6" | 11 x 38 mm (TW) | 3"~6" | 21.9 x 56mm (TW) 0.862" diameter x 2-3/16" |
| 3"~6" | 27 x 63 mm (TW) 1-1/16" diameter x 2-31/64" |
3"~6" | 28 x 45mm (TW) 1-7/64" diameter x 1-49/64" |
丝扣规格
| 规格 Size |
丝扣牙径 x 长度 Threaded Size |
规格 Size |
丝扣牙径 x 长度 Threaded Size |
| 3"~6" | 3/8-16UNC x 32mm (TW) | 3"~6" | 1/2-12UNC x 32mm (TW) |
| 3"~6" | 5/8-11UNC x 32mm (TW) | 3"~6" | M12-1.75 x 32mm (TW) |
空铆规格
| 规格 Size |
孔径 Centre Hole |
规格 Size |
孔径 Centre Hole |
| 3"~6" | 10.5 mm (TW)(for 3/8" & M10 shaft) | 3"~6" | 12.5 mm (TW)(for M12 shaft) |
| 3"~6" | 13mm (TW)(for 1/2" shaft) |
角铁底板规格
| 2孔规格 Two Holes Specification | 3孔规格 Three Holes Specification |
|
|
轮子详细资讯
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 迴旋半径 | ||
| 固定 | 活动 | 剎车 | ||||||
| 75mm x 24mm (3" x 1") |
40 kgs (88 lbs) |
超级人造胶 TPR on PP Core |
1106-R-03-75-1 | 1106-R-03-75-2 | 1106-R-03-75-4 | 滚珠 Ball Bearing |
底板类总高 Plate Version OAH: 112mm (4-7/16") 丝扣类总高 Threaded Stem OAH: 113mm (4-29/64") 插杆类总高 Cylindrical Stem OAH: 110mm (4-21/64") 两孔角铁底板总高 Two holes angle bar plate OAH: 110mm (4-21/64") 三孔角铁底板总高 Three holes angle bar plate OAH: 139mm (5-15/32") |
活动 74mm |
| 50 kgs (110 lbs) |
全效轮 Resolute |
1106-R-03-68-1 | 1106-R-03-68-2 | 1106-R-03-68-4 | ||||
| 75mm x 32mm (3"-1-1/4") |
90 kgs (198 lbs) |
超级人造胶 TPR on PP Core |
1106-03-75-1 | 1106-03-75-2 | 1106-03-75-4 | 中管 Plain Bearing 滚珠 Ball Bearing |
||
| 160 kgs (352 lbs) |
铝芯AQPU QPU on AL Core |
1106-03-87-1 | 1106-03-87-2 | 1106-03-87-4 | 滚珠 Ball Bearing |
|||
| 90 kgs (198 lbs) |
W超级人造胶 WPPR |
1106-03-47-1 | 1106-03-47-2 | 1106-03-47-4 | ||||
| 90 kgs (198 lbs) |
全效轮 Resolute |
1106-03-68-1 | 1106-03-68-2 | 1106-03-68-4 | ||||
| 110 kgs (250 lbs) |
W全效轮 W Resolute |
1106-03-48-1 | 1106-03-48-2 | 1106-03-48-4 | ||||
| 80 kgs (175 lbs) |
导电轮 E-conductive |
1106-03-17-1 | 1106-03-17-2 | 1106-03-17-4 | ||||
| 160 kgs (352 lbs) |
WMRC轮 WMRC |
1106-03-45-1 | 1106-03-45-2 | 1106-03-45-4 | ||||
| 70 kgs (155 lbs) |
橡胶轮 Rubber | 1106-03-06-1 | 1106-03-06-2 | 1106-03-06-4 | 中管 Plain Bearing |
|||
| 90 kgs (198 lbs) |
塑料轮 PP |
1106-03-29-1 | 1106-03-29-2 | 1106-03-29-4 | ||||
| 100mm x 24mm (4" x 1") |
50 kgs (110 lbs) |
超级人造胶 TPR on PP Core |
1106-R-04-75-1 | 1106-R-04-75-2 | 1106-R-04-75-4 | 滚珠 Ball Bearing |
底板类总高 Plate Version OAH: 137mm (5-25/64") 丝扣类总高 Threaded Stem OAH: 138mm (5-7/16") 插杆类总高 Cylindrical Stem OAH: 135mm (5-5/16") 两孔角铁底板总高 Two holes angle bar plate OAH: 136mm (5-23/64") 三孔角铁底板总高 Three holes angle bar plate OAH: 155mm (6-7/64") |
活动 89mm |
| 55 kgs (121 lbs) |
全效轮 Resolute |
1106-R-04-68-1 | 1106-R-04-68-2 | 1106-R-04-68-4 | ||||
| 100mm x 32mm (4" x 1-1/4") |
120kgs (265 lbs) |
高科技耐磨聚氨酯 PU on PP Core |
1106-04-31-1 | 1106-04-31-2 | 1106-04-31-4 | 滚珠 Ball Bearing 中管 Plain Bearing |
||
| 100kgs (220 lbs) |
超级人造胶 TPR on PP Core |
1106-04-75-1 | 1106-04-75-2 | 1106-04-75-4 | ||||
| 80kgs (175 lbs) |
超级人造胶(大圆弧) TPR on PP Core (Donut) |
1106-04-110-1 | 1106-04-110-2 | 1106-04-110-4 | ||||
| 90kgs (198 lbs) |
全效轮(大圆弧) Resolute (Donut) |
1106-04-111-1 | 1106-04-111-2 | 1106-04-111-4 | ||||
| 125kgs (275 lbs) |
全效轮 Resolute |
1106-04-68-1 | 1106-04-68-2 | 1106-04-68-4 | 滚珠 Ball Bearing |
|||
| 80kgs (176 lbs) |
导电轮 E-conductive |
1106-04-17-1 | 1106-04-17-2 | 1106-04-17-4 | ||||
| 135kgs (300 lbs) |
W全效轮 W Resolute |
1106-04-48-1 | 1106-04-48-2 | 1106-04-48-4 | ||||
| 180kgs (400 lbs) |
WHDR轮 WHDR |
1106-04-66-1 | 1106-04-66-2 | 1106-04-66-4 | ||||
| 100kgs (220 lbs) |
W超级人造胶 WPPR |
1106-04-47-1 | 1106-04-47-2 | 1106-04-47-4 | ||||
| 180kgs (396 lbs) |
WMRC轮 WMRC |
1106-04-45-1 | 1106-04-45-2 | 1106-04-45-4 | ||||
| 130kgs (285 lbs) |
WPP轮 WPP |
1106-04-46-1 | 1106-04-46-2 | 1106-04-46-4 | ||||
| 135kgs (300 lbs) |
铝芯橡胶轮 |
1106-04-22-1 | 1106-04-22-2 | 1106-04-22-4 | ||||
| 200kgs (440 lbs) |
铝芯AQPU QPU on AL Core |
1106-04-87-1 | 1106-04-87-2 | 1106-04-87-4 | ||||
| 70kgs (154 lbs) |
NPPR轮 NPPR |
1106-04-67-1 | 1106-04-67-2 | 1106-04-67-4 | 中管 Plain Bearing |
|||
| 120kgs (256 lbs) |
尼龙轮 Nylon |
1106-04-07-1 | 1106-04-07-2 | 1106-04-07-4 | ||||
| 135kgs (300 lbs) |
耐高温轮 Hi-temp |
1106-04-25-1 | 1106-04-25-2 | 1106-04-25-4 | ||||
| 80kgs (175 lbs) |
橡胶轮 Rubber | 1106-04-06-1 | 1106-04-06-2 | 1106-04-06-4 | ||||
| 90kgs (198 lbs) |
塑料轮 PP |
1106-04-29-1 | 1106-04-29-2 | 1106-04-29-4 | ||||
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 迴旋半径 | ||
| 固定 | 活动 | 剎车 | ||||||
| 100mm x 36mm (4" x 1-1/2") |
160 kgs (352 lbs) |
CPD轮 CPD |
1106-04-71-1 | 1106-04-71-2 | 1106-04-71-4 | 滚珠 Ball Bearing |
底板类总高 Plate Version OAH: 137mm (5-25/64") 丝扣类总高 Threaded Stem OAH: 138mm (5-7/16") 插杆类总高 Cylindrical Stem OAH: 135mm (5-5/16") 两孔角铁底板总高 Two holes angle bar plate OAH: 136mm (5-23/64") 三孔角铁底板总高 Three holes angle bar plate OAH: 155mm (6-7/64") |
活动 89mm |
| 160 kgs (352 lbs) |
蓝色弹力轮 Blue Resilient Rubber Wheel |
1106-04-50-1 | 1106-04-50-2 | 1106-04-50-4 | ||||
| 140 kgs (308 lbs) |
超级人造胶 TPR on PP Core |
1106-04-77-1 | 1106-04-77-2 | 1106-04-77-4 | ||||
| 160 kgs (352 lbs) |
全效轮 Resolute |
1106-04-76-1 | 1106-04-76-2 | 1106-04-76-4 | ||||
| 200 kgs (440 lbs) |
铝芯AQPU QPU on PP Core |
1106-04-87-1 | 1106-04-87-2 | 1106-04-87-4 | ||||
| 125mm x 24.5mm (5" x 1") |
70 kgs (155 lbs) |
超级人造胶 TPR on PP Core |
1106-R-05-75-1 | 1106-R-05-75-2 | 1106-R-05-75-4 | 滚珠 Ball Bearing |
底板类总高 Plate Version OAH: 162mm (6-3/8") 丝扣类总高 Threaded Stem OAH: 163mm (6-27/64") 插杆类总高 Cylindrical Stem OAH: 160mm (6-19/64") 两孔角铁底板总高 Two holes angle bar plate OAH: 160mm (6-19/64") 三孔角铁底板总高 Three holes angle bar plate OAH: 188mm (7-13/32") |
活动 101mm |
| 80 kgs (175 lbs) |
全效轮 Resolute |
1106-R-05-68-1 | 1106-R-05-68-2 | 1106-R-05-68-4 | ||||
| 125mm x 32mm (5" x 1-1/4") |
130 kgs (285 lbs) |
高科技耐磨聚氨酯 PU on PP Core |
1106-05-31-1 | 1106-05-31-2 | 1106-05-31-4 | 滚珠 Ball Bearing 中管 Plain Bearing |
||
| 110 kgs (240 lbs) |
超级人造胶 TPR on PP Core |
1106-05-75-1 | 1106-05-75-2 | 1106-05-75-4 | ||||
| 100 kgs (220 lbs) |
超级人造胶(大圆弧) TPR on PP Core (Donut) |
1106-05-110-1 | 1106-05-110-2 | 1106-05-110-4 | ||||
| 120 kgs (265 lbs) |
全效轮(大圆弧) Resolute (Donut) |
1106-05-111-1 | 1106-05-111-2 | 1106-05-111-4 | ||||
| 147 kgs (325 lbs) |
全效轮 Resolute |
1106-05-68-1 | 1106-05-68-2 | 1106-05-68-4 | 滚珠 Ball Bearing |
|||
| 90 kgs (198 lbs) |
导电轮 E-conductive |
1106-05-17-1 | 1106-05-17-2 | 1106-05-17-4 | ||||
| 147 kgs (325 lbs) |
W全效轮 W Resolute |
1106-05-48-1 | 1106-05-48-2 | 1106-05-48-4 | ||||
| 180 kgs (400 lbs) |
WHDR轮 WHDR |
1106-05-66-1 | 1106-05-66-2 | 1106-05-66-4 | ||||
| 110kgs (240 lbs) |
W超级人造胶 WPPR |
1106-05-47-1 | 1106-05-47-2 | 1106-05-47-4 | ||||
| 200kgs (440 lbs) |
WMRC轮 WMRC |
1106-05-45-1 | 1106-05-45-2 | 1106-05-45-4 | ||||
| 150kgs (330 lbs) |
WPP轮 WPP |
1106-05-46-1 | 1106-05-46-2 | 1106-05-46-4 | ||||
| 200kgs (440 lbs) |
铝芯AQPU QPU on PP Core |
1106-05-87-1 | 1106-05-87-2 | 1106-05-87-4 | ||||
| 140kgs (305 lbs) |
尼龙轮 Nylon |
1106-05-07-1 | 1106-05-07-2 | 1106-05-07-4 | 中管 Plain Bearing |
|||
| 90kgs (198 lbs) |
橡胶轮 Rubber | 1106-05-06-1 | 1106-05-06-2 | 1106-05-06-4 | ||||
| 100kgs (220 lbs) |
塑料轮 PP |
1106-05-29-1 | 1106-05-29-2 | 1106-05-29-4 | ||||
| 125mm x 36mm (5" x 1-1/2") |
200kgs (440 lbs) |
CPD轮 CPD |
1106-05-71-1 | 1106-05-71-2 | 1106-05-71-4 | 滚珠 Ball Bearing |
||
| 250kgs (550 lbs) |
蓝色弹力轮 Blue Resilient Rubber Wheel |
1106-05-50-1 | 1106-05-50-2 | 1106-05-50-4 | ||||
| 160kgs (352 lbs) |
超级人造胶 TPR on PP Core |
1106-05-77-1 | 1106-05-77-2 | 1106-05-77-4 | ||||
| 180kgs (400 lbs) |
全效轮 Resolute |
1106-05-76-1 | 1106-05-76-2 | 1106-05-76-4 | ||||
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 迴旋半径 | ||
| 固定 | 活动 | 剎车 | ||||||
| 150mm x 32mm (6" x 1-1/4") |
130kgs (285 lbs) |
高科技耐磨聚氨酯 PU on PP Core |
1106-05-31-1 | 1106-05-31-2 | 1106-05-31-4 | 滚珠 Ball Bearing |
底板类总高 Plate Version OAH: 187mm (7-23/64") 丝扣类总高 Threaded Stem OAH: 188mm (7-13/32") 插杆类总高 Cylindrical Stem OAH: 185mm (7-9/32") 两孔角铁底板总高 Two holes angle bar plate OAH: 184mm (7-1/4") 三孔角铁底板总高 Three holes angle bar plate OAH: 204mm (8-1/32") |
活动 113mm 剎车(一般踏板) 113mm 剎车(长踏板) 125mm 侧剎 113mm Swivel 113mm Swivel W/Total lock (regular pedal) 113mm Swivel W/Total lock (Long pedal) 125mm Swivel W/Side Brake 113mm |
| 110kgs (240 lbs) |
超级人造胶 TPR on PP Core |
1106-05-75-1 | 1106-05-75-2 | 1106-05-75-4 | ||||
| 147kgs (325 lbs) |
全效轮 Resolute |
1106-05-68-1 | 1106-05-68-2 | 1106-05-68-4 | ||||
| 147kgs (325 lbs) |
W全效轮 W Resolute |
1106-05-48-1 | 1106-05-48-2 | 1106-05-48-4 | ||||
| 200kgs (440 lbs) |
WHDR轮 WHDR |
1106-05-66-1 | 1106-05-66-2 | 1106-05-66-4 | ||||
| 110kgs (240 lbs) |
W超级人造胶 WPPR |
1106-05-47-1 | 1106-05-47-2 | 1106-05-47-4 | ||||
