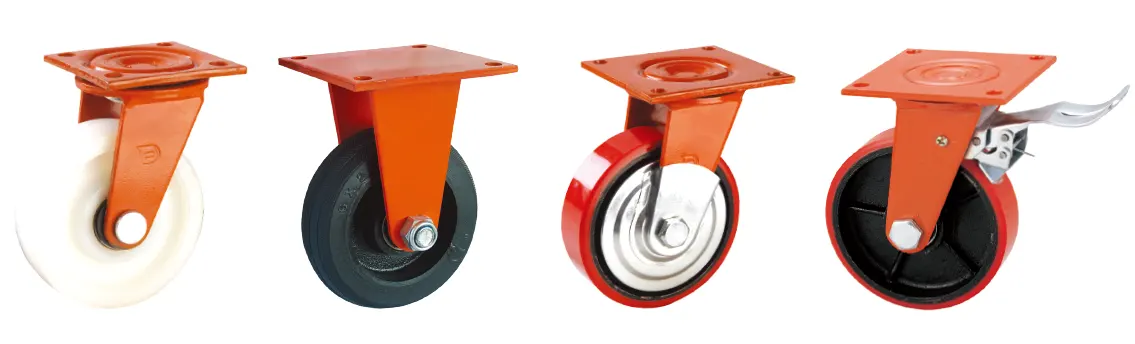

1103系列 — C型系列
高负载且转动灵活，普遍适用于一般工厂搬运，另可附防缠丝及防尘盖，属得貹专利产品，可以有效防止脚轮因灰尘或缠丝而无法转动，提高脚轮使用寿命。
特色区

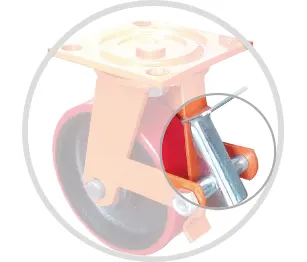

BCD剎(中剎)

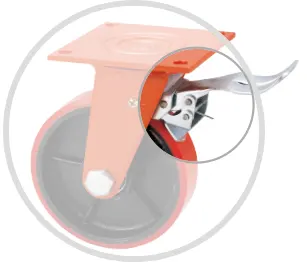

K剎

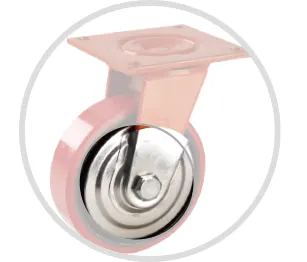

轮子可附防缠丝盖

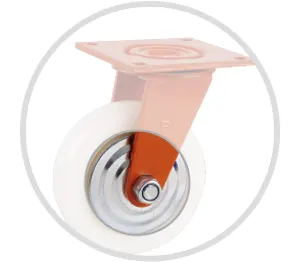

轮子可附防尘盖
特色区
BCD剎(中剎)
K剎
轮子可附防缠丝盖
轮子可附防尘盖
轮子选择
-
铁芯聚氨酯
-
三星轮
-
尼龙轮
-
WMRC轮
-
QPU轮
-
CPD轮
-
铣轮
-
EPU轮
底板规格
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 4"C型架 4"Caster |
100 x 115 mm (3-15/16"x 4-1/2") | 75 x 75 mm (3"x 3") | 10 mm(3/8") |
| 5"C型架 5"Caster |
100 x 115 mm (3-15/16"x 4-1/2") | 75 x 75 mm (3"x 3") | 10 mm(3/8") |
| 6"C型架 6"Caster |
125 x 125 mm (4-15/16"x 4-15/16") | 105 x 105 mm (4-1/8"x 4-1/8") | 10 mm(3/8") |
| 8"C型架 8"Caster |
125 x 125 mm (4-15/16"x 4-15/16") | 105 x 105 mm (4-1/8"x 4-1/8") | 10 mm(3/8") |
| 10",12"C型架 10",12"Caster |
160 x 160 mm (6-5/16"x 6-5/16") | 130 x 130 mm (5-1/8"x 5-1/8") | M12 |
底板规格
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 4"C型架 4"Caster |
100 x 115 mm (3-15/16"x 4-1/2") | 75 x 75 mm (3"x 3") | 10 mm(3/8") |
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 4"C型架 4"Caster |
100 x 115 mm (3-15/16"x 4-1/2") | 75 x 75 mm (3"x 3") | 10 mm(3/8") |
| 5"C型架 5"Caster |
100 x 115 mm (3-15/16"x 4-1/2") | 75 x 75 mm (3"x 3") | 10 mm(3/8") |
| 6"C型架 6"Caster |
125 x 125 mm (4-15/16"x 4-15/16") | 105 x 105 mm (4-1/8"x 4-1/8") | 10 mm(3/8") |
| 8"C型架 8"Caster |
125 x 125 mm (4-15/16"x 4-15/16") | 105 x 105 mm (4-1/8"x 4-1/8") | 10 mm(3/8") |
| 10",12"C型架 10",12"Caster |
160 x 160 mm (6-5/16"x 6-5/16") | 130 x 130 mm (5-1/8"x 5-1/8") | M12 |
轮子详细资讯
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 迴旋半径 | ||
| 固定 | 活动 | 剎车 | ||||||
| 100mm x 34mm (4" x 1-3/8") |
250 kgs (550 lbs) | QPU轮 QPU |
1103-04-80-1 | 1103-04-80-2 | 1103-04-80-4 | 滚珠 Ball Bearing |
145mm (5-11/16") |
活动 75mm K剎 75mm BCD剎 105mm Swivel 75mm Swivel W/Center lock(K type)75mm Swivel W/Center lock 105mm |
| 100mm x 38mm (4" x 1-1/2") |
200 kgs (440 lbs) | 铁芯聚氨酯 PU on Cast |
1103-04-33-1 | 1103-04-33-2 | 1103-04-33-4 | |||
| 200 kgs (440 lbs) | 三星轮 Rubber on Cast |
1103-04-03-1 | 1103-04-03-2 | 1103-04-03-4 | ||||
| 200 kgs (440 lbs) | CPD轮 CPD |
1103-04-49-1 | 1103-04-49-2 | 1103-04-49-4 | ||||
| 250 kgs (550 lbs) | 尼龙轮 Nylon |
1103-04-07-1 | 1103-04-07-2 | 1103-04-07-4 | ||||
| 250 kgs (550 lbs) | 铣轮 Cast Iron |
1103-04-14-1 | 1103-04-14-2 | 1103-04-14-4 | ||||
| 125mm x 40mm (5" x 1-9/16") |
300 kgs (660 lbs) | QPU轮 QPU |
1103-05-80-1 | 1103-05-80-2 | 1103-05-80-4 | 滚珠 Ball Bearing |
168.5mm (6-5/8") |
活动 91mm K剎 91mm BCD剎 106mm Swivel 91mm Swivel W/Center lock(K type)91mm Swivel W/Center lock 106mm |
| 300 kgs (660 lbs) | EPU轮 EPU |
1103-05-78-1 | 1103-05-78-2 | 1103-05-78-4 | ||||
| 125mm x 42mm (5" x 1-5/8") |
250 kgs (550 lbs) | 铁芯聚氨酯 PU on Cast |
1103-05-33-1 | 1103-05-33-2 | 1103-05-33-4 | |||
| 220 kgs (485 lbs) | 三星轮 Rubber on Cast |
1103-05-03-1 | 1103-05-03-2 | 1103-05-03-4 | ||||
| 250 kgs (550 lbs) | CPD轮 CPD |
1103-05-49-1 | 1103-05-49-2 | 1103-05-49-4 | ||||
| 300 kgs (660 lbs) | 尼龙轮 Nylon |
1103-05-07-1 | 1103-05-07-2 | 1103-05-07-4 | ||||
| 300 kgs (660 lbs) | 铣轮 Cast Iron |
1103-05-14-1 | 1103-05-14-2 | 1103-05-14-4 | ||||
| 150mm x 42mm (6" x 1-5/8") |
350 kgs (770 lbs) | QPU轮 QPU |
1103-06-80-1 | 1103-06-80-2 | 1103-06-80-4 | 滚珠 Ball Bearing |
197mm (7-3/4") |
活动 106mm K剎 106mm BCD剎 166mm Swivel 106mm Swivel W/Center lock(K type)106mm Swivel W/Center lock 166mm |
| 350 kgs (770 lbs) | EPU轮 EPU |
1103-06-78-1 | 1103-06-78-2 | 1103-06-78-4 | ||||
| 150mm x 48mm (6" x 1-7/8") |
300 kgs (660 lbs) | 铁芯聚氨酯 PU on Cast |
1103-06-33-1 | 1103-06-33-2 | 1103-06-33-4 | |||
| 260 kgs (570 lbs) | 三星轮 Rubber on Cast |
1103-06-03-1 | 1103-06-03-2 | 1103-06-03-4 | ||||
| 300 kgs (660 lbs) | CPD轮 CPD |
1103-06-49-1 | 1103-06-49-2 | 1103-06-49-4 | ||||
| 350 kgs (770 lbs) | 尼龙轮 Nylon |
1103-06-07-1 | 1103-06-07-2 | 1103-06-07-4 | ||||
| 350 kgs (770 lbs) | 铣轮 Cast Iron |
1103-06-14-1 | 1103-06-14-2 | 1103-06-14-4 | ||||
| 350 kgs (770 lbs) | WMRC轮 WMRC |
1103-06-45-1 | 1103-06-45-2 | 1103-06-45-4 | ||||
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 迴旋半径 | ||
| 固定 | 活动 | 剎车 | ||||||
| 200mm x 45mm (8" x 1-6/8") |
400 kgs (880 lbs) | QPU轮 QPU |
1103-08-80-1 | 1103-08-80-2 | 1103-08-80-4 | 滚珠 Ball Bearing |
244mm (9-5/8") |
活动 147mm K剎 147mm BCD剎 168mm Swivel 147mm Swivel W/Center lock(K type)147mm Swivel W/Center lock 168mm |
| 200mm x 48mm (8" x 1-7/8") |
350 kgs (770 lbs) | 铁芯聚氨酯 PU on Cast |
1103-08-33-1 | 1103-08-33-2 | 1103-08-33-4 | |||
| 300 kgs (660 lbs) | 三星轮 Rubber on Cast |
1103-08-03-1 | 1103-08-03-2 | 1103-08-03-4 | ||||
| 350 kgs (770 lbs) | CPD轮 CPD |
1103-08-49-1 | 1103-08-49-2 | 1103-08-49-4 | ||||
| 400 kgs (880 lbs) | 尼龙轮 Nylon |
1103-08-07-1 | 1103-08-07-2 | 1103-08-07-4 | ||||
| 400 kgs (880 lbs) | 铣轮 Cast Iron |
1103-08-14-1 | 1103-08-14-2 | 1103-08-14-4 | ||||
| 400 kgs (880 lbs) | WMRC轮 WMRC |
1103-08-45-1 | 1103-08-45-2 | 1103-08-45-4 | ||||
| 200mm x 50mm (8" x 2") |
400 kgs (880 lbs) | QPU轮 QPU |
1103-08-80-1 | 1103-08-80-2 | 1103-08-80-4 | |||
| 400 kgs (880 lbs) | EPU轮 EPU |
1103-08-78-1 | 1103-08-78-2 | 1103-08-78-4 | ||||
| 254mm x 50mm (10" x 2") |
450 kgs (990 lbs) | 尼龙轮 Nylon |
1103-10-07-1 | 1103-10-07-2 | — | 滚珠 Ball Bearing |
320mm (12-5/8") |
活动 181mm Swivel 181mm |
| 254mm x 62mm (10" x 2-7/16") |
450 kgs (990 lbs) | 铁芯聚氨脂 PU on Cast |
1103-10-33-1 | 1103-10-33-2 | — | |||
| 450 kgs (990 lbs) | QPU轮 QPU |
1103-10-80-1 | 1103-10-80-2 | — | ||||
| 300mm x 70mm (12" x 2-3/4") |
500 kgs (1100 lbs) | 铁芯聚氨脂 PU on Cast |
1103-12-33-1 | 1103-12-33-2 | — | 滚珠 Ball Bearing |
350mm (13-3/4") |
活动 221mm Swivel 221mm |
