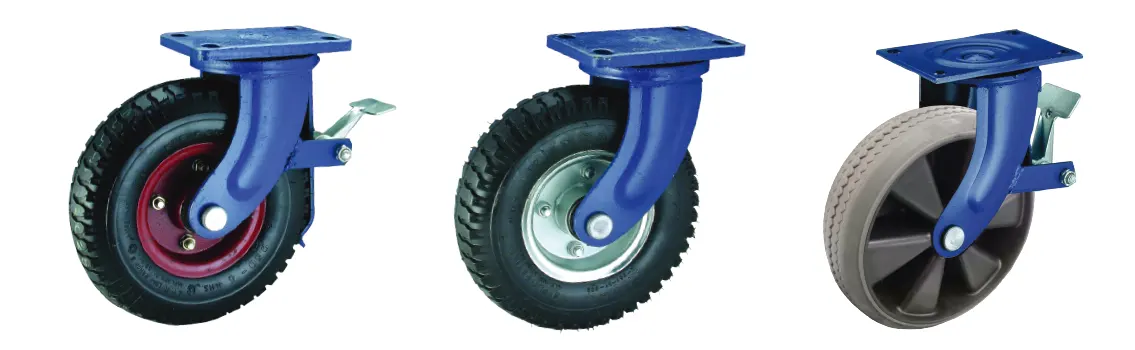

1102系列 — P型系列
超高负载且旋转灵活，适用于负载重的车间，更能游刃有馀于凹凸不平的路面环境。
轮子选择
-
风轮(烤漆铁框)
-
风轮(塑框)
-
风轮(镀锌铁框)
-
风硬轮(烤漆铁框)
-
防爆轮
-
风硬W全效轮
-
风硬全效轮
-
铁芯NBR橡胶轮
-
风硬轮(镀锌铁框)
底板规格
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 8" B风架 8" caster |
110 x 140mm (4-1/3" x 5-1/2") | 75~80 x 110mm (3-1/8" x 4-5/16") | 12.7mm (1/2") |
| 10" B风架,12" B风架 10" caster,12" caster |
130 x 172mm (5-1/8" x 6-3/4") | 100 x 140mm (3-15/16" x 5-1/2") | 12.7mm (1/2") |
底板规格
| 规格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 8" B风架 8" caster |
110 x 140mm (4-1/3" x 5-1/2") | 75~80 x 110mm (3-1/8" x 4-5/16") | 12.7mm (1/2") |
| 脚轮尺寸 | 底板尺寸 | 底板孔距 | 安装尼帽尺寸 |
| 8" B风架 8" caster |
110 x 140mm (4-1/3" x 5-1/2") | 75~80 x 110mm (3-1/8" x 4-5/16") | 12.7mm (1/2") |
| 10" B风架,12" B风架 10" caster,12" caster |
130 x 172mm (5-1/8" x 6-3/4") | 100 x 140mm (3-15/16" x 5-1/2") | 12.7mm (1/2") |
轮子详细资讯
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 迴旋半径 | 轮子样式 | ||
| 固定 | 活动 | 剎车 | |||||||
| 200mm x 53mm (8" x 2-1/8") |
120 kgs (265 lbs) | 风硬轮 Solid Rubber |
1102-P-08-02-1 | 1102-P-08-02-2 | 1102-P-08-02-4 | 滚珠 Ball Bearing |
248mm (9-3/4") |
活动 160.5mm 中剎 160.5mm Swivel 160.5mm Swivel W/Brake 160.5mm |
 |
| 202mm x 51mm (8" x 2") |
180 kgs (400 lbs) | 风硬全效轮 Resolute Rubber |
1102-P-08-53-1 | 1102-P-08-53-2 | 1102-P-08-53-4 | 滚珠 Ball Bearing |
249mm (9-13/16") |
活动 161.5mm 中剎 161.5mm Swivel 161.5mm Swivel W/Brake 161.5mm |
 |
| 208mm x 55mm (8-3/16" x 2-9/16") |
100 kgs (220 lbs) | 防爆轮 Flat Free Tire |
1102-P-08-05-1 | 1102-P-08-05-2 | 1102-P-08-05-4 | 滚珠 Ball Bearing |
252mm (9-15/16") |
活动 164.5mm 中剎 164.5mm Swivel 164.5mm Swivel W/Brake 164.5mm |
 |
| 216mm x 65mm (8-1/2" x 2-9/16") |
150 kgs (330 lbs) | 风轮 Pneumatic |
1102-P-08-01-1 | 1102-P-08-01-2 | 1102-P-08-01-4 | 滚珠 Ball Bearing |
256mm (10-1/16") |
活动 168.5mm 中剎 168.5mm Swivel 168.5mm Swivel W/Brake 168.5mm |
 |
| 246mm x 74mm (10" x 2-15/16") |
230 kgs (505 lbs) | 风硬W全效轮 W Resolute Rubber |
1102-P-10-95-1 | 1102-P-10-95-2 | 1102-P-10-95-4 | 滚珠 Ball Bearing |
314mm (12-3/8") |
活动 195.5mm 中剎 195.5mm Swivel 195.5mm Swivel W/Brake 195.5mm |
 |
| 250mm x 74mm (10" x 2-15/16") |
180 kgs (395 lbs) | 风硬轮 Solid Rubber |
1102-P-10-02-1 | 1102-P-10-02-2 | 1102-P-10-02-4 | 滚珠 Ball Bearing |
316mm (12-7/16") |
活动 197.5mm 中剎 197.5mm Swivel 197.5mm Swivel W/Brake 197.5mm |
|
| 252mm x 71mm (10" x 2-13/16") |
300 kgs (660 lbs) | 铁芯NBR橡胶轮 NBR Rubber on Cast |
1102-P-10-04-1 | 1102-P-10-04-2 | 1102-P-10-04-4 | 滚珠 Ball Bearing |
317mm (12-1/2") |
活动 198.5mm 中剎 198.5mm Swivel 198.5mm Swivel W/Brake 198.5mm |
 |
| 260mm x 85mm (10-1/4" x 3-3/8") |
150 kgs (330 lbs) | 防爆轮 Flat Free Tire |
1102-P-10-05-1 | 1102-P-10-05-2 | 1102-P-10-05-4 | 滚珠 Ball Bearing |
321mm (12-5/8") |
活动 202.5mm 中剎 202.5mm Swivel 202.5mm Swivel W/Brake 202.5mm |
|
| 270mm x 86mm (10-5/8" x 3-3/8") |
200 kgs (440 lbs) | 风轮 Pneumatic |
1102-P-10-01-1 | 1102-P-10-01-2 | 1102-P-10-01-4 | 滚珠 Ball Bearing |
326mm (12-7/8") |
活动 207.5mm 中剎 207.5mm Swivel 207.5mm Swivel W/Brake 207.5mm |
|
| 307mm x 85mm (12-1/8" x 3-3/8") |
250 kgs (550 lbs) | 风轮 Pneumatic |
1102-P-12-01-1 | 1102-P-12-01-2 | 1102-P-12-01-4 | 滚珠 Ball Bearing |
363.5mm (14-5/6") |
活动 224.5mm 中剎 224.5mm Swivel 224.5mm Swivel W/Brake 224.5mm |
|
| 308mm x 76mm (12-1/8" x 3") |
350 kgs (770 lbs) | 铁芯NBR橡胶轮 NBR Rubber on Cast |
1102-P-12-04-1 | 1102-P-12-04-2 | 1102-P-12-04-4 | 滚珠 Ball Bearing |
363.5mm (14-5/6") |
活动 224.5mm 中剎 224.5mm Swivel 224.5mm Swivel W/Brake 224.5mm |
|
