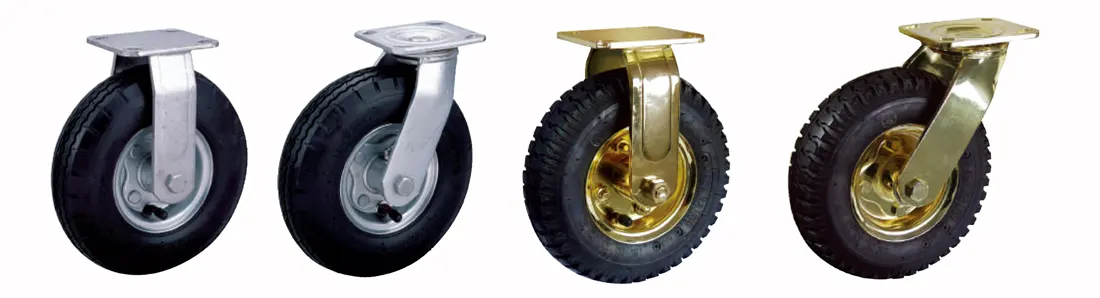

1101系列 — D型风轮系列
荷重高，稳定性佳，尤适用于饭店行李车使用。
轮子选择
-
.webp)
风轮
(烤漆铁框) -
.webp)
风轮
(塑框) -
.webp )
风轮
(镀锌铁框) -
.webp)
风硬轮
(烤漆铁框) -
.webp)
风硬轮
(镀锌铁框)
底板规格
| 编号 | 底板尺寸 | 底板孔径 | 安装尼帽尺寸 |
| 1 | 115 x 100mm (4-1/2" × 3-15/16") | 85 x 70mm (3-5/16" × 2-3/4") | 11mm (7/16") |
| 2 | 115 x 159mm (4-1/2" × 6-1/4") | 75 x 130mm (3-7/16"~3-3/8" × 4-15/16"~5-1/4") | 12.7mm (1/2") |
| 3 | 100 x 144mm (3-15/16" × 4-1/2") | 75 x 120mm (3" × 4-3/4") | 12mm (1/2") |
底板规格
| 编号 | 底板尺寸 | 底板孔径 | 安装尼帽尺寸 |
| 1 | 115 x 100mm (4-1/2" × 3-15/16") |
85 x 70mm (3-5/16" × 2-3/4") |
11mm (7/16") |
| 编号 | 底板尺寸 | 底板孔径 | 安装尼帽尺寸 |
| 1 | 115 x 100mm (4-1/2" × 3-15/16") |
85 x 70mm (3-5/16" × 2-3/4") |
11mm (7/16") |
| 2 | 115 x 159mm (4-1/2" × 6-1/4") |
75 x 130mm (3-7/16"~3-3/8" × 4-15/16"~5-1/4") |
12.7mm (1/2") |
| 3 | 100 x 144mm (3-15/16" × 4-1/2") |
75 x 120mm (3" × 4-3/4") |
12mm (1/2") |
轮子详细资讯
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 迴旋半径 | ||
| 固定 | 活动 | 剎车 | ||||||
| 214 x 59mm (8-7/16" x 2-5/16") |
100kgs(220 lbs) | 风轮 Pneumatic |
1101-08-01-1 | 1101-08-01-2 | — | 滚珠 Ball Bearing |
245mm (9-5/8") |
活动181mm Swivel 181mm |
| 200 x 52mm (8" x 2") |
100kgs(220 lbs) | 风硬轮 Solid Rubber |
1101-08-02-1 | 1101-08-02-2 | — | 滚珠 Ball Bearing |
238mm (9-3/8") |
活动174mm Swivel 174mm |
| 262 x 82mm (10-5/16" x 3-1/4") |
125kgs(275 lbs) | 风轮 Pneumatic |
1101-10-01-1 | 1101-10-01-2 | — | 滚珠 Ball Bearing |
309mm (12-3/16") |
活动190mm Swivel 190mm |
| 250 x 68mm (10" x 2-11/16") |
125kgs(275 lbs) | 风硬轮 Solid Rubber |
1101-10-02-1 | 1101-10-02-2 | — | 滚珠 Ball Bearing |
303mm (11-15/16") |
活动184mm Swivel 184mm |
