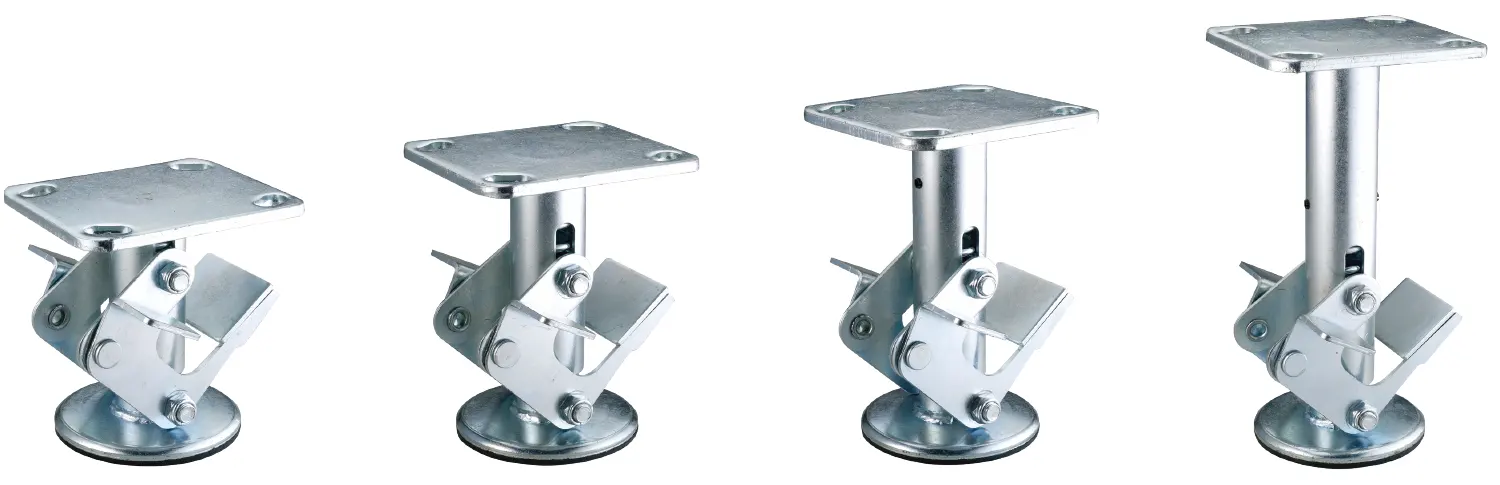

1304系列 — 頂高器系列
此產品適用於支撐台車。
底板詳細資訊
| 規格 Size |
型號 Item No. |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安裝尼帽尺寸 Attaching Bolt Size |
總高 Retracted Height |
伸長總高 Extended Height |
| 4" | 1304-04 | 100 × 115mm (4" × 4-1/2") |
70 × 85mm (2-3/4" × 3-7/16") |
9.5mm (3/8") |
120mm (4-5/8") | 153mm (6") |
| 5" | 1304-05 | 145mm (5-5/8") | 178mm (7") | |||
| 6" | 1304-06 | 168mm (6-5/8") | 201mm (8") | |||
| 8" | 1304-08 | 218mm (8-5/8") | 251mm (10") |
