1300系列 — 手推車系列
A 塑鋼平板車
採用強化塑鋼板，荷重不易變形。把手採用鍍鉻處理，美觀耐用。尺寸大小多樣，可供多類場所空間搭配使用。
B 四輪手推車
手把底部經特殊補強設計，不易變形，並使車台更具穩定性。
特色區
鐵管補強
(可選配，適用於中黃、大黃、DS-4、DS-5)
角落防撞塊(只適用DS-5)
止滑條(只適用DS-5)
角落邊條(只適用DS-5)

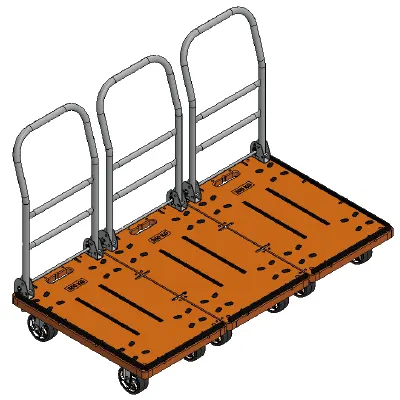

彈性的模組組合
(只適用DS-5)
特色區
鐵管補強
(可選配，適用於中黃、大黃、DS-4、DS-5)
角落防撞塊(只適用DS-5)
止滑條(只適用DS-5)
角落邊條(只適用DS-5)
彈性的模組組合
(只適用DS-5)
詳細資訊(A 塑鋼平板車)
| 平板車規格 Truck Plate Dimension (L × W) |
所搭配腳輪規格 Specs of Casters Assembled |
載重 Load |
型號 Item No. |
||||
| 輪徑 Wheel Diameter |
輪寬 Wheel Width |
鐵管補強 (with Steel Tube) (勾選V) |
材質 Material |
軸承 Bearing |
|||
| 380mm × 600mm (小黃) |
75mm (3") | 32mm (1-1/4") | W 全效輪 W Resolute Wheel |
滾珠 Ball Bearing |
160kgs (352 lbs) | 130432000304 | |
| 100mm (4") | 32mm (1-1/4") | 180kgs (396 lbs) | 130432000408 | ||||
| 平板車規格 Truck Plate Dimension (L × W) |
所搭配腳輪規格 Specs of Casters Assembled |
載重 Load |
型號 Item No. |
||||
| 輪徑 Wheel Diameter |
輪寬 Wheel Width |
鐵管補強 (with Steel Tube) (勾選V) |
材質 Material |
軸承 Bearing |
|||
| 500mm × 810mm (中黃) |
100mm (4") | 32mm (1-1/4") | W 全效輪 W Resolute Wheel |
滾珠 Ball Bearing |
200kgs (440 lbs) | 130432000408 | |
| V | 250kgs (550 lbs) | 130432000410 | |||||
| 125mm (5") | 32mm (1-1/4") | 220kgs (480 lbs) | 130432000502 | ||||
| V | 300kgs (660 lbs) | 130432000514 | |||||
| 600mm × 900mm (大黃) |
100mm (4") | 32mm (1-1/4") | W 全效輪 W Resolute Wheel |
滾珠 Ball Bearing |
300kgs (660 lbs) | 130432000408 | |
| V | 420kgs (924 lbs) | 130432000406 | |||||
| 125mm (5") | 32mm (1-1/4") | 320kgs (704 lbs) | 130432000531 | ||||
| V | 450kgs (990 lbs) | 130432000514 | |||||
| 470mm × 720mm DS-4 |
100mm (4") | 32mm (1-1/4") | W 全效輪 W Resolute Wheel |
滾珠 Ball Bearing |
200kgs (440 lbs) | 130431000418 | |
| V | 250kgs (550 lbs) | 130431000419 | |||||
| 125mm (5") | 32mm (1-1/4") | 220kgs (480 lbs) | 130431000515 | ||||
| V | 300kgs (660 lbs) | 130431000526 | |||||
| 470mm × 760mm DS-5 |
100mm (4") | 32mm (1-1/4") | V | W 全效輪 W Resolute Wheel |
滾珠 Ball Bearing |
280kgs (616 lbs) | 130433010402 |
| 125mm (5") | 32mm (1-1/4") | V | 300kgs (660 lbs) | 130433010502 | |||
詳細資訊(B 四輪手推車)
| 平板車規格 Truck Plate Dimension (L × W × H) |
所搭配腳輪規格 Specs of Casters Assembled |
載重 Load |
型號 Item No. |
|||
| 輪徑 Wheel Diameter |
輪寬 Wheel Width |
材質 Material |
軸承 Bearing |
|||
| 740mm × 480mm × 860mm | 100mm (4") | 32mm (1-1/4") | 黑胎輪 Black Rubber on Steel/Plastic Core |
滾針 Roller Bearing |
150kgs (330 lbs) | 1304-B01-04-01 |
| 920mm × 620mm × 880mm | 125mm (5") | 32mm (1-1/4") | 黑胎輪 Black Rubber on Steel/Plastic Core |
滾針 Roller Bearing |
300kgs (660 lbs) | 1304-B02-04-01 |
