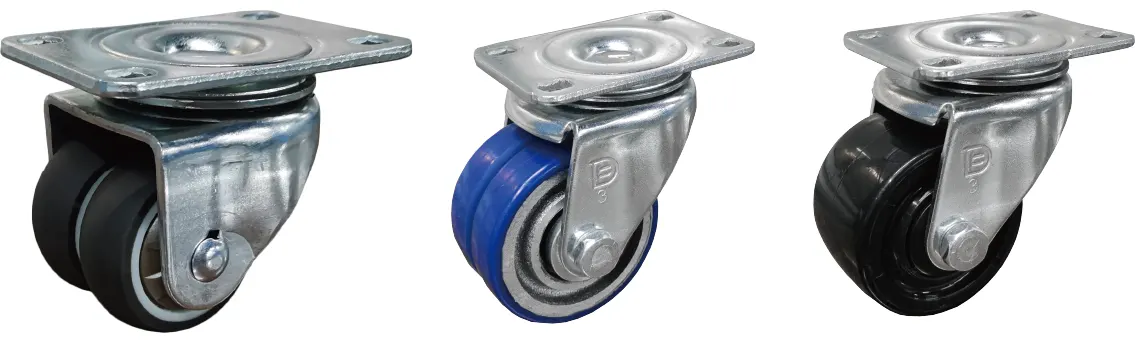

1165系列 — AMR/AGV-6 強化美國輪-雙輪系列(中輕型)
腳架采用高鋼性板材，配合熱處理珠道及高精密滾珠來達到極高的荷重與長時間的使用壽命，腳架旋轉靈活、同時確保低重心需求，輪面接觸地面大或雙輪結構，受力支撐更平穩使用更持久， 適用於AMR/AGV (無人車)使用 。
輪子選擇
-
全效雙輪
-
ZQPU輪
-
ZQPU輪(抗靜電)
-
尼龍輪
-
金鋼輪
-
鋁芯AQPU
-
QPU輪
-
EQPU輪
*有其它抗靜電輪可供選擇，如有需求請聯絡工廠
底板規格
| 編號 Suffix |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安裝尼帽尺寸 Attaching Bolt Size |
| 1 | 85 x 105 mm (3-5/16" x 4-1/8") |
60 x 80 mm(歐規底板) 2-3/8"x3-1/4"(European Plate) |
8 mm (5/16") |
| 2 | 95 x65 mm (3-3/4" x 2-1/2") |
75 x 45 mm (3" x 1-3/4") |
8 mm (5/16") |
| 3 | 100 x 115 mm (3-7/8" x 4-1/2") |
75 x 80 mm (3" x 3-1/4") |
10 mm (3/8") |
底板規格
| 編號 Suffix |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安裝尼帽尺寸 Attaching Bolt Size |
| 1 | 85 x 105 mm (3-5/16" x 4-1/8") |
60 x 80 mm(歐規底板) 2-3/8"x3-1/4"(European Plate) |
8 mm (5/16") |
| 編號 Suffix |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安裝尼帽尺寸 Attaching Bolt Size |
| 1 | 85 x 105 mm (3-5/16" x 4-1/8") |
60 x 80 mm(歐規底板) 2-3/8"x3-1/4"(European Plate) |
8 mm (5/16") |
| 2 | 95 x65 mm (3-3/4" x 2-1/2") |
75 x 45 mm (3" x 1-3/4") |
8 mm (5/16") |
| 3 | 100 x 115 mm (3-7/8" x 4-1/2") |
75 x 80 mm (3" x 3-1/4") |
10 mm (3/8") |
輪子詳細資訊
| 輪徑 × 輪寬 | 載重 | 材質 | 型號 | 軸承 | 總高 | 迴旋半徑 | ||
| 固定 | 活動 | 煞車 | ||||||
| 50mm x 45mm (2" x 1-3/4") |
200kgs (440lbs) |
尼龍輪 Nylon |
— | 1165-02-07-2(6) | — | 滾珠軸承 Ball Bearing |
74mm (2-7/8") |
48mm (1-7/8") |
| 250kgs (551lbs) |
金鋼輪 King Kong Wheel |
— | 1165-02-100-2(6) | — | ||||
| 50mm x 20mm(41.5) (2" x 3/4") |
70kgs (154lbs) |
ZQPU雙輪 ZQPU(Dual Wheels) |
— | 1165-02-101-2(6) | — | |||
| 70kgs (154lbs) |
ZQPU輪(抗靜電) QPU(Dual Anti-Static Wheels) |
— | 1165-02-101-2(6) | — | ||||
| 50mm x 22.5mm (2" x 7/8") |
60kgs (132lbs) |
全效雙輪 Resolute(Dual Wheels) |
— | 1165-02-68-2(6) | — | |||
| 50mm x 45mm (2" x 1-3/4") |
200kgs (440lbs) |
尼龍輪 Nylon |
— | 1165-02-07-2(6) | — | 滾珠軸承 Ball Bearing |
83.5mm (3-1/4") |
56mm (2-1/4") |
| 250kgs (551lbs) |
金鋼輪 King Kong Wheel |
— | 1165-02-100-2(6) | — | ||||
| 50mm x 20mm(41.5) (2" x 3/4") |
70kgs (154lbs) |
ZQPU雙輪 ZQPU(Dual Wheels) |
— | 1165-02-101-2(6) | — | |||
| 70kgs (154lbs) |
ZQPU輪(抗靜電) QPU(Dual Anti-Static Wheels) |
— | 1165-02-101-2(6) | — | ||||
| 50mm x 22.5mm (2" x 7/8") |
60kgs (132lbs |
全效雙輪 Resolute(Dual Wheels) |
— | 1165-02-68-2(6) | — | |||
| 62.5mm x 45mm (2.5" x 1-3/4") |
250kgs (551lbs) |
尼龍輪 Nylon |
— | 1165-25-07-2(6) | — | 滾珠軸承 Ball Bearing |
90mm (3-1/2") |
60mm (3-5/8") |
| 450kgs (992lbs) |
金鋼輪 King Kong Whee |
— | 1165-25-100-2(6) | — | ||||
| 62.5mm x 20mm(41.5) (2.5" x 3/4") |
250kgs (551lbs) |
ZQPU雙輪 ZQPU(Dual Wheels) |
— | 1165-25-101-2(6) | — | |||
| 200kgs (440lbs) |
ZQPU輪(抗靜電) QPU(Dual Anti-Static Wheels) |
— | 1165-25-101-2(6) | — | ||||
| 62.5mm x 45mm (2.5" x 1-3/4") |
250kgs (551lbs) |
尼龍輪 Nylon |
— | 1165-25-07-2(6) | — | 滾珠軸承 Ball Bearing |
96mm (3-3/4") |
68.5mm (2-3/4") |
| 450kgs (992lbs) |
金鋼輪 King Kong Wheel |
— | 1165-25-100-2(6) | — | ||||
| 62.5mm x 20mm(41.5) (2.5" x 3/4") |
250kgs (551lbs) |
ZQPU雙輪 ZQPU(Dual Wheels) |
— | 1165-25-101-2(6) | — | |||
| 200kgs (440lbs) |
ZQPU輪(抗靜電) QPU(Dual Anti-Static Wheels) |
— | 1165-25-101-2(6) | — | ||||
| 75mm x 45mm (3" x 1-3/4") |
300kgs (661lbs) |
尼龍輪 Nylon |
— | 1165-03-07-2(6) | — | 滾珠軸承 Ball Bearing |
102.5mm (4") |
75mm (3") |
| 500kgs (1102lbs) |
金鋼輪 King Kong Wheel |
— | 1165-03-100-2(6) | — | ||||
| 75mm x 20mm(41.5) (3" x 3/4") |
300kgs (661lbs) |
ZQPU雙輪 ZQPU(Dual Wheels) |
— | 1165-03-101-2(6) | — | |||
| 250kgs (551lbs) |
ZQPU輪(抗靜電) QPU(Dual Anti-Static Wheels) |
— | 1165-03-101-2(6) | — | ||||
| 100mm x 34mm (4" x 1-3/8") |
300kgs (661lbs) |
鋁芯AQPU QPU on AL Core |
— | 1165-04-87-2(6) | — | 滾珠軸承 Ball Bearing |
130mm (5-1/8") |
90mm (3-1/2") |
| 100mm x 40mm (4" x 1-5/8") |
350kgs (770lbs) |
鋁芯AQPU QPU on AL Core |
— | 1165-04-87-2(6) | — | |||
| 100mm x 20mm(41.5) (4" x 3/4") |
300kgs (661lbs) |
ZQPU雙輪 ZQPU(Dual Wheels) |
— | 1165-04-101-2(6) | — | |||
| 250kgs (551lbs) |
ZQPU輪(抗靜電) QPU(Dual Anti-Static Wheels) |
— | 1165-04-101-2(6) | — | ||||
| 125mm x 40mm (5" x 1-5/8") |
350kgs (770lbs) |
鋁芯AQPU QPU on AL Core |
— | 1165-05-87-2(6) | — | 滾珠軸承 Ball Bearing |
155mm (6-1/8") |
103mm (4") |
| 300kgs (661lbs) |
EQPU輪 EQPU |
— | 1165-05-81-2(6) | — | ||||
| 100mm x 20mm(41.5) (4" x 3/4") |
300kgs (661lbs) |
ZQPU雙輪 ZQPU(Dual Wheels) |
— | 1165-05-101-2(6) | — | 滾珠軸承 Ball Bearing |
142.5mm (5-5/8") |
90mm (3-1/2") |
| 250kgs (551lbs) |
ZQPU輪(抗靜電) QPU(Dual Anti-Static Wheels) |
— | 1165-05-101-2(6) | — | ||||
| 150mm x 42mm (6" x 1-5/8") |
400kgs (880lbs) |
鋁芯AQPU QPU on AL Core |
— | 1165-06-87-2(6) | — | 滾珠軸承 Ball Bearing |
188mm (7-3/8") |
115mm (4-1/2" |
| 400kgs (880lbs) |
EQPU輪 EQPU |
— | 1165-06-81-2(6) | — | ||||
| 400kgs (880lbs) |
QPU輪 QPU |
— | 1165-06-80-2(6) | — | ||||
